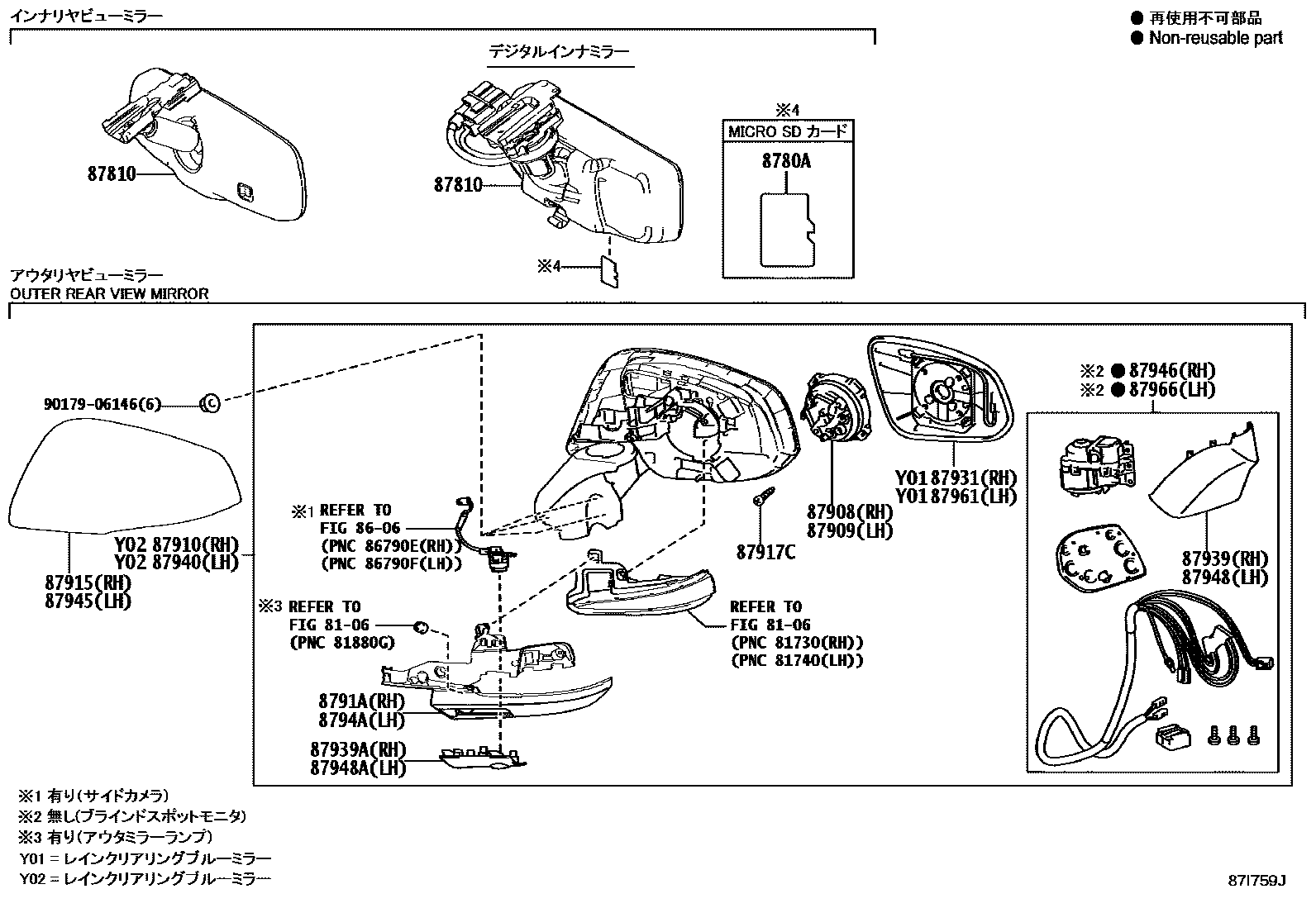

Toyota RAV4 后视镜 — Figure 8701
Toyota RAV4 EPC diagram 8701, 后视镜, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8780A | Toyota part | 8780A-42010 |
| 87810 | Interior rearview mirror assembly | 87810-0WZ20 · 87840-0W140 · 87840-0W210 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-42M50 |
| 87909 | Left exterior rearview mirror actuator assembly | 87908-42M50 |
| 87910 | Right exterior rearview mirror assembly | 87910-42F60 · 87910-42F61 · 87910-42F70 · 87910-42F80 · 87910-42F81 · 87910-42K70 · 87910-42K71 · 87910-42L10 · 87910-42L40 · 87910-42L41 · 87910-42M50 · 87910-42M60 |
| 87917C | Exterior rearview mirror screws | 87917-15010 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791B-42E40 · 8791B-42E50 |
| 87931 | Right exterior rearview mirror | 87931-42F50 · 87931-42F60 |
| 87939 | Right exterior rearview mirror hole cover | 87939-42F50 |
| 87939A | Right exterior rearview mirror hole cover | 87939-42E50 · 87939-42E60 · 87939-42L20 |
| 87940 | Left exterior rearview mirror assembly | 87940-42F40 · 87940-42F50 · 87940-42F51 · 87940-42F60 · 87940-42F61 · 87940-42K60 · 87940-42K61 · 87940-42L00 · 87940-42L30 · 87940-42L31 · 87940-42M50 · 87940-42M60 |
| 87946 | Right exterior rearview mirror retractor | 87946-42F80 |
| 87948 | Left exterior rearview mirror hole cover | 87948-42F20 |
| 87948A | Left exterior rearview mirror hole cover | 87948-42E20 · 87948-42E30 · 87948-42L10 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794A-42F50 · 8794A-42F60 · 8794B-42E20 |
| 87961 | Left exterior rearview mirror | 87961-42F30 · 87961-42F50 · 87961-42F60 |
| 87966 | Left exterior rearview mirror retractor | 87966-42F80 |
