Toyota RAV4 预碰撞安全系统 — Figure 8617

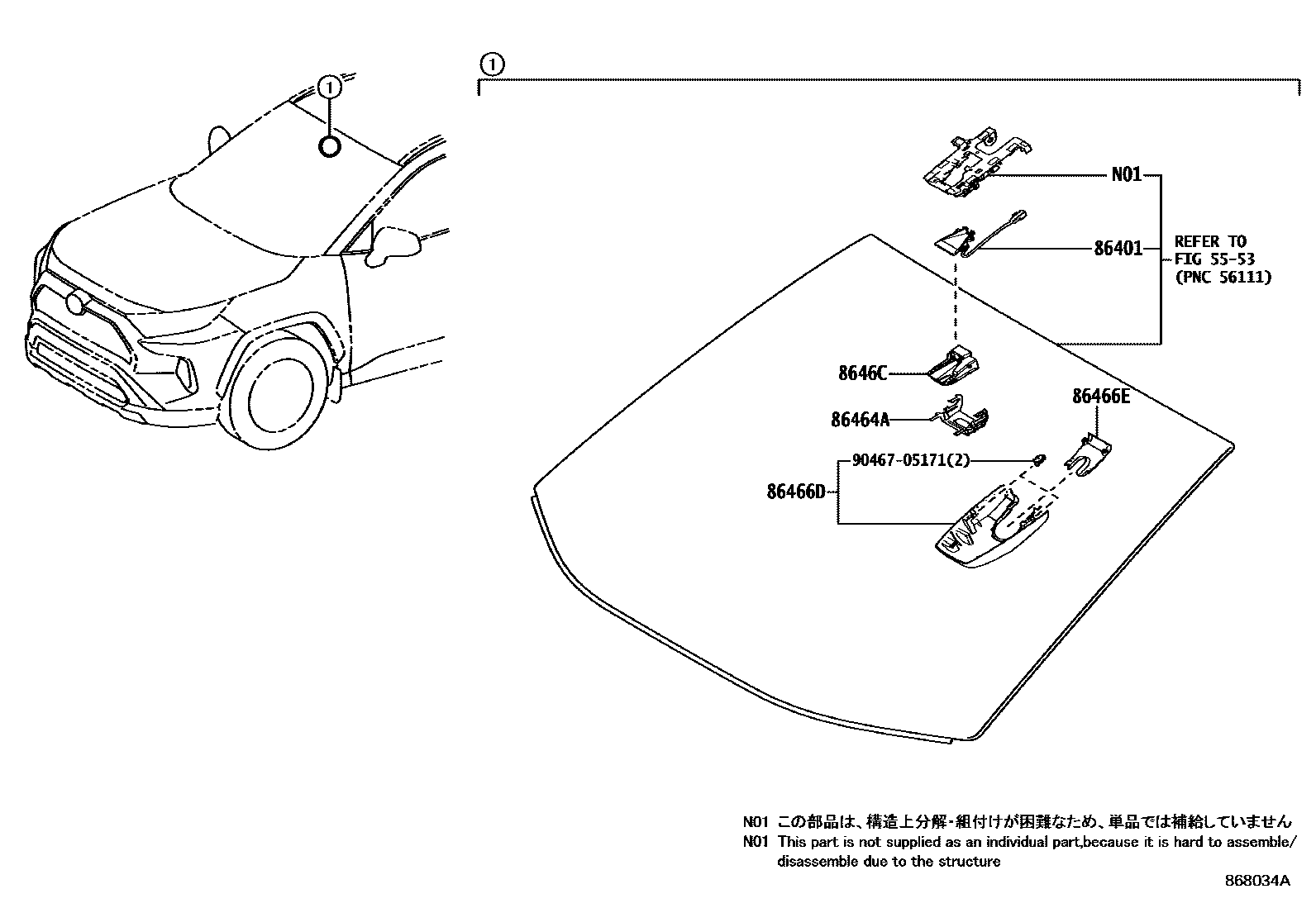

Toyota RAV4 EPC diagram 8617, 预碰撞安全系统, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86401 | Toyota part | 86401-42041 |
| 86464A | Toyota part | 86464-26010 |
| 86466D | Toyota part | 86466-42060 · 86466-48170 |
| 86466E | Toyota part | 86466-42070 · 86466-42130 |
| 8646C | Toyota part | 8646C-42050 · 8646C-42051 · 8646C-42080 · 8646C-42081 |
