Toyota RAV4 车载电话和呼救装置 — Figure 8615

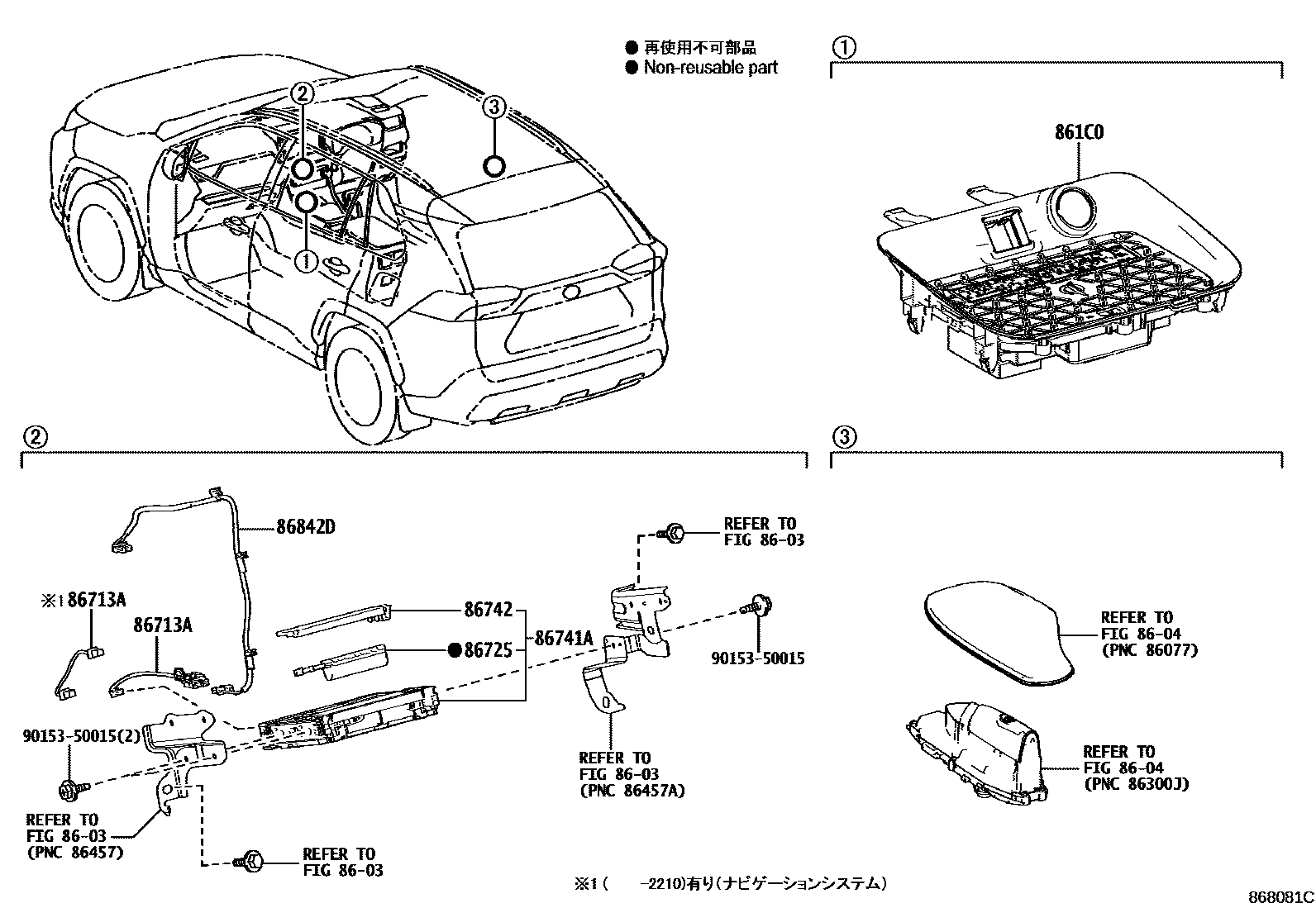

Toyota RAV4 EPC diagram 8615, 车载电话和呼救装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86713A | Telephone ECU harness (to transceiver) | 86713-42100 · 86713-42110 · 86713-42180 |
| 86725 | mobile phone battery | 86725-26010 · 86725-78020 |
| 86741A | Telecommunications transceiver | 86741-11050 · 86741-42081 · 86741-48101 · 86741-48102 · 86741-60120 |
| 86742 | transceiver cover | 86742-26010 |
| 86842D | Navigation harness | 86713-42190 · 86842-42040 |
