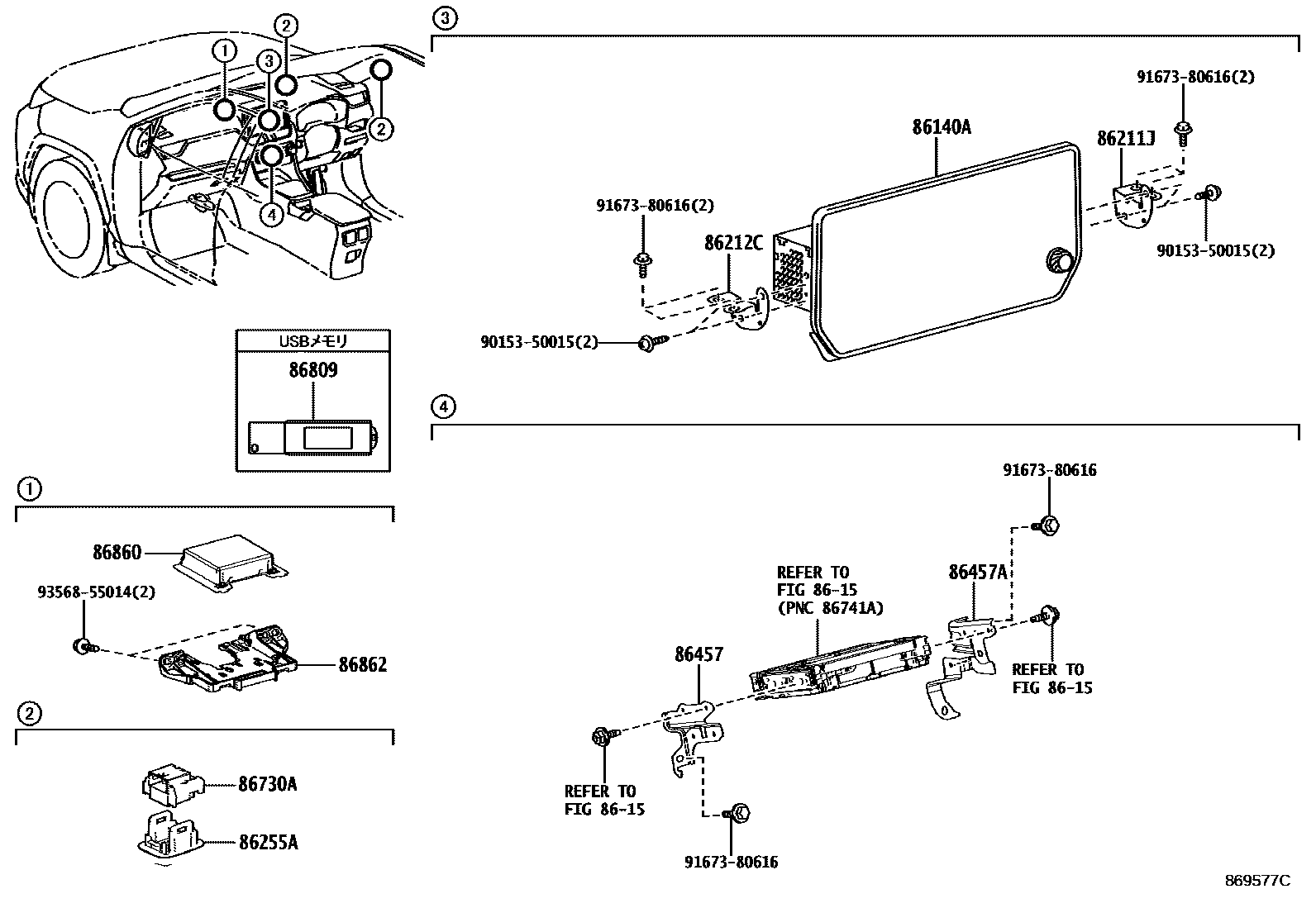

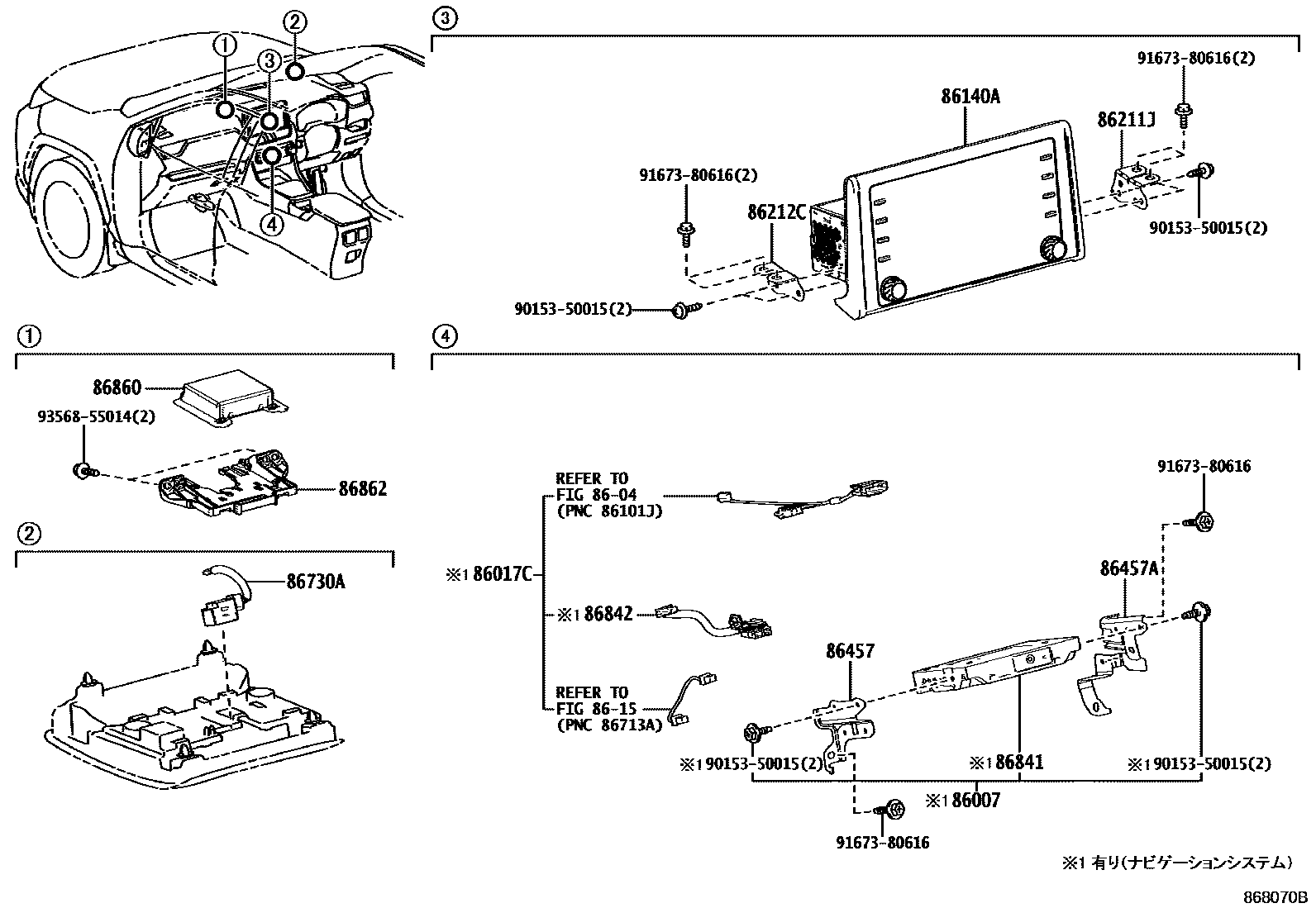

Toyota RAV4 导航和前监视器显示屏 — Figure 8603
Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86007 | Toyota part | 86007-52010 · 86007-52020 |
| 86017C | Toyota part | 86017-42010 |
| 86140A | Radio and display receiver assembly | 86100-42870 · 86100-42Z40 · 86140-42A10 · 86140-42A11 · 86140-42E60 · 86140-42E61 · 86140-42P00 · 86140-42V60 |
| 86211J | No. 1 radio bracket | 86211-42110 · 86211-42170 |
| 86212C | No. 2 radio bracket | 86212-42110 · 86212-42170 |
| 86457 | Multimedia module bracket No. 1 | 86457-42070 |
| 86457A | Multimedia module bracket No. 2 | 86457-42080 |
| 86730A | Telephone amplifier assembly | 86730-42080 · 86730-42110 |
| 86809 | Toyota part | 86809-78011 · 86809-78012 · 86809-78013 · 86809-78014 |
| 86841 | Navigation ECU | 86840-K0032 · 86840-K0033 · 86840-K0034 · 86840-K0035 · 86840-K0036 · 86840-K0042 · 86840-K0043 · 86840-K0044 · 86840-K0045 · 86840-K0046 |
| 86842 | Navigation harness No. 1 | 86842-42050 |
| 86860 | Navigation antenna assembly | 86880-52030 · 86880-78010 |
| 86862 | Navigation antenna bracket | 86862-42010 · 86862-48060 |
