Toyota RAV4 逆变器冷却系统 — Figure 8432

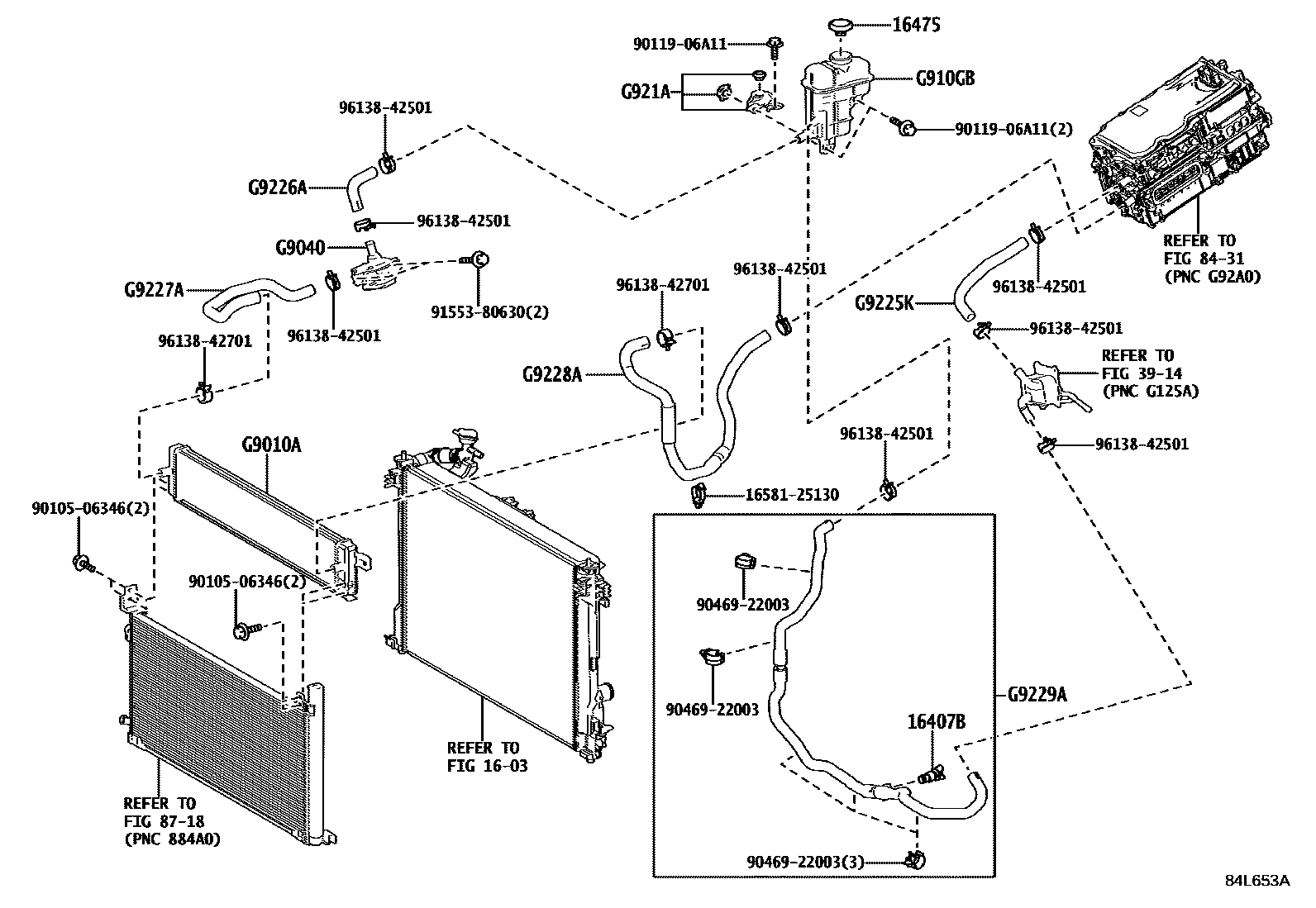

Toyota RAV4 EPC diagram 8432, 逆变器冷却系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16407B | Radiator drain switch sub-assembly | 16407-64010 |
| 16475 | Reservoir tank cover | 16475-28140 |
| G9010A | Radiator assembly | G9010-42030 |
| G9040 | Inverter water pump assembly (with motor) | G9040-42020 · G9040-48050 |
| G910GB | Toyota part | G910G-42010 |
| G921A | No. 1 inverter tank bracket | G91H2-42010 |
| G9225K | No. 1 inverter cooling hose | G9225-42020 |
| G9226A | No. 2 inverter cooling hose | G9226-42020 |
| G9227A | No. 3 inverter cooling hose | G9227-42020 |
| G9228A | No. 4 inverter cooling hose | G9228-42040 |
| G9229A | No. 5 inverter cooling hose | G9229-42030 |
