Toyota RAV4 HV逆变器 — Figure 8431

Toyota RAV4 EPC diagram 8431, HV逆变器, with 2 images and 7 PNC and OE references.

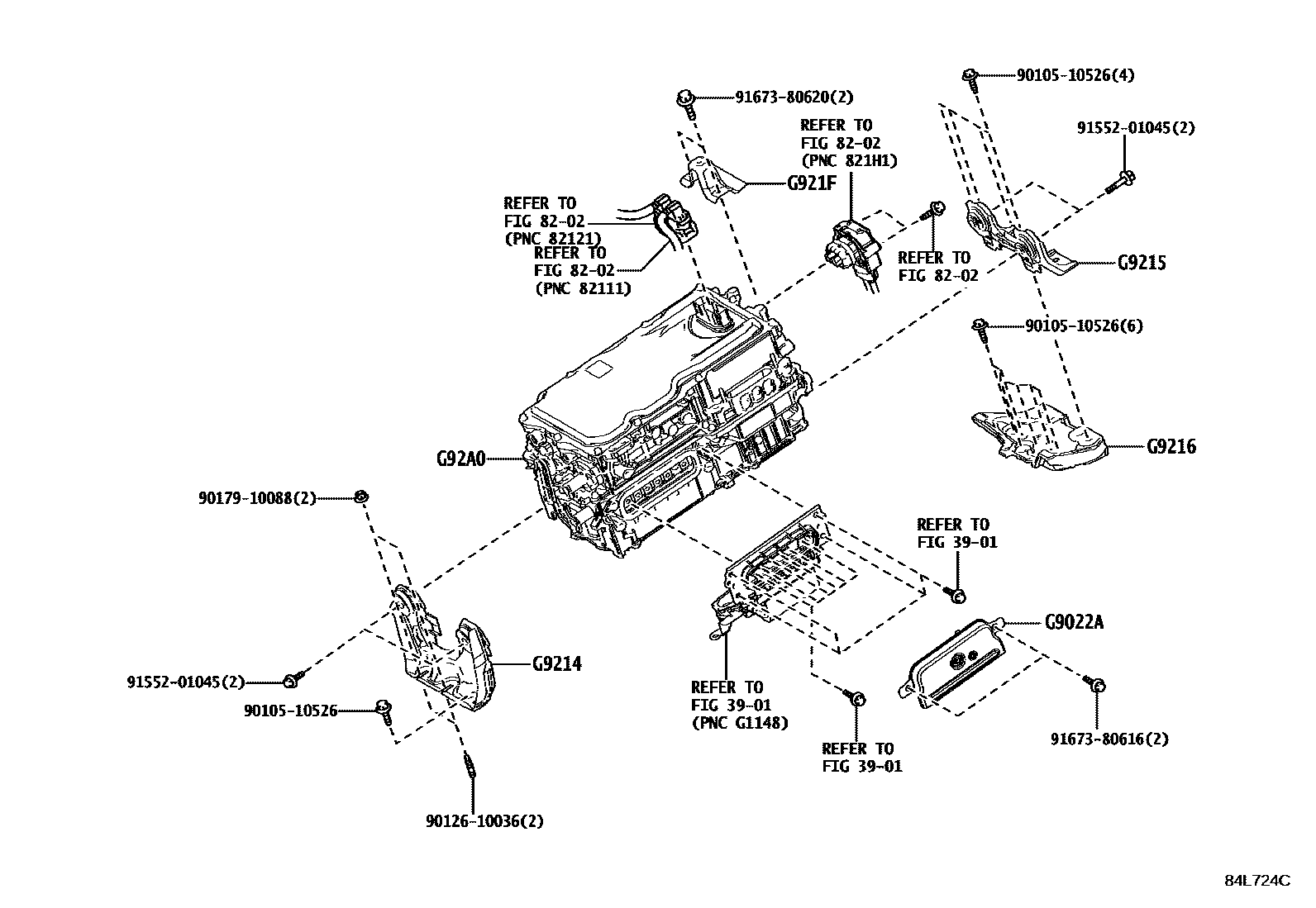

Toyota RAV4 HV逆变器 EPC diagram — 84L724C
HV逆变器 — 84L724C (202006 – 999999)

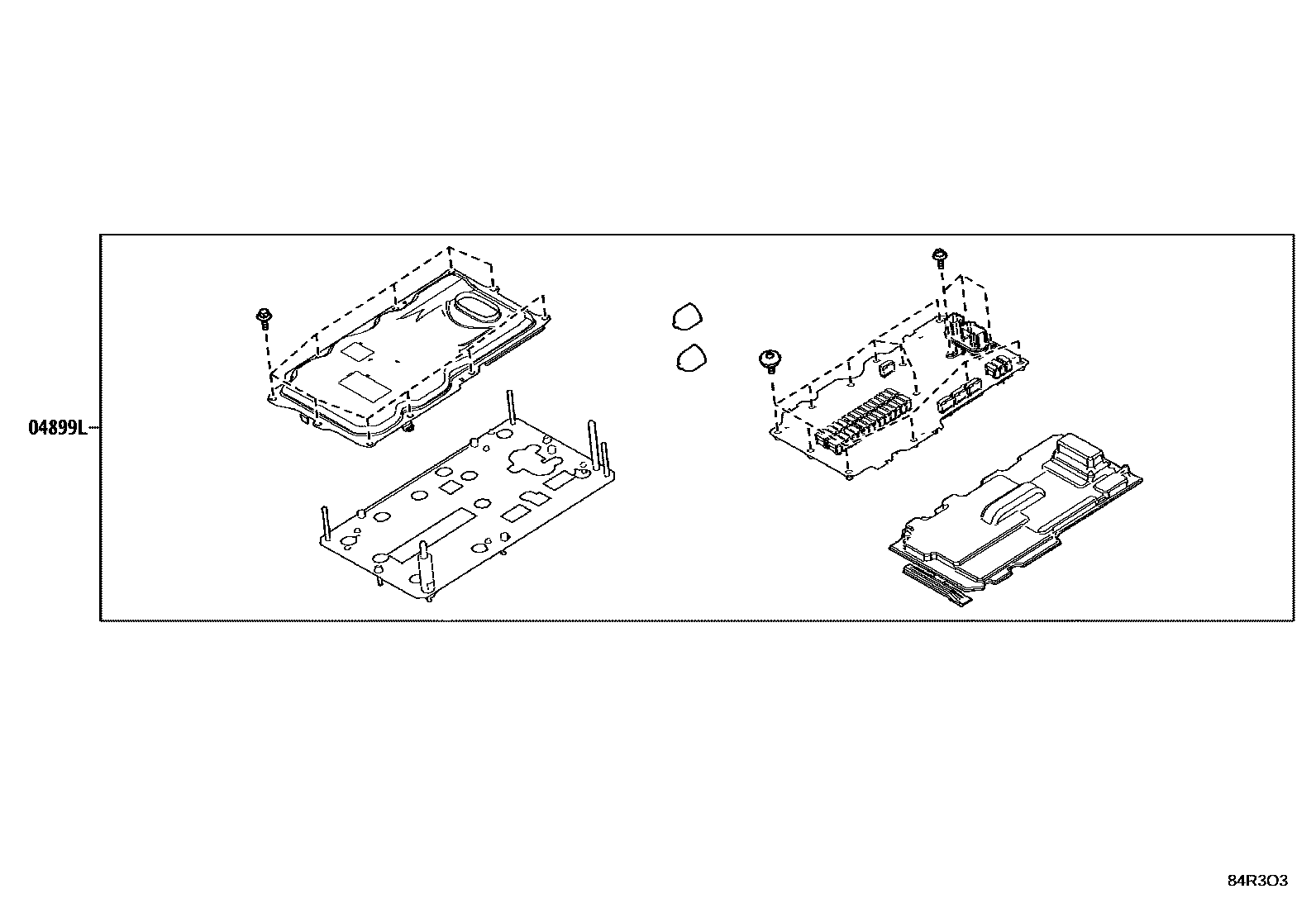

Toyota RAV4 HV逆变器 EPC diagram — 84R3O3
HV逆变器 — 84R3O3 (202006 – 999999)

PNC and OE references

PNCPart nameOE numbers
04899LToyota part04899-42031 · 04899-42032 · 04899-42050
G9022AToyota partG9022-47050
G9214No. 1 inverter bracketG9214-42010
G9215No. 2 inverter bracketG9215-42020
G9216No. 3 inverter bracketG9216-42020
G921FToyota partG921F-42010
G92A0Hybrid motor control inverter assemblyG92A0-42110 · G92A0-42111 · G92A0-42112 · G92A0-42113
