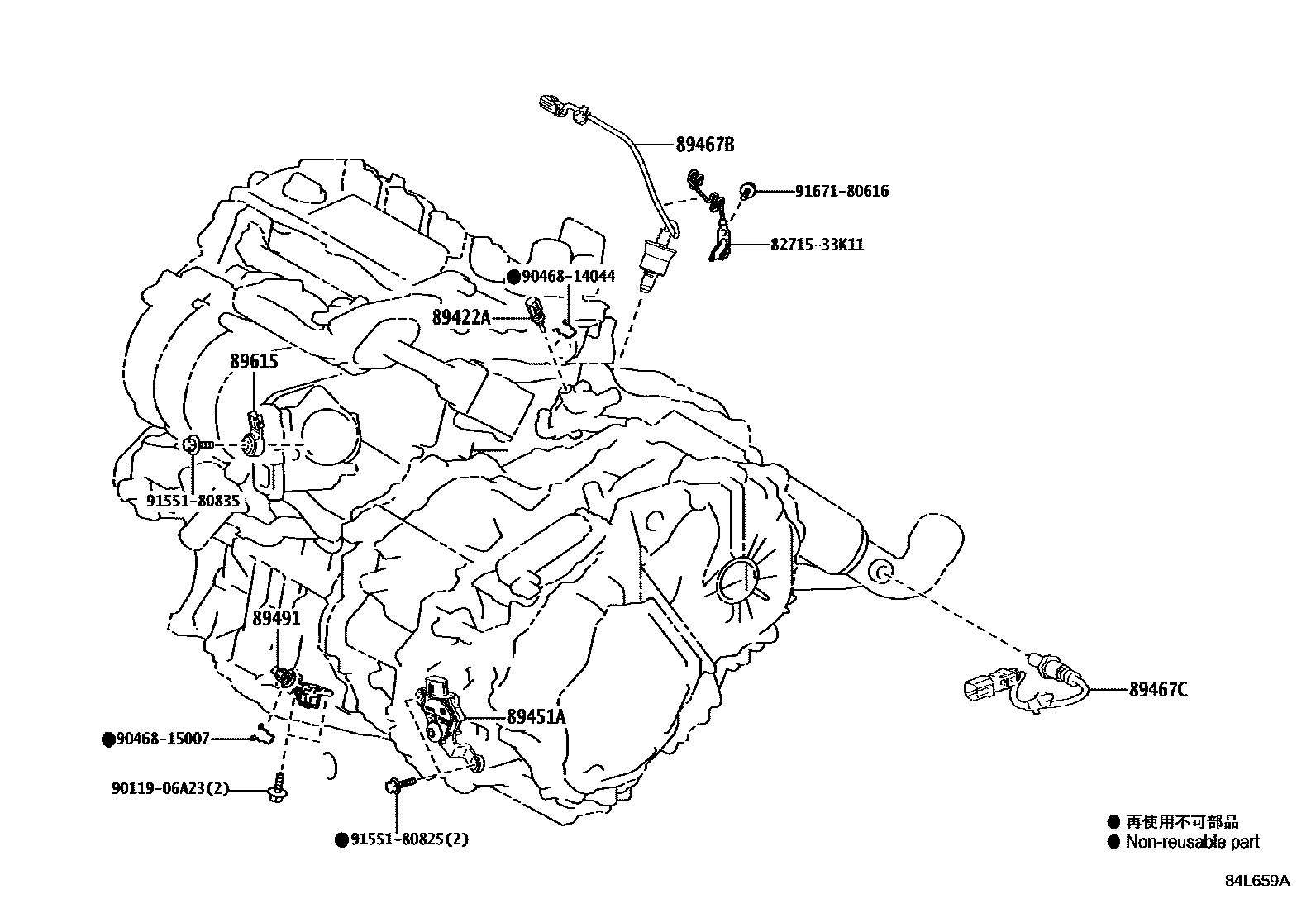

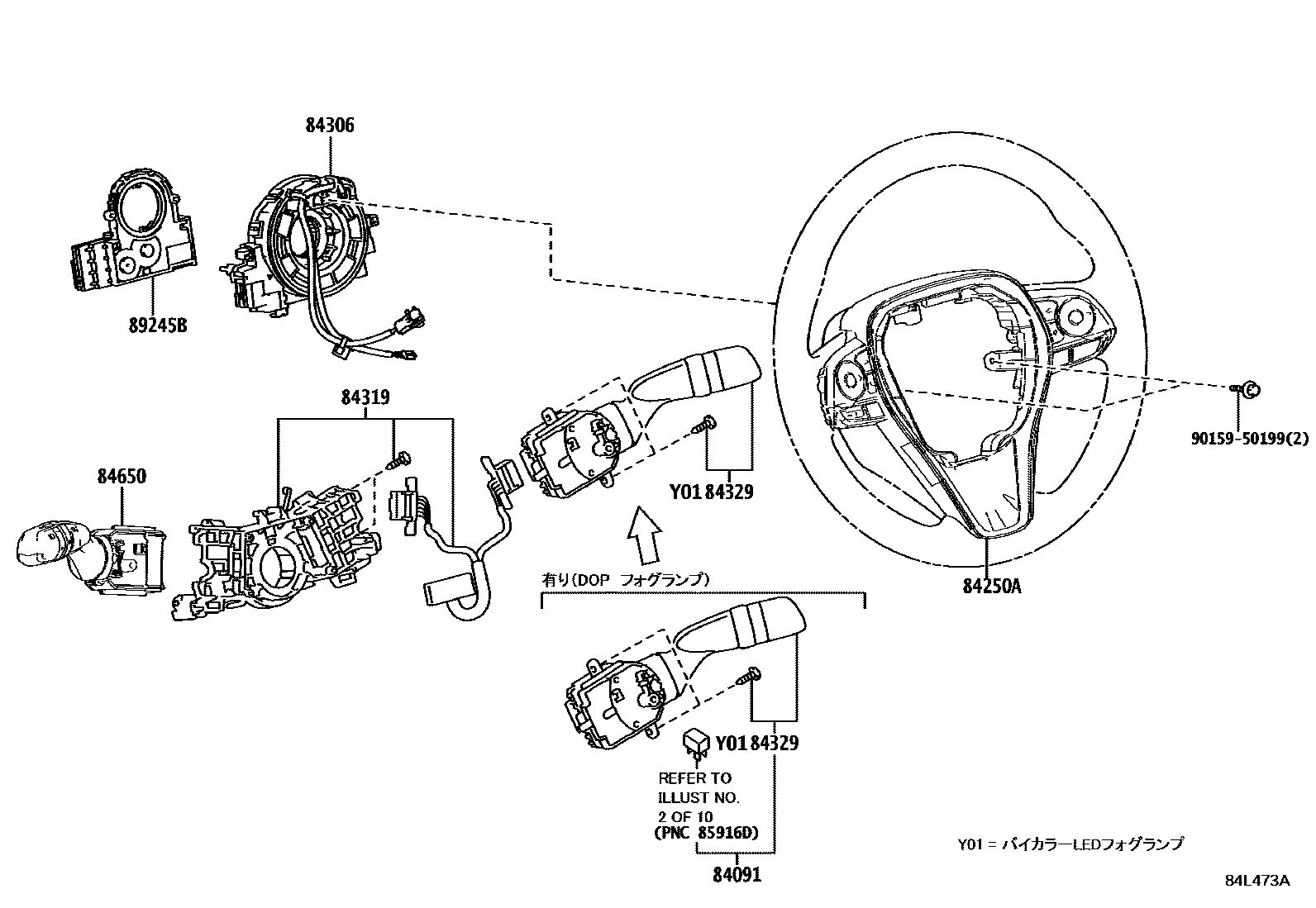

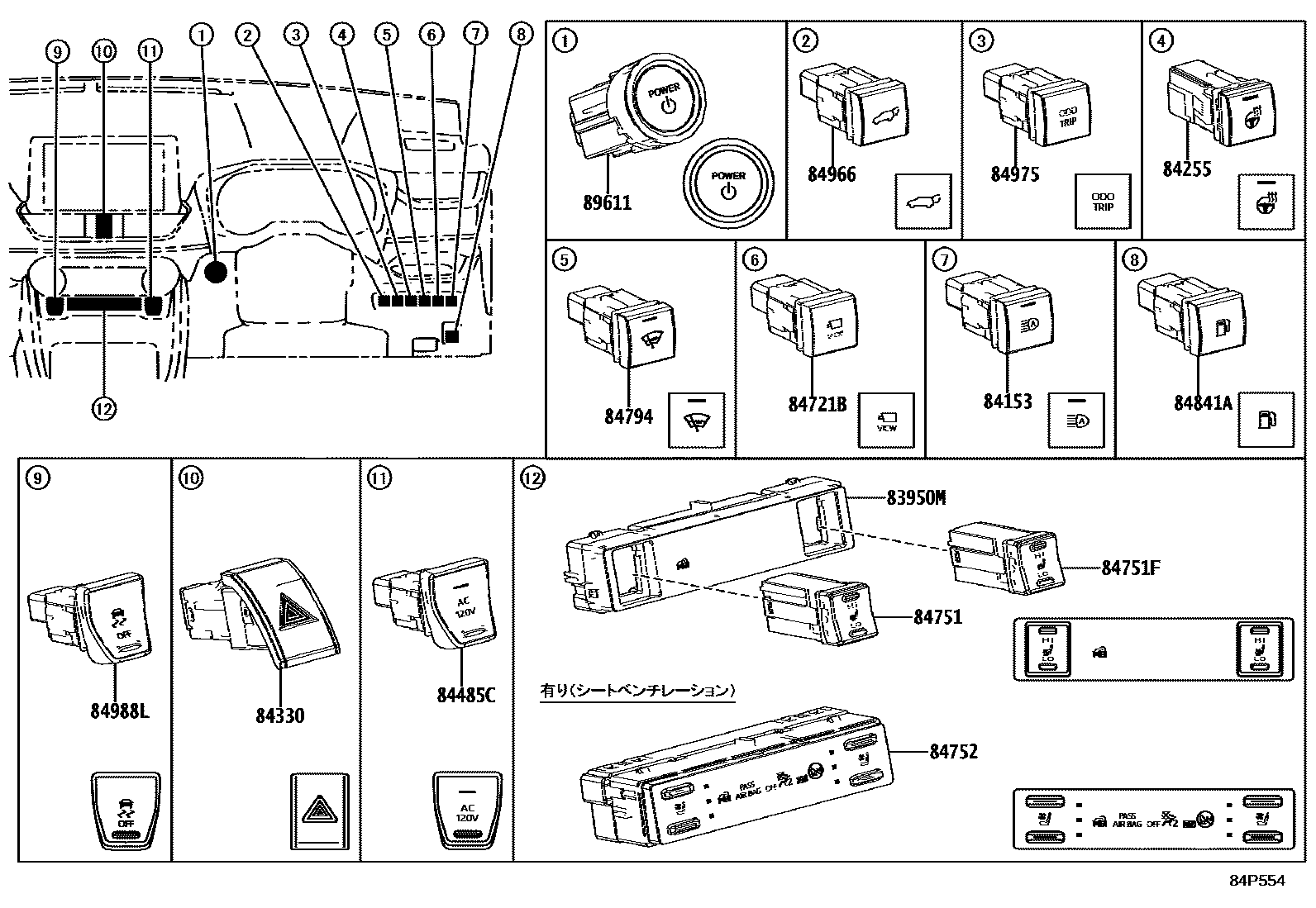

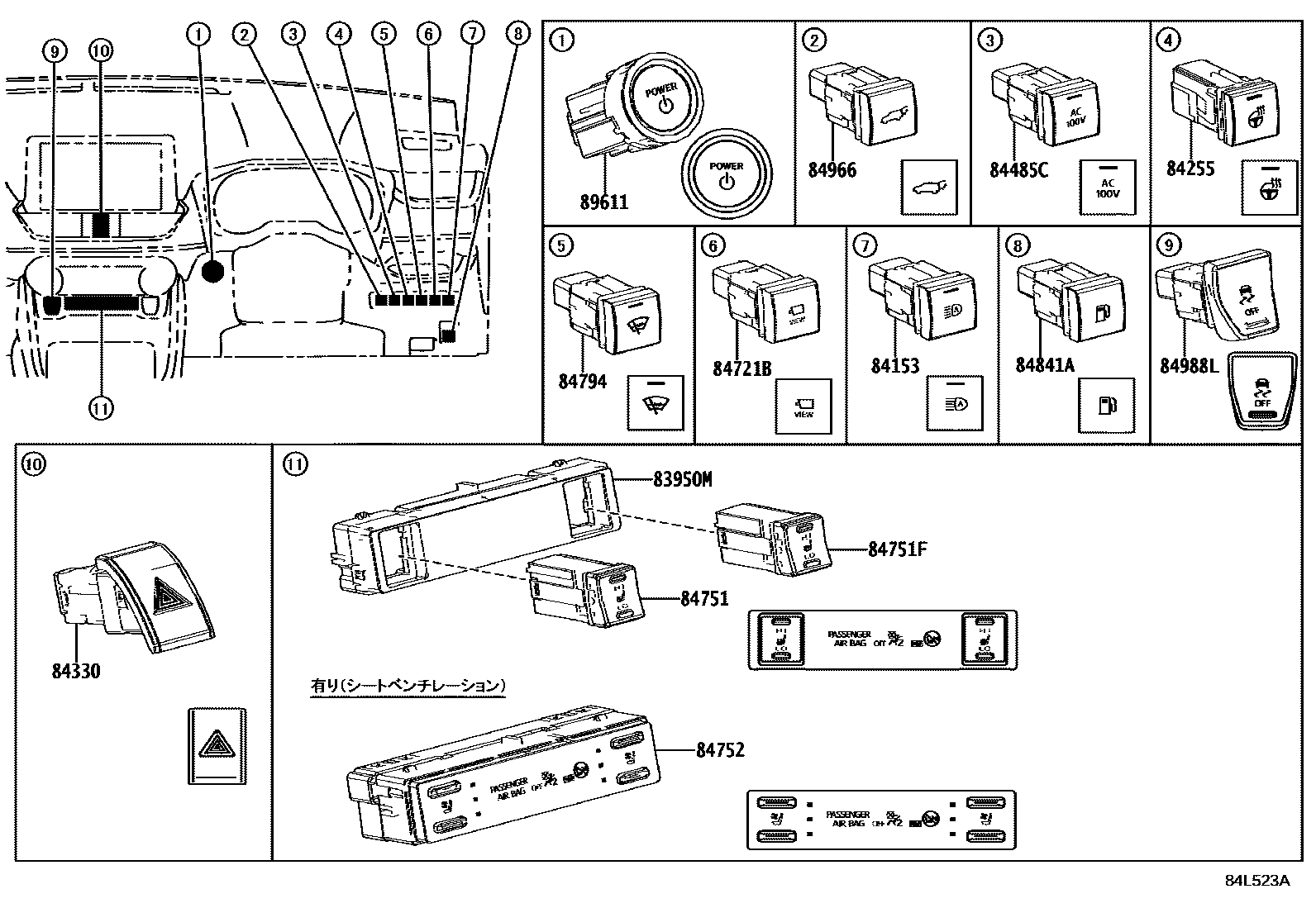

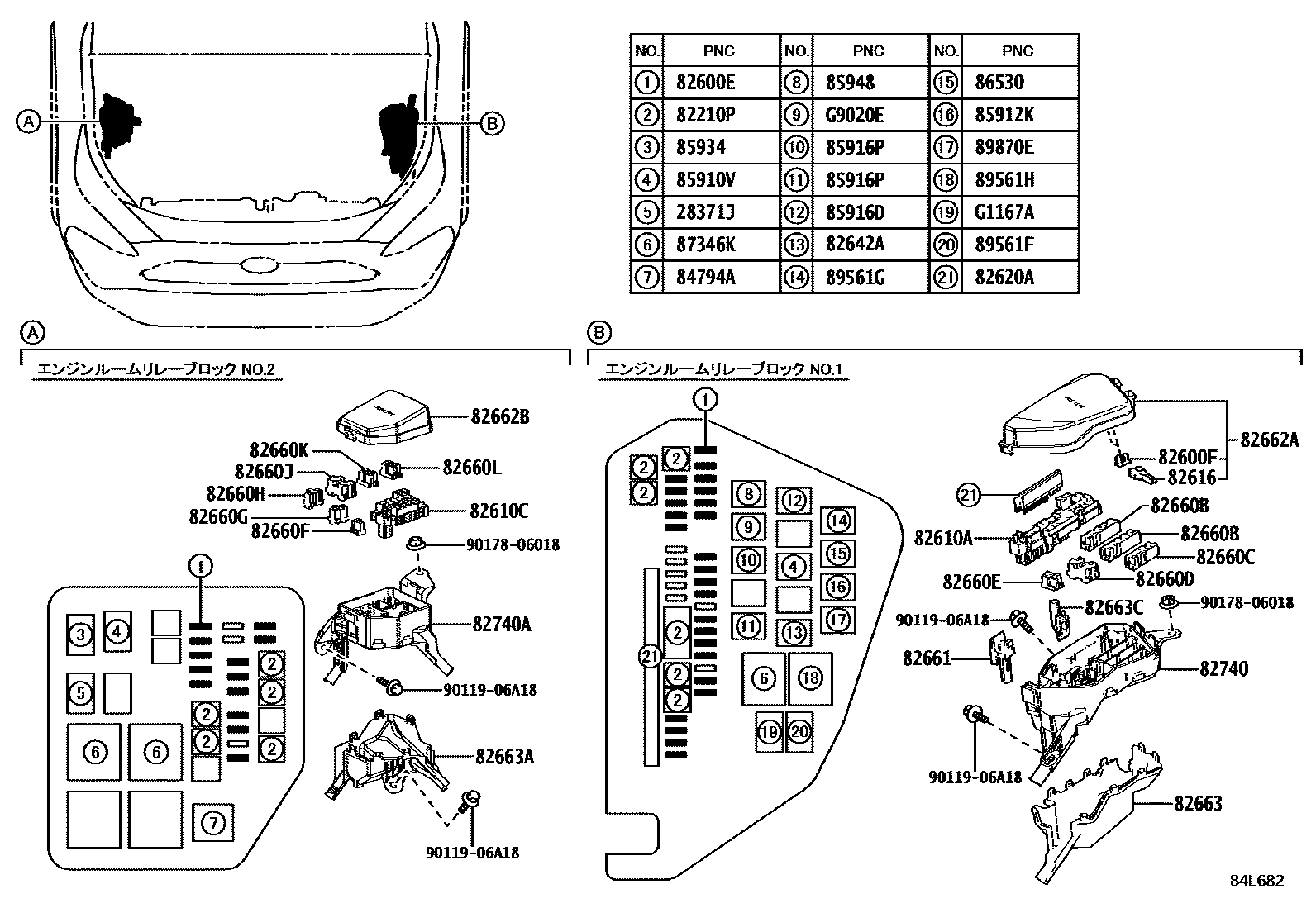

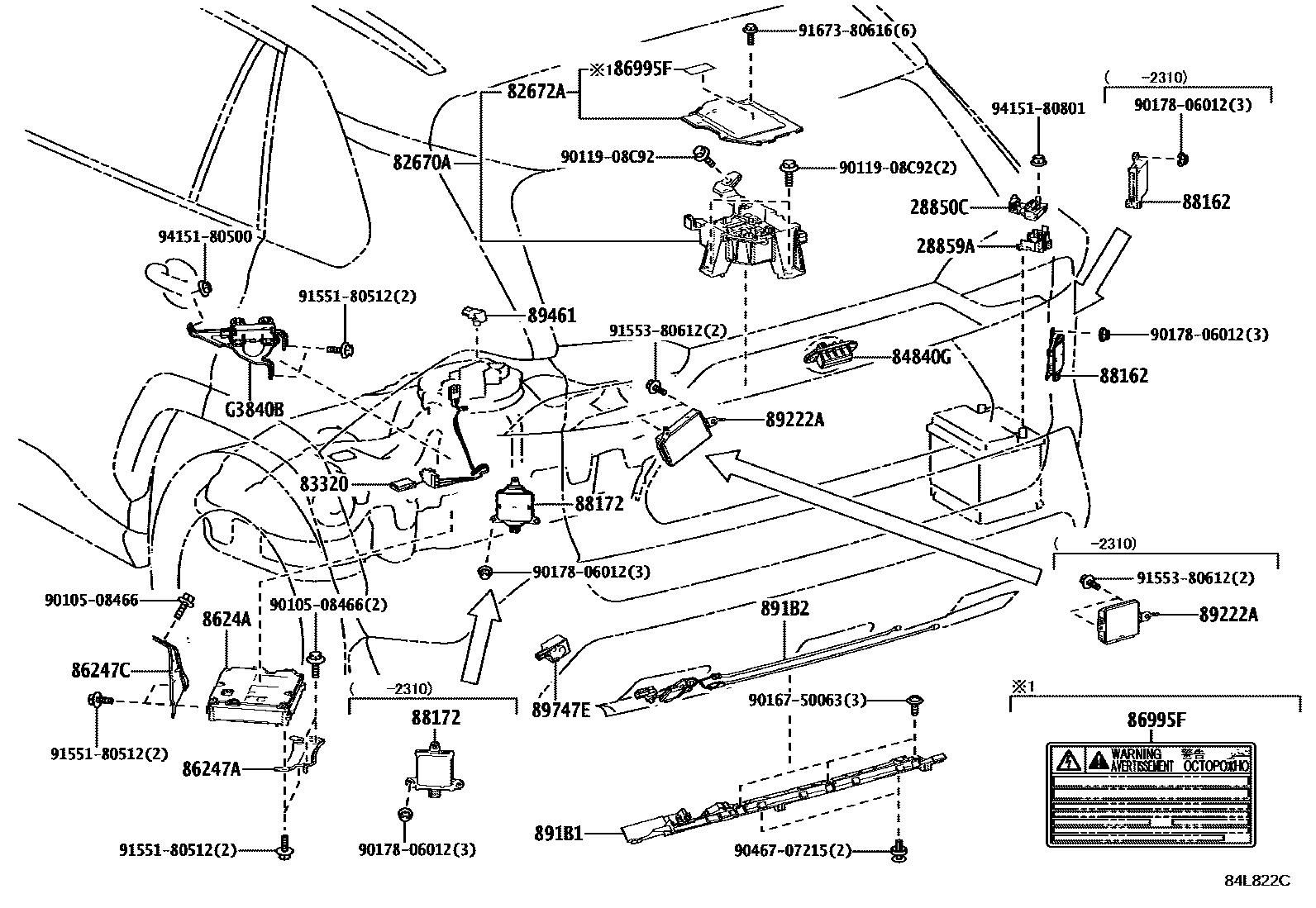

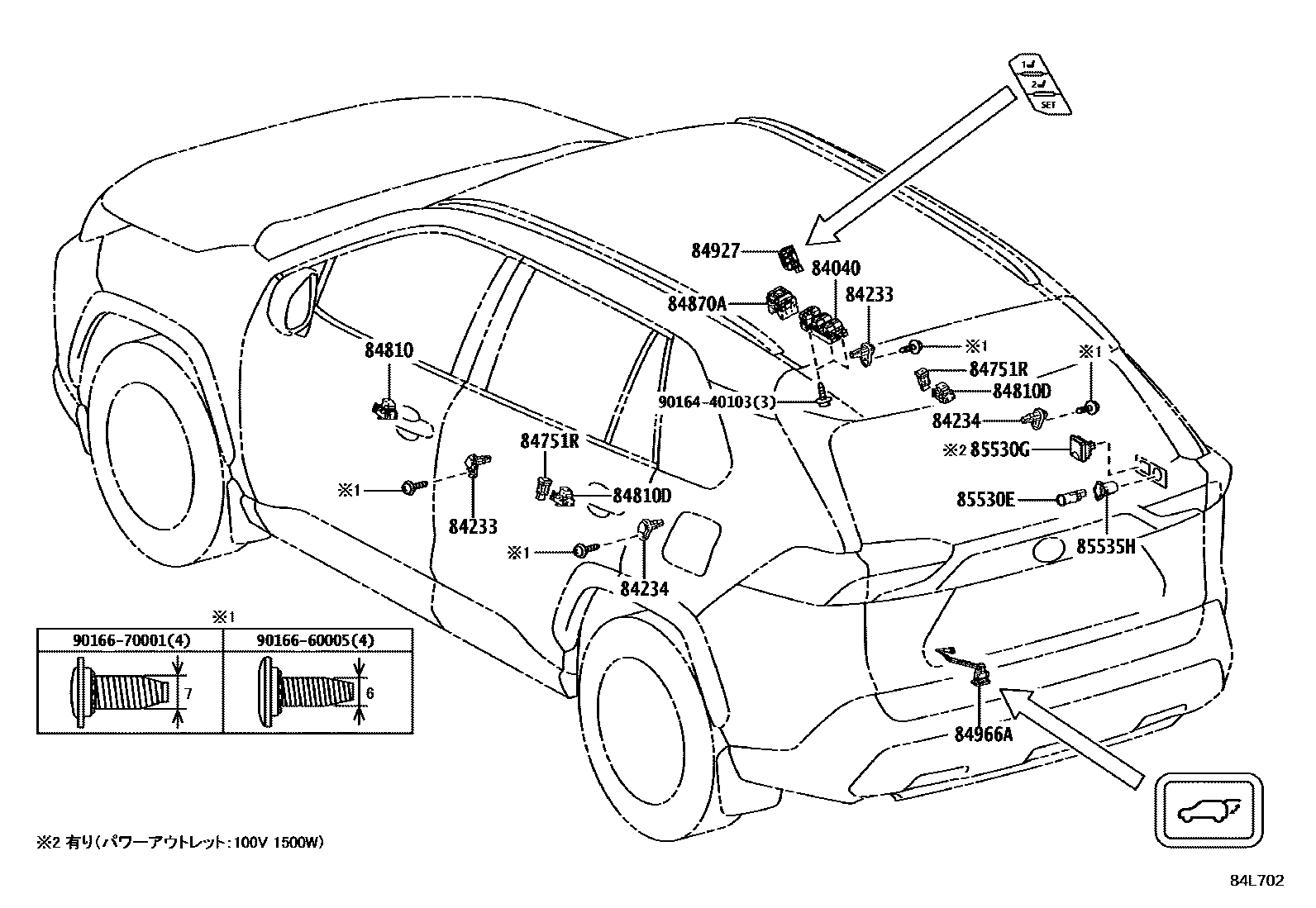

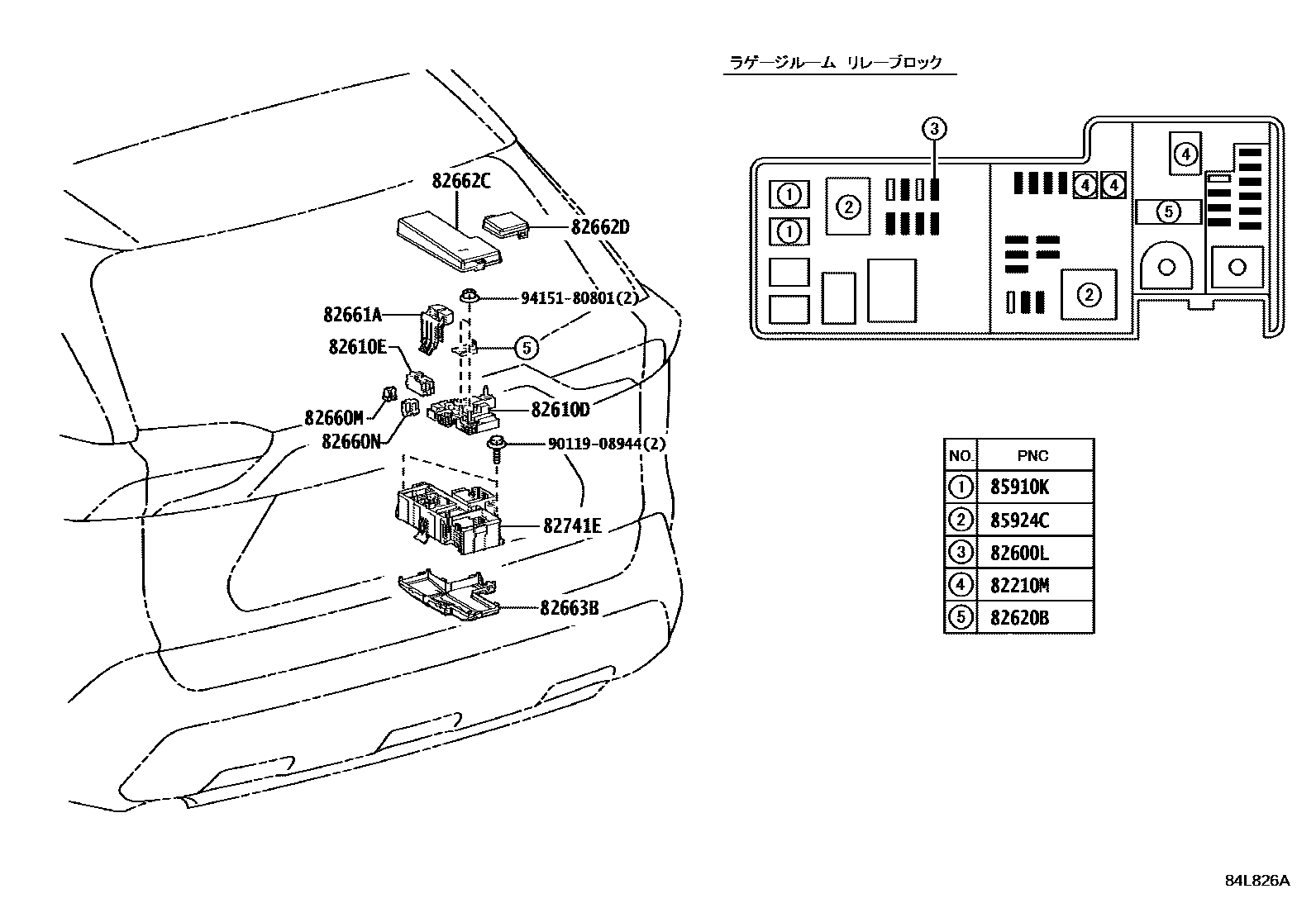

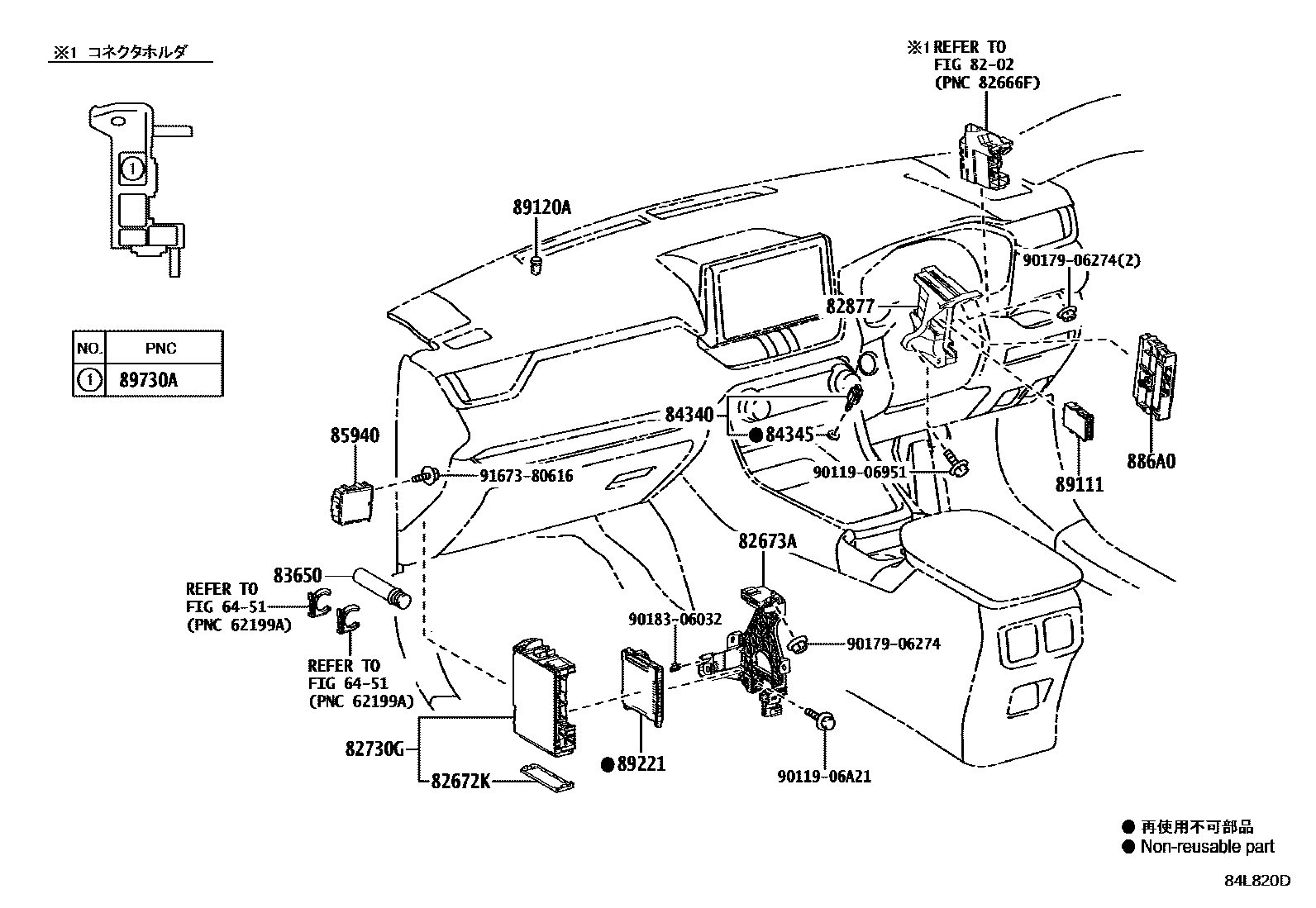

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 11 images and 133 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28371J | Toyota part | 90987-02027 |
| 28850C | Toyota part | 28850-K0010 |
| 28859A | Toyota part | 28859-25060 |
| 82210M | fuse | 90982-08298 · 90982-08310 · 90982-08311 |
| 82210P | Engine room fuse | 90982-08298 · 90982-08302 · 90982-08311 · 90982-08312 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09023 · 90982-09025 |
| 82600L | Toyota part | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-42150 |
| 82610C | Fuse box assembly | 82610-42090 |
| 82610D | Fuse box assembly | 82610-42160 |
| 82610E | Fuse box assembly | 82610-42170 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-42090 |
| 82620B | Fuse box assembly | 82620-0E050 |
| 82642A | driving light relay | 90987-02027 |
| 82660B | Relay assembly | 82660-0E060 |
| 82660C | Relay assembly | 82660-0E050 |
| 82660D | Relay assembly | 82660-33040 |
| 82660E | Relay assembly | 82660-48020 |
| 82660F | Relay assembly | 82660-0E010 |
| 82660G | Relay assembly | 82660-52100 |
| 82660H | Relay assembly | 82660-48030 |
| 82660J | Toyota part | 82660-33040 |
| 82660K | Toyota part | 82660-48020 |
| 82660L | Toyota part | 82660-48040 |
| 82660M | Toyota part | 82660-28350 |
| 82660N | Toyota part | 82660-48030 |
| 82661 | No. 1 relay box cover | 82661-42090 |
| 82661A | No. 2 relay box cover | 82661-42100 |
| 82662A | No. 1 relay box upper cover | 82662-42760 · 82662-42761 · 82662-42762 |
| 82662B | No. 2 relay box upper cover | 82662-42450 |
| 82662C | No. 3 relay box upper cover | 82662-42740 |
| 82662D | No. 4 relay box upper cover | 82662-42750 |
| 82663 | Relay box lower cover | 82663-42240 |
| 82663A | No. 2 relay box lower cover | 82663-42170 |
| 82663B | No. 3 relay box lower cover | 82663-42270 |
| 82663C | No. 4 relay box lower cover | 82663-42260 |
| 82670A | No. 1 junction box assembly | 82670-42020 · 82670-42030 |
| 82672A | Junction box cover | 82672-42210 |
| 82672K | Toyota part | 82672-42220 · 82672-42221 |
| 82673A | Junction box bracket | 82673-42320 |
| 82730G | Toyota part | 82730-42840 · 82730-42841 · 82730-42842 |
| 82740 | Engine room relay box assembly | 82740-42140 |
| 82740A | Engine room No. 2 relay box assembly | 82740-42060 |
| 82741E | Toyota part | 82740-42150 |
| 82877 | Right ECU integrated box | 82877-42050 |
| 83320 | Fuel gauge sensor assembly | 83320-42120 · 83320-48150 |
| 83650 | fuse | 90986-01005 |
| 83950M | Warning light assembly | 83950-42410 · 83950-42570 |

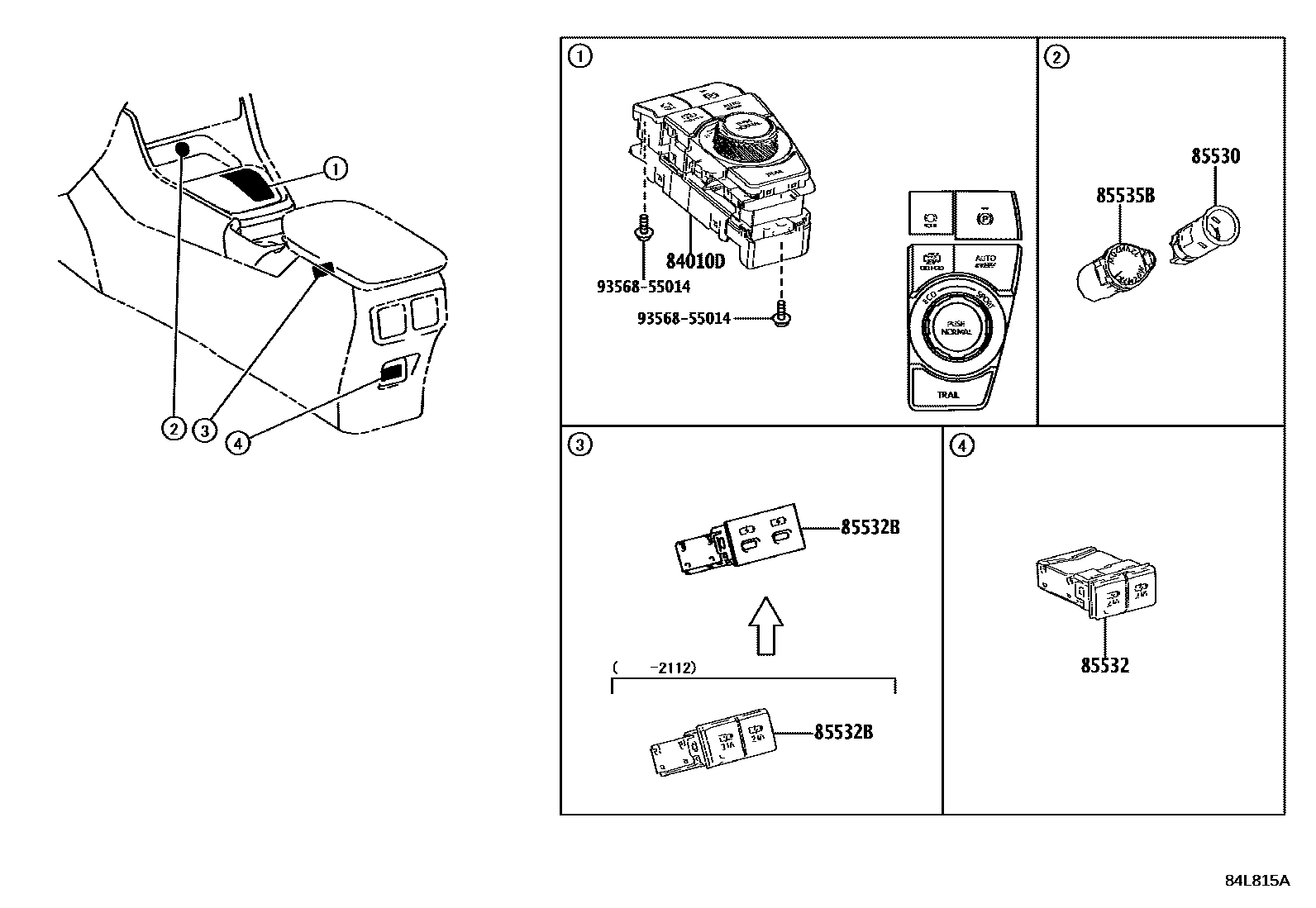

| 84010D | Integrated control and panel assembly | 84010-42230 · 84010-42231 · 84010-42240 · 84010-42241 |
| 84040 | Multi-channel network main switch assembly | 84040-42090 · 84040-42150 |
| 84091 | Satellite switch assembly | 84091-42010 · 84091-42020 |
| 84153 | Automatic high beam switch | 84153-16010 · 84153-33040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-42500 · 84250-42650 |
| 84255 | Steering heater switch | 84255-42020 · 84255-42030 |
| 84306 | Spiral cable sub-assembly | 84308-42020 · 84308-60040 |
| 84319 | Steering wheel switch housing | 84319-33030 |
| 84329 | turn signal switch | 84329-52010 · 84329-K0010 · 84329-K0020 · 84329-K0030 |
| 84330 | Hazard warning signal switch assembly | 84332-42030 |
| 84340 | brake light switch assembly | 84340-49105 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84485C | Toyota part | 84485-12010 · 84485-42100 |
| 84650 | Windshield wiper switch assembly | 84652-12B40 · 84652-42210 |
| 84721B | Toyota part | 84721-16010 · 84721-33010 |
| 84751 | Seat heater switch | 84751-16020 · 84751-42050 |
| 84751F | Seat heater switch | 84751-16030 · 84751-42060 |
| 84751R | Seat heater switch (rear) | 84751-12080 · 84751-33140 |
| 84752 | Relax seat switch | 84752-42030 · 84752-42080 |
| 84794 | Front wiper de-icer switch | 84794-42020 · 84871-60060 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84810 | Electric window lift switch assembly | 84810-12120 · 84810-30230 |
| 84810D | Rear electric window lift switch assembly | 84810-12120 · 84810-30230 |
| 84840G | Back door opener switch assembly | 84840-47040 |
| 84841A | Fuel filler cap opener switch | 84841-30050 · 84841-33040 |
| 84870A | Exterior rearview mirror switch assembly | 84872-42030 · 84872-42150 · 84872-42330 |

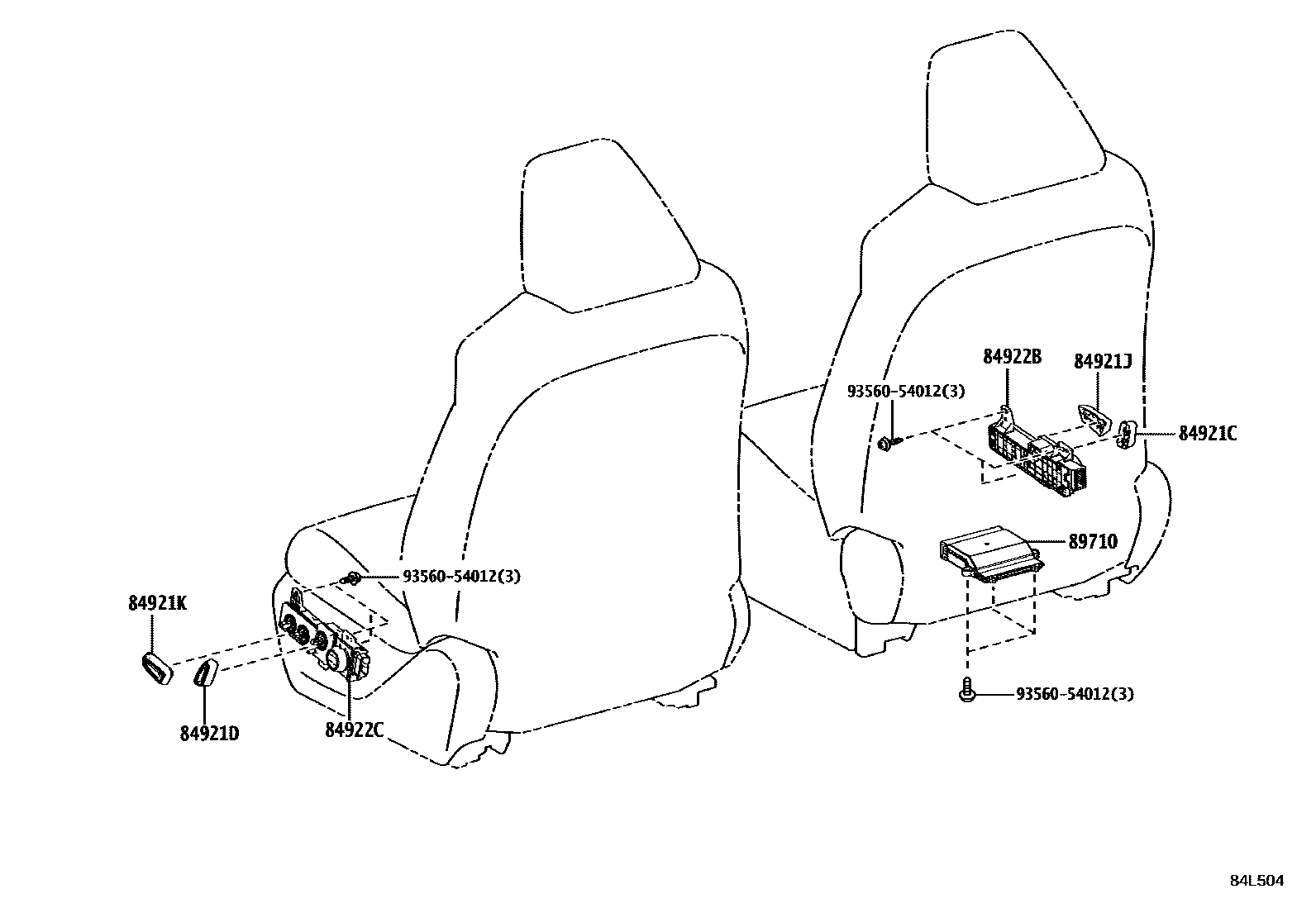

| 84922C | Front left electric seat switch | 84922-33180 |
| 84927 | Seat memory switch | 84927-42050 |
| 84966 | Toyota part | 84966-16020 · 84966-42010 |
| 84966A | Toyota part | 84966-42020 |
| 84975 | trip odometer switch | 84975-42030 |
| 84988L | VSC off switch | 84988-42050 · 84988-42060 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530E | No. 3 power socket assembly | 85530-42010 |
| 85532 | Toyota part | 85532-15010 · 85532-33020 · 85532-78010 |
| 85532B | Toyota part | 85532-42010 · 85532-42060 · 85532-60040 |
| 85535B | No. 1 power outlet cover | 85535-30020 |
| 85535H | Toyota part | 85535-30020 |
| 85910K | Rear seat heater relay | 90987-02027 |
| 85910V | seat heater relay | 90987-02027 |
| 85912K | Toyota part | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02027 |
| 85924C | Toyota part | 90987-02031 |
| 85934 | Electromagnetic clutch relay | 90987-04004 |
| 85940 | Windshield wiper relay assembly | 85940-42040 |
| 85948 | windshield wiper relay | 90987-02027 |
| 86247A | Voltage inverter bracket | 86247-42060 |
| 86247C | Toyota part | 86247-42070 |
| 8624A | Toyota part | 8624A-42010 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 86995F | Toyota part | G9118-76010 |
| 87346K | PTC heater relay | 90987-02025 |
| 88162 | Blind spot monitor right sensor | 88162-42061 · 88162-42120 |
| 88172 | Blind spot monitor left sensor | 88162-42061 · 88162-42120 |
| 886A0 | Toyota part | 886A0-42010 · 886A0-42020 |
| 89111 | Network gateway ECU | 89111-42120 · 89111-42121 · 89111-42122 · 89111-42170 · 89111-42210 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 891B1 | Toyota part | 891B1-42030 |
| 891B2 | Toyota part | 891B2-0W050 · 891B2-0W310 |
| 89221 | Multi-channel network body ECU | 892G0-42060 · 892G0-42061 · 892G0-42070 · 892G0-42071 · 892G0-42080 · 892G0-42081 · 892G0-42220 · 892G0-42230 · 892G0-42240 · 892G0-4AB10 · 892G0-4AB20 · 892G0-4AB30 · 892G0-4BS20 |
| 89222A | Multi-channel network door ECU | 89222-42010 · 89222-42150 |
| 89245B | steering sensor | 8924B-K0010 · 8924B-V1010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89461 | steam pressure sensor | 89461-47010 · 89461-48020 |
| 89467B | air fuel ratio sensor | 89467-33290 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-42190 |
| 89491 | Engine oil level sensor | 89491-33051 · 89491-33052 |
| 89561F | Toyota part | 90987-02027 |
| 89561G | Toyota part | 90987-02027 |
| 89561H | Toyota part | 90987-02025 |
| 89611 | push button start switch | 89611-12020 · 89611-16010 |
| 89615 | knock control sensor | 89615-20090 |
| 89710 | Position control ECU assembly | 89710-42040 · 89710-42041 · 89710-42080 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89870E | Toyota part | 90987-02027 |
| G1167A | Relay (for oil pump motor) | 90987-02027 |
| G3840B | Toyota part | G3840-42040 |
| G9020E | Hybrid water pump relay | 90987-02027 |
