Toyota RAV4 仪表 — Figure 8301
Toyota RAV4 EPC diagram 8301, 仪表, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

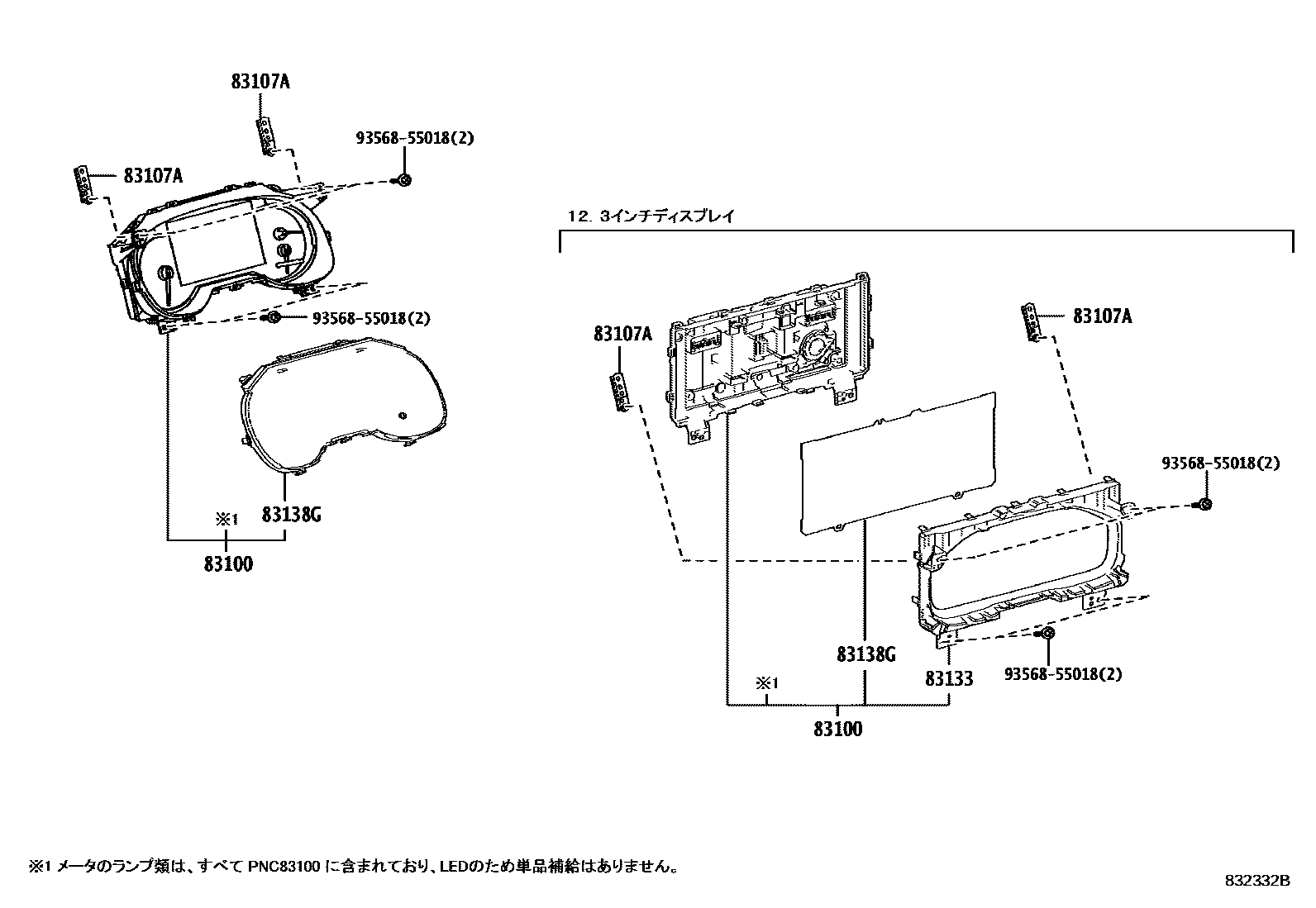

| 83100 | Combined instrument assembly | 83800-4A270 · 83800-4AA40 · 83800-4AE70 · 83800-4AE71 · 83800-4AE72 · 83800-4AE73 · 83800-4AE74 |
| 83107A | Toyota part | 83107-42010 |

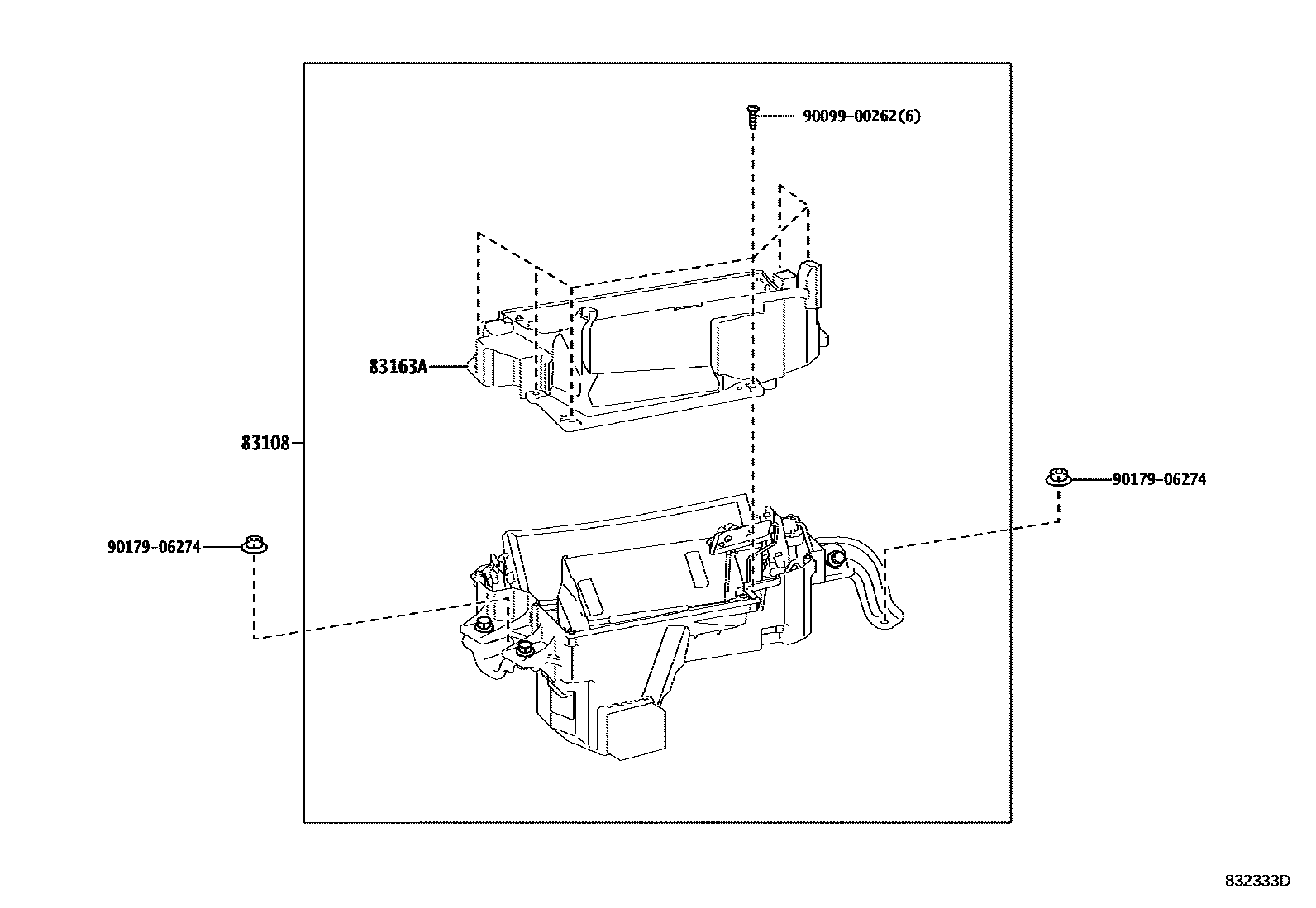

| 83108 | Instrument rearview mirror sub-assembly | 83108-42040 · 83108-42070 · 83108-42090 · 83108-42110 · 83108-42111 |
| 83133 | Combined instrument panel No. 1 | 83811-4AB40 |
| 83138G | Instrument cluster glass | 83852-42Y10 · 83852-4AB40 |
| 83163A | Toyota part | 83163-42040 · 83163-42070 |
