Toyota RAV4 线束和卡夹 — Figure 8202

Toyota RAV4 EPC diagram 8202, 线束和卡夹, with 14 images and 131 PNC and OE references.

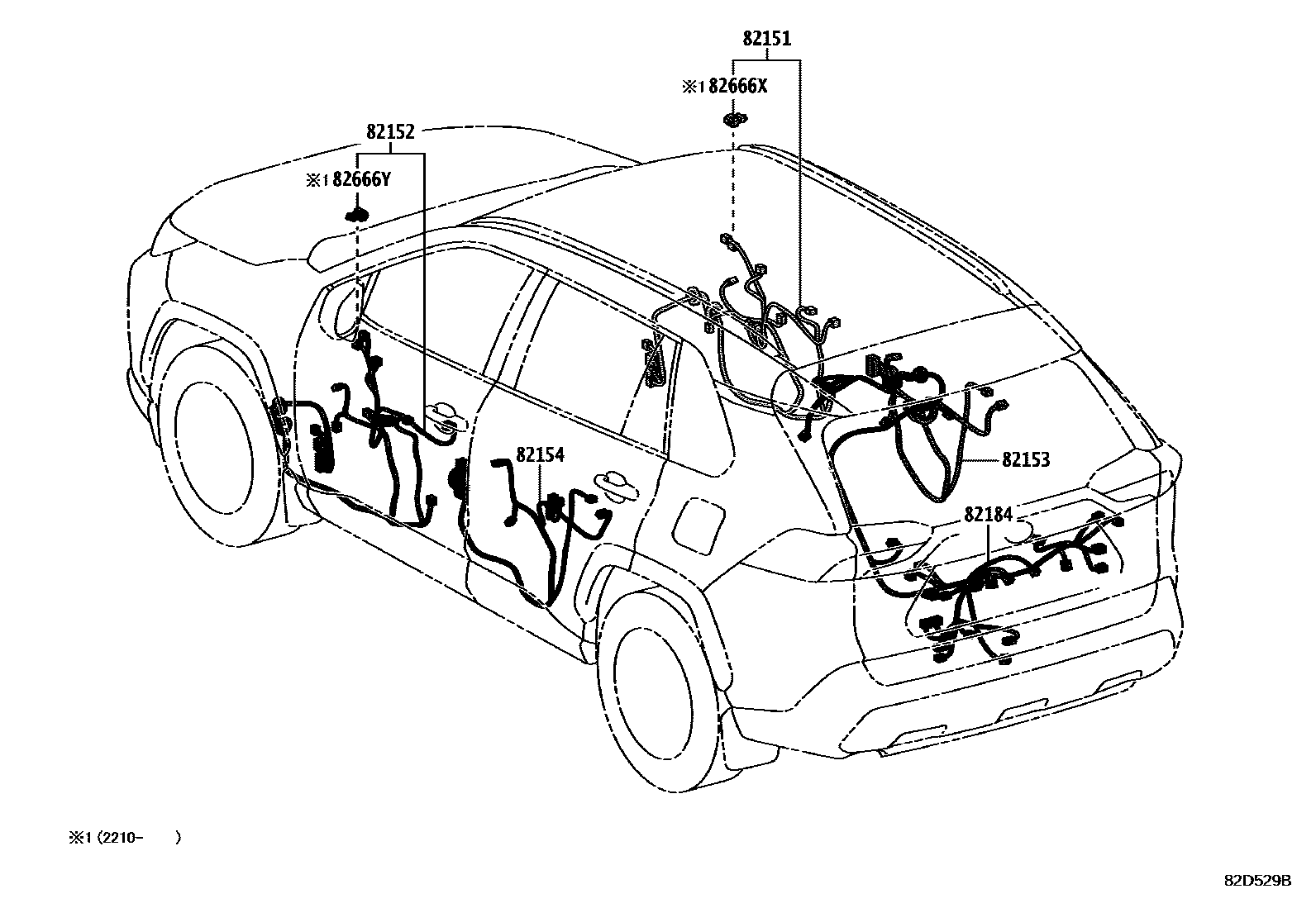

Toyota RAV4 线束和卡夹 EPC diagram — 82D529B
线束和卡夹 — 82D529B (202006 – 999999)

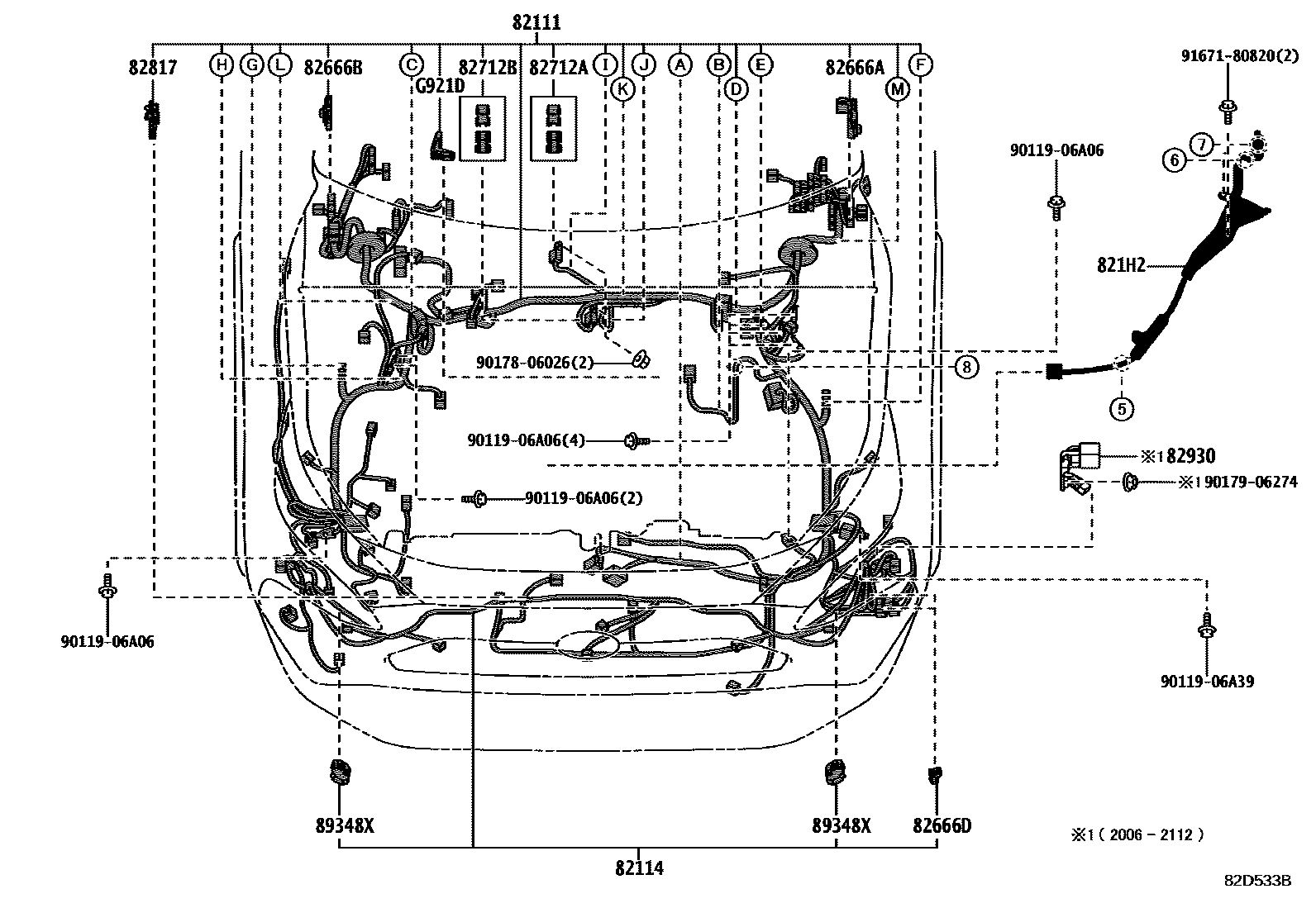

Toyota RAV4 线束和卡夹 EPC diagram — 82D533B
线束和卡夹 — 82D533B (202006 – 999999)

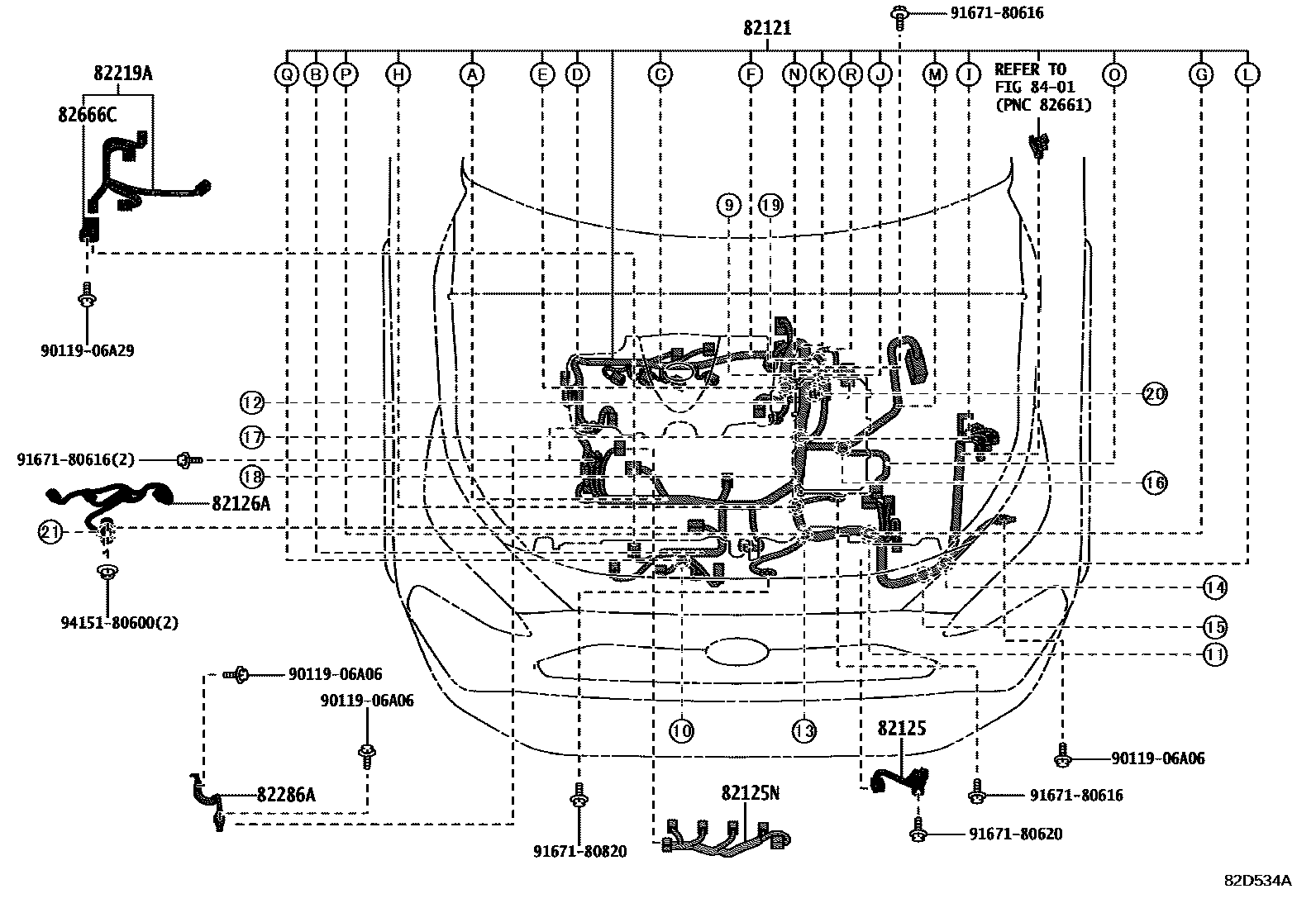

Toyota RAV4 线束和卡夹 EPC diagram — 82D534A
线束和卡夹 — 82D534A (202006 – 999999)

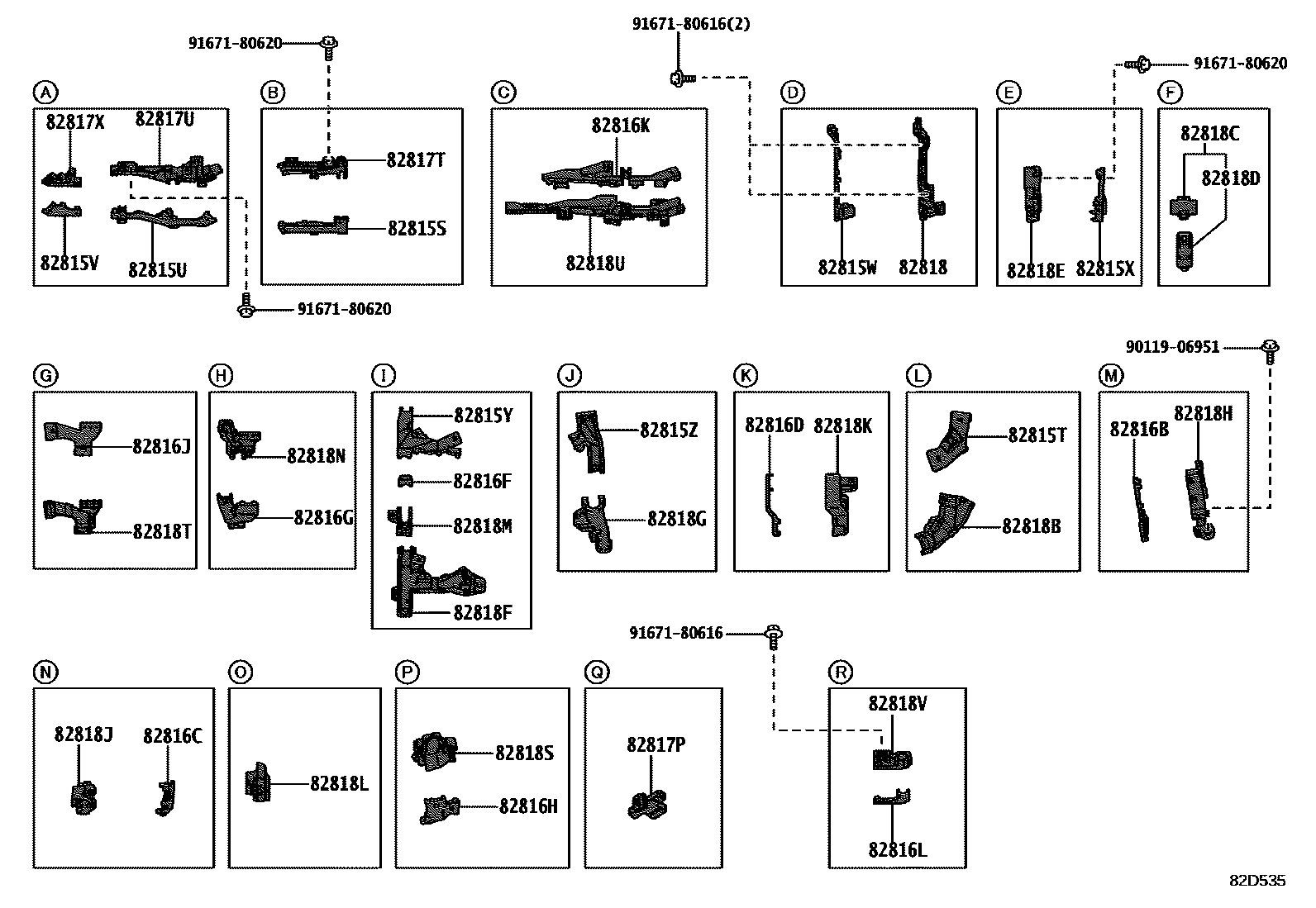

Toyota RAV4 线束和卡夹 EPC diagram — 82D535
线束和卡夹 — 82D535 (202006 – 999999)

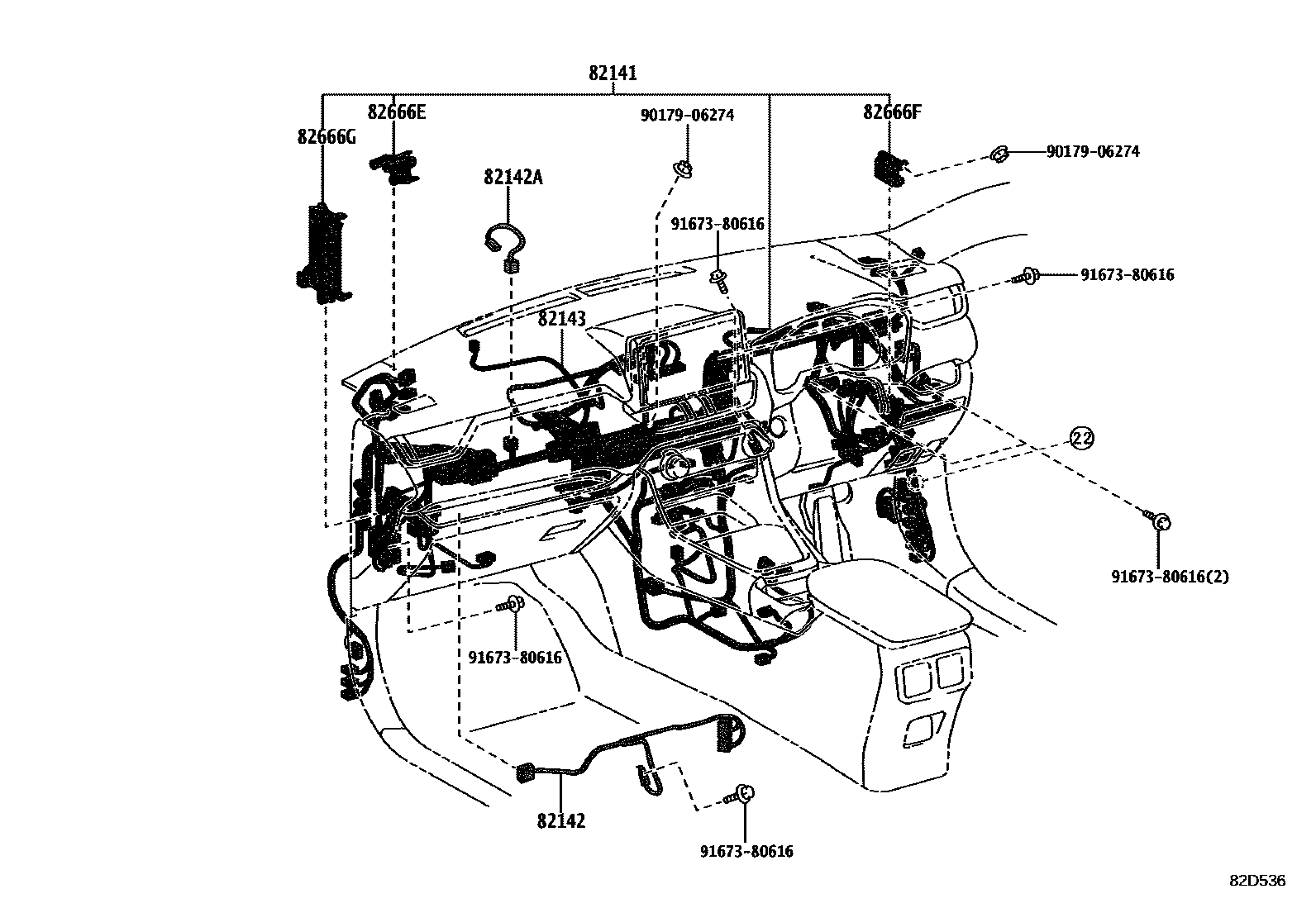

Toyota RAV4 线束和卡夹 EPC diagram — 82D536
线束和卡夹 — 82D536 (202006 – 999999)

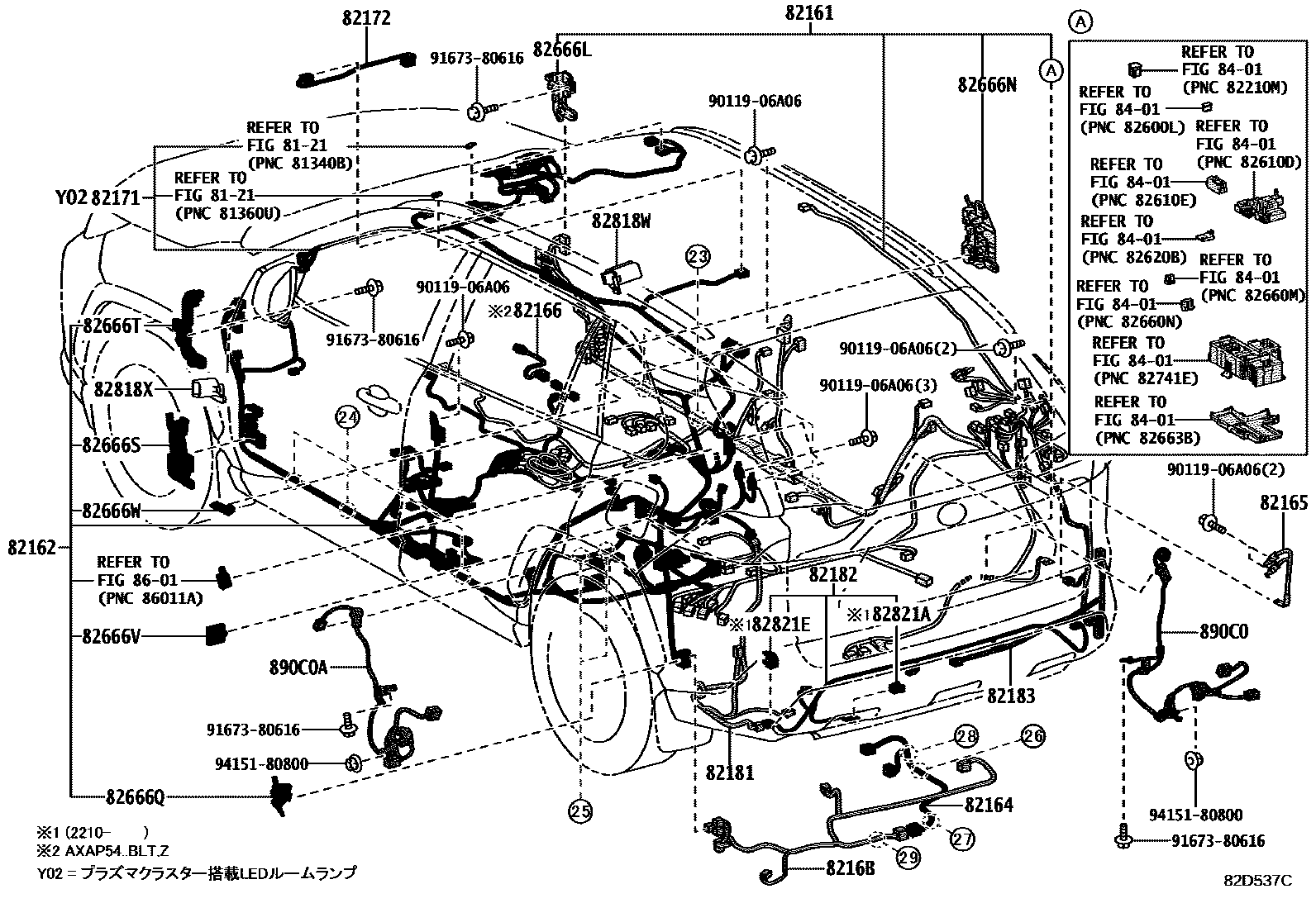

Toyota RAV4 线束和卡夹 EPC diagram — 82D537C
线束和卡夹 — 82D537C (202006 – 999999)

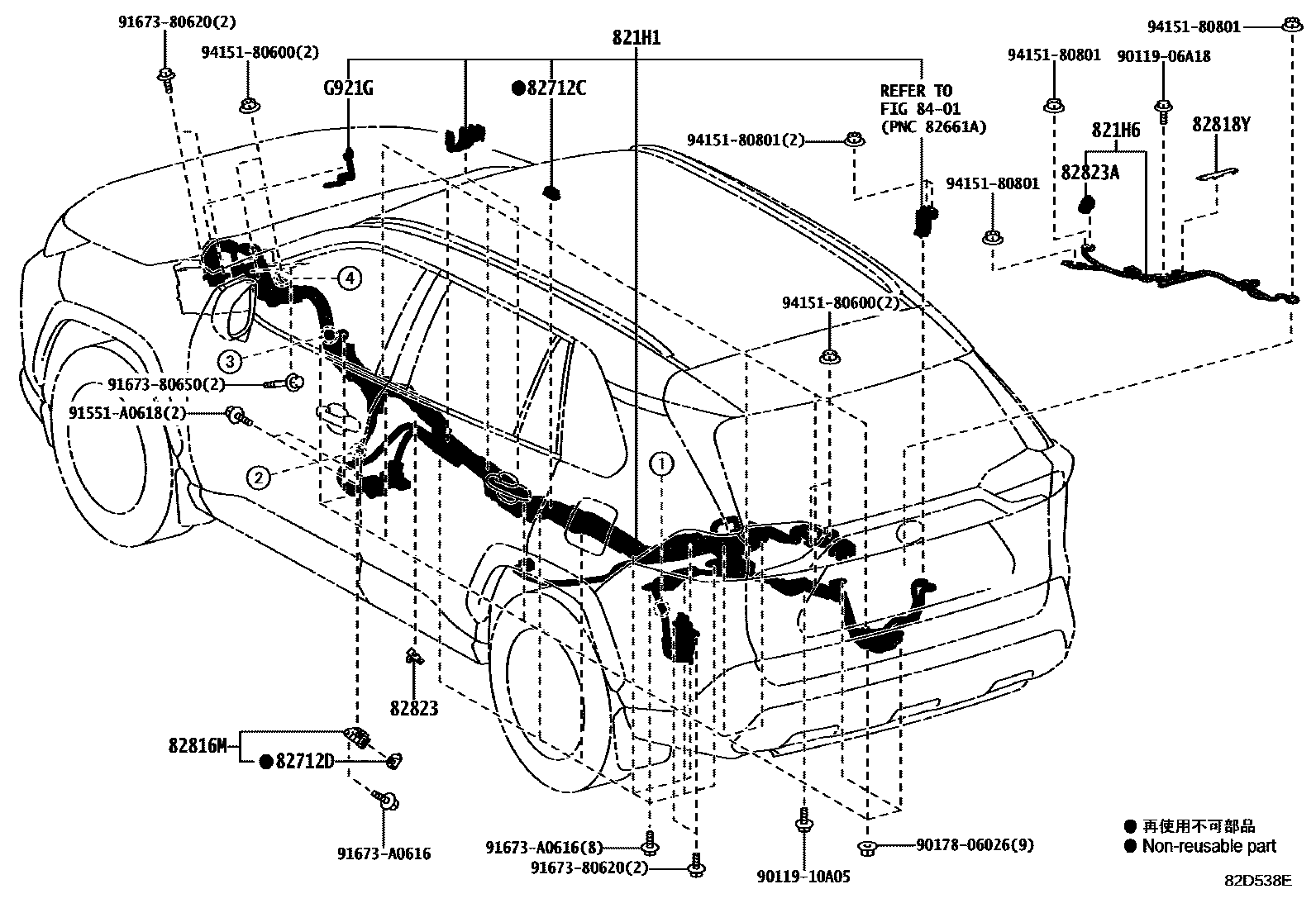

Toyota RAV4 线束和卡夹 EPC diagram — 82D538E
线束和卡夹 — 82D538E (202006 – 999999)

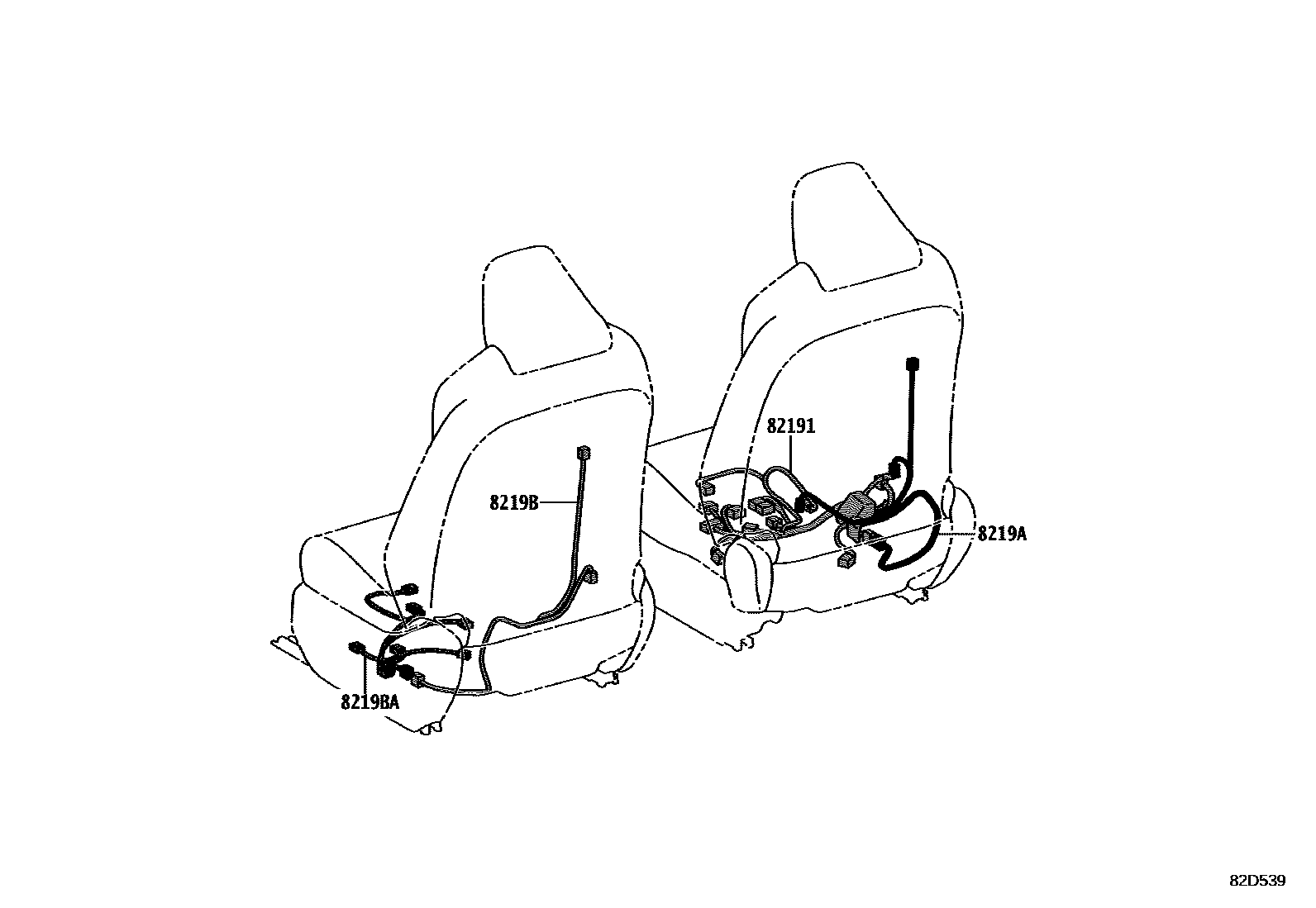

Toyota RAV4 线束和卡夹 EPC diagram — 82D539
线束和卡夹 — 82D539 (202006 – 999999)

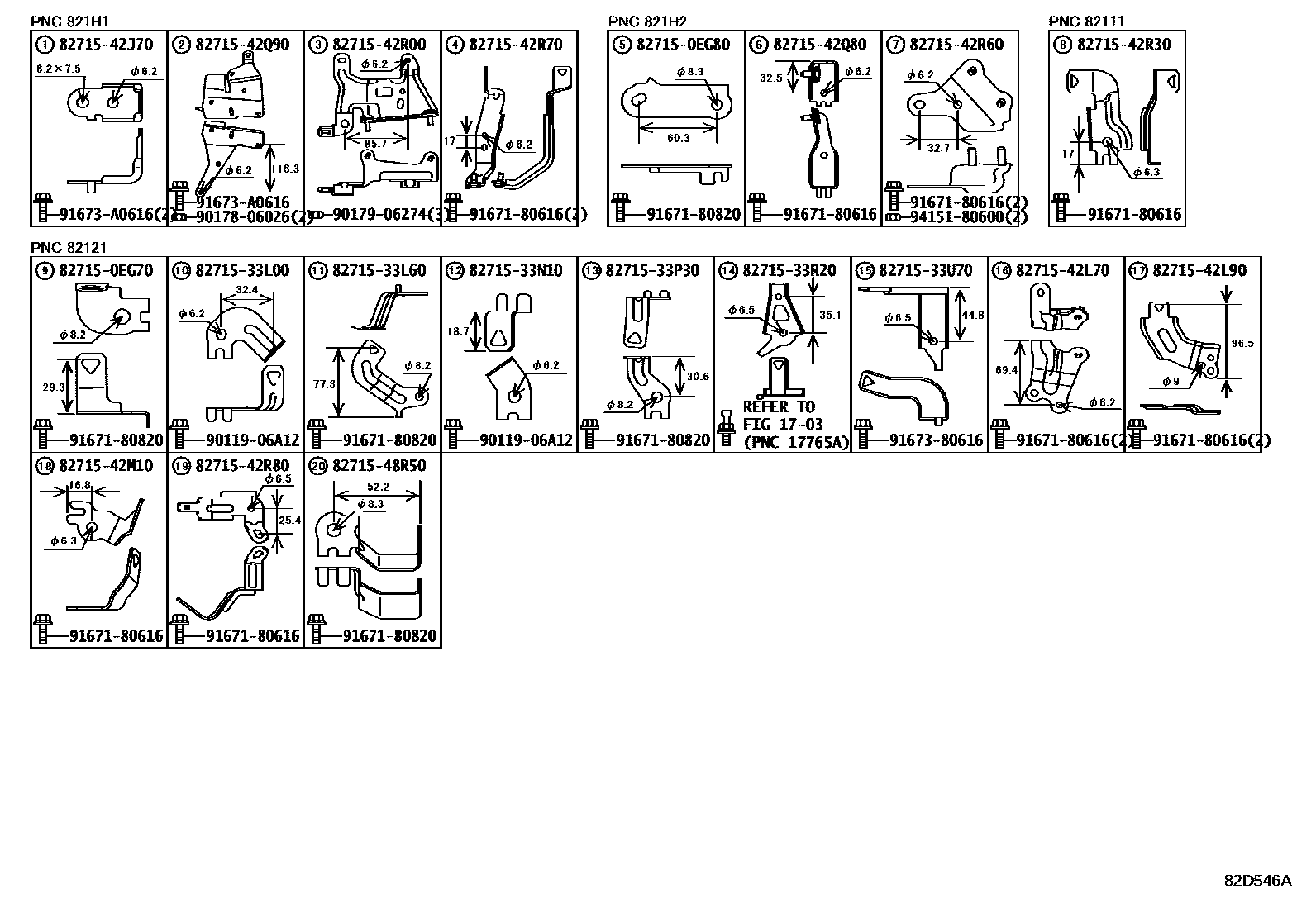

Toyota RAV4 线束和卡夹 EPC diagram — 82D546A
线束和卡夹 — 82D546A (202006 – 999999)

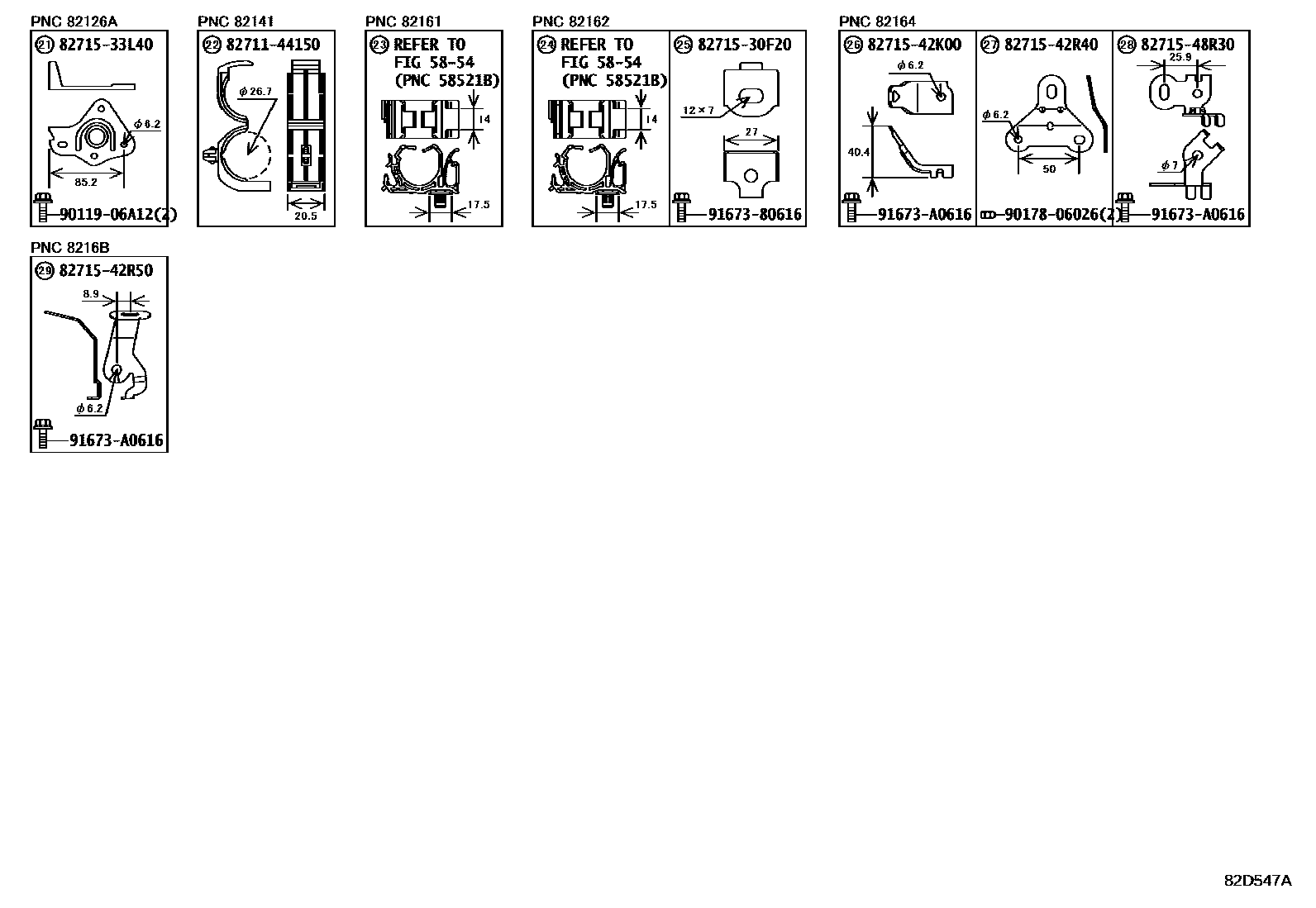

Toyota RAV4 线束和卡夹 EPC diagram — 82D547A
线束和卡夹 — 82D547A (202006 – 999999)

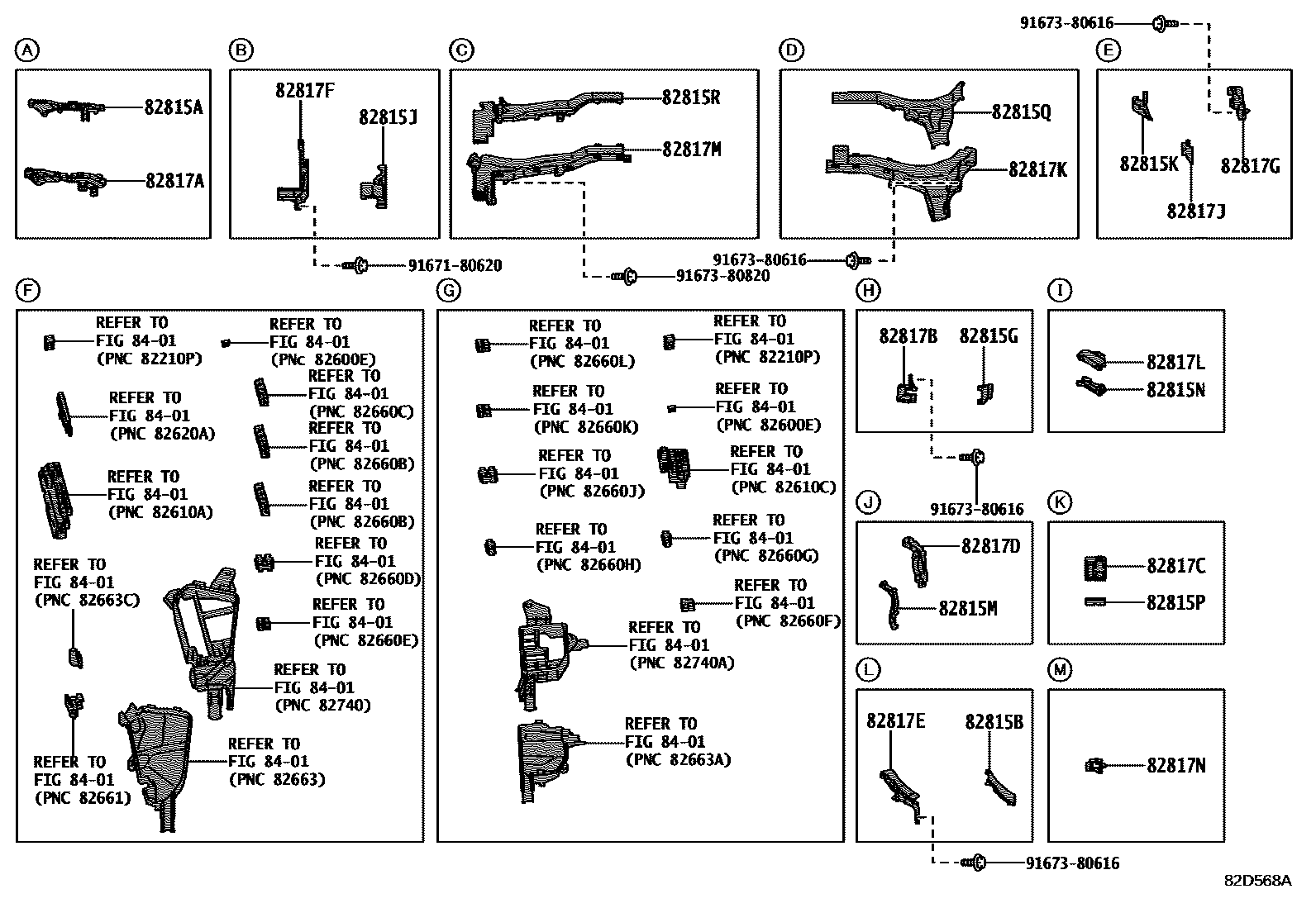

Toyota RAV4 线束和卡夹 EPC diagram — 82D568A
线束和卡夹 — 82D568A (202006 – 999999)

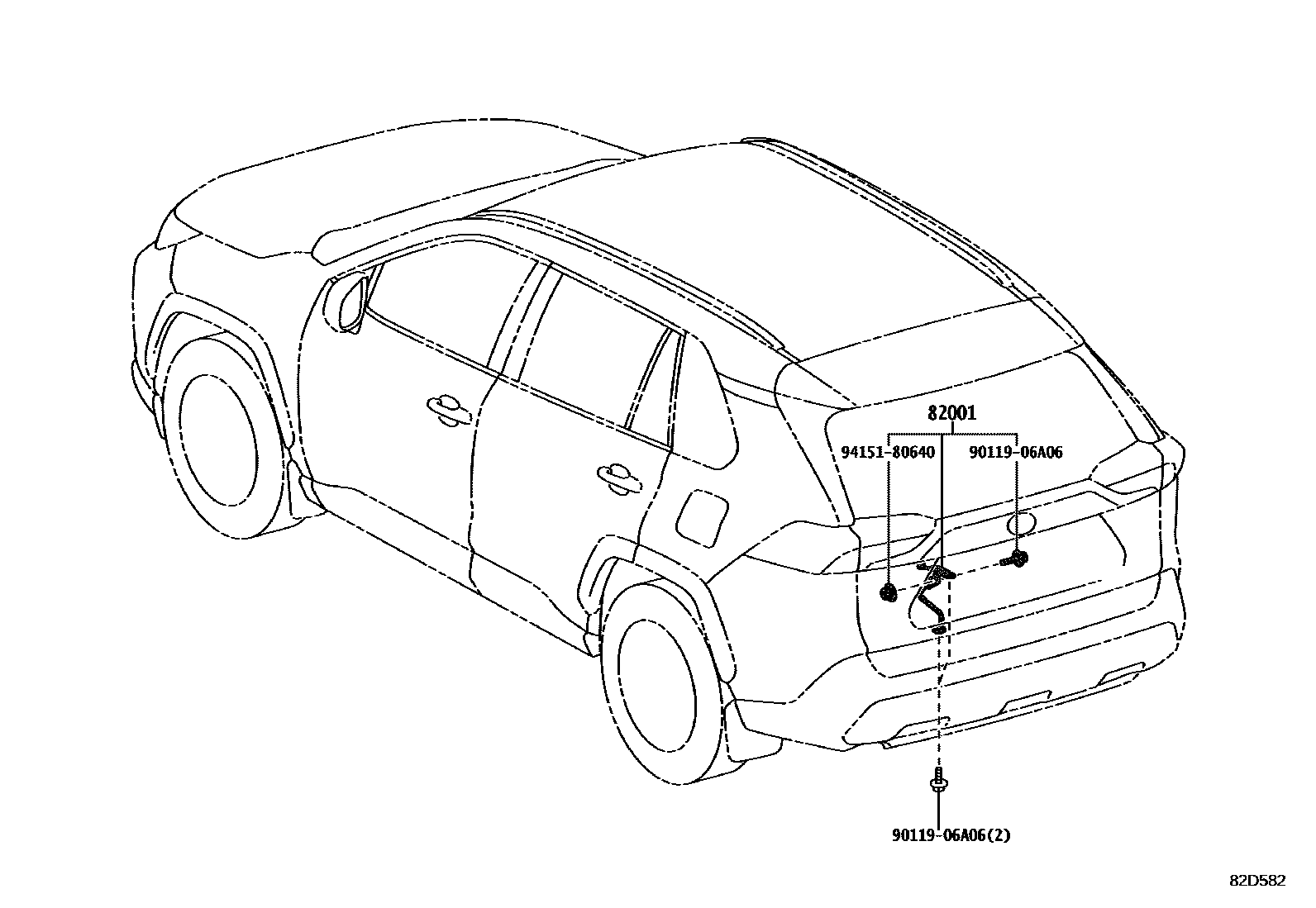

Toyota RAV4 线束和卡夹 EPC diagram — 82D582
线束和卡夹 — 82D582 (202006 – 999999)

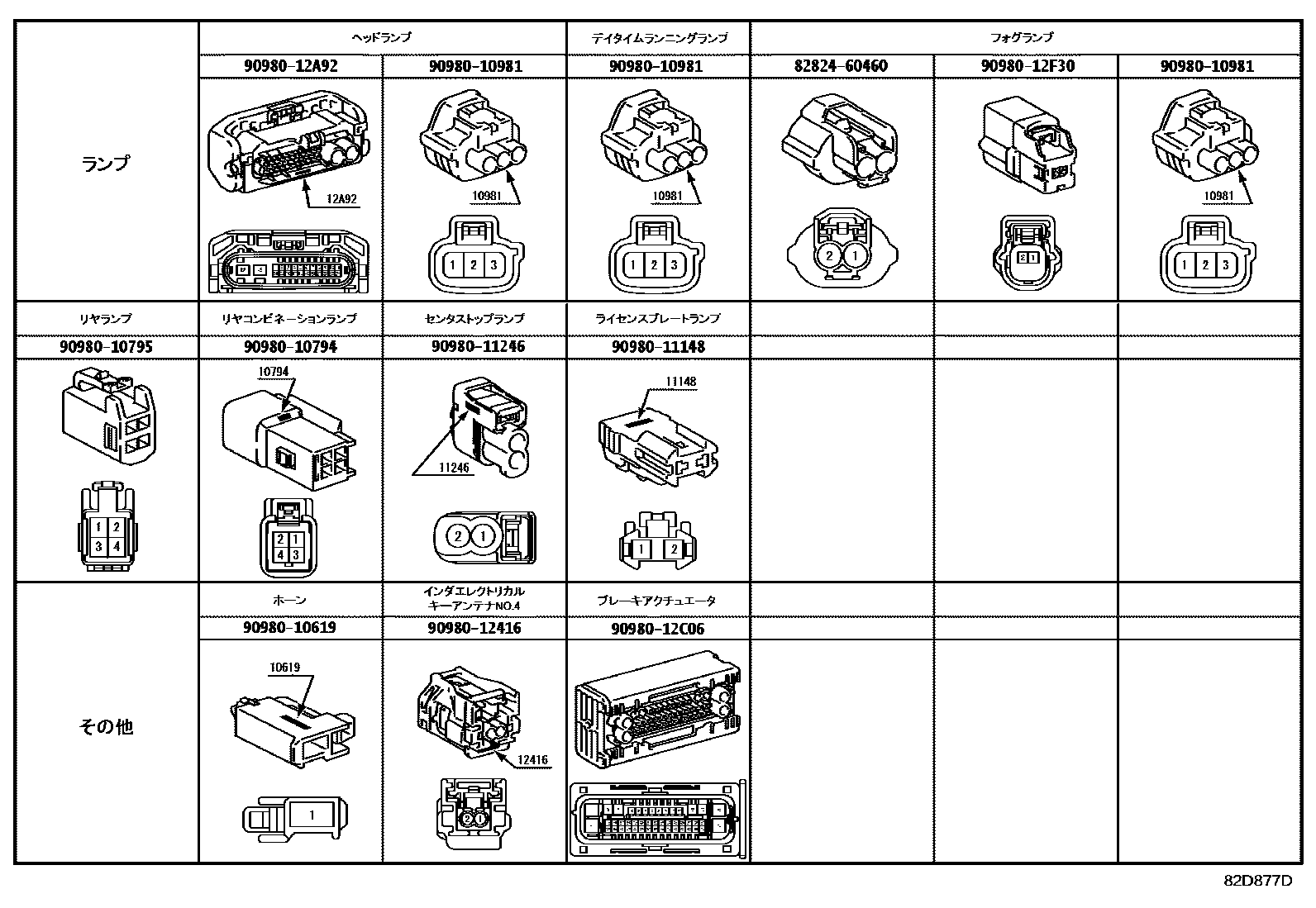

Toyota RAV4 线束和卡夹 EPC diagram — 82D877D
线束和卡夹 — 82D877D (202006 – 999999)

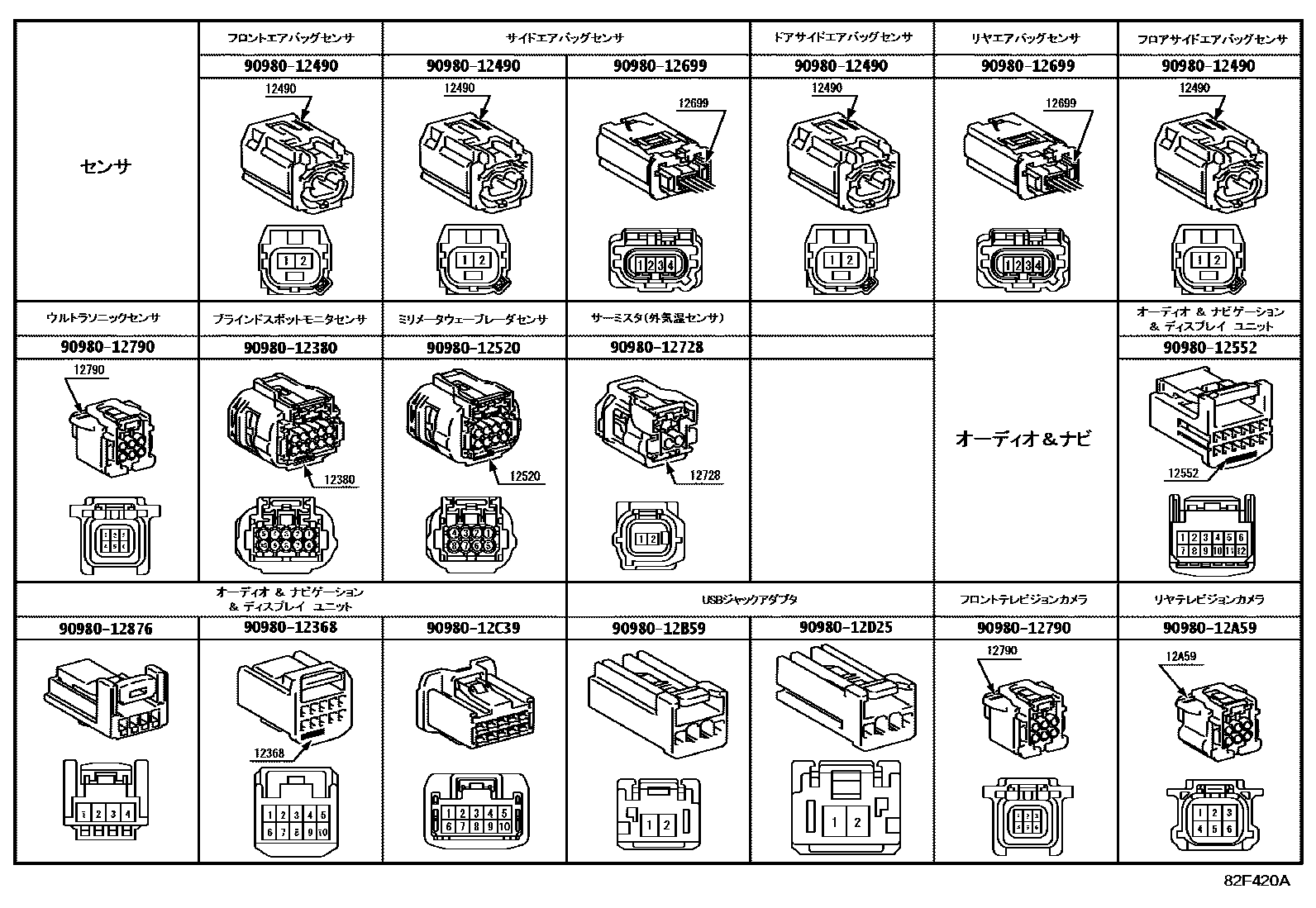

Toyota RAV4 线束和卡夹 EPC diagram — 82F420A
线束和卡夹 — 82F420A (202006 – 999999)

PNC and OE references

PNCPart nameOE numbers
82001Connection cable No. 1G1570-42010
82111Engine room main wiring harness82115-42350 · 82115-42351 · 82115-42P90 · 82115-42P91
82114Engine room wiring harness No. 482114-42310 · 82114-42311 · 82114-42320 · 82114-42321 · 82114-42322 · 82114-42330 · 82114-42331 · 82114-42340 · 82114-42341 · 82114-42342 · 82114-42860 · 82114-42870
82121Engine wiring harness82121-42S50 · 82121-42S51
82125Transmission wiring harness82125-0E050 · 82125-58020
82125NEngine No. 5 wiring harness82125-33180
82126AToyota part82126-33050
82141Dashboard wiring harness82141-4BS00 · 82141-4BS01 · 82141-4BS20 · 82141-4BS21 · 82145-42P60 · 82145-42P61
82142Instrument panel wiring harness No. 282142-42150
82142AInstrument panel wiring harness No. 282140-42070
82143Instrument panel wiring harness No. 382143-42090 · 82143-42130 · 82143-42230 · 82143-42240
82151Right front door wiring harness82151-42K90 · 82151-42K91 · 82151-42L00 · 82151-42L01 · 82151-42L10 · 82151-42L11 · 82151-42L12 · 82151-42W10 · 82151-42W20
82152Left front door wiring harness82152-42K10 · 82152-42K11 · 82152-42K20 · 82152-42K21 · 82152-42K22 · 82152-42T60
82153Rear door wiring harness No. 182153-42290 · 82153-42291 · 82153-42300 · 82153-42301
82154Rear door wiring harness No. 282154-42170 · 82154-42171 · 82154-42180 · 82154-42181
82161floor wiring harness82161-42Z60 · 82161-4A430 · 82161-4A431 · 82161-4B790
82162Floor wiring harness No. 282162-42D90 · 82162-42P50 · 82162-42P51 · 82162-42P80 · 82162-42P90 · 82162-42P91 · 82162-4A570 · 82162-4A610 · 82162-4A650 · 82162-4A651
82164Frame wiring harness set82164-42250 · 82164-42251
82165No. 2 frame wiring harness82165-42130 · 82165-42131
82166Armrest box wiring harness82166-42010
8216BNo. 8 floor wiring harness8216B-42020 · 8216B-42021
82171Roof No. 1 wiring harness82171-42P50 · 82171-42P51 · 82171-42P70 · 82171-42P71 · 82171-42P82 · 82171-42Q22 · 82171-42Q30 · 82171-42Q31 · 82171-42Q70 · 82171-42Q71 · 82171-4A880 · 82171-4AA00
82172Roof No. 2 wiring harness82172-42020
82181Luggage No. 1 wiring harness82181-42160 · 82181-42170 · 82181-42210 · 82181-42250
82182Luggage No. 2 wiring harness82182-42190 · 82182-42200 · 82182-42201
82183Luggage No. 3 wiring harness82183-42080 · 82183-42090
82184Rear door No. 1 wiring harness82184-42A70 · 82184-42A71 · 82184-42B50 · 82184-42D60 · 82184-42D70 · 82184-42D71 · 82184-42L60 · 82184-42L70 · 82184-42L80 · 82184-42L90 · 82184-42M00 · 82184-42M10 · 82184-42M20 · 82184-42M30 · 82184-42M31
82191Front right seat wiring harness82191-42170 · 82191-42260
8219AWire harness No. 2, right side of front seat8219A-33160 · 8219A-33210
8219BWire harness No. 2, left side of front seat8219B-42070
8219BAToyota part82192-42240
821H1Toyota part821H1-42030 · 821H1-42031 · 821H1-42032 · 821H1-42033 · 821H1-42034
821H2Toyota part821H2-42030
821H6Toyota part821H6-42010 · 821H6-48050
82219Asensor harness82219-33140 · 82219-33141
82286ALine 282286-42050
82666AConnector holder No. 282666-42710
82666BNo. 3 connector holder82666-60220
82666CNo. 4 connector holder82666-33720
82666DNo. 5 connector holder82666-42720 · 82666-42780
82666ENo. 6 connector holder82666-0E280 · 82666-42490 · 82666-42800
82666FNo. 7 connector holder82666-42680
82666GNo. 8 connector holder82666-42700
82666LNo. 9 connector holder82666-42520
82666NNo. 10 connector holder82666-42550 · 82666-42790
82666QNo. 12 connector holder82666-42570
82666SNo. 13 connector holder82666-42600
82666TNo. 14 connector socket82666-42610
82666VNo. 15 connector holder82666-48130
82666WNo. 16 connector socket82666-60310
82666XNo. 17 connector holder82666-42760
82666YNo. 18 connector holder82666-42760
82712AWire harness bracket82712-42150
82712BToyota part82712-42180
82712CToyota part82712-33170
82712DToyota part82712-33170
82815AWiring harness protector cover82815-42180 · 82815-42J80
82815BWiring harness protector cover82815-42260
82815GWiring harness protector cover82815-42570
82815JNo. 7 wire harness protector cover82815-42F30
82815KNo. 8 wire harness protector cover82815-42F40
82815MNo. 10 wire harness protector cover82815-42G50
82815NNo. 11 wire harness protector cover82815-42G60
82815PNo. 12 wire harness protector cover82815-42G70
82815QNo. 13 wire harness protector cover82815-42D70
82815RNo. 14 wire harness protector cover82815-42E90
82815SNo. 15 wire harness protector cover82815-0E800
82815TNo. 16 wire harness protector cover82815-33C80
82815UNo. 17 wire harness protector cover82815-33F60
82815VNo. 1 wire harness protector cover82815-33F70
82815WNo. 2 wire harness protector cover82815-33J00
82815XNo. 3 wire harness protector cover82815-33M90
82815YToyota part82815-42510
82815ZToyota part82815-42520
82816BToyota part82815-42530
82816CToyota part82815-42540
82816DToyota part82815-42560
82816FToyota part82815-42C90
82816GToyota part82815-42G00
82816HToyota part82815-42G10
82816JToyota part82815-42G20
82816KToyota part82815-33G90
82816LToyota part82815-42700
82816MToyota part82815-42E80
82817No. 1 wire harness protection device82817-42A90
82817ANo. 2 wire harness protection device82817-42B60 · 82817-42L70
82817BNo. 3 wire harness protection device82817-42F90
82817CNo. 4 wire harness protection device82817-42R70
82817DNo. 5 wire harness protection device82817-42S00
82817ENo. 6 wire harness protection device82817-42C40
82817FNo. 7 wire harness protection device82817-42S20
82817GNo. 8 wire harness protection device82817-42S30
82817JNo. 9 wire harness protection device82817-42S40
82817KNo. 10 wire harness protection device82817-42R60
82817LNo. 11 wire harness protection device82817-42T40
82817MNo. 12 wire harness protection device82817-42R80
82817NNo. 13 wire harness protection device82817-42U00
82817PNo. 14 wire harness protection device82817-0EB40
82817TNo. 15 wire harness protection device82817-0ED60 · 82817-78730
82817UNo. 16 wire harness protection device82817-33R20
82817XNo. 17 wire harness protection device82817-33R30
82818No. 2 wire harness protection device82817-33S60
82818BNo. 3 wire harness protection device82817-33X20
82818CNo. 4 wire harness protection device82817-33Y50
82818DNo. 5 wire harness protection device82817-33Z40
82818ENo. 6 wire harness protection device82817-3T240
82818FNo. 7 wire harness protection device82817-42F30
82818GNo. 8 wire harness protection device82817-42F40
82818HToyota part82817-42F50 · 82817-42F51
82818JToyota part82817-42F60
82818KToyota part82817-42F80
82818LToyota part82817-42N60
82818MToyota part82817-42P60
82818NToyota part82817-42T00
82818SToyota part82817-42T10
82818TToyota part82817-42T20
82818UToyota part82817-33S50
82818VToyota part82817-42G90
82818WToyota part82817-42P10
82818XToyota part82817-42P00
82818YToyota part82817-42T70
82821AConnector cover82821-30610
82821EConnector cover82821-30690
82823No. 1 terminal cover82823-42070
82823ATerminal cover No. 282823-12110
82930No. 1 condenser wire harness assembly82930-42020
890C0Toyota part890C0-42050
890C0AToyota part890C0-42060
89348XToyota part89348-58130
G921DToyota partG921D-42020
G921GToyota partG921G-42010
