Toyota RAV4 蓄电池和蓄电池电缆 — Figure 8201

Toyota RAV4 EPC diagram 8201, 蓄电池和蓄电池电缆, with 6 images and 54 PNC and OE references.

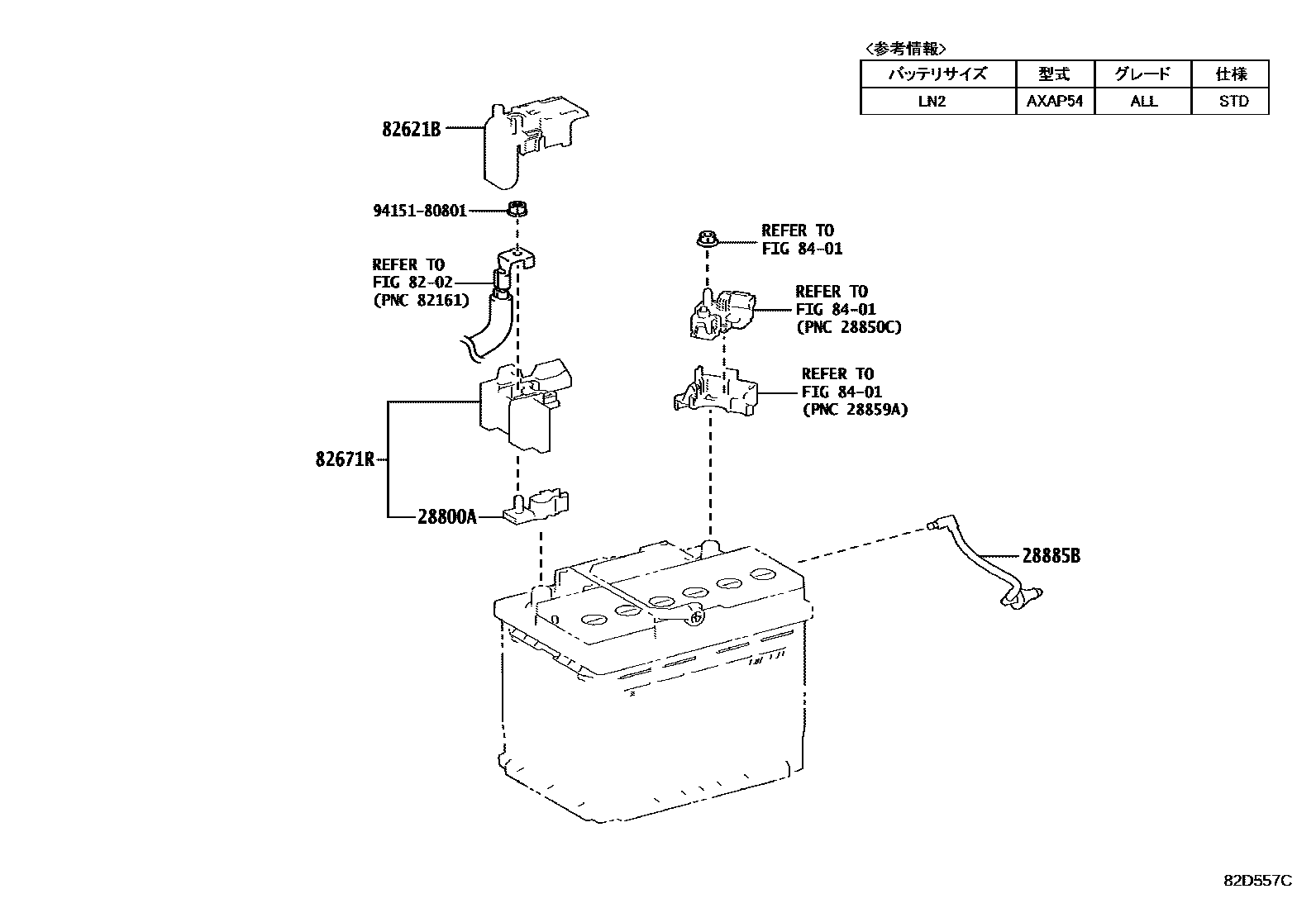

Toyota RAV4 蓄电池和蓄电池电缆 EPC diagram — 82D557C
蓄电池和蓄电池电缆 — 82D557C (202006 – 999999)

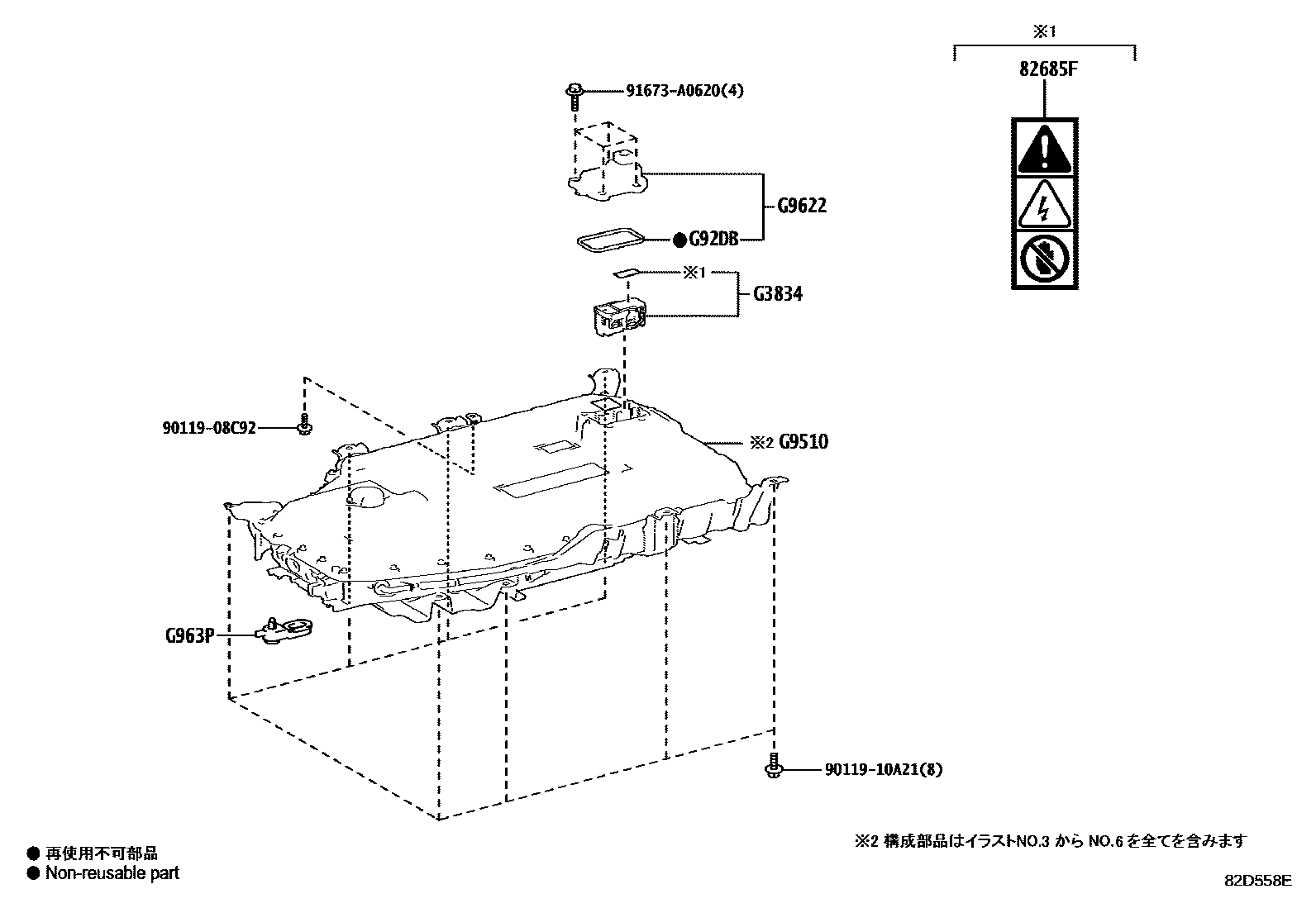

Toyota RAV4 蓄电池和蓄电池电缆 EPC diagram — 82D558E
蓄电池和蓄电池电缆 — 82D558E (202006 – 999999)

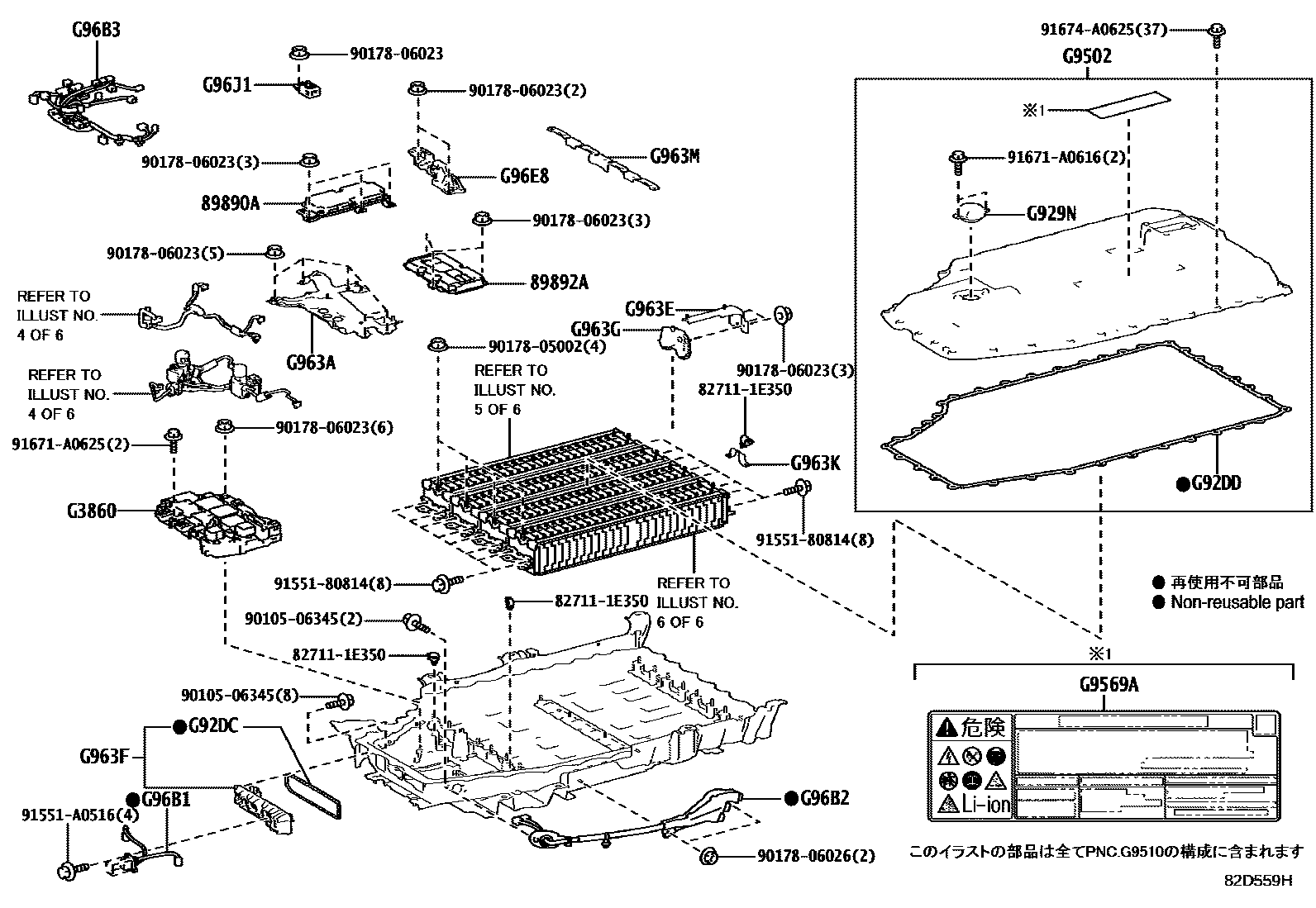

Toyota RAV4 蓄电池和蓄电池电缆 EPC diagram — 82D559H
蓄电池和蓄电池电缆 — 82D559H (202006 – 999999)

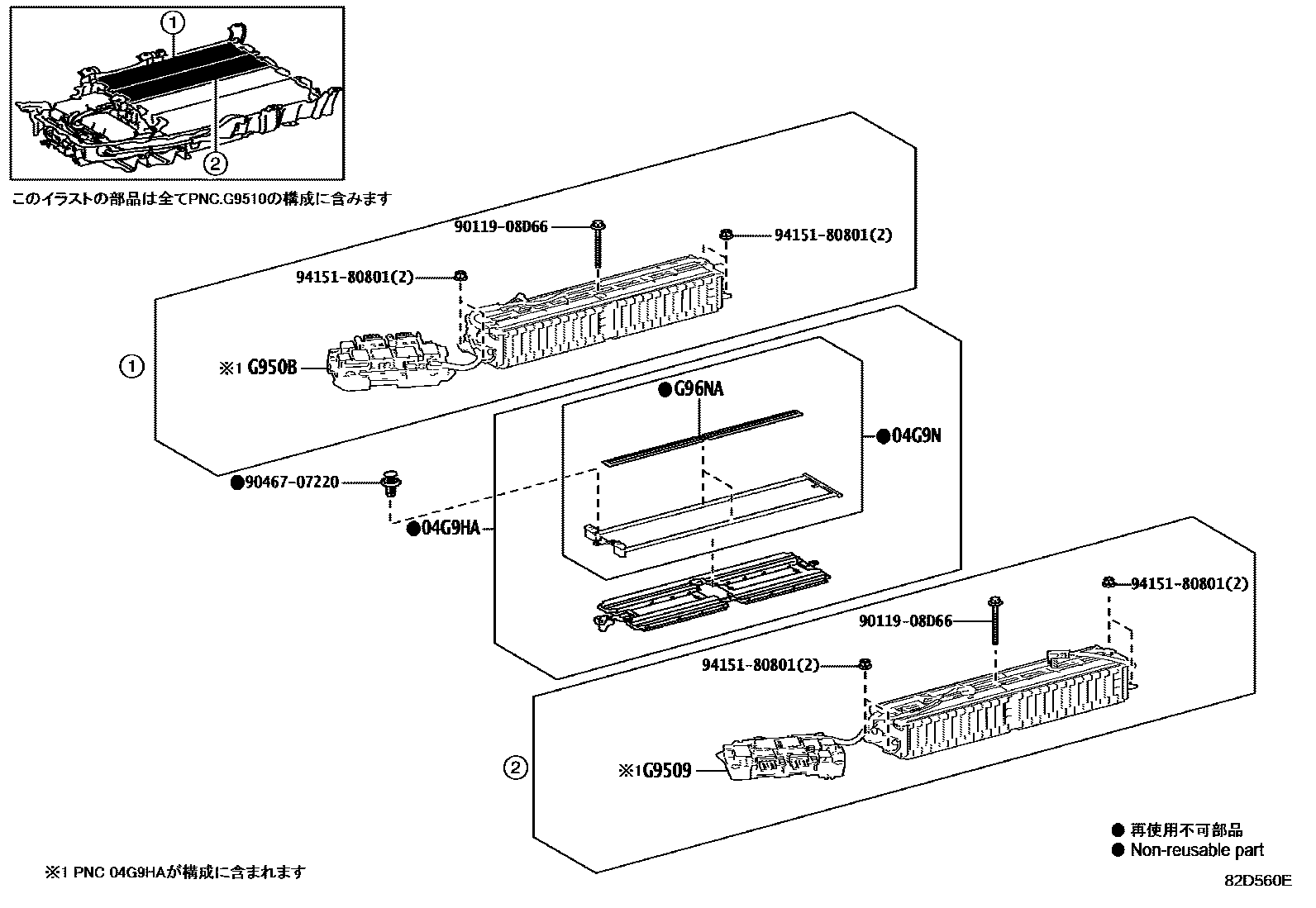

Toyota RAV4 蓄电池和蓄电池电缆 EPC diagram — 82D560E
蓄电池和蓄电池电缆 — 82D560E (202006 – 999999)

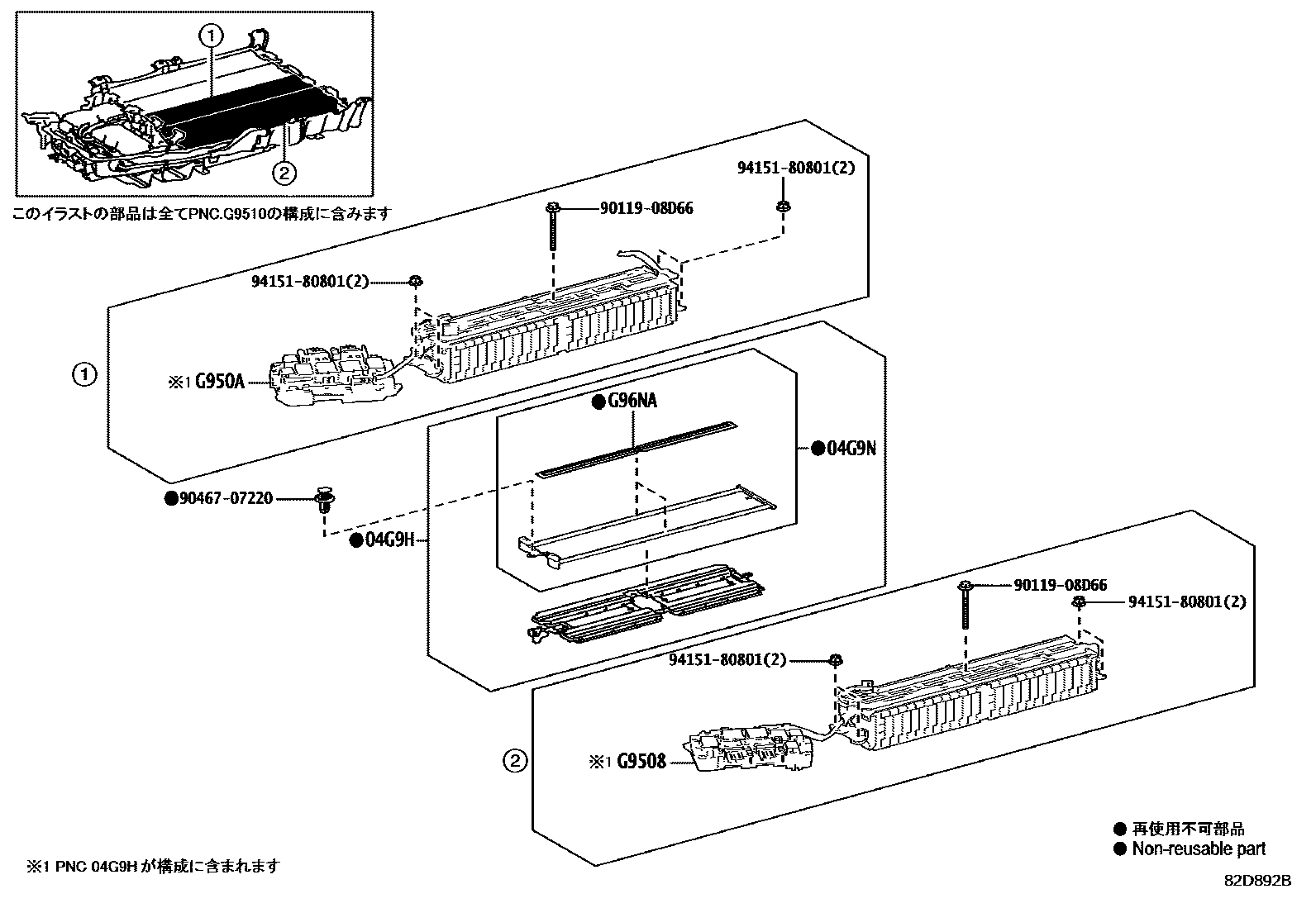

Toyota RAV4 蓄电池和蓄电池电缆 EPC diagram — 82D892B
蓄电池和蓄电池电缆 — 82D892B (202006 – 999999)

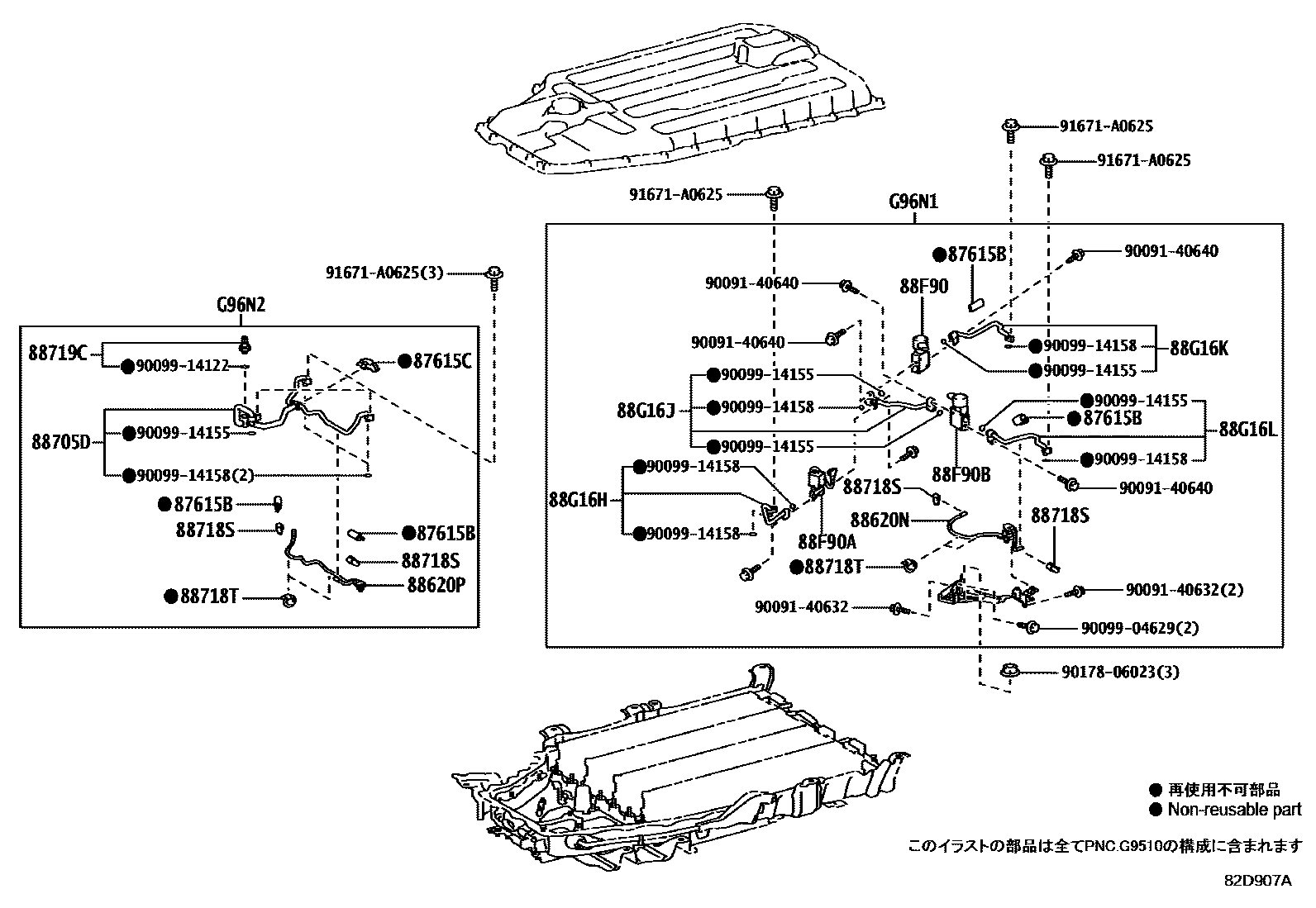

Toyota RAV4 蓄电池和蓄电池电缆 EPC diagram — 82D907A
蓄电池和蓄电池电缆 — 82D907A (202006 – 999999)

PNC and OE references

PNCPart nameOE numbers
04G9HToyota part04G9H-42011
04G9HAToyota part04G9H-42021
04G9NToyota part04G9N-42011
28800Abattery positive terminal90982-05058
28885Bbattery hose28885-25020
82621BFuse cover82621-42020
82671RToyota part82670-42010
82685FMain battery No. 1 warning nameplate82685-76020 · 82685-76021
87615BToyota part87615-42010
87615CToyota part87615-42020
88620NToyota part88620-42060
88620PToyota part88620-42070
88705DToyota part88705-42190
88718SToyota part88718-42140
88718TToyota part88718-42150
88719CToyota part88719-11010
88F90Toyota part88690-42070
88F90AToyota part88690-42080
88F90BToyota part88690-47040
88G16HToyota part88716-42A40
88G16JToyota part88716-42A50
88G16KToyota part88716-42A60
88G16LToyota part88716-42A70
89890ABattery ECU assembly89890-42070 · 89890-42071 · 89890-42072 · 89890-42073 · 89890-42074
89892Abattery voltage sensor89892-42040
G3834Service plug handleG3855-42010
G3860Toyota partG3860-42010
G929NToyota partG929N-10010
G92DBNo. 1 HV battery sealG92DB-42010
G92DCHV Battery No. 2 SealG92DC-42010
G92DDToyota partG92DD-42010
G9502Toyota partG9502-48011 · G9502-78010
G9508No. 1 HV power supply battery stack sub-assemblyG9508-49376
G9509No. 2 HV power supply battery stack sub-assemblyG9509-49016
G950ANo. 3 HV power supply battery stack sub-assemblyG950A-49016
G950BNo. 4 HV power supply battery stack sub-assemblyG950B-49016
G9510HV power supply battery assemblyG9510-42030 · G9510-42031 · G9510-42032 · G9510-42033
G9569ALithium Ion Battery Warning LabelsG9569-47100 · G9569-48010
G9622Toyota partG9622-42010
G963AToyota partG963A-42010
G963EToyota partG963E-42010
G963FToyota partG963F-42010
G963GToyota partG963G-42010
G963KToyota partG963K-42010
G963MToyota partG963M-42010
G963PToyota partG963P-42010
G96B1Toyota partG96B1-42010
G96B2Toyota partG96B2-42010
G96B3Toyota partG96B3-42010
G96E8Toyota partG96E8-42010
G96J1Toyota partG96J1-42010
G96N1Toyota partG96N1-42010
G96N2Toyota partG96N2-42010
G96NAToyota partG96NA-42010
