Toyota RAV4 Fog Lamp — Figure 8102

Toyota RAV4 EPC diagram 8102, Fog Lamp, with 2 images and 5 PNC and OE references.

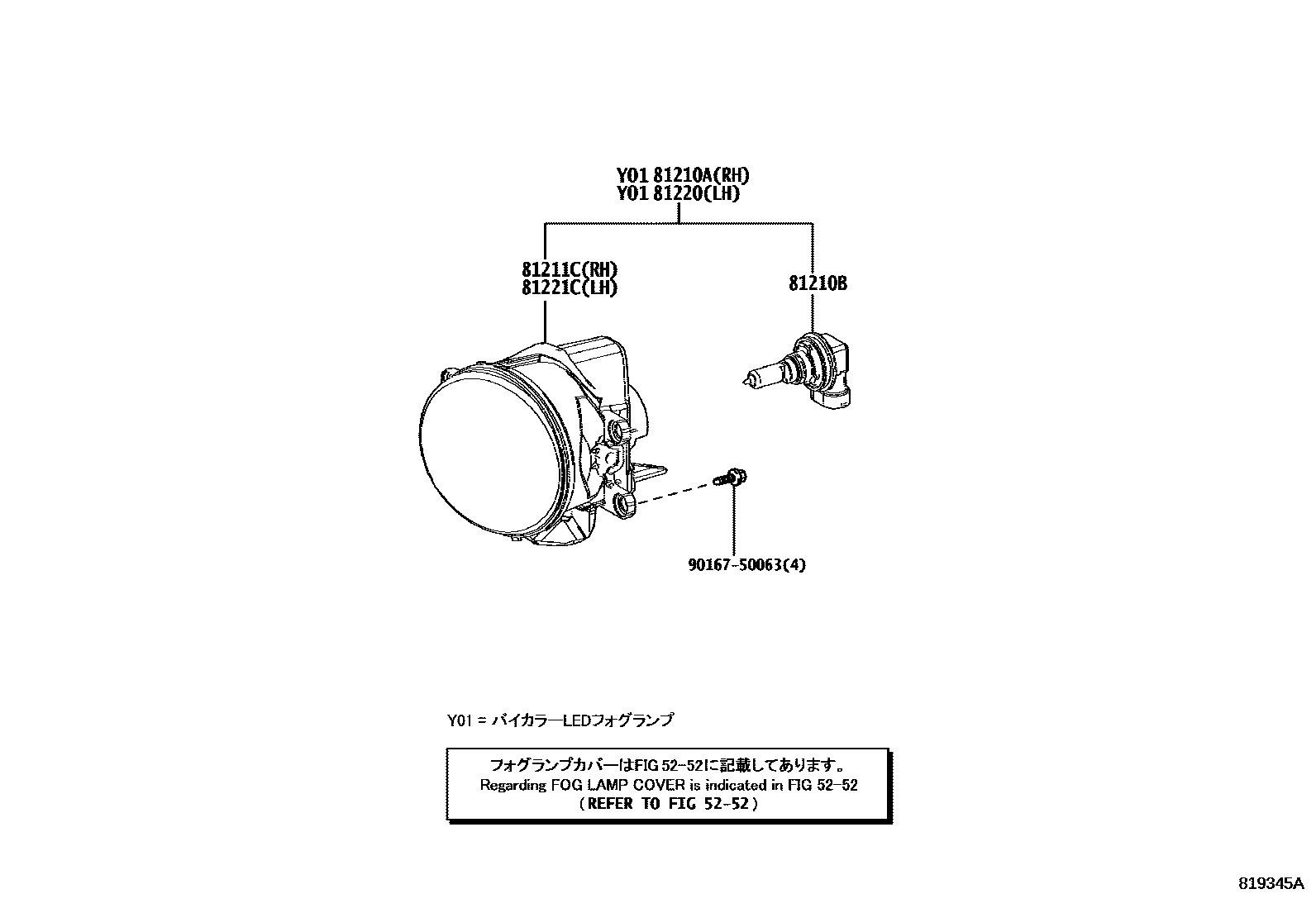

Toyota RAV4 Fog Lamp EPC diagram — 819345A
Fog Lamp — 819345A (202006 – 999999)

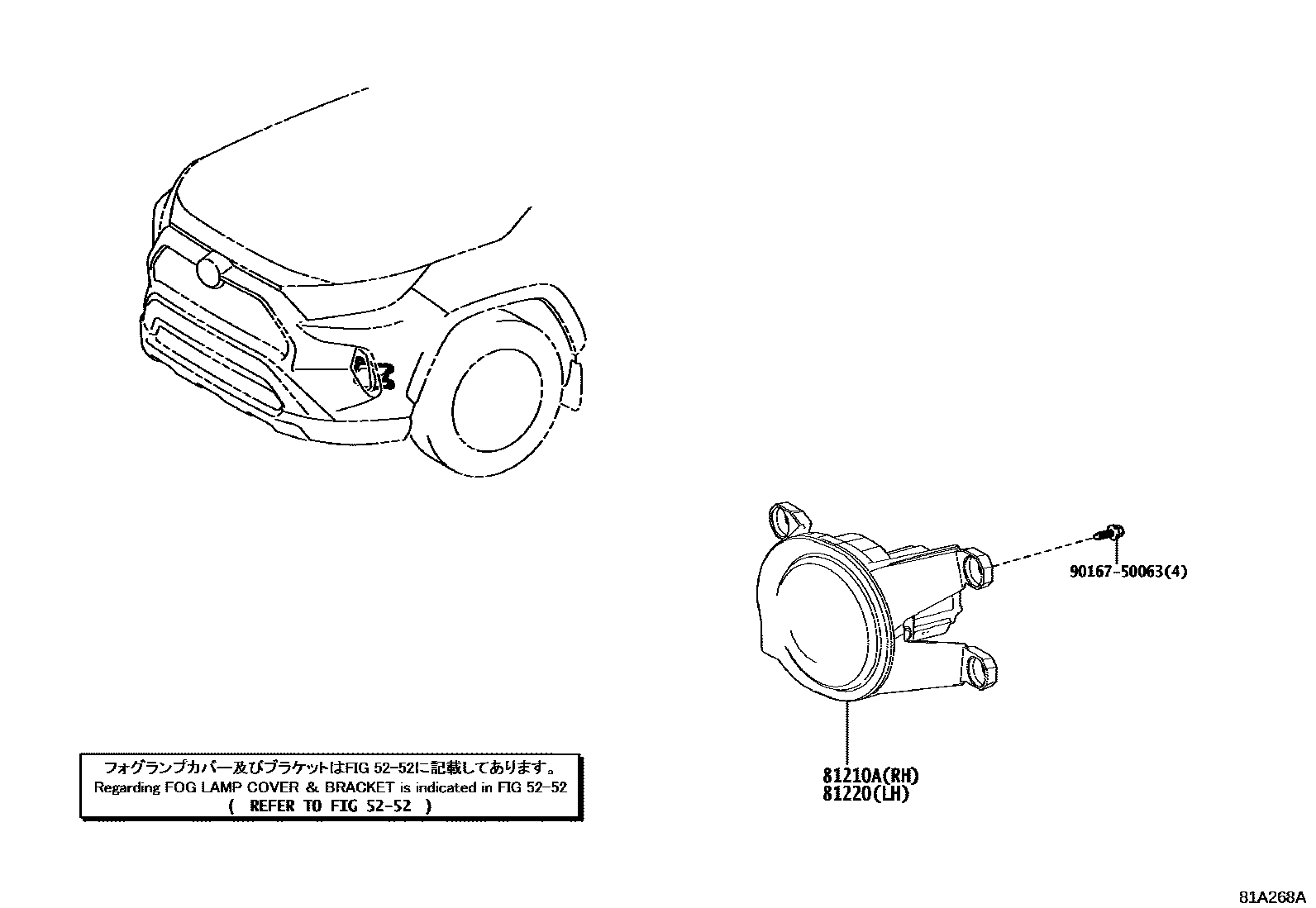

Toyota RAV4 Fog Lamp EPC diagram — 81A268A
Fog Lamp — 81A268A (202112 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-12240 · 81210-47010
81210Bfog light bulb90981-13090
81211CRight fog light assembly81211-47010
81220Left fog light assembly81220-12240 · 81220-47010
81221CLeft fog light assembly81221-47010
