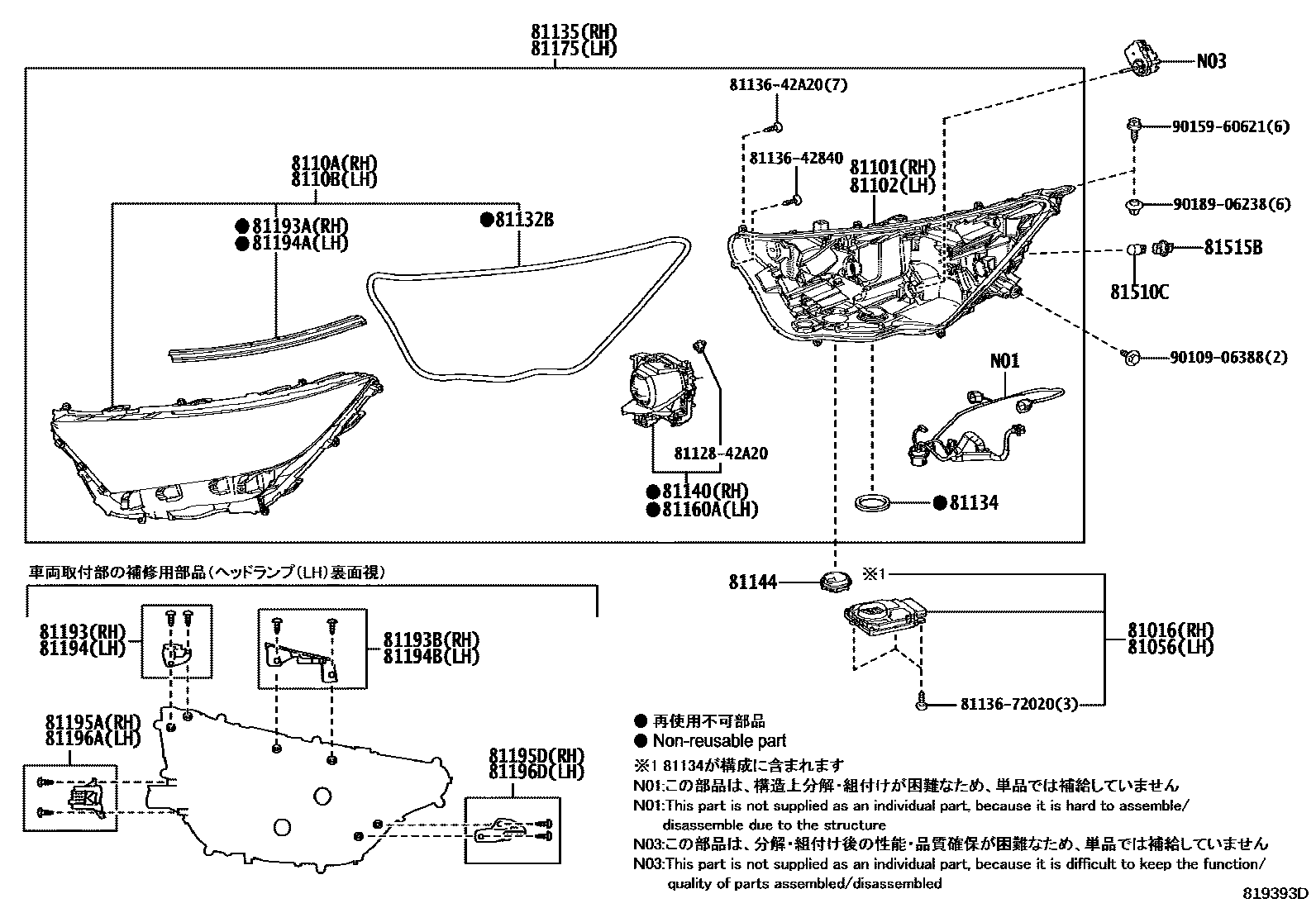

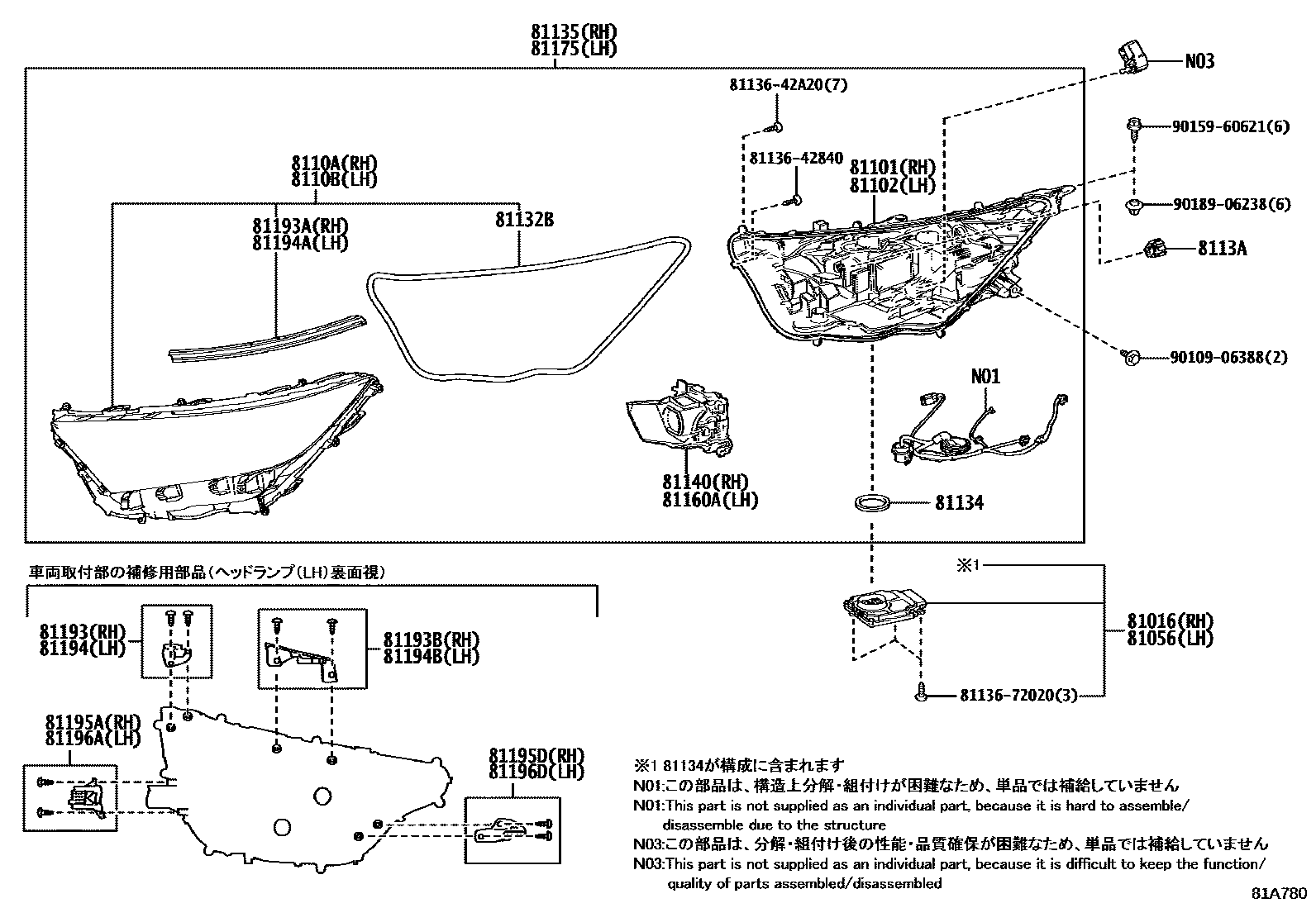

Toyota RAV4 Headlamp — Figure 8101
Toyota RAV4 EPC diagram 8101, Headlamp, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016 | Right No. 1 headlight ECU sub-assembly | 81016-42B50 · 81016-42E20 · 81016-42G00 |
| 81056 | Left No. 1 headlight ECU sub-assembly | 81056-42B50 · 81056-42E20 · 81056-42G00 |
| 81101 | Toyota part | 8111B-42A20 · 8111B-42B50 · 8111B-42E20 |
| 81102 | Toyota part | 8115B-42A20 · 8115B-42B50 · 8115B-42E20 |
| 8110A | Toyota part | 8110A-42B50 · 8110A-42B51 · 8110A-42E20 |
| 8110B | Toyota part | 8110B-42B50 · 8110B-42B51 · 8110B-42E20 |
| 81132B | Headlight cover gasket | 81132-42830 |
| 81134 | headlight gasket | 81134-42830 |
| 81135 | Right headlight assembly | 81145-42B50 · 81145-42B51 · 81145-42E20 · 81145-42G00 |
| 8113A | Toyota part | 81532-48010 · 81965-42010 |
| 81140 | Right headlight LED assembly assembly | 81140-42B50 · 81140-42E00 |
| 81144 | No. 1 headlight cover | 81135-42830 |
| 81160A | Left headlight LED assembly assembly | 81160-42B50 · 81160-42E00 |
| 81175 | Left headlight assembly | 81185-42B50 · 81185-42B51 · 81185-42E20 · 81185-42G00 |
| 81193 | Right headlight upper protective ring | 81193-42050 |
| 81193A | Right headlight protective cover | 81117-42830 · 81117-42831 |
| 81193B | No. 2 headlight upper protection ring on the right | 81193-42060 |
| 81194 | Left headlight upper protective ring | 81194-42050 |
| 81194A | Left headlight protective cover | 81157-42830 · 81157-42831 |
| 81194B | No. 2 headlight upper protective ring on the left | 81194-42060 |
| 81195A | Right headlight lower protection ring | 81195-42050 |
| 81195D | Right No. 2 headlight lower protection ring | 81195-42060 |
| 81196A | Left headlight lower protection ring | 81196-42050 |
| 81196D | No. 2 left headlight lower protection ring | 81196-42060 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
