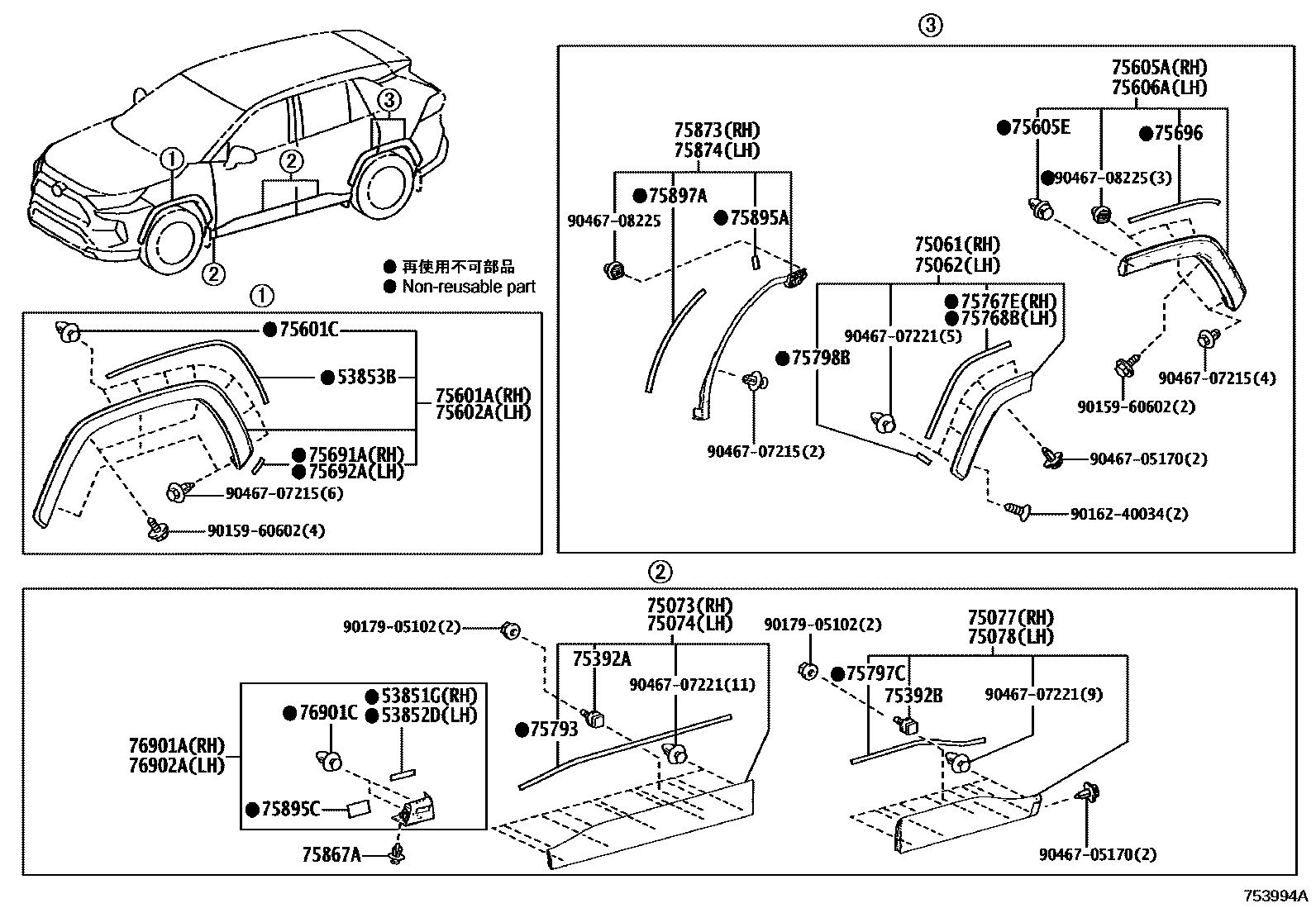

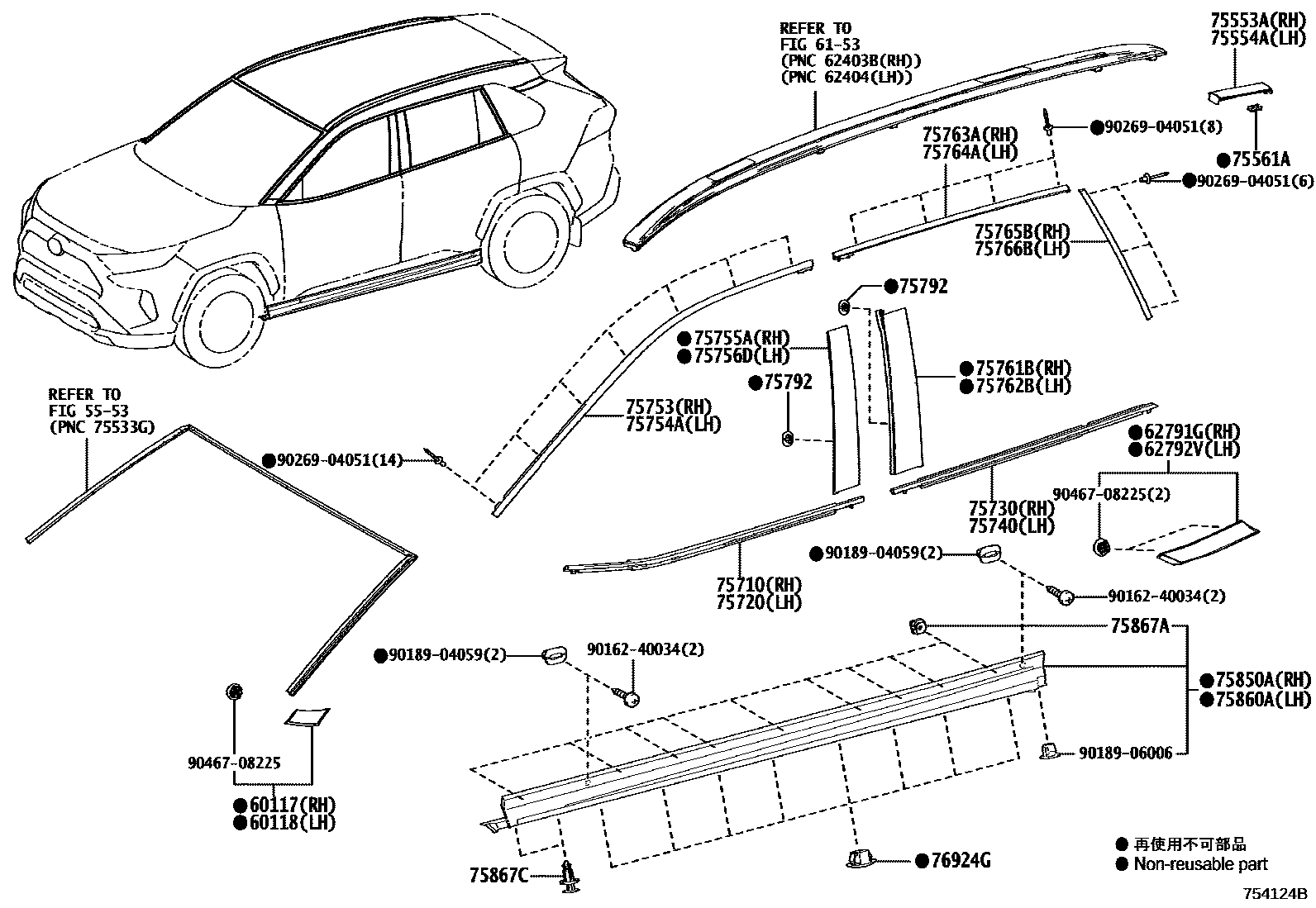

Toyota RAV4 防护条 — Figure 7552
Toyota RAV4 EPC diagram 7552, 防护条, with 2 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851G | Right front fender outer panel pad | 53851-42280 |
| 53852D | Left front fender exterior panel pad | 53851-42280 |
| 53853B | No. 1 front fender outer panel pad | 53853-42040 · 53853-42120 |
| 60117 | Right front pillar upper cover sub-assembly | 60117-42031 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-42031 |
| 62791G | Protective strip on right corner window | 62791-42030 |
| 62792V | Protective strip on left corner window | 62792-42030 |
| 75392A | No. 1 outer protective strip fixings | 75392-33020 |
| 75392B | No. 1 outer protective strip fixings | 75392-33020 |
| 75553A | Decorative strip on the right side of the roof, rear gutter side | 75553-42050 |
| 75554A | Decorative strip on the left side of the roof, rear gutter side | 75554-42050 |
| 75561A | Roof drain channel side decorative strip clip | 75561-52020 |
| 75601C | Toyota part | 75867-68010 |
| 75605E | Toyota part | 62217-13010 |
| 75691A | Right front fender outer protective strip liner | 75798-42030 |
| 75692A | Left front fender outer protective strip liner | 75798-42030 |
| 75696 | No. 1 body outer protective strip lining | 75696-42080 |
| 75710 | Right front door waistline protection strip assembly | 75710-42050 |
| 75720 | Left front door waistline protection strip assembly | 75720-42050 |
| 75730 | Right rear door waistline protection strip assembly | 75730-42050 |
| 75740 | Left rear door waistline protection strip assembly | 75740-42050 |
| 75753 | Protective strip on right front door window frame | 75071-42120 |
| 75754A | Protective strip on left front door window frame | 75072-42120 |
| 75755A | Toyota part | 75755-42020 |
| 75756D | Toyota part | 75756-42020 |
| 75761B | Toyota part | 75075-42090 |
| 75762B | Toyota part | 75076-42090 |
| 75763A | Protective strip on right rear door window frame | 75763-42010 |
| 75764A | Protective strip on left rear door window frame | 75764-42010 |
| 75765B | Toyota part | 75765-42010 |
| 75766B | Toyota part | 75766-42010 |
| 75767E | Right rear door protective strip lining | 75767-42030 |
| 75768B | Left rear door protective strip lining | 75767-42030 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75793 | Front door outer upper protective strip lining | 75793-42070 |
| 75797C | Rear door outer upper protective strip lining | 75797-42040 |
| 75798B | Rear door outer rear protective strip lining | 75798-42030 |
| 75850A | Right body door sill panel protective strip assembly | 75850-42030 · 75850-42031 |
| 75860A | Left body door sill panel protective strip assembly | 75860-42030 · 75860-42031 |
| 75867A | Door sill panel protective strip clip | 75867-30130 · 75867-68010 |
| 75867C | Door sill panel protective strip clip | 75867-30120 |
| 75873 | Right side panel wheel mouth protection strip | 75873-42010 |
| 75874 | Left side panel wheel mouth protection strip | 75874-42010 |
| 75895A | No. 1 protective strip tape | 75895-42020 |
| 75895C | No. 3 protective tape | 75895-42030 |
| 75897A | No. 2 protective strip tape | 75897-42010 |
| 76901C | Toyota part | 75867-68010 |
| 76924G | Door sill panel protective strip fixings | 90467-22017 |
