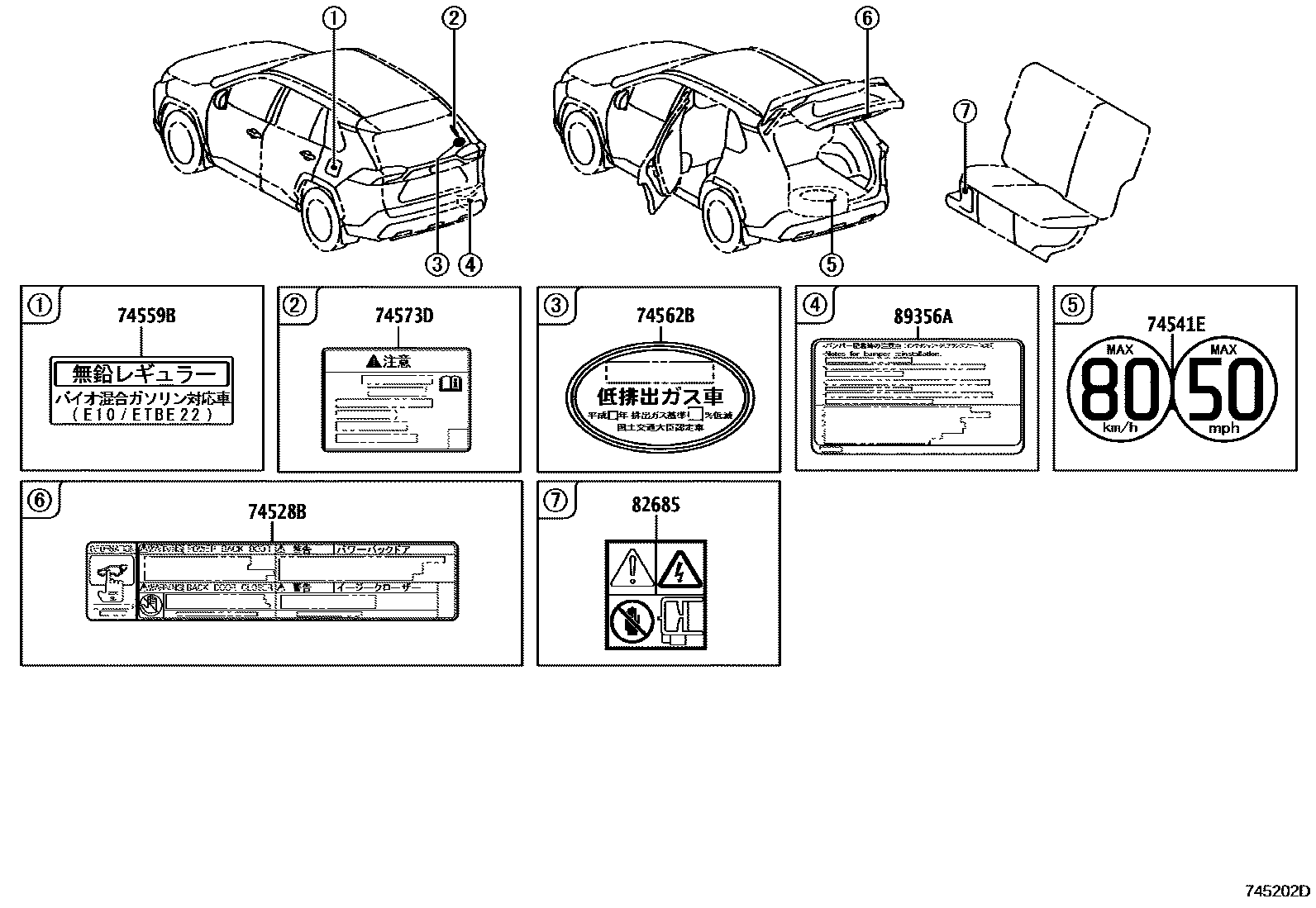

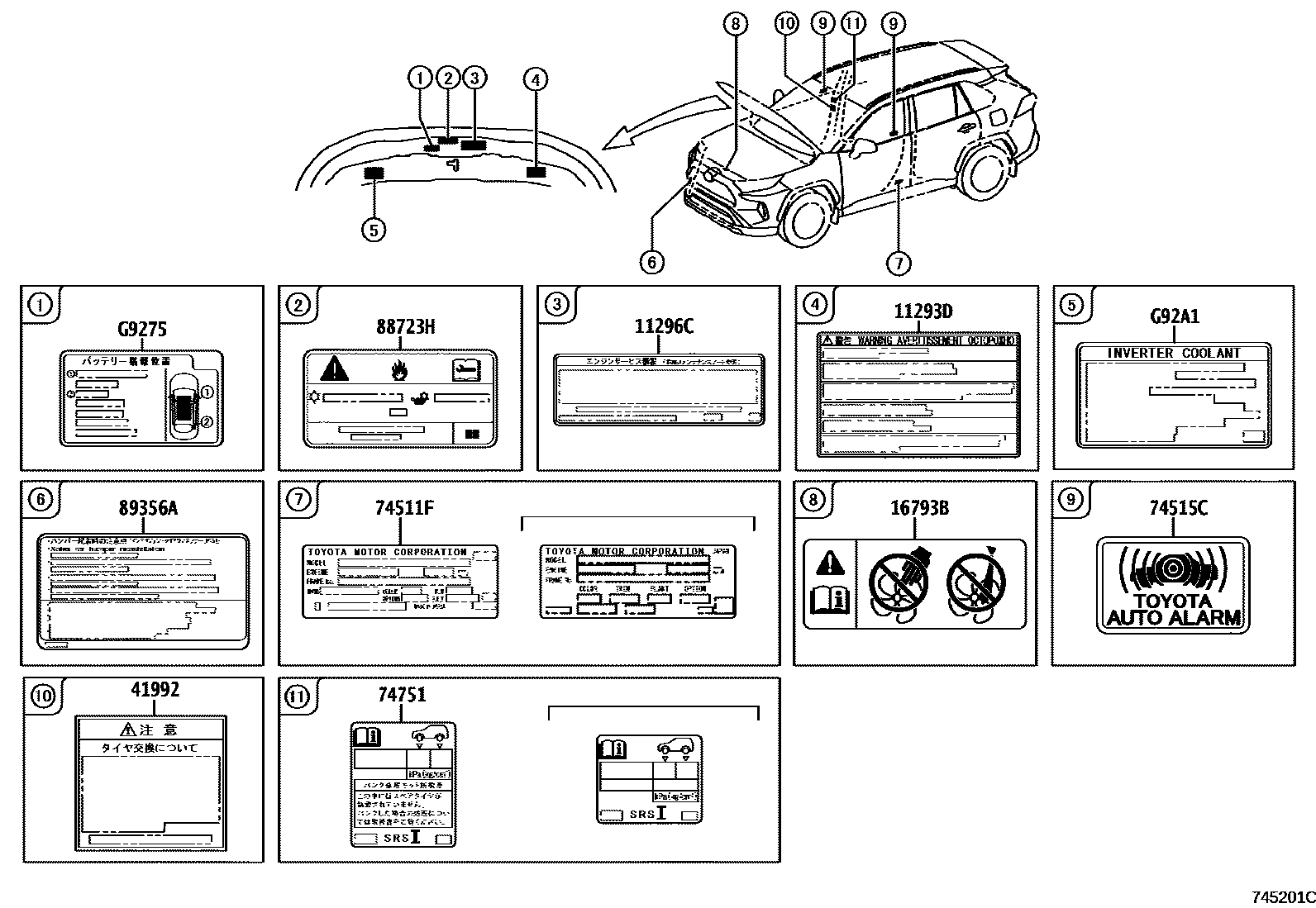

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11293D | engine warning label | 11293-36070 |
| 11296C | Engine maintenance information label | 11296-24020 |
| 16793B | Cooling fan information label | 16793-36030 |
| 41992 | Differential attention label | 41992-33010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-30A70 |
| 74515C | Anti-theft warning information label | 74515-33020 |
| 74528B | Back door warning label | 74528-78010 |
| 74541E | Small spare tire warning plate | 42668-42010 |
| 74559B | fuel information label | 74559-48060 |
| 74562B | Emission information label | 74562-30700 |
| 74573D | Electric vehicle battery warning labels | 74573-42080 |
| 74751 | tire pressure information label | 42661-42B70 · 42661-42B80 · 42661-42C00 · 42661-42C10 · 42661-42F00 |
| 82685 | warning nameplate | 82685-47110 · 82685-47111 |
| 88723H | Cooler maintenance warning label | 88723-42110 |
| 89356A | Toyota part | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-42020 |
| G92A1 | HV coolant system information label | G92A1-76010 |
