Toyota RAV4 锁芯组件 — Figure 6765

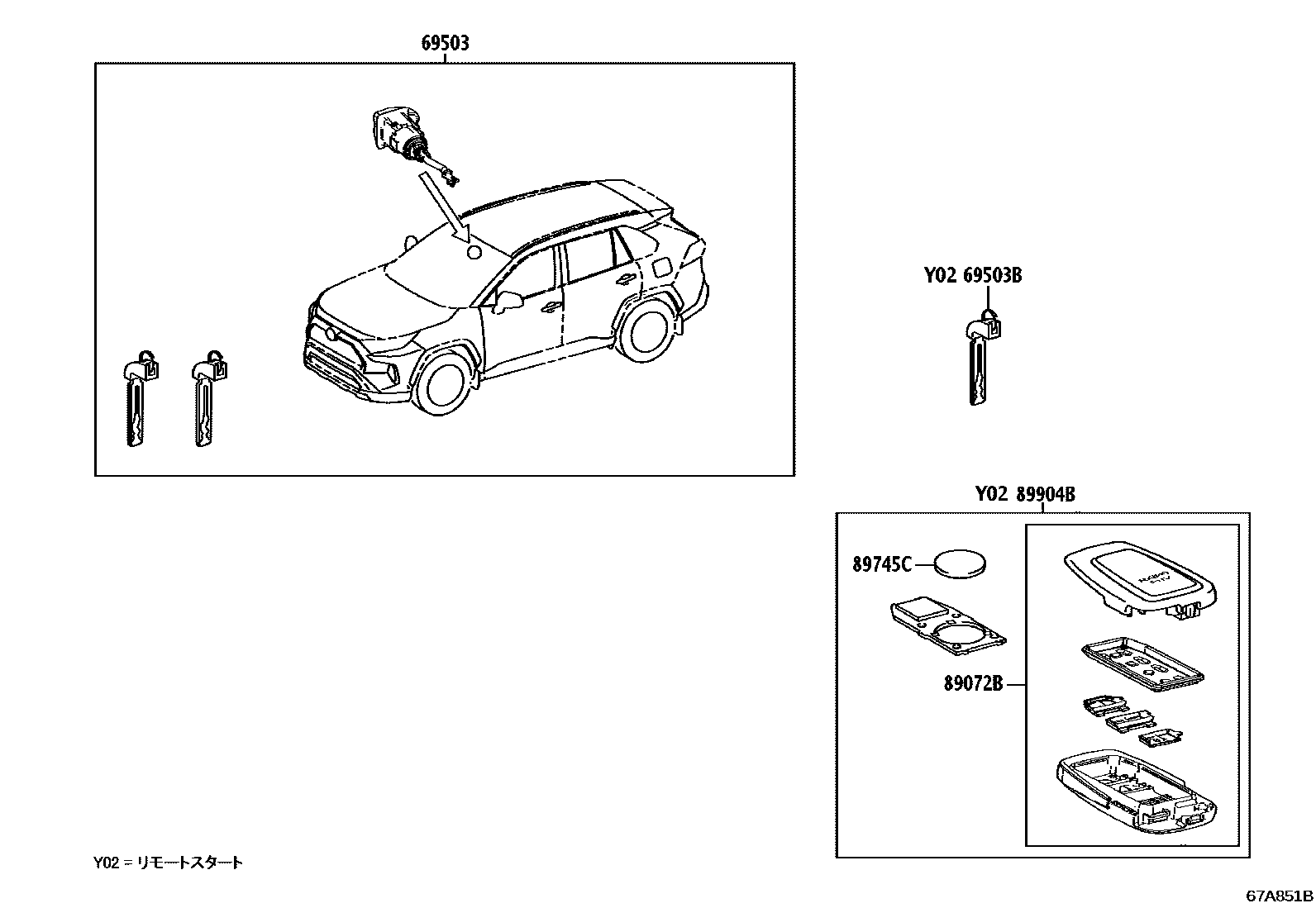

Toyota RAV4 EPC diagram 6765, 锁芯组件, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-42A50 |
| 69503B | internal tooth key | 69515-K0010 |
| 89072B | Remote key shell assembly (for smart key) | 89072-42A50 · 89072-42A60 · 89072-42D80 · 89072-42D90 |
| 89745C | Transmitter battery | 89745-K0010 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-42390 · 8990H-42391 · 8990H-42400 · 8990H-42401 · 8990H-42A80 · 8990H-42A90 · 8990H-42A91 |
