Toyota RAV4 前门锁和车门把手 — Figure 6753

Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 23 PNC and OE references.

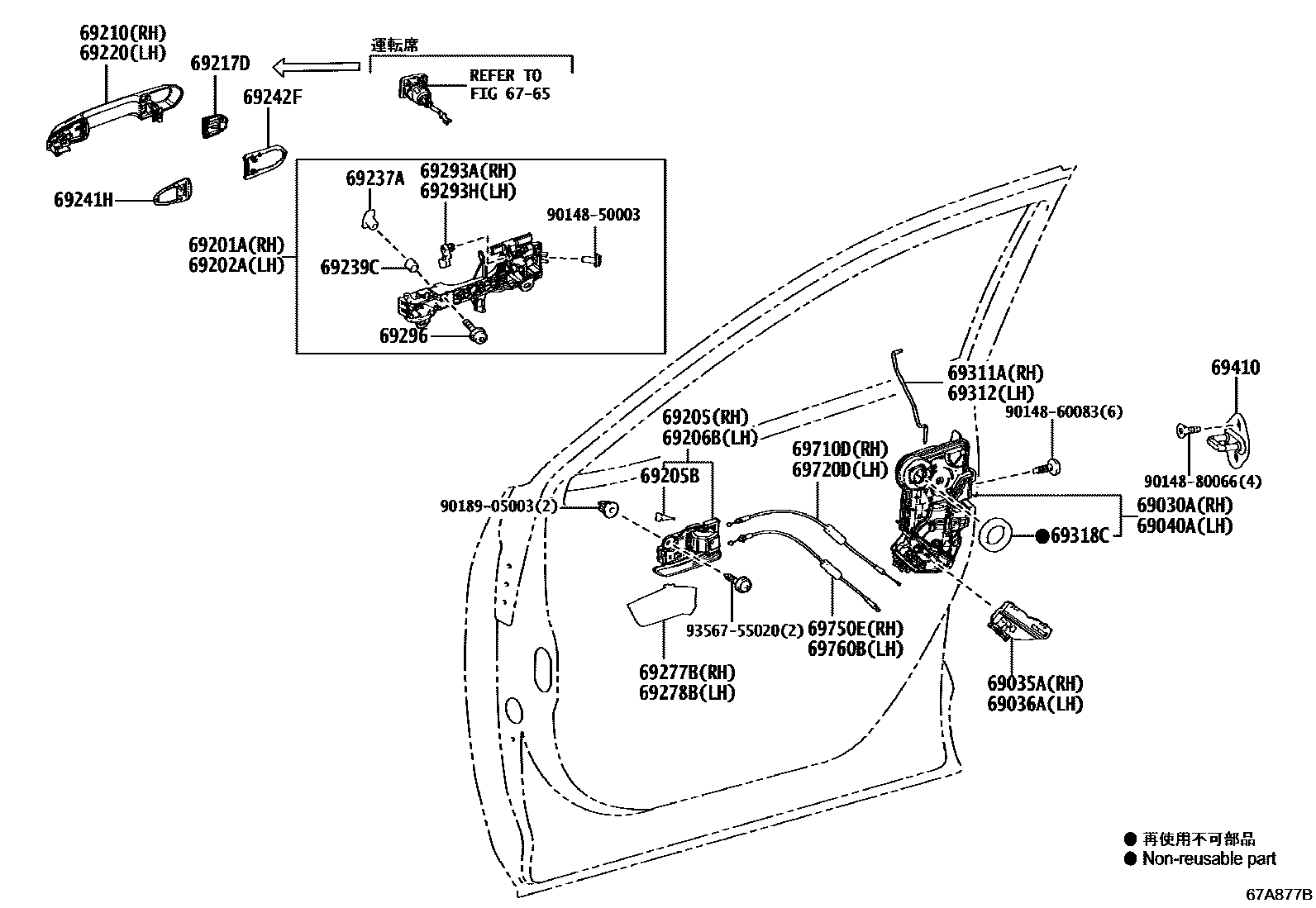

Toyota RAV4 前门锁和车门把手 EPC diagram — 67A877B
前门锁和车门把手 — 67A877B (202006 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-30A70
69035AToyota part69035-30010
69036ALeft front door lock cover sub-assembly69036-30010
69040ALeft front door door lock assembly with motor69040-30A80
69201ARight front door outer handle frame sub-assembly69201-30100
69202ALeft front door outer handle frame sub-assembly69202-30090
69205BCushion pad (for inner front door handle)90541-04014
69217DFront door outer handle cover69217-30140
69237AToyota part69237-62010
69239CToyota part69239-47010
69241HFront door exterior handle pad69241-30130
69242FFront door rear outer handle pad69242-30110
69293AFront door outer handle buckle69293-33030
69293HLeft front door outer handle buckle69293-33040
69296Car door inner handle screws69296-30010 · 90148-50006
69311ARight front door lock opening lever69311-42080
69312Left front door lock opening lever69312-42090
69318Cdoor lock harness seal69318-51010
69410Front door lock plate assembly69410-20110
69710DToyota part69710-42070
69720DToyota part69710-42070
69750EToyota part69750-42050
69760BToyota part69750-42050
