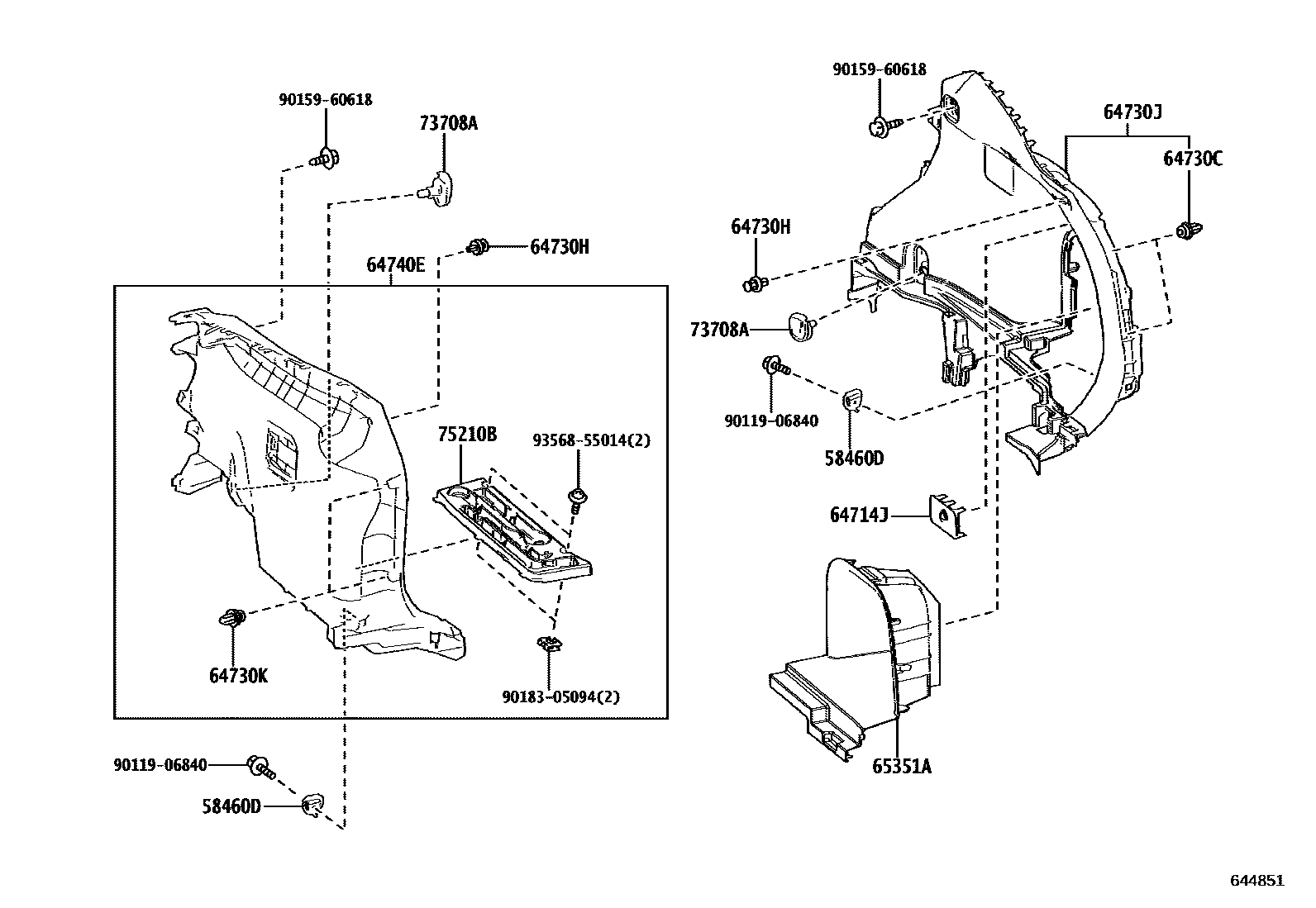

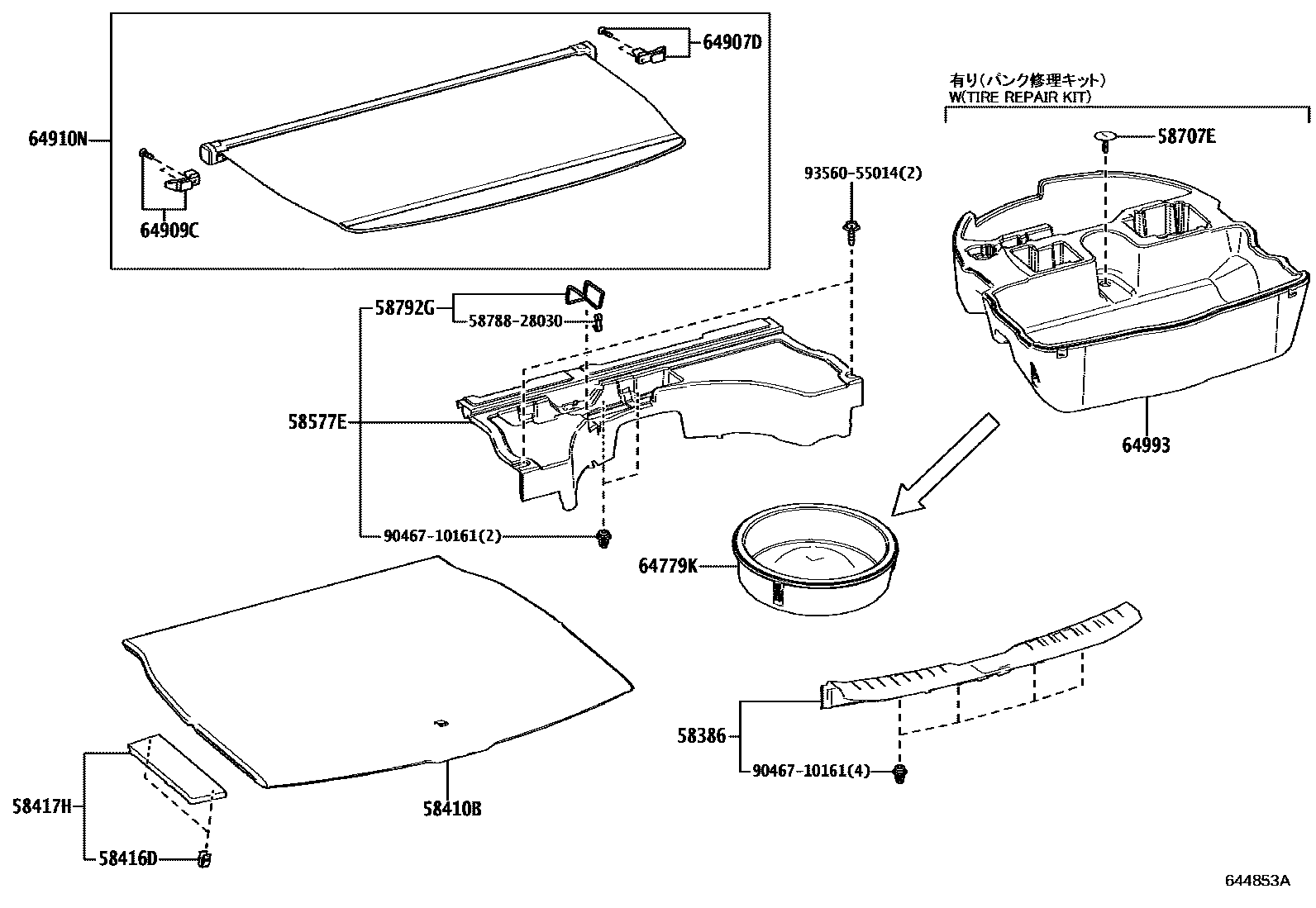

Toyota RAV4 底板和底板装饰罩 — Figure 6455
Toyota RAV4 EPC diagram 6455, 底板和底板装饰罩, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58416D | Rear floor clip | 90467-10201 |
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58707E | Toyota part | 58707-50060 |
| 58792G | Toyota part | 58792-48020 |
| 64730C | Decorative panel on the right side of the floor | 90467-10161 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-09242 |
| 64730K | Toyota part | 90467-10161 |
| 64779K | Toyota part | 64779-42060 · 64779-42070 · 64779-42120 |
| 64907D | Toyota part | 64907-42030 |
| 64909C | Toyota part | 64909-42030 |
| 64993 | Bottom floor box | 64993-42020 |
