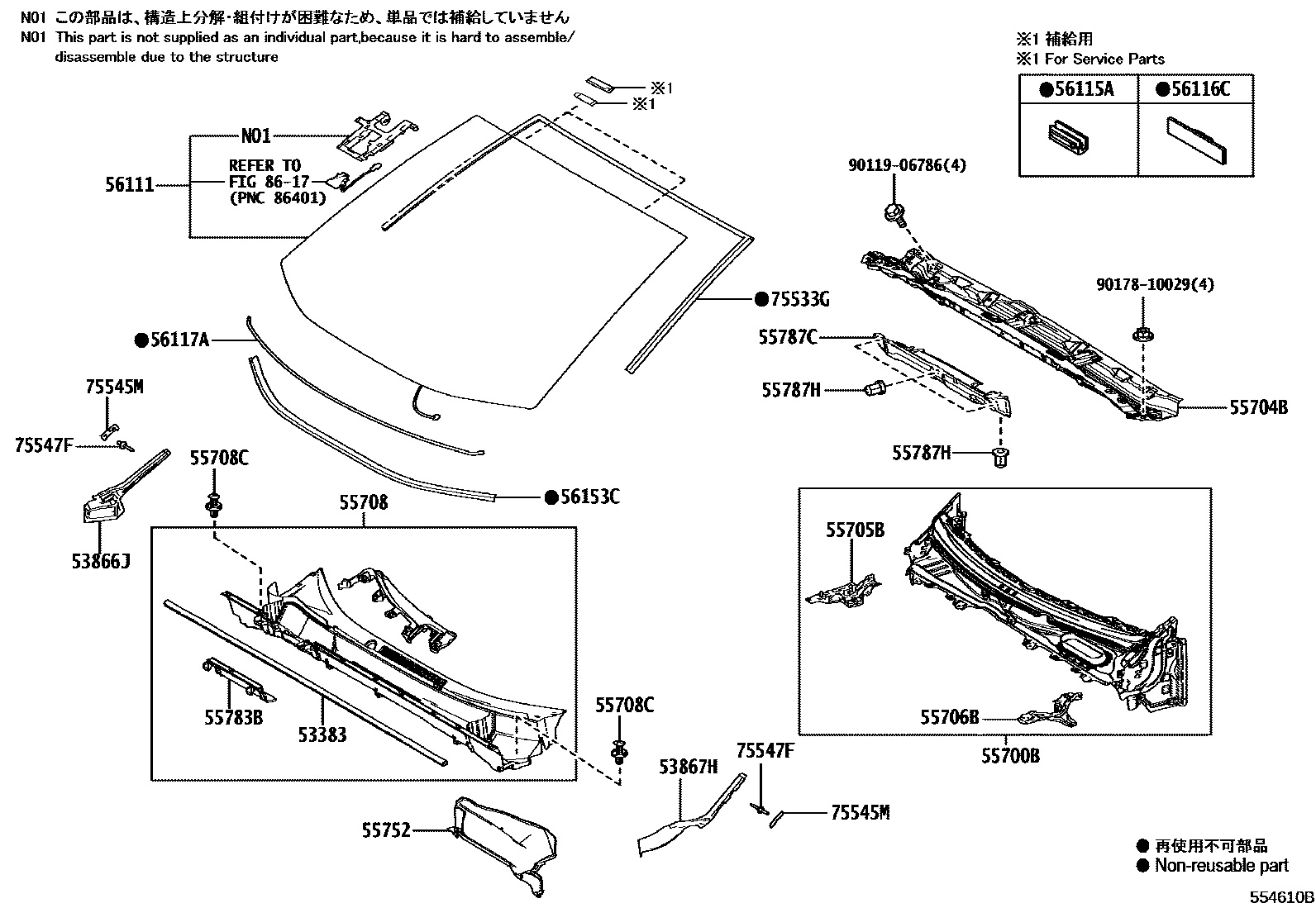

Toyota RAV4 前围板和挡风玻璃 — Figure 5553
Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-42050 |
| 53866J | Right front fender to cowl side seal | 53866-42041 |
| 53867H | Left front fender to cowl side seal | 53867-42041 |
| 55700B | Toyota part | 55700-42510 |
| 55704B | Toyota part | 55704-42020 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-42080 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-42060 |
| 55708 | Toyota part | 55708-42250 · 55708-42260 |
| 55708C | Toyota part | 90467-09242 |
| 55752 | Toyota part | 55752-42030 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-42080 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-42070 |
| 56111 | windshield | 56101-42952 · 56101-42953 · 56101-42959 · 56101-42960 · 56101-4A918 · 56101-4A919 · 56101-4A923 · 56101-4A924 · 56101-4A925 · 56101-4A927 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56153C | Front center window inner protective strip | 56153-42020 |
| 75533G | Windshield outer protective strip | 75533-42070 · 75533-42090 |
| 75545M | Toyota part | 75545-42010 |
| 75547F | Toyota part | 75547-51021 |
