Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152

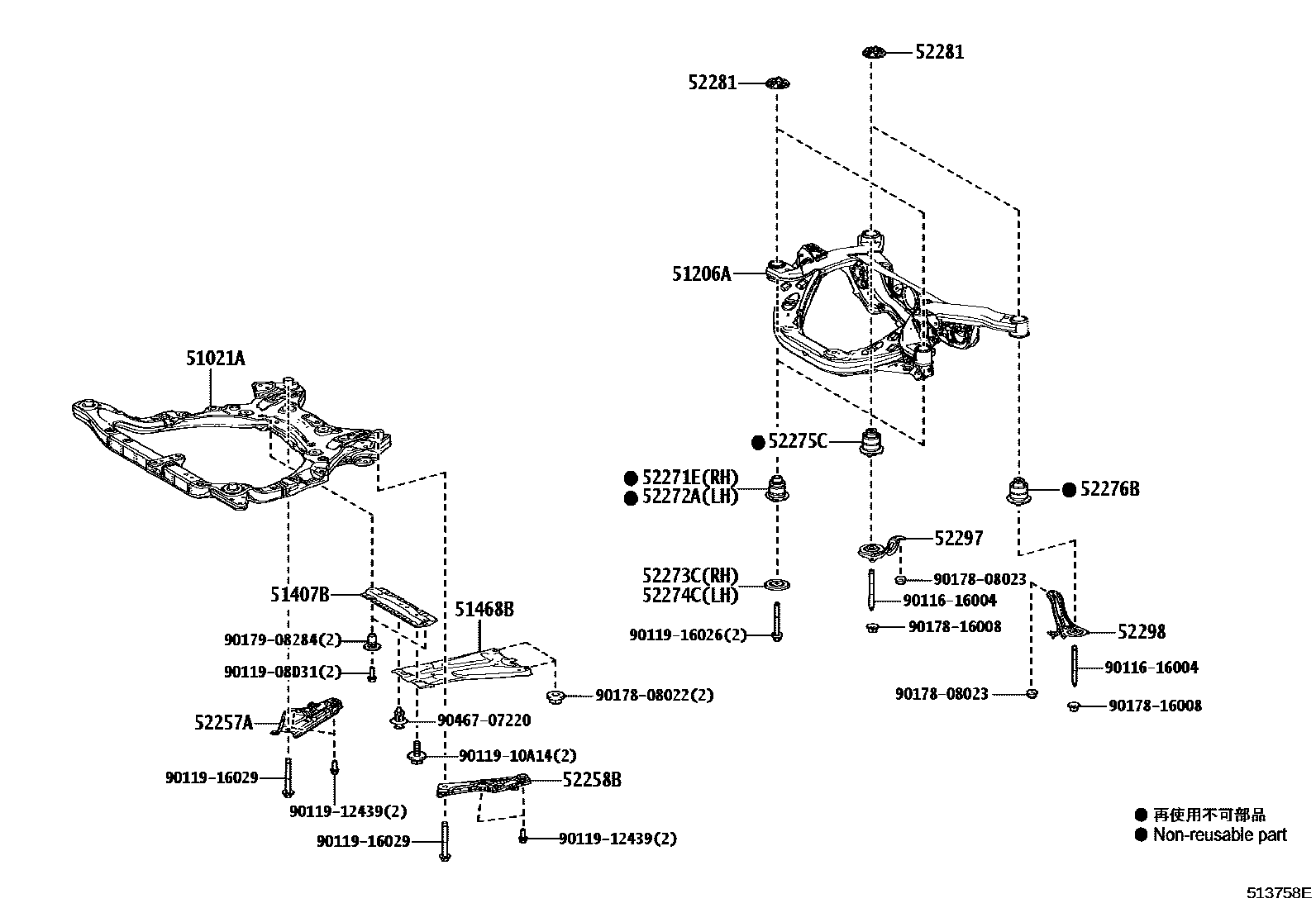

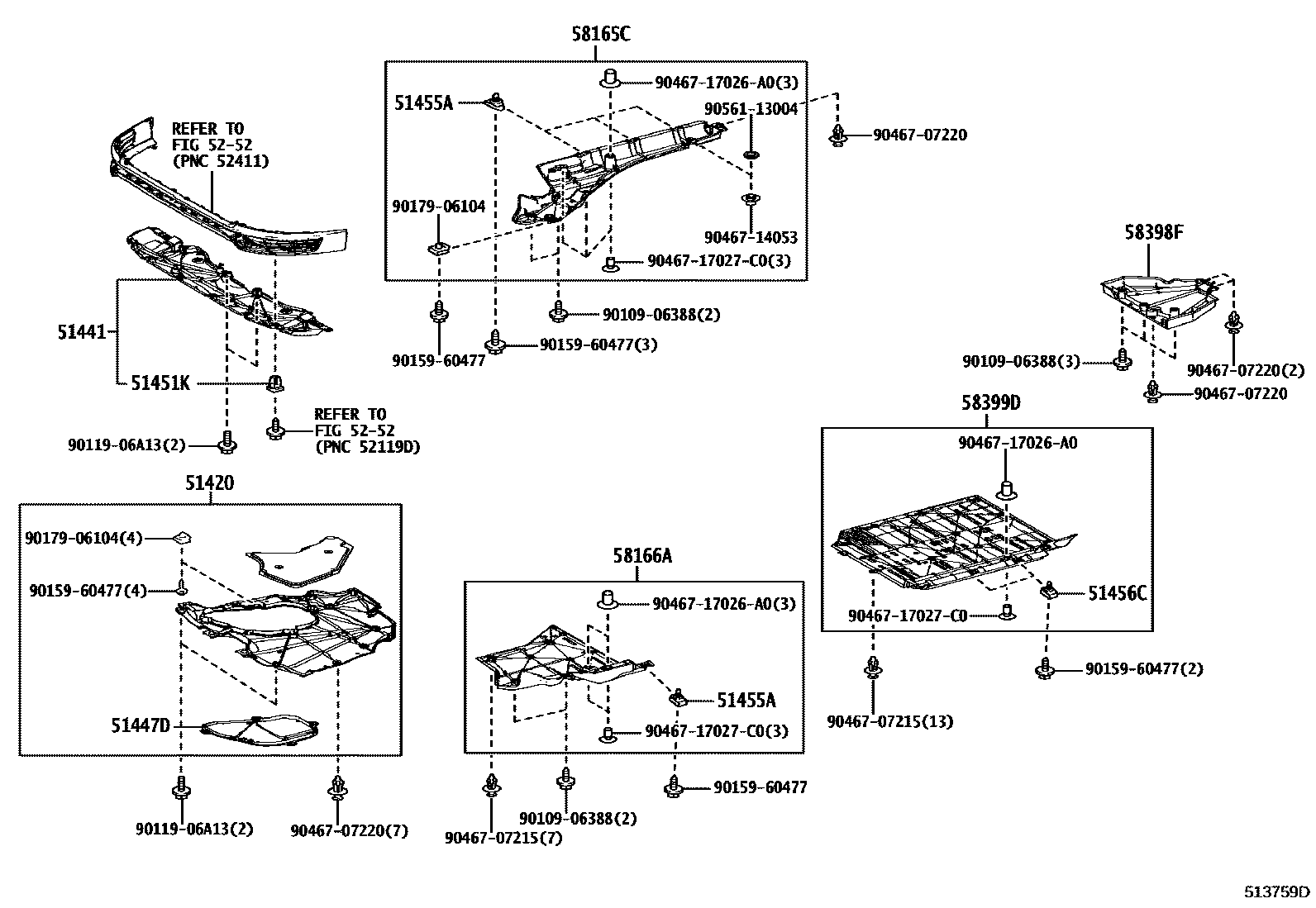

Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51021A | Engine front support beam sub-assembly | 51100-42050 · 51100-42051 |
| 51206A | Rear suspension cross member sub-assembly | 51206-42080 |
| 51407B | Engine bottom cover bracket sub-assembly | 51401-42030 |
| 51420 | Toyota part | 51420-42040 |
| 51441 | No. 1 engine bottom cover | 51441-42200 |
| 51447D | No. 4 engine center bottom cover | 51447-42080 |
| 51451K | Toyota part | 90189-06237 |
| 51455A | Engine undercover seal No. 1 | 51455-48020 |
| 51456C | Engine undercover seal No. 2 | 51455-48020 |
| 51468B | Toyota part | 51468-42030 |
| 52257A | Right front suspension cross member rear bracket | 52257-42020 |
| 52258B | Left front suspension cross member rear bracket | 52258-42020 |
| 52271E | Rear suspension cross member right front body fixed cushion | 52271-42010 |
| 52272A | Rear suspension cross member left front body fixed cushion | 52271-42010 |
| 52273C | Toyota part | 52273-33030 |
| 52274C | Toyota part | 52273-33030 |
| 52275C | Toyota part | 52275-42010 |
| 52276B | Toyota part | 52276-42010 |
| 52281 | Differential support beam cushion | 52281-33020 |
| 52297 | Right rear suspension cross member rear lower bracket | 52297-42030 |
| 52298 | Left rear suspension cross member rear lower bracket | 52298-42020 |
| 58165C | Front floor right cover | 58165-42040 |
| 58166A | Front floor left cover | 58166-42060 |
| 58398F | No. 1 floor under cover | 58398-42040 |
| 58399D | Floor No. 2 lower cover | 58399-42040 |
