Toyota RAV4 制动总泵 — Figure 4702

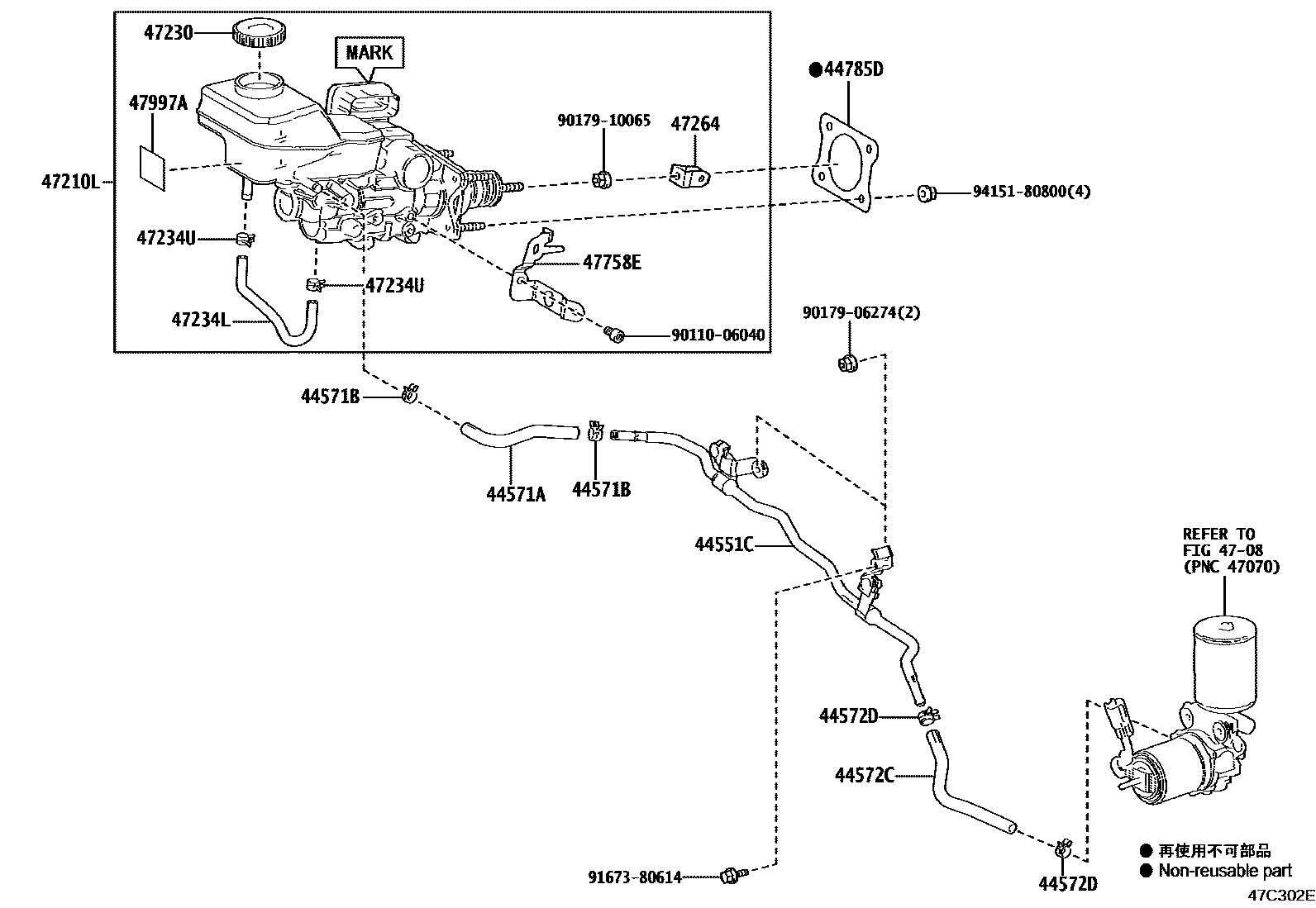

Toyota RAV4 EPC diagram 4702, 制动总泵, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-42050 |
| 44571A | No. 1 brake actuator hose | 44571-42050 |
| 44571B | Toyota part | 96137-41501 |
| 44572C | No. 2 brake actuator hose | 44572-42030 |
| 44572D | Toyota part | 96137-41501 |
| 44785D | brake master cylinder gasket | 44785-12040 |
| 47210L | Brake booster assembly with master cylinder | 47050-42260 · 47050-42261 · 47050-42370 · 47050-42371 · 47050-42420 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-42050 |
| 47234U | Clamp (for reservoir tank No. 1 hose) | 96137-41501 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47758E | Toyota part | 47758-42020 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
