Toyota RAV4 Front Drive Shaft — Figure 4302

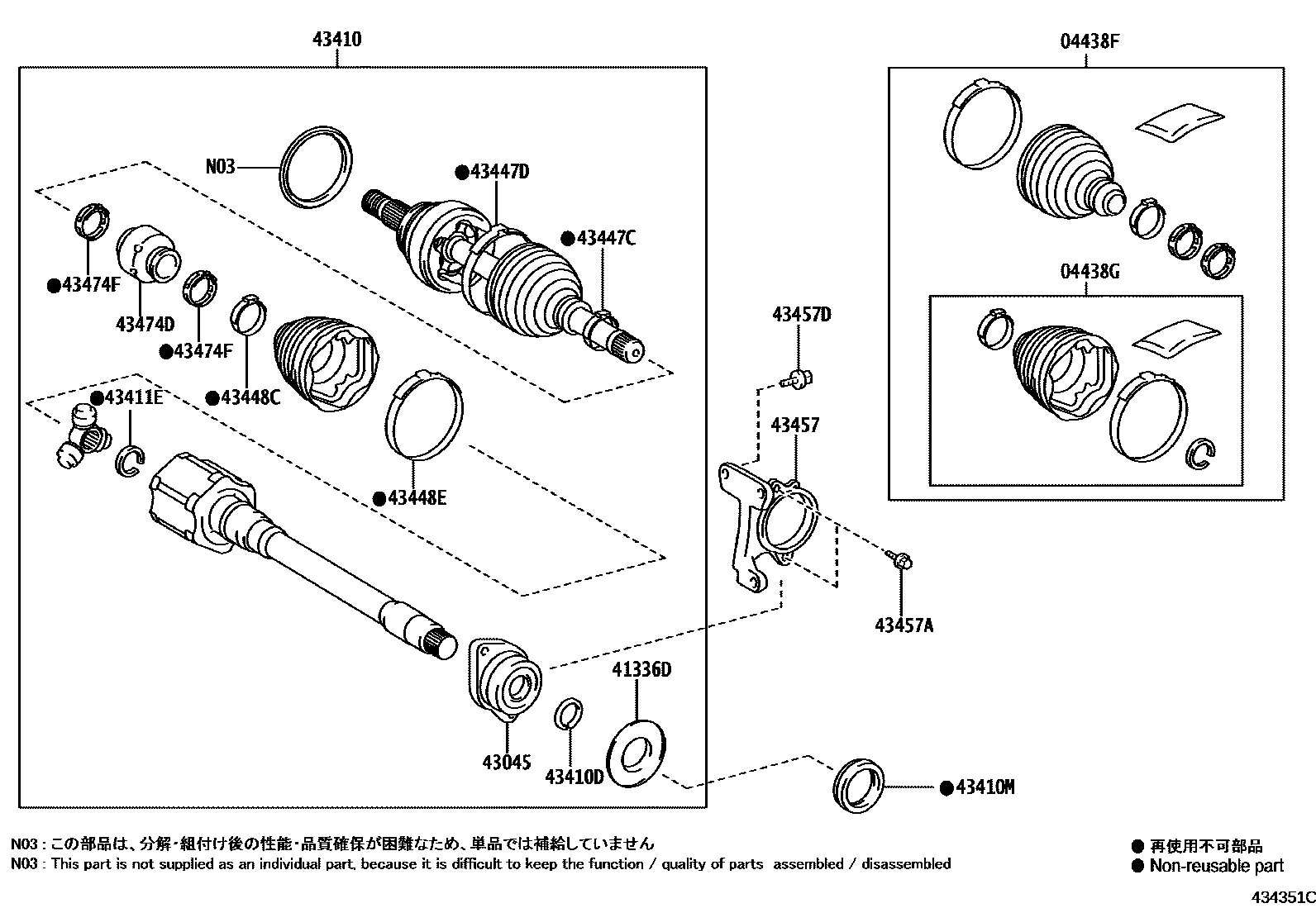

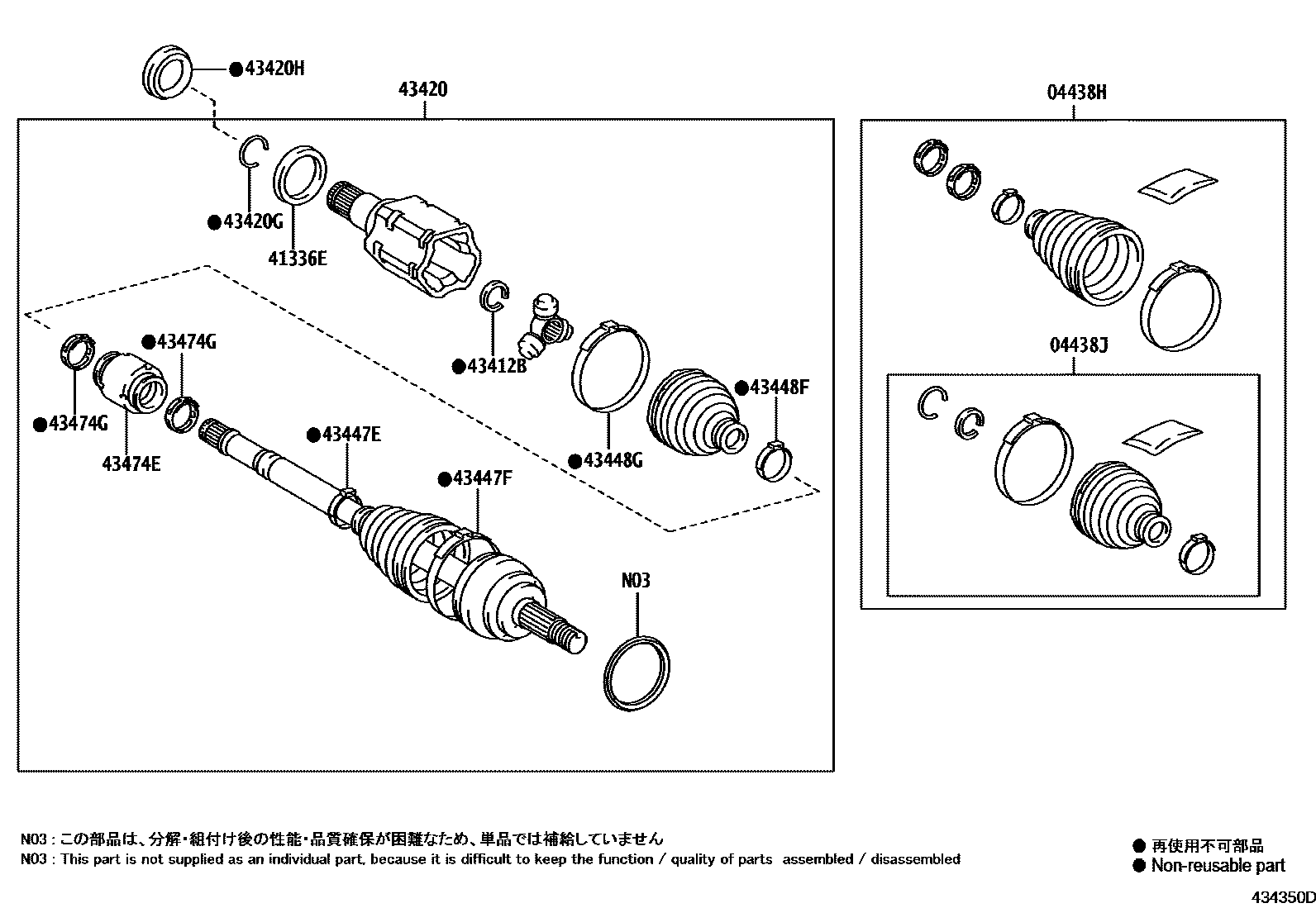

Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-42210 · 04427-42211 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-42090 · 04437-48180 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-42170 · 04428-48170 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-42090 · 04438-48170 |
| 41336D | Right front driveshaft dust cover | 41336-42020 |
| 41336E | Left front driveshaft dust cover | 41336-42030 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-64020 |
| 43410 | Right front driveshaft assembly | 43410-42390 · 43410-42391 |
| 43410D | Shaft snap ring (for front drive shaft) | 43425-42030 |
| 43410M | Toyota part | 90311-40046 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-42040 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-42040 |
| 43420 | Left front drive shaft assembly | 43420-42280 · 43420-42281 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-42060 |
| 43420H | Toyota part | 90311-50059 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-42030 · 42345-48240 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-42140 · 42345-48280 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-42030 · 42345-48240 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-42140 · 42345-48280 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-42030 · 42345-48240 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-42020 · 42345-48270 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-42030 · 42345-48240 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-42020 · 42345-48270 |
| 43457 | drive shaft bearing bracket | 43457-33050 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43474D | Right front driveshaft shock absorber | 43474-42070 |
| 43474E | Left front driveshaft shock absorber | 43474-42080 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-42040 · 42345-42240 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-42130 · 42345-42250 |
