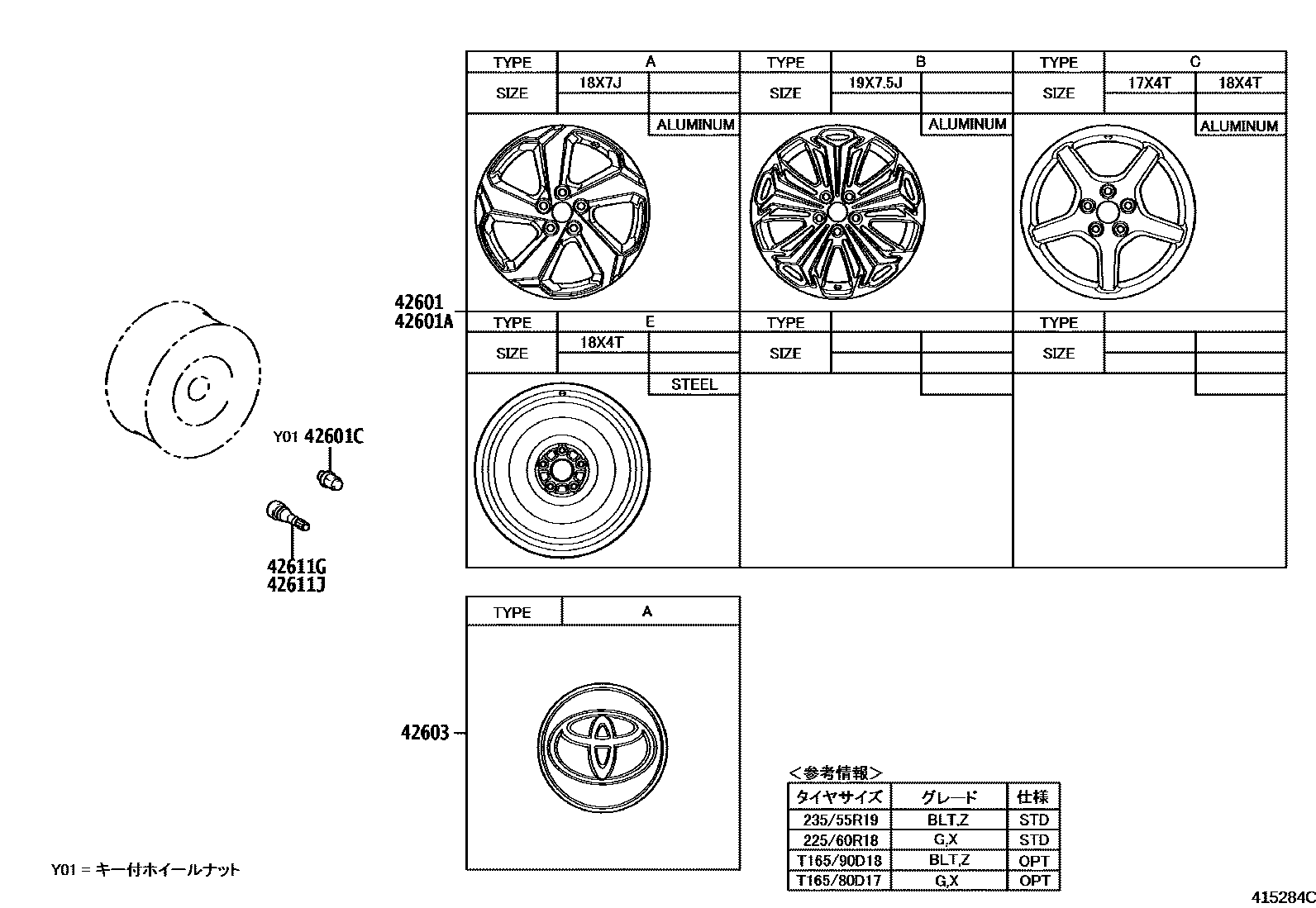

Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-42580 · 42611-42590 |
| 42601A | Spoke wheel (for spare tire) | 42611-33E70 · 42611-42780 · 4261B-42020 |
| 42601C | Hub nut (for axle) | 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
