Toyota RAV4 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota RAV4 EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

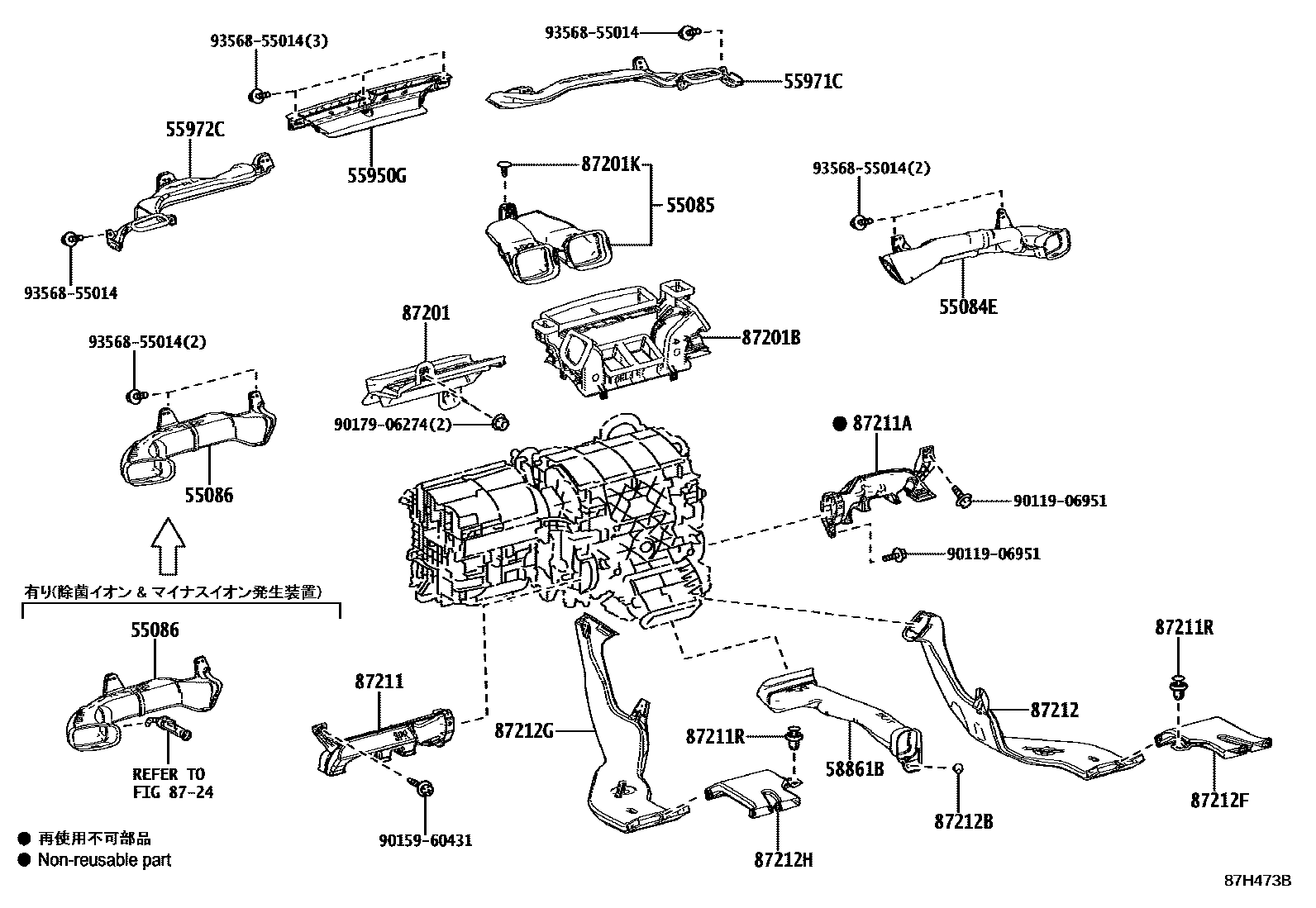

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55843-42110 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55844-42120 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55845-42100 · 55845-42130 |

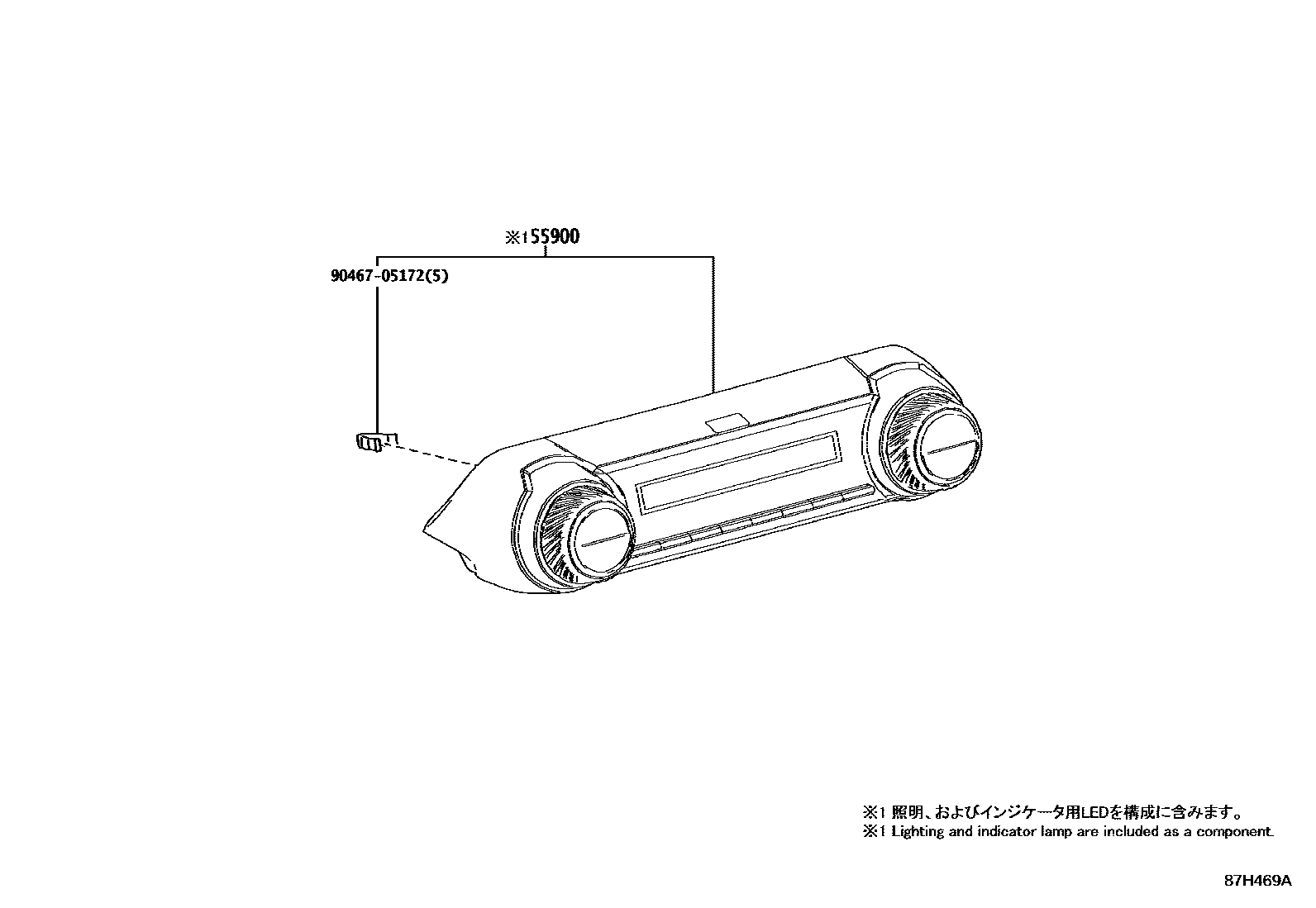

| 55900 | Air conditioning control assembly | 55900-42590 · 55900-42D50 |
| 55950G | Defroster nozzle assembly | 55950-42080 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-42080 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-42080 |
| 58861B | Air duct No. 1 for armrest box | 58861-42040 |
| 87201 | No. 1 air duct sub-assembly | 87201-42100 |
| 87201B | No. 2 air duct sub-assembly | 87201-42130 |
| 87211 | No. 1 air duct | 87201-42090 |
| 87211A | Duct No. 2 | 87201-42080 |
| 87211R | Air duct clip | 90467-07215 |
| 87212 | No. 1 rear air duct | 87212-42090 |
| 87212F | No. 2 rear air duct | 87215-42060 |
| 87212G | No. 3 rear air duct | 87213-42080 |
| 87212H | No. 4 rear air duct | 87216-42030 |

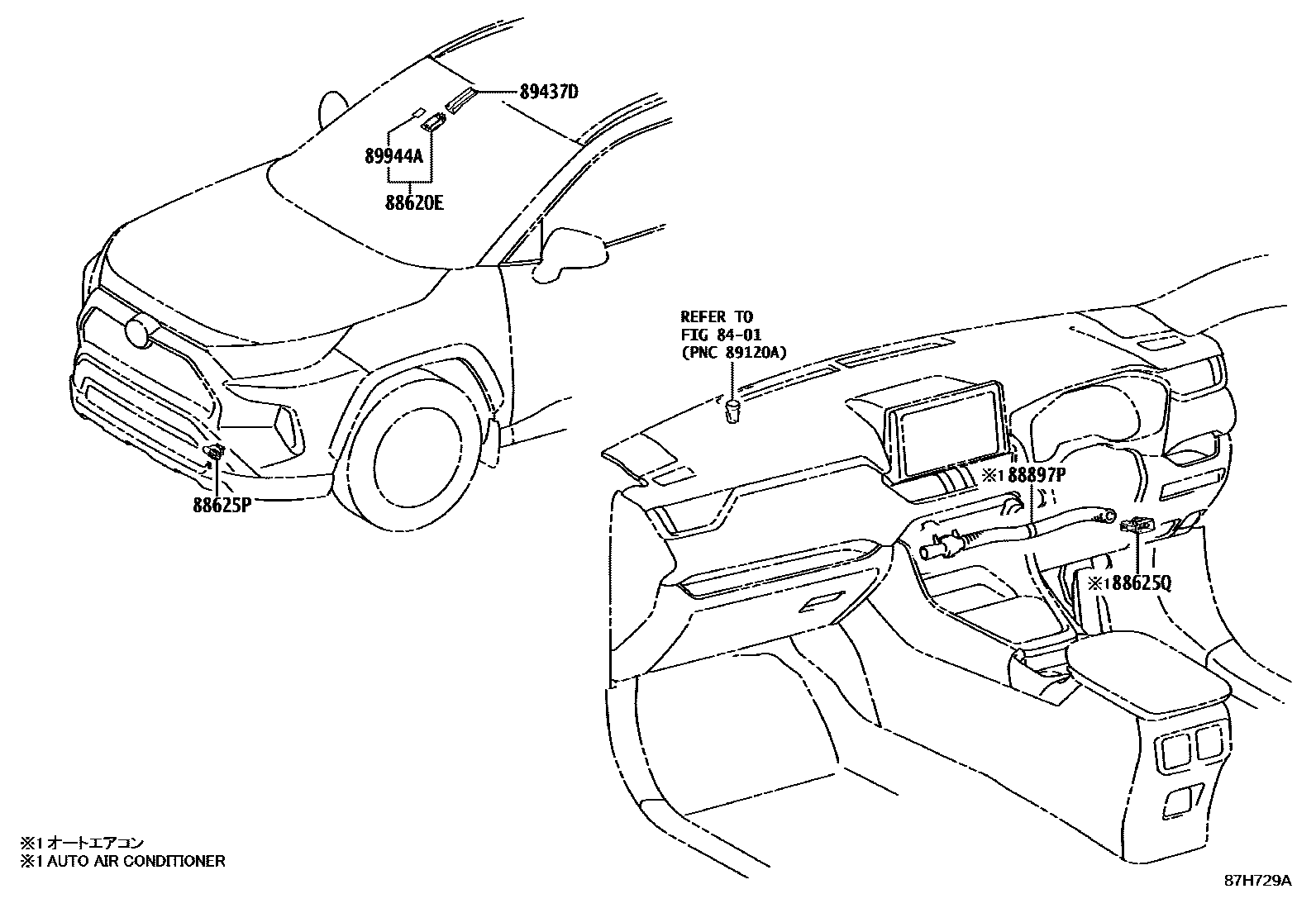

| 88620E | Air conditioning thermistor assembly | 89941-76010 |

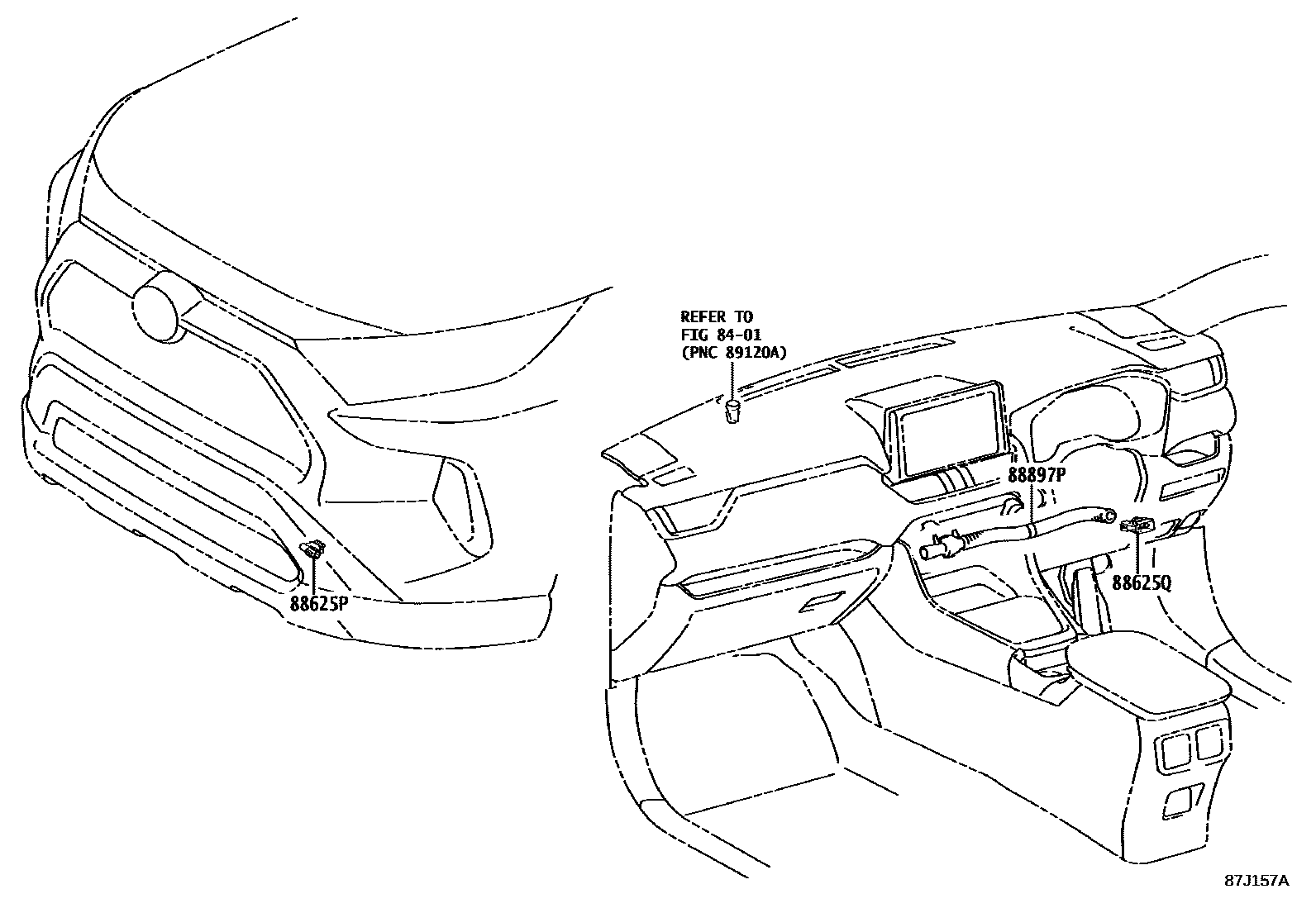

| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-28100 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88897P | aspirator | 87201-42110 |
| 89437D | sensor cover | 89943-42040 |
| 89944A | Toyota part | 89944-42020 |
