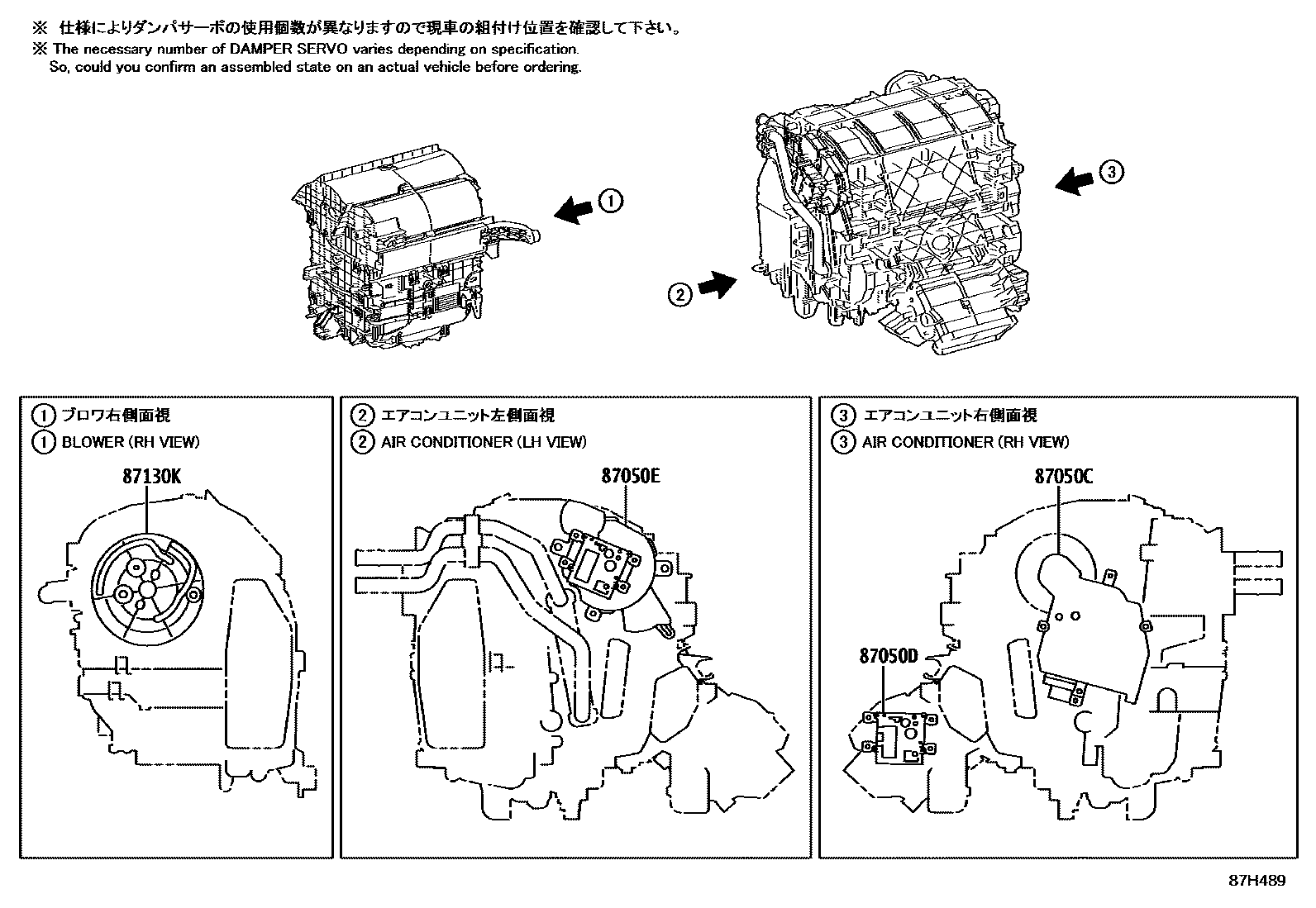

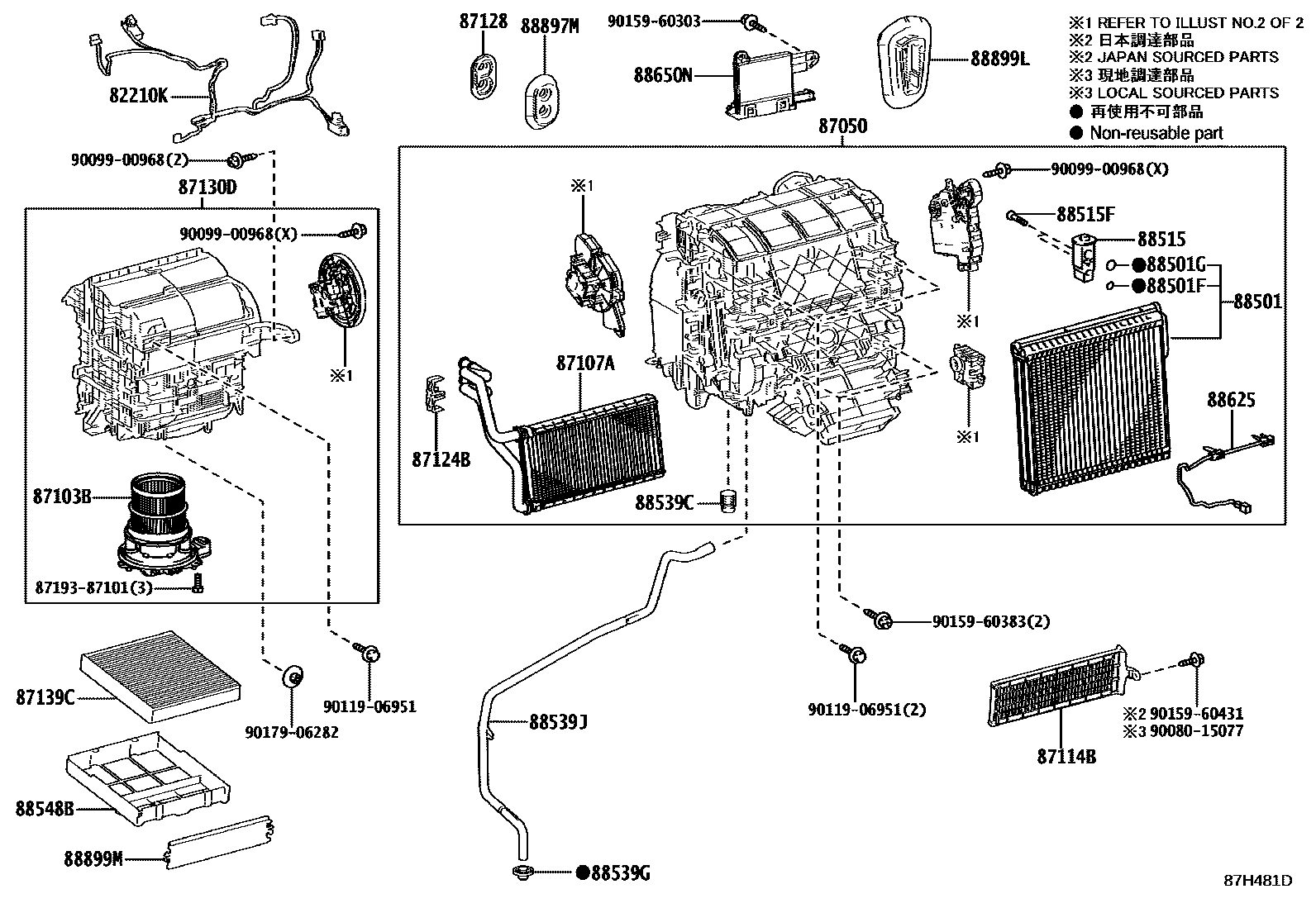

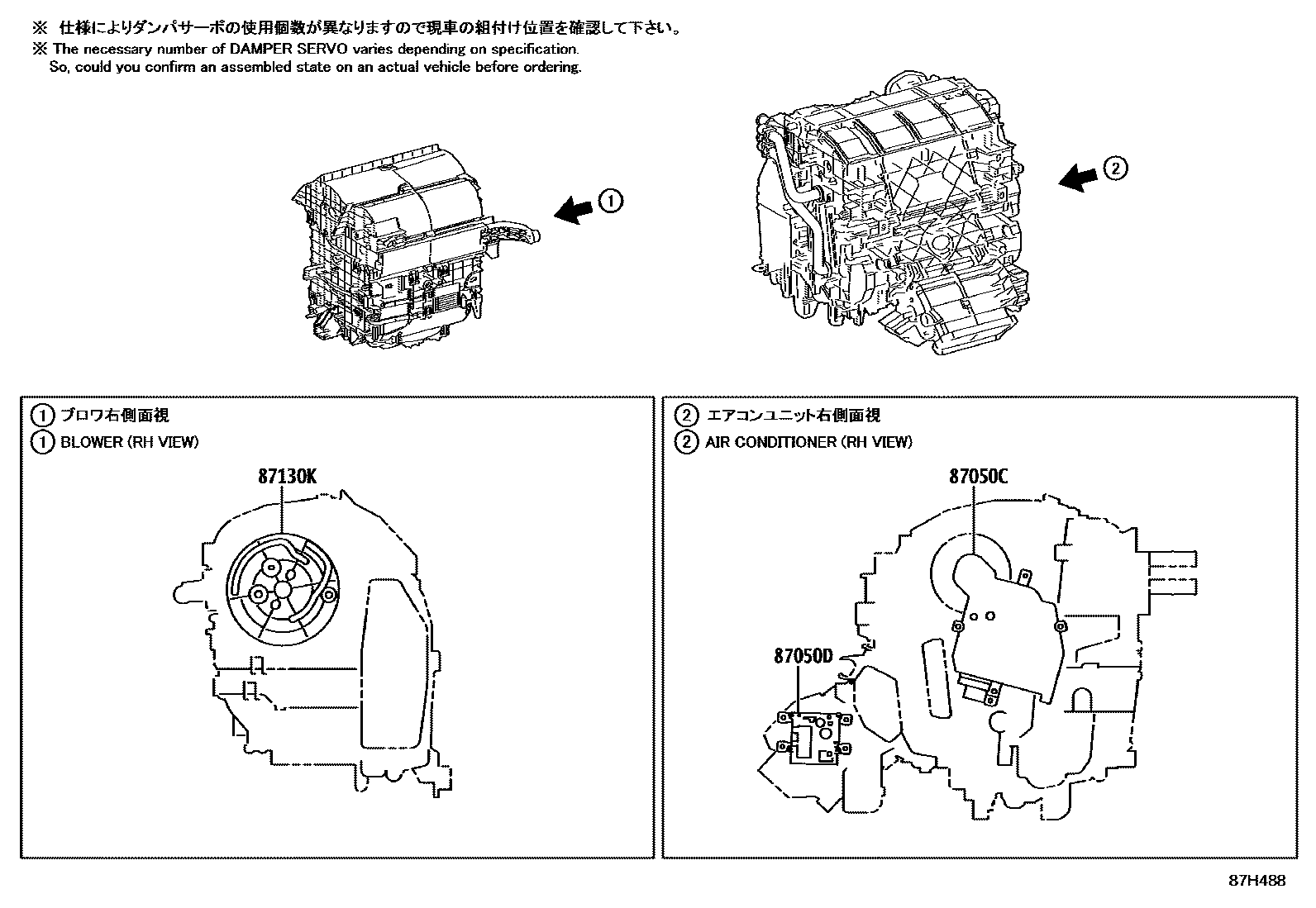

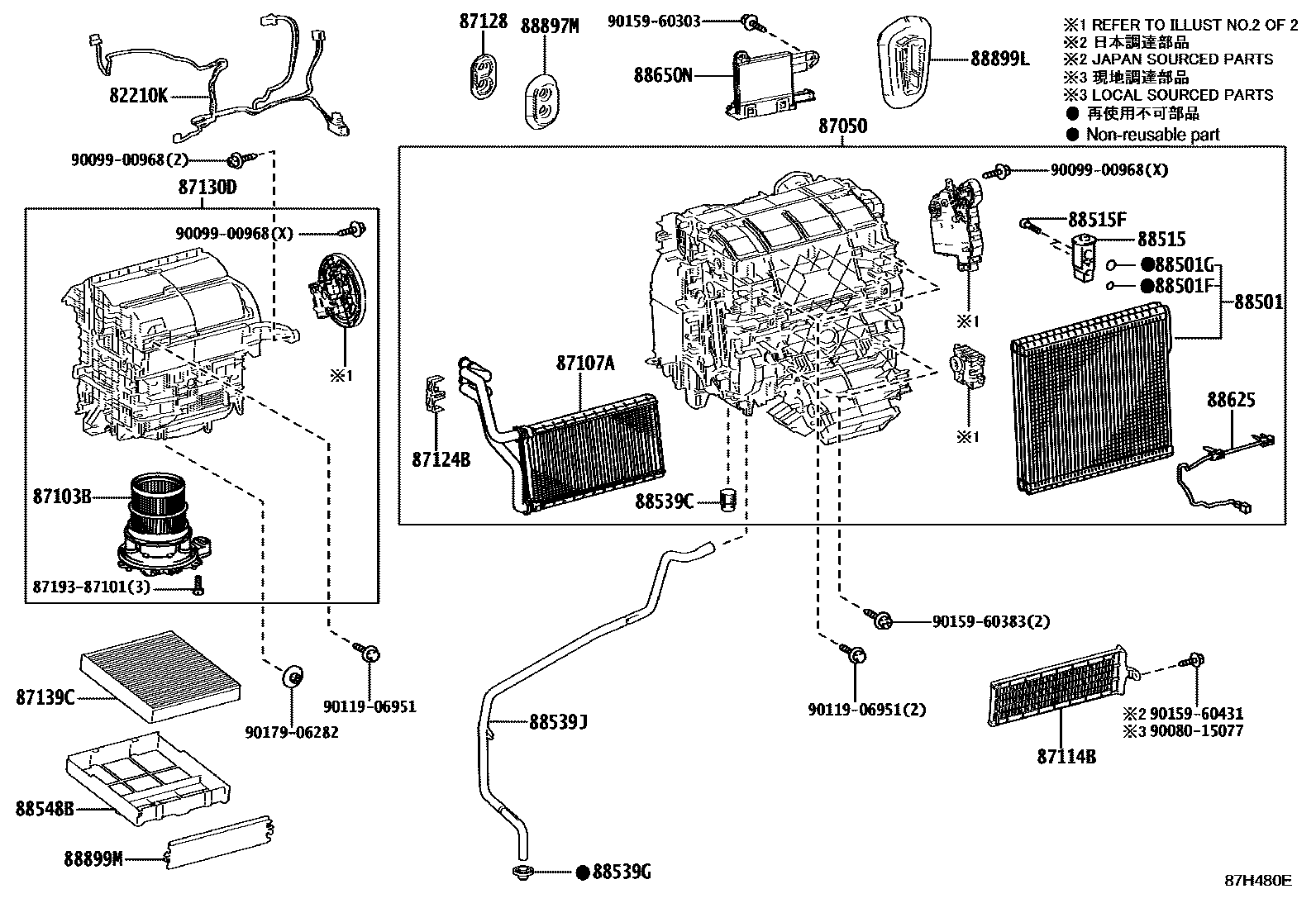

Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-33170 · 82212-42060 |
| 87050 | Air conditioning radiator assembly | 87050-33E70 · 87050-42A00 · 87050-42B90 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-48170 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-33340 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-28230 |
| 87103B | Blower motor sub-assembly with fan | 87103-58070 · 87103-78050 |
| 87107A | Heater radiator device sub-assembly | 87107-33140 |
| 87114B | heater cover | 87114-58050 |
| 87124B | heater clip | 87124-33070 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-16211 · 87130-47300 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-28250 |
| 87139C | air purification filter | 87139-58010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-33350 · 88501-33360 · 88501-33390 |
| 88501F | Toyota part | 90099-14120 |
| 88501G | Toyota part | 90099-14121 |
| 88515 | Cooler expansion valve | 88515-33080 · 88515-50320 · 88515-58050 |
| 88515F | Toyota part | 90099-04542 |
| 88539C | No. 2 cooler unit drain hose | 88899-10110 |
| 88539G | Seal (for cooler unit drain hose) | 88888-47010 |
| 88539J | Cooler drain hose | 88539-42080 |
| 88548B | air filter housing | 88899-48070 · 88899-76020 |
| 88625 | Cooler No. 1 Thermistor | 88620-28050 · 88620-33040 |
| 88650N | Air conditioning amplifier assembly | 88650-42720 · 88650-42810 · 88650-42811 · 88650-42830 · 88650-42831 · 88650-42880 · 88650-42890 · 88650-42A20 · 88650-42A40 · 88650-42A60 |
| 88897M | Seals (for heater tubes) | 87128-33020 |
| 88899L | Cooling unit parts | 88899-33080 · 88899-33090 |
| 88899M | cover (for air cleaner) | 88899-47120 |
