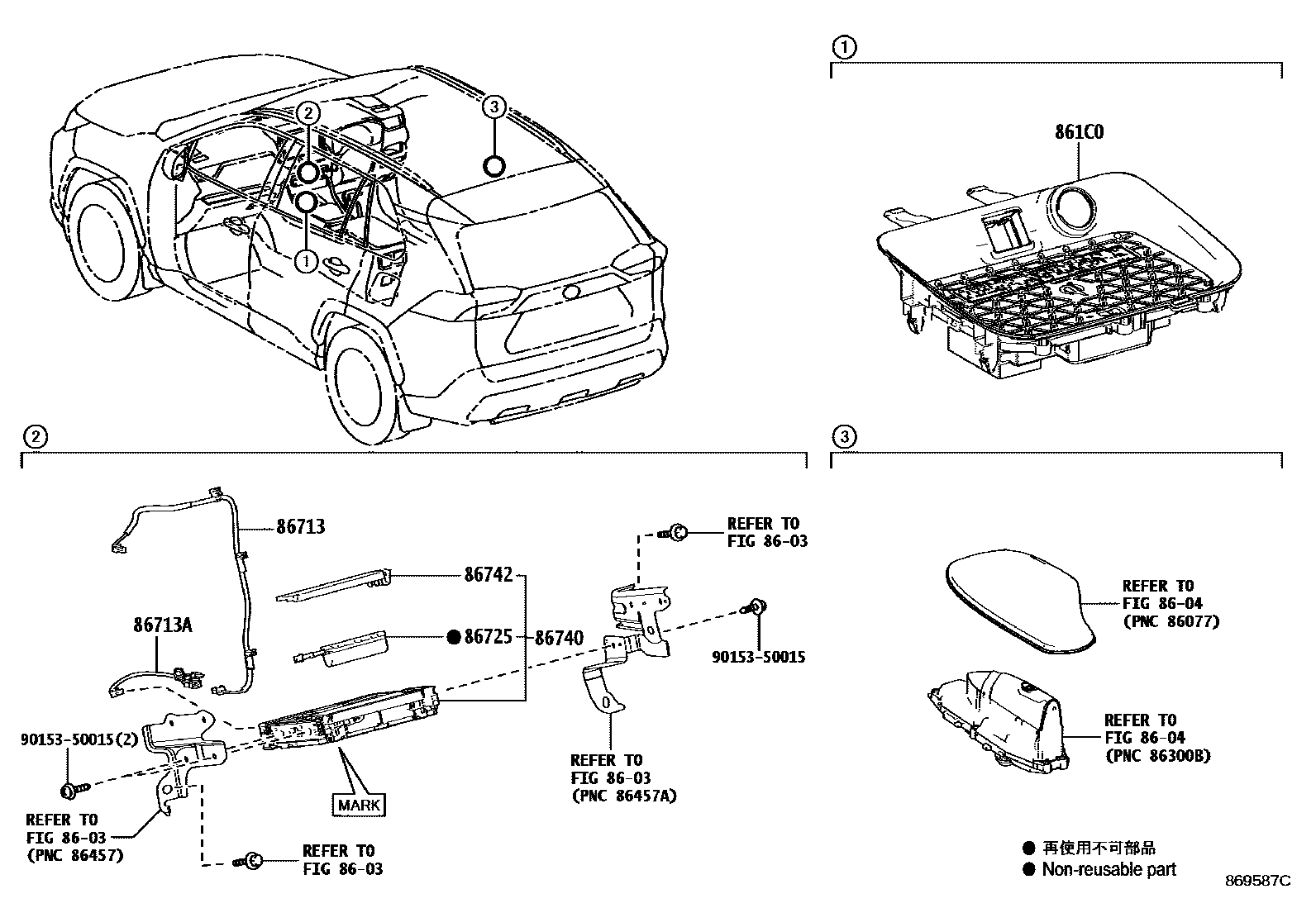

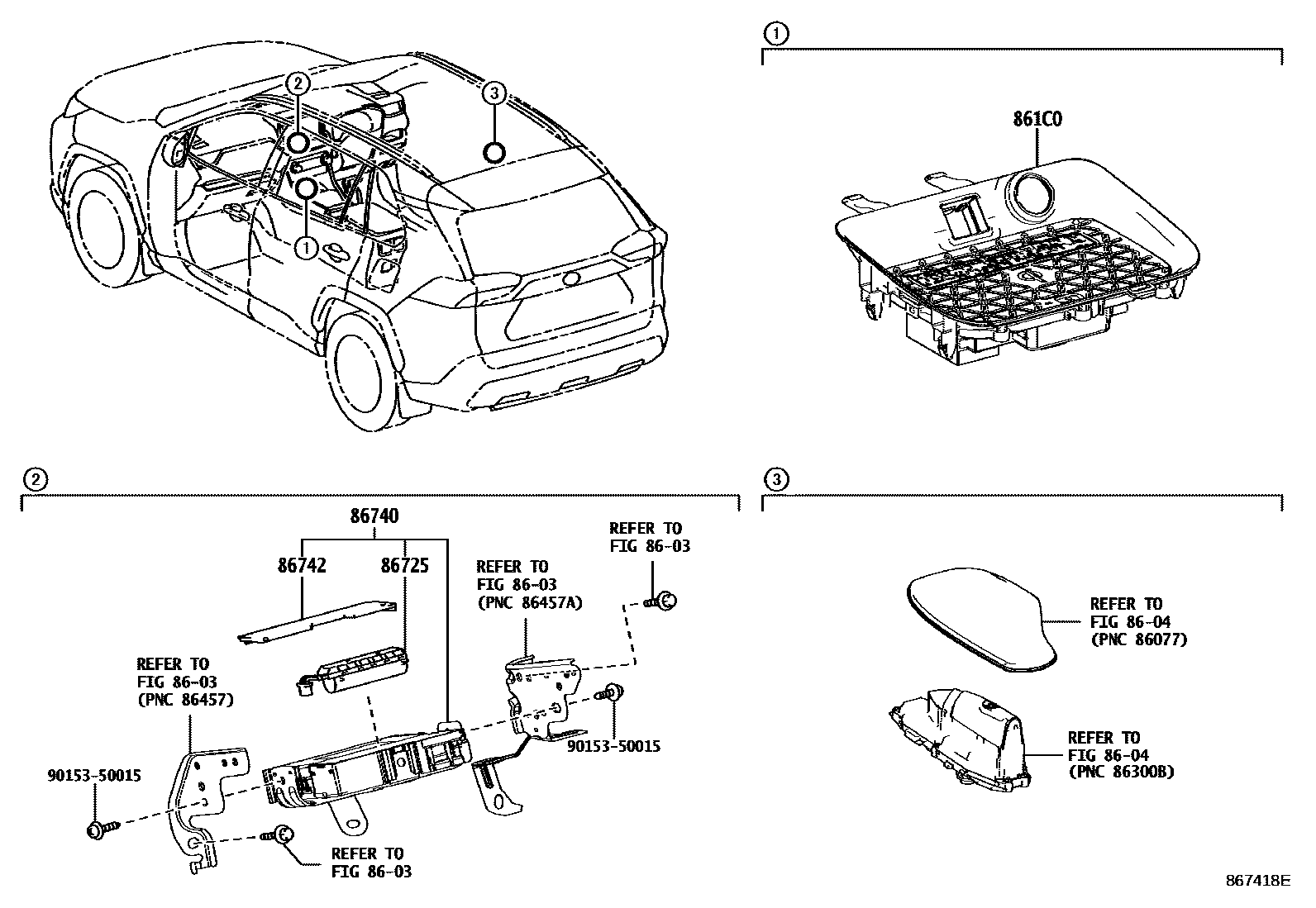

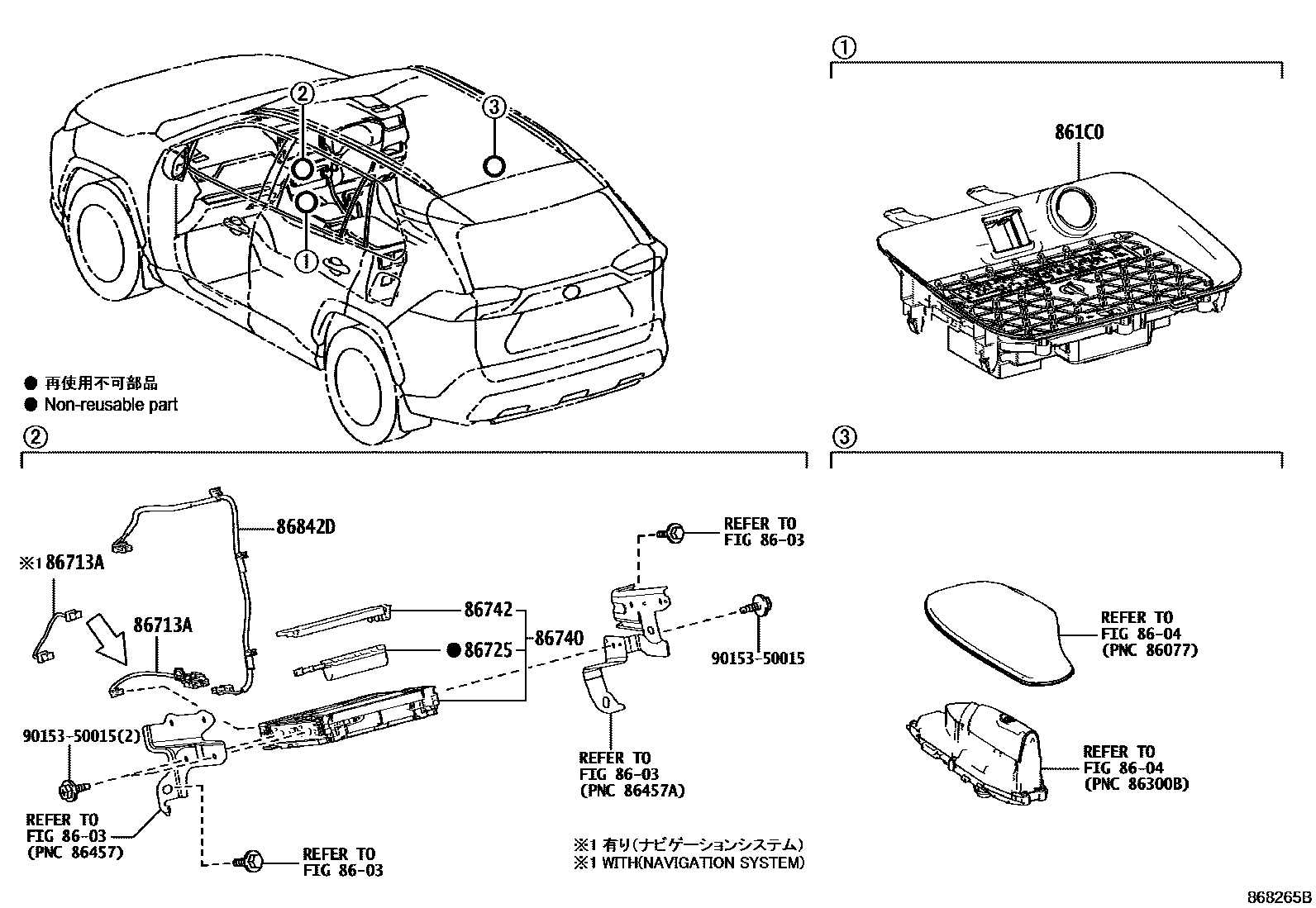

Toyota RAV4 车载电话和呼救装置 — Figure 8615
Toyota RAV4 EPC diagram 8615, 车载电话和呼救装置, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86713 | Telephone ECU wiring harness | 86713-42190 |
| 86713A | Telephone ECU harness (to transceiver) | 86713-42100 · 86713-42110 · 86713-42180 |
| 86725 | mobile phone battery | 86725-26010 · 86725-58010 · 86725-78020 |
| 86740 | Telephone transceiver assembly | 86740-42180 · 86741-11041 · 86741-11042 · 86741-11050 · 86741-60120 |
| 86742 | transceiver cover | 86742-26010 · 86742-58020 |
| 86842D | Navigation harness | 86842-42040 |
