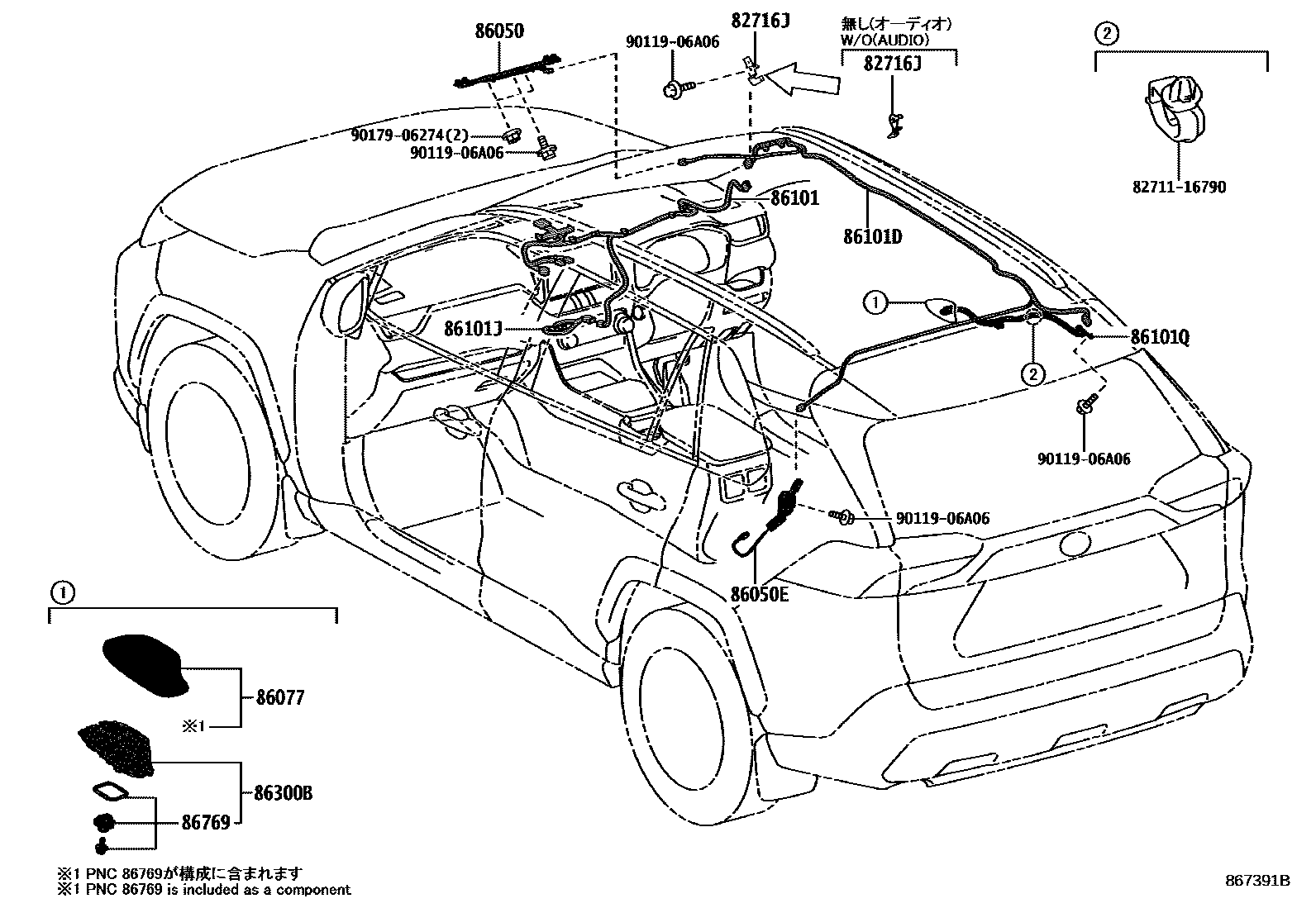

Toyota RAV4 antenna — Figure 8604
Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82716J | Toyota part | 82715-42N00 · 82715-42Q70 |
| 86050 | Monitor antenna assembly | 86050-42090 · 86050-42100 |
| 86050E | Monitor antenna assembly | 86050-42070 |
| 86101 | Antenna wire sub-assembly | 86101-42C50 · 86101-42C60 · 86101-42J40 · 86101-42V80 · 86101-42V90 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-42B10 · 86101-42B40 · 86101-42G20 · 86101-42T80 · 86101-42U10 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-42E00 · 86101-42K00 · 86101-42K10 |
| 86101Q | No. 4 antenna wire sub-assembly | 86050-42080 · 86101-42B00 · 86101-42P40 · 86101-42T50 |
| 86300B | Amplifier antenna assembly | 86760-12030 · 86760-K0010 |
| 86769 | Toyota part | 86769-12010 · 86769-K0010 |
