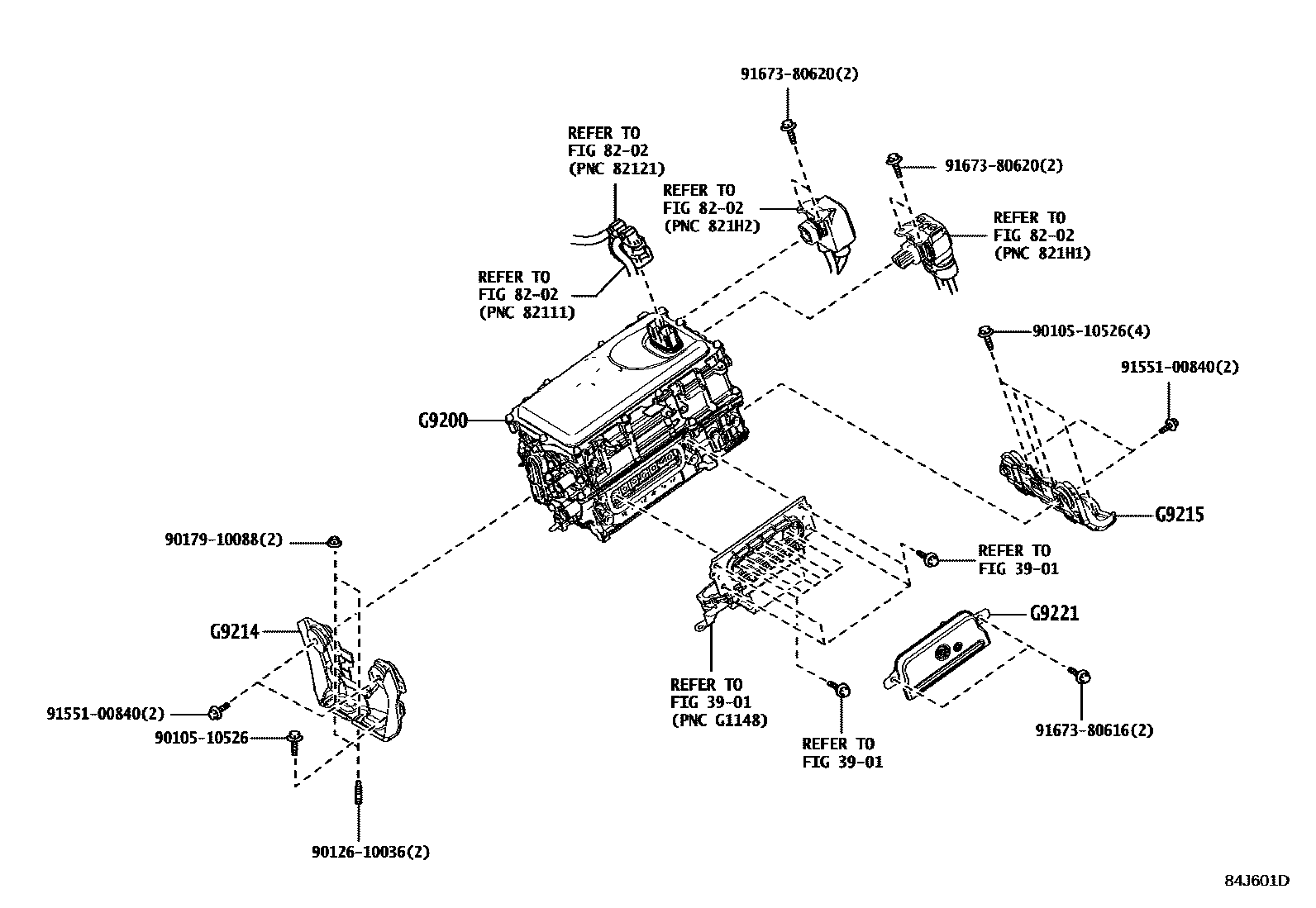

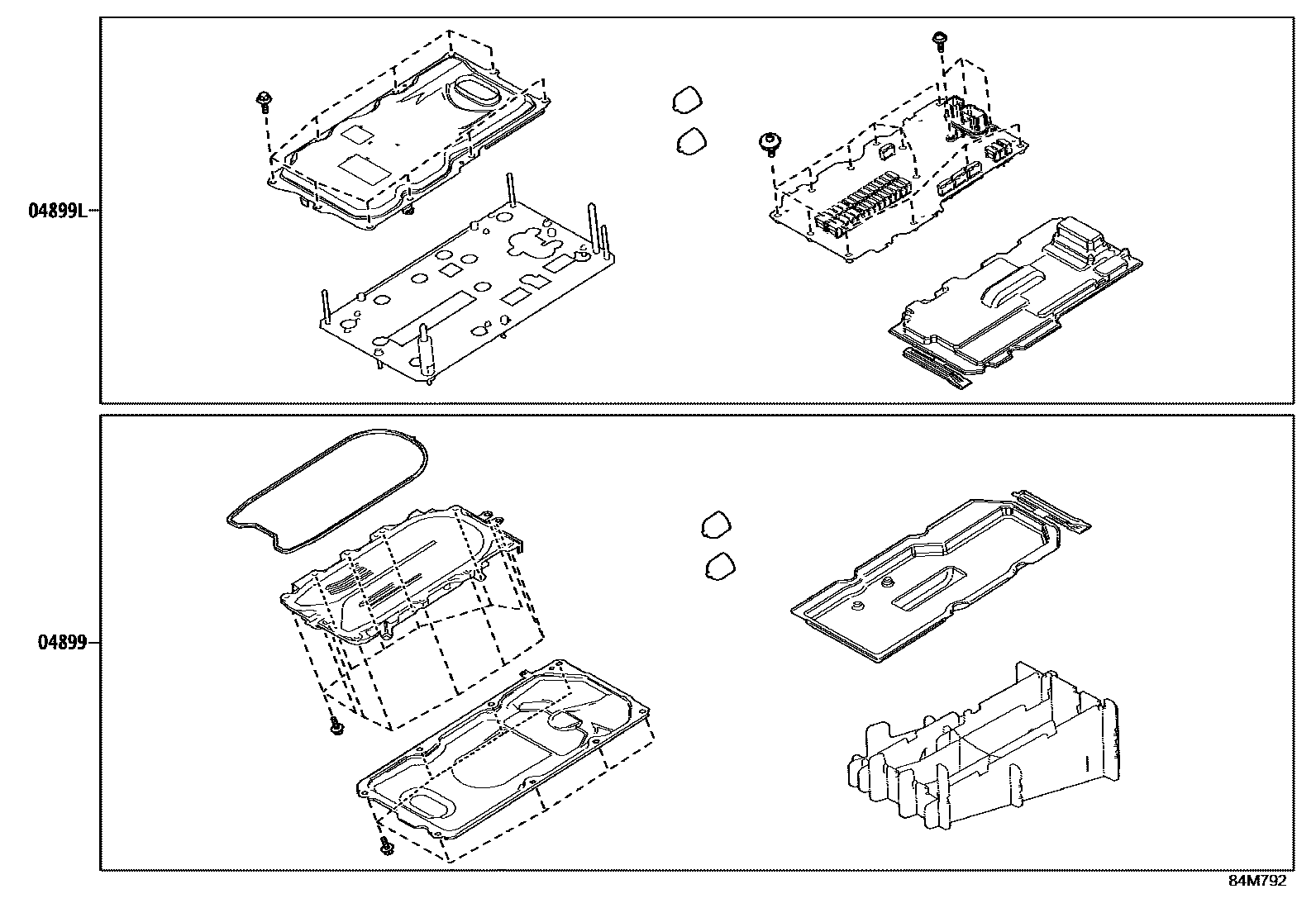

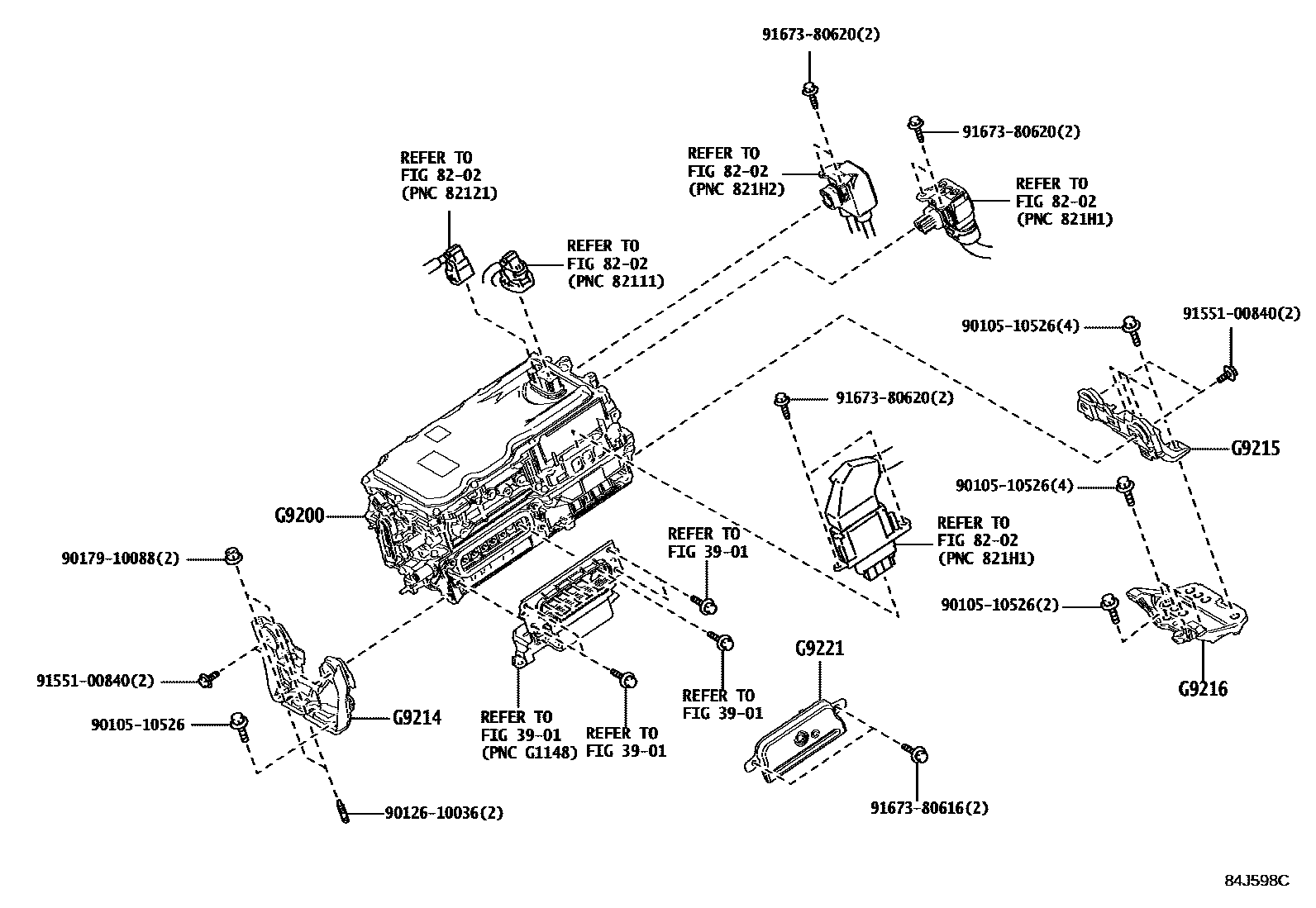

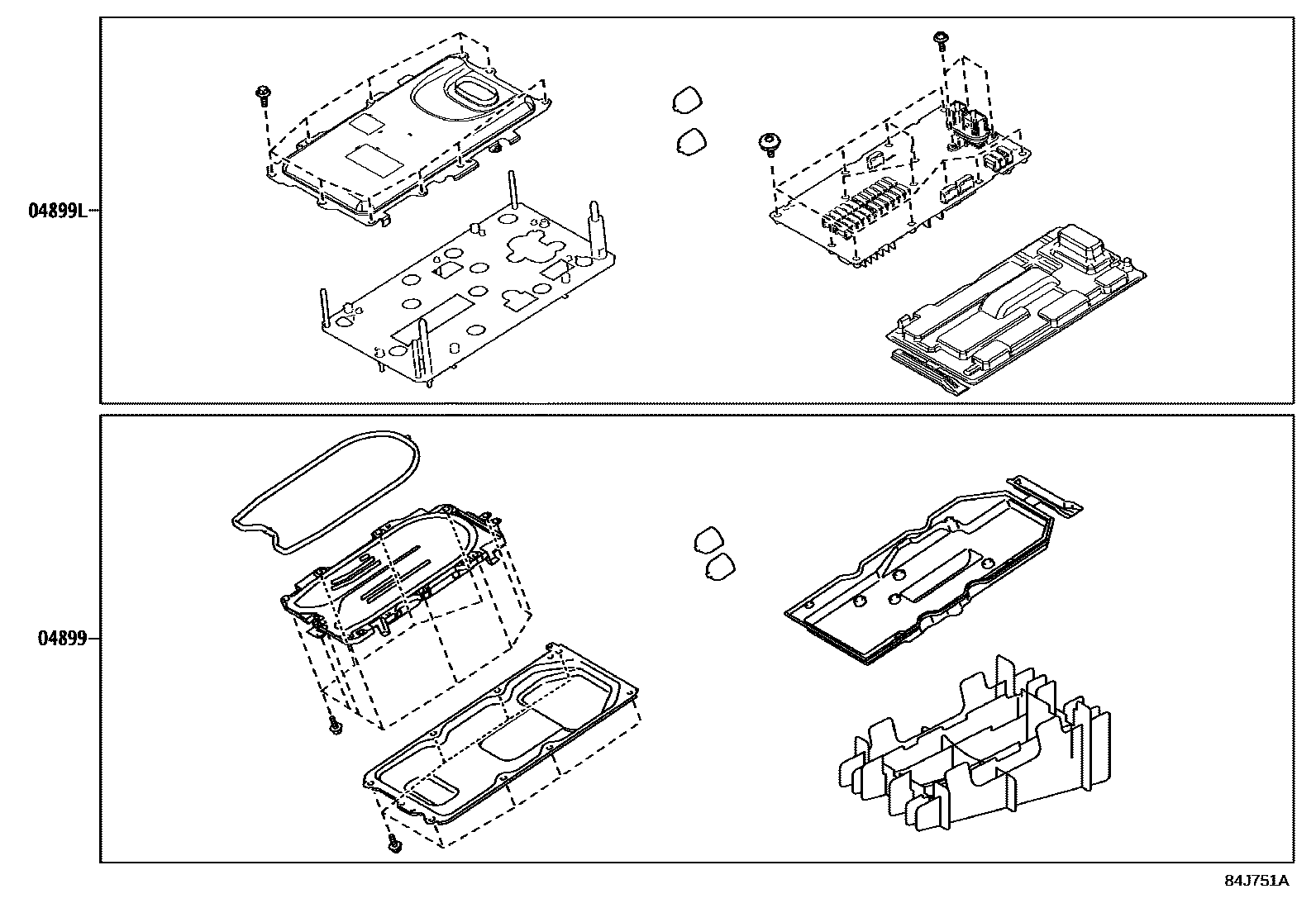

Toyota RAV4 HV逆变器 — Figure 8431
Toyota RAV4 EPC diagram 8431, HV逆变器, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04899 | Toyota part | 04899-33030 · 04899-42020 |
| 04899L | Toyota part | 04899-33040 · 04899-33041 · 04899-33042 · 04899-42010 · 04899-42011 · 04899-42012 |
| G9200 | Inverter assembly with converter | G92A0-33031 · G92A0-33032 · G92A0-33033 · G92A0-42070 · G92A0-42071 · G92A0-42072 |
| G9214 | No. 1 inverter bracket | G9214-33040 |
| G9215 | No. 2 inverter bracket | G9215-33040 · G9215-42010 |
| G9216 | No. 3 inverter bracket | G9216-42010 |
| G9221 | Inverter cover | G9022-47050 |
