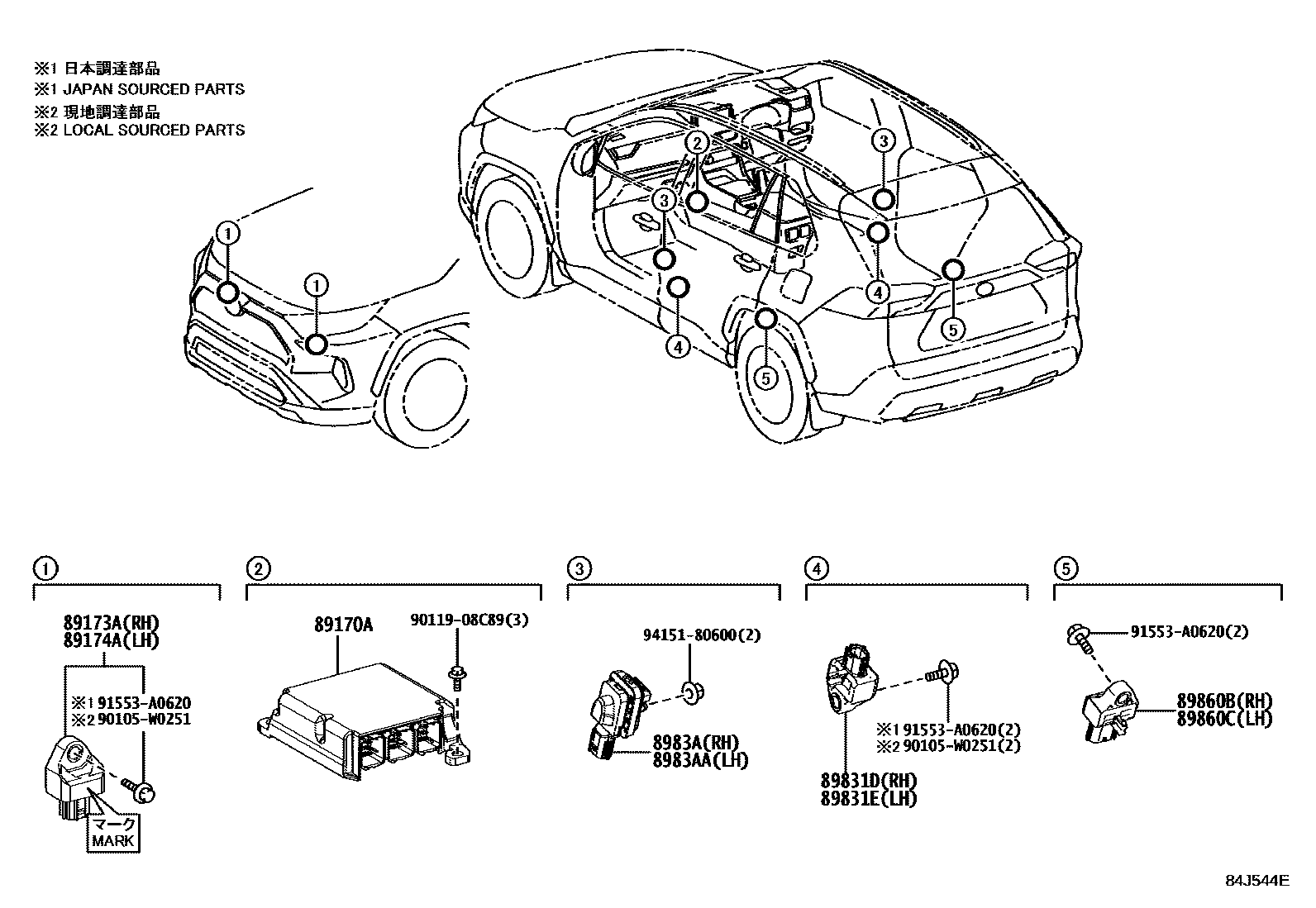

Toyota RAV4 空气囊 — Figure 8421
Toyota RAV4 EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-42A30 · 89170-42A40 · 89170-42D20 · 89170-42D21 · 89170-42D30 · 89170-42D31 |
| 89173A | Right front air bag sensor | 89173-19515 · 89173-49505 |
| 89174A | Left front air bag sensor | 89173-19515 · 89173-49505 |
| 89831D | Toyota part | 89831-42060 · 89831-47050 |
| 89831E | Toyota part | 89831-42060 · 89831-47050 |
| 8983A | Toyota part | 8983A-12030 · 8983A-33010 · 8983A-52010 · 8983A-52011 |
| 8983AA | Toyota part | 8983A-12030 · 8983A-33010 · 8983A-52010 · 8983A-52011 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-28040 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-28040 |
