Toyota RAV4 电子燃油喷射系统 — Figure 8404

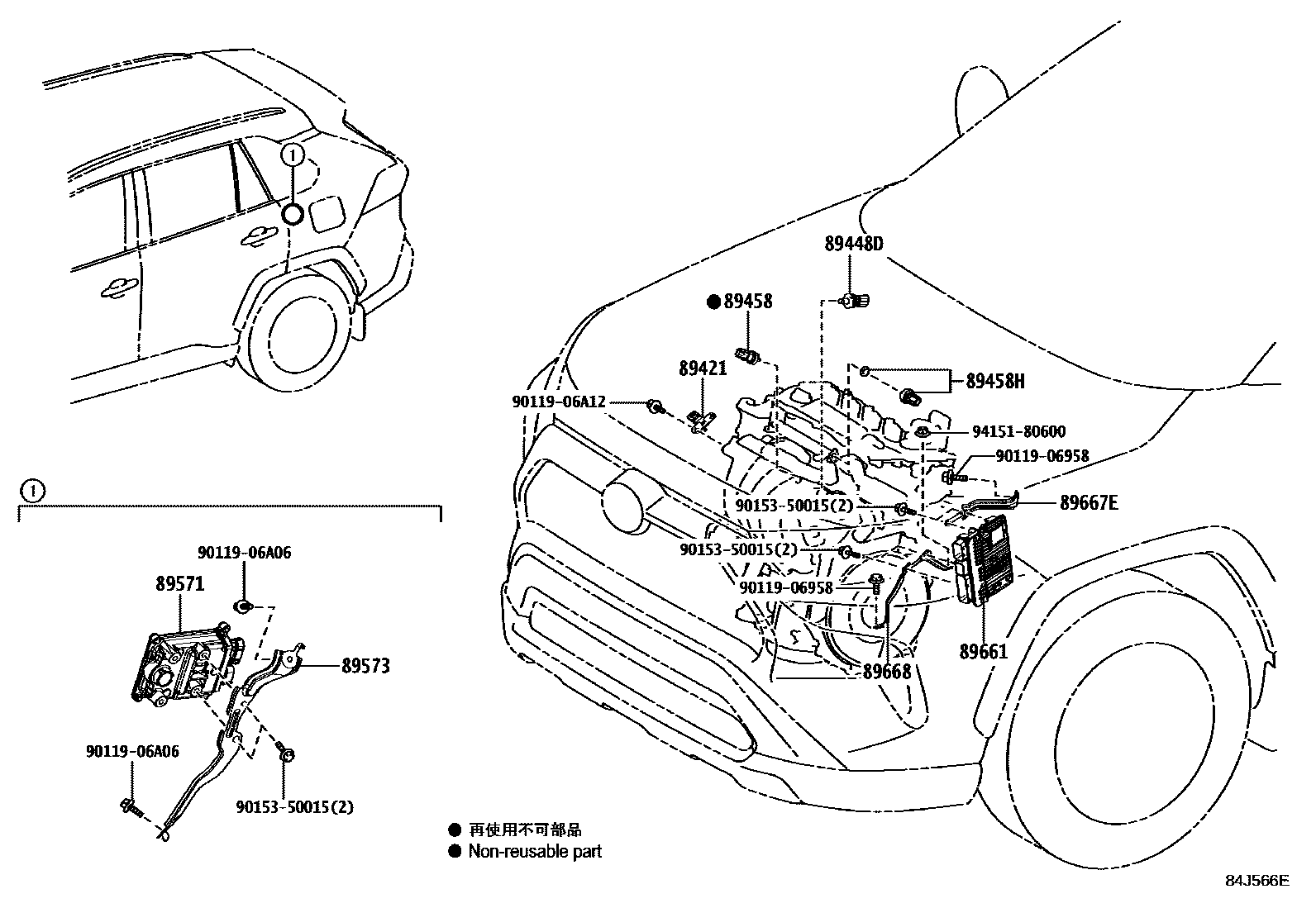

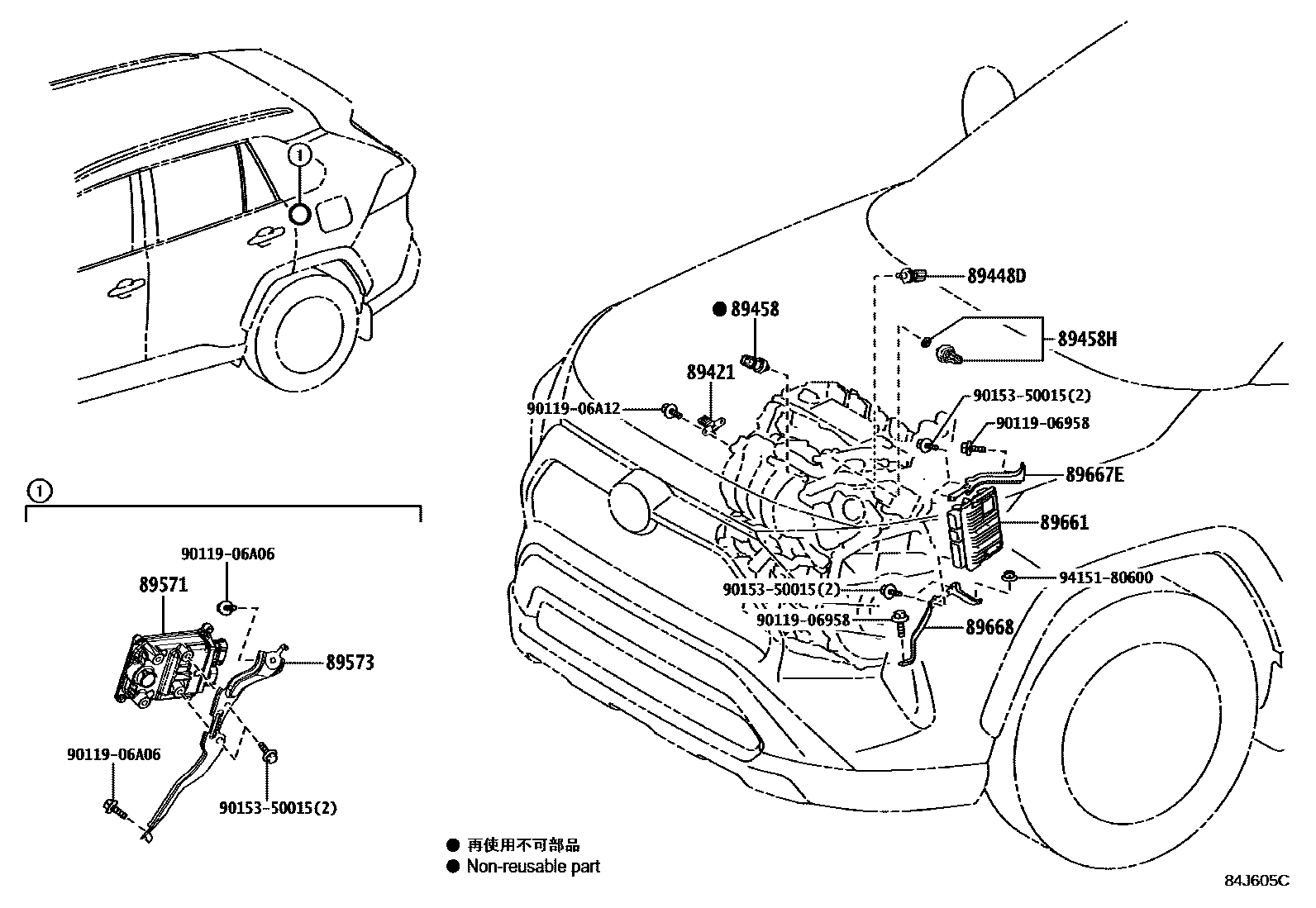

Toyota RAV4 EPC diagram 8404, 电子燃油喷射系统, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-33010 |
| 89448D | Toyota part | 89448-33010 |
| 89458 | fuel pressure sensor | 89458-33030 |
| 89458H | Toyota part | 89458-33041 · 89458-33042 |
| 89571 | Fuel pump control ECU | 89571-12010 · 89571-48010 |
| 89573 | Fuel pump control ECU bracket | 89573-42030 |
| 89661 | Engine control ECU | 89661-4A220 · 89661-4A230 · 89661-4A290 · 89661-4A690 · 89661-4A700 · 89661-4A750 · 89661-4AB90 · 89661-4AD40 · 89661-4AD50 · 89661-4AF50 |
| 89667E | No. 1 engine control ECU bracket | 89667-33190 · 89667-42080 · 89667-42081 |
| 89668 | No. 2 engine control ECU bracket | 89668-42080 · 89668-42100 |
