Toyota RAV4 开关和继电器和ECU — Figure 8401

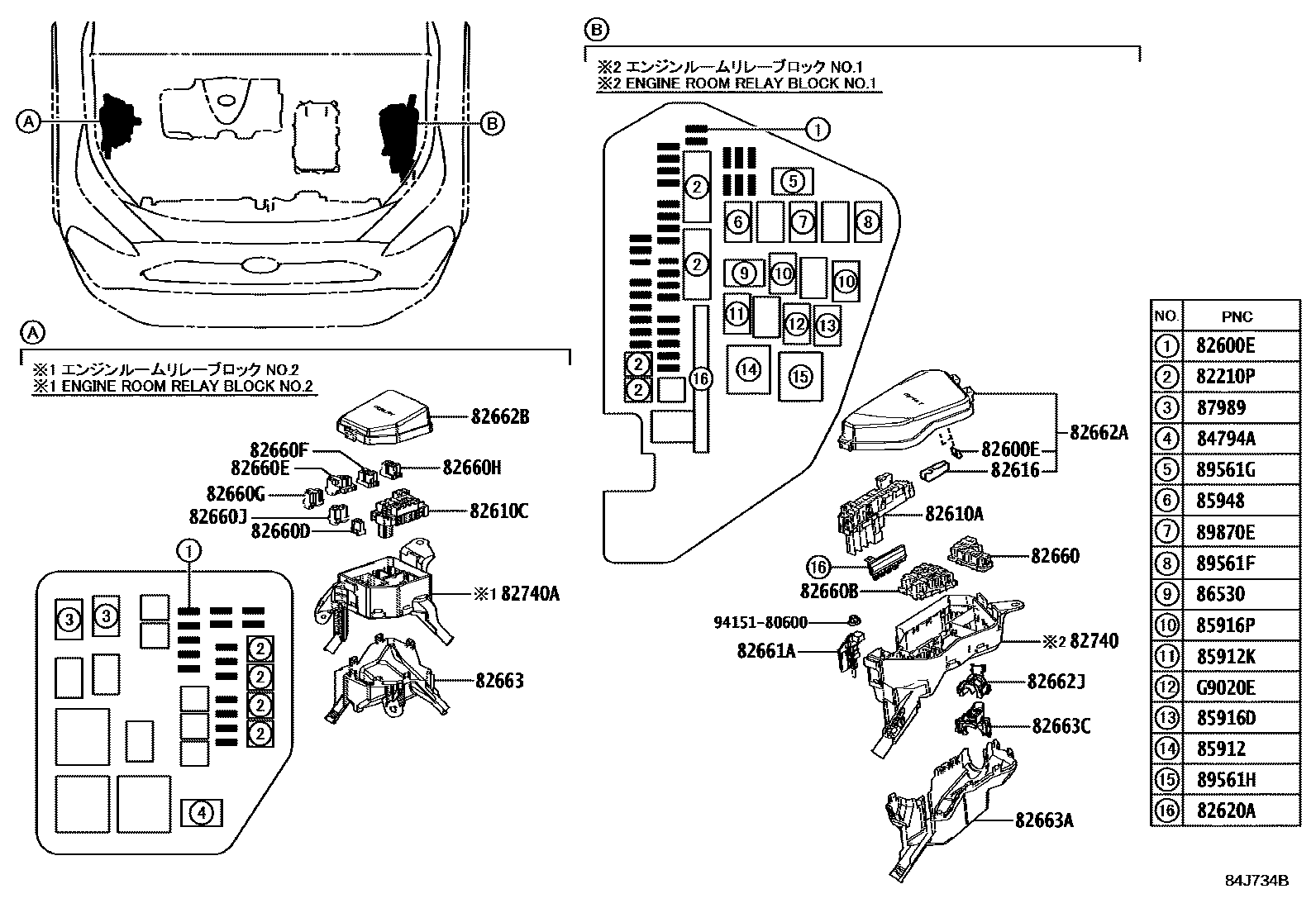

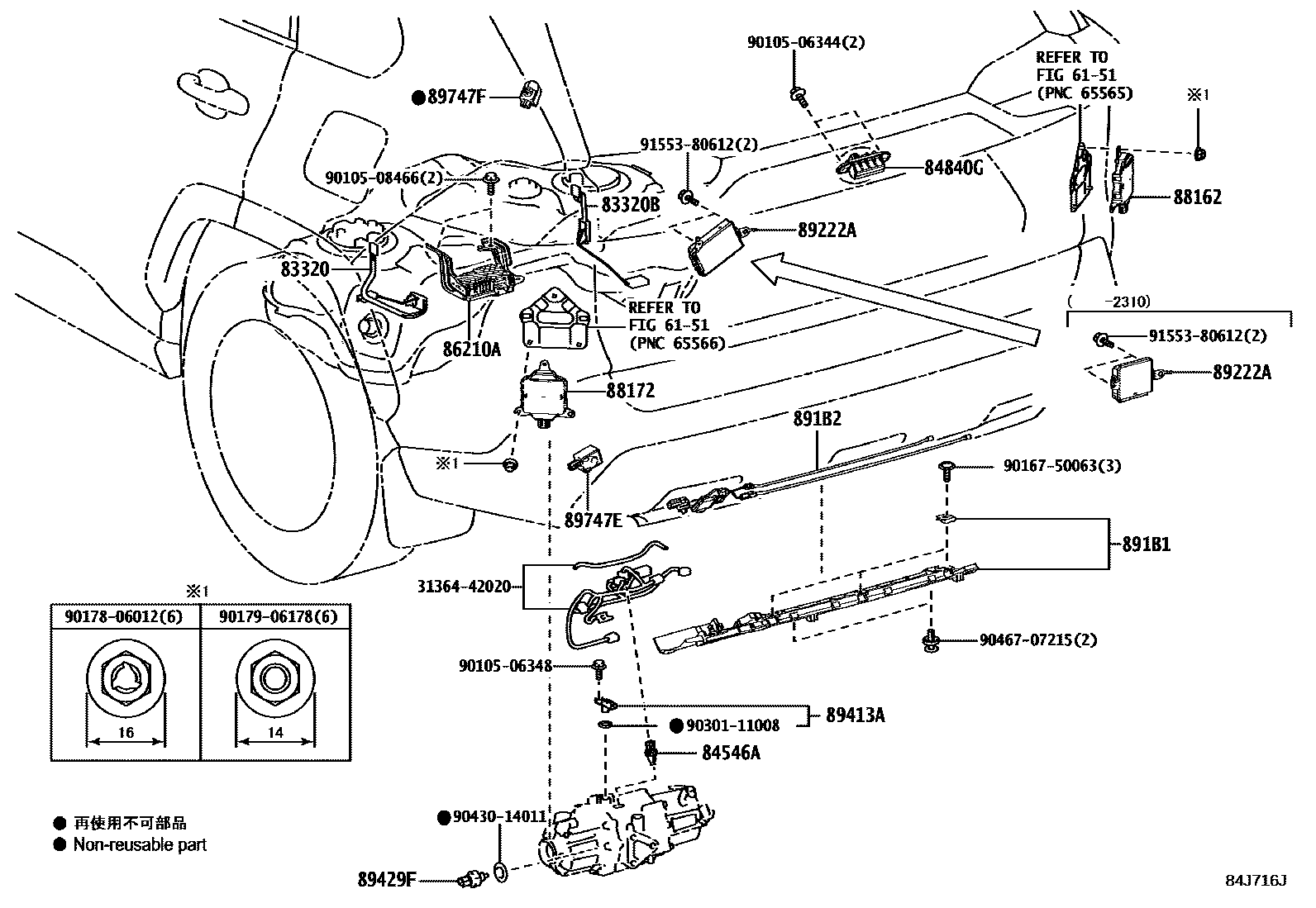

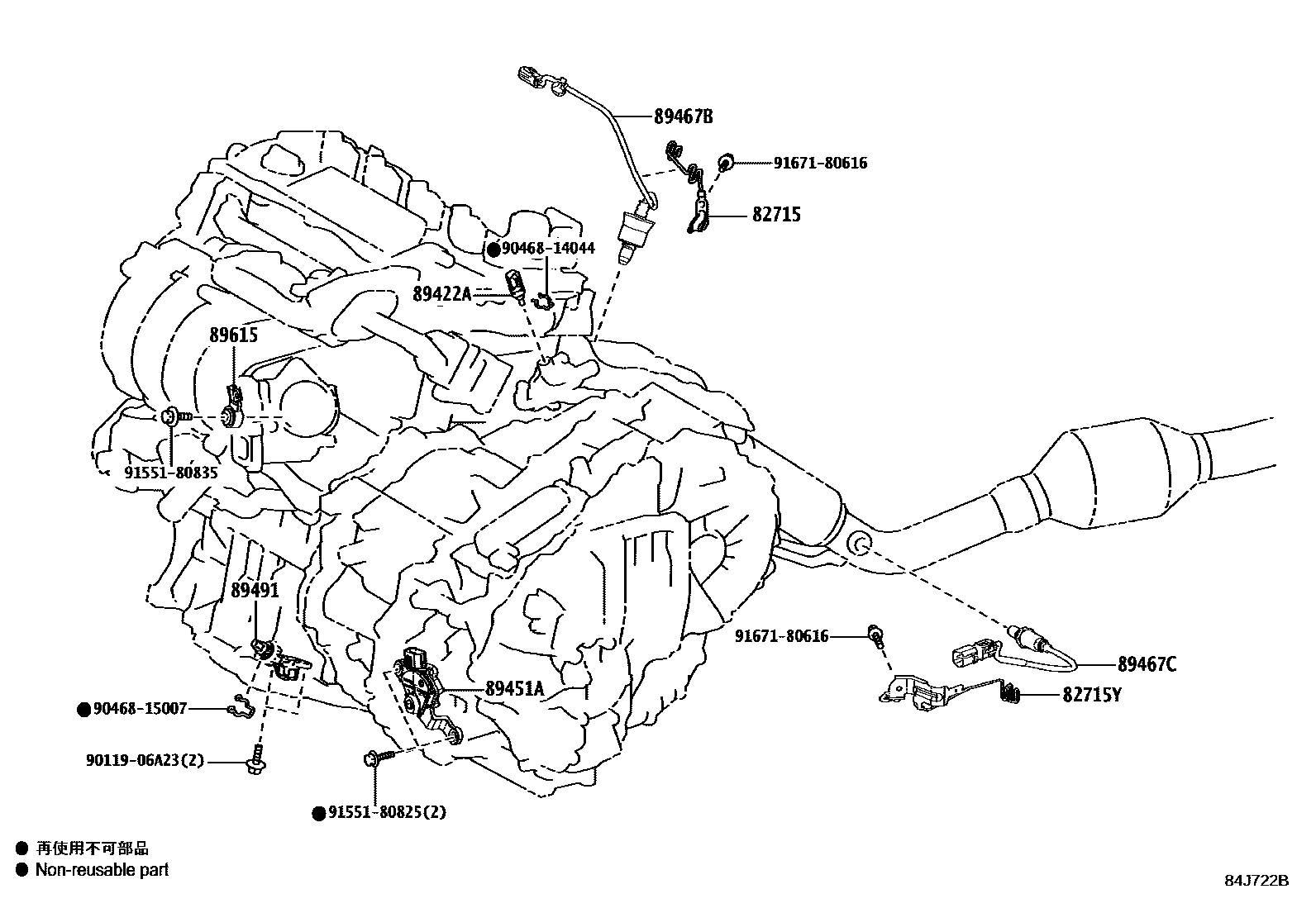

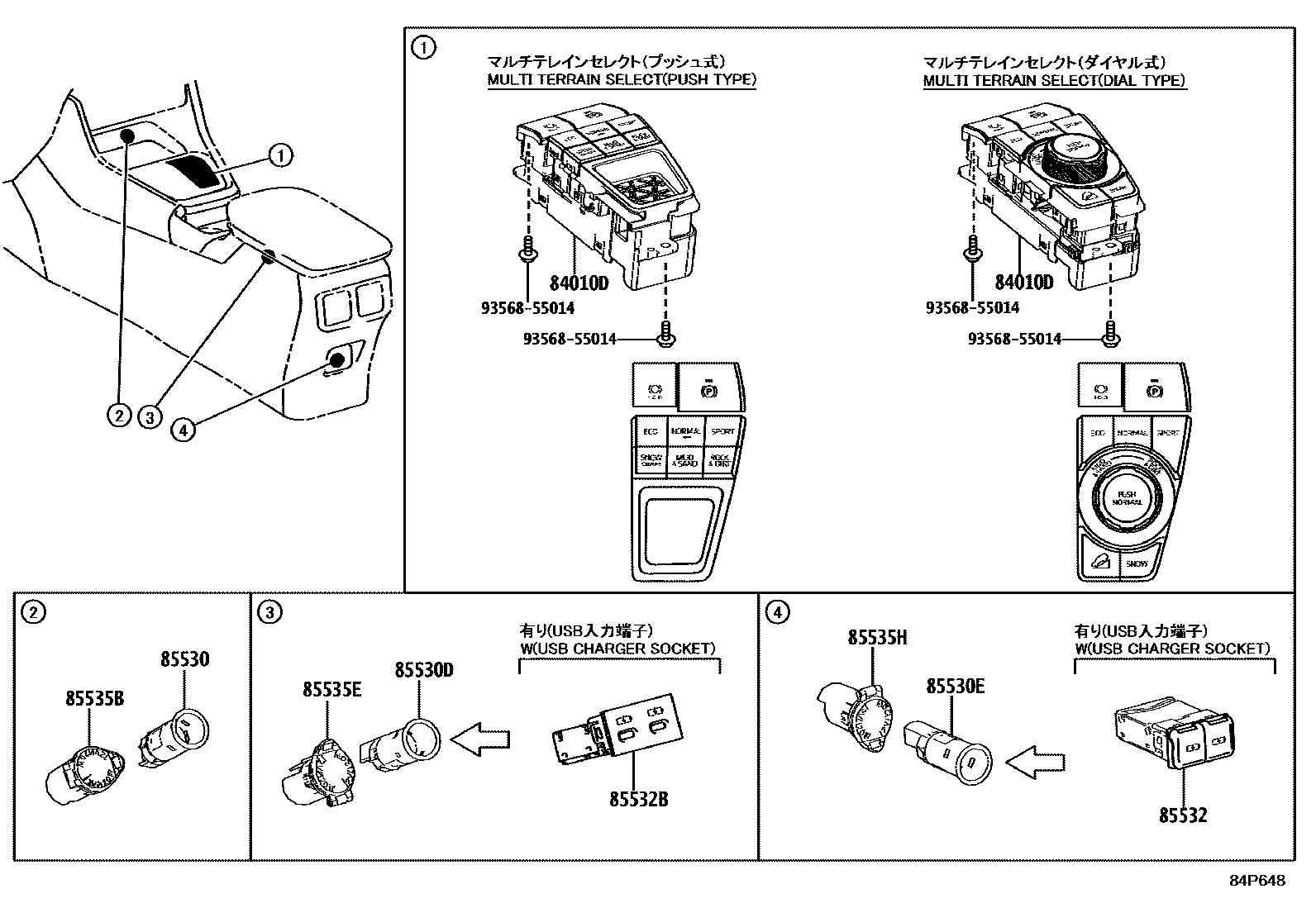

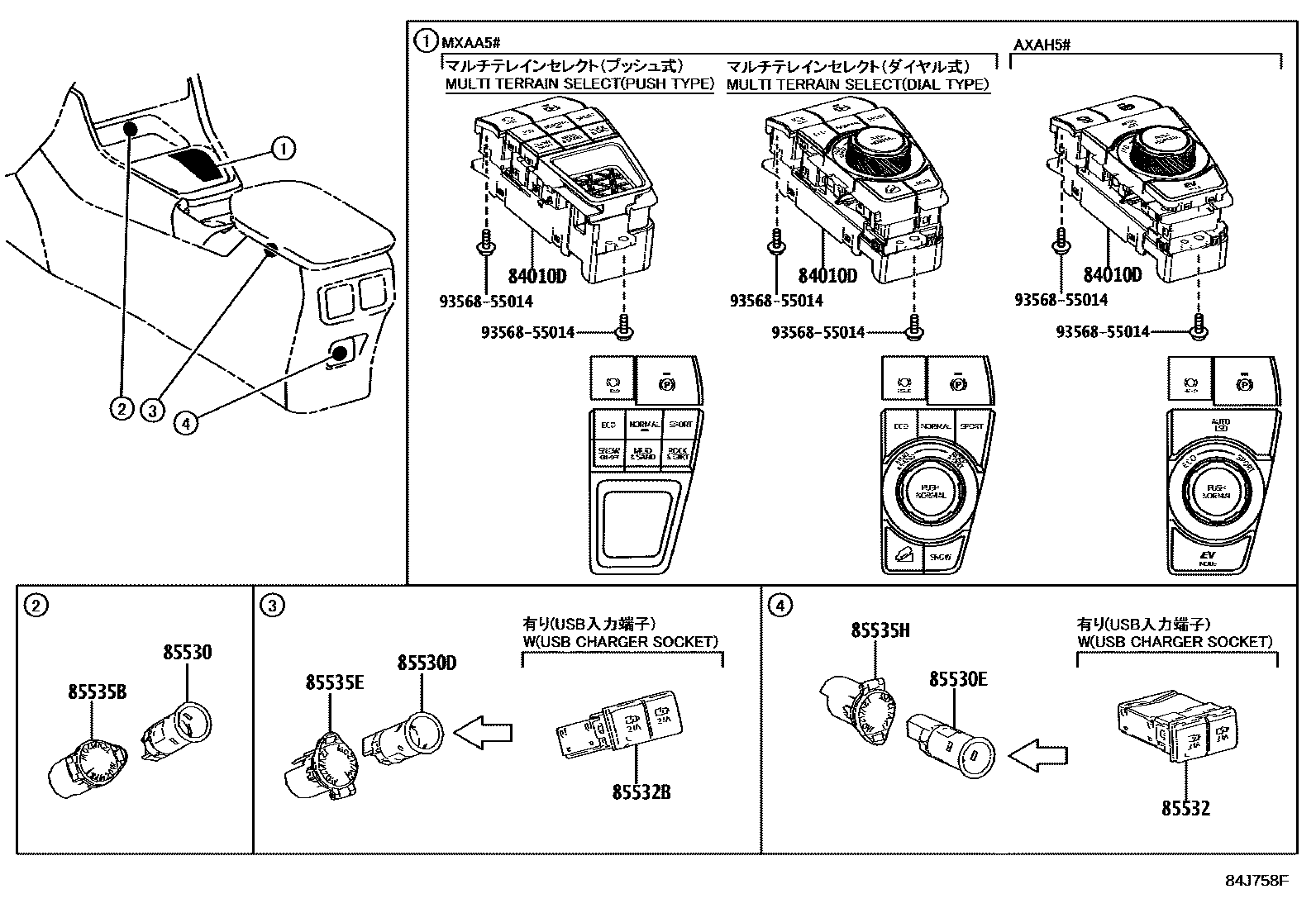

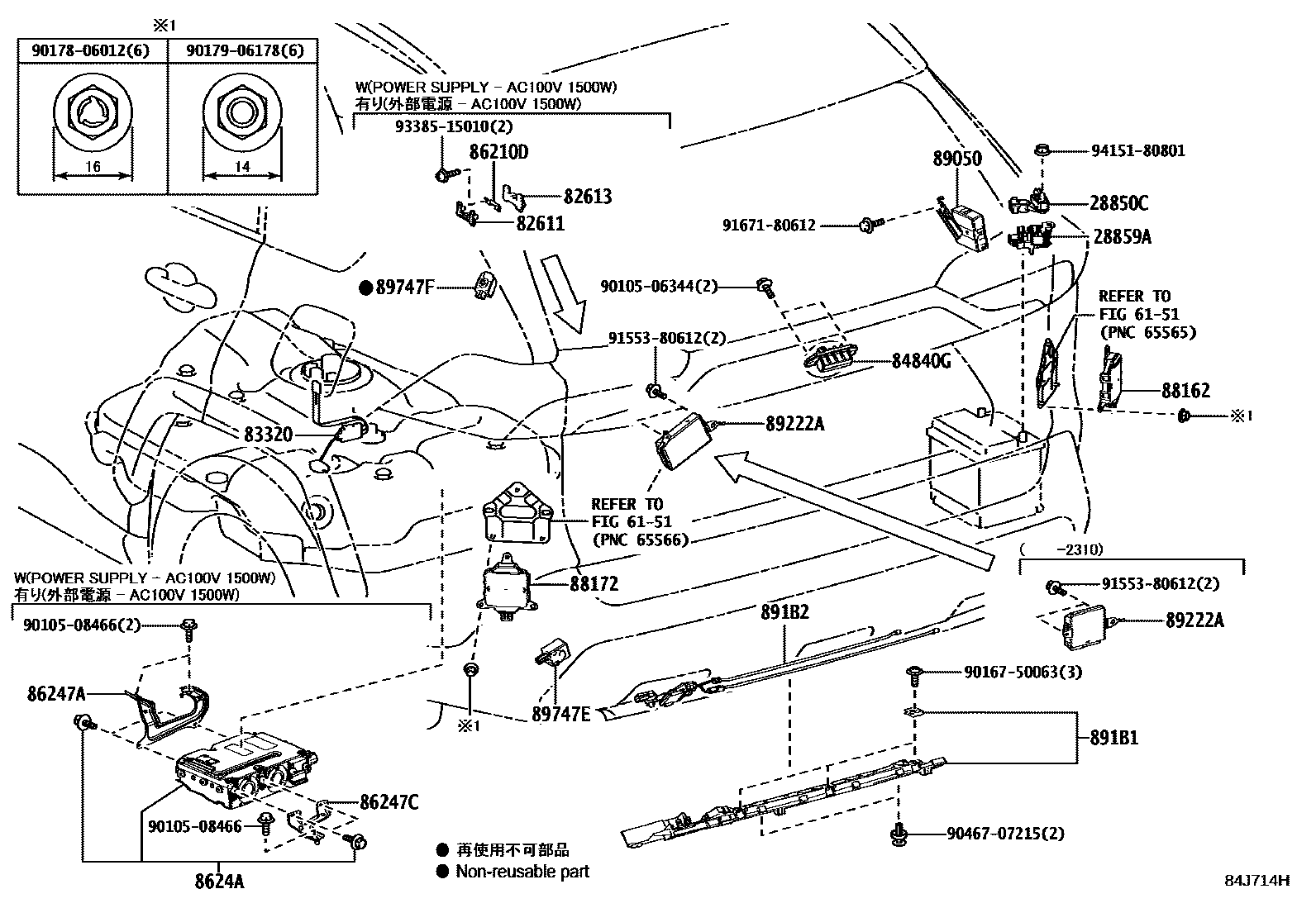

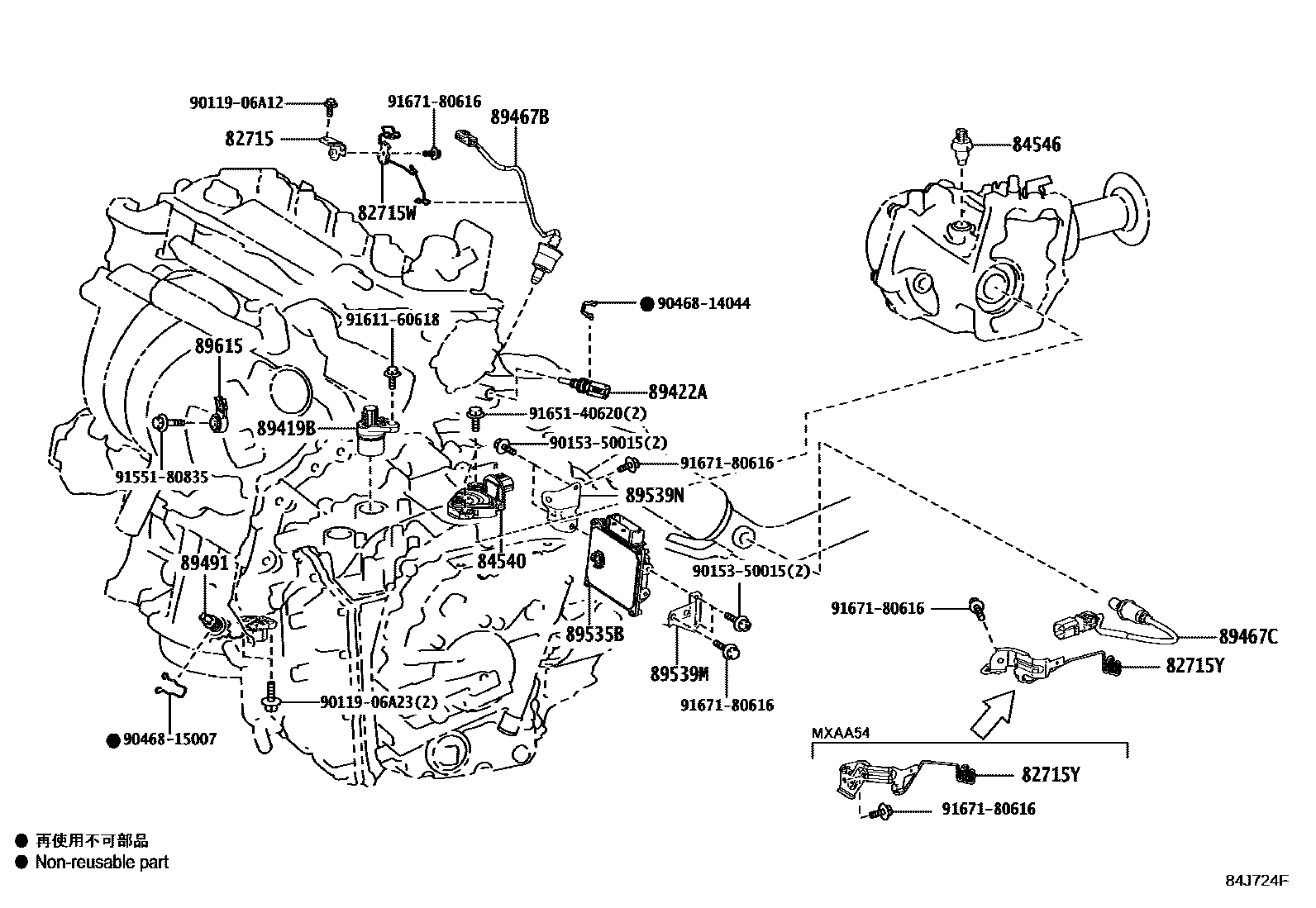

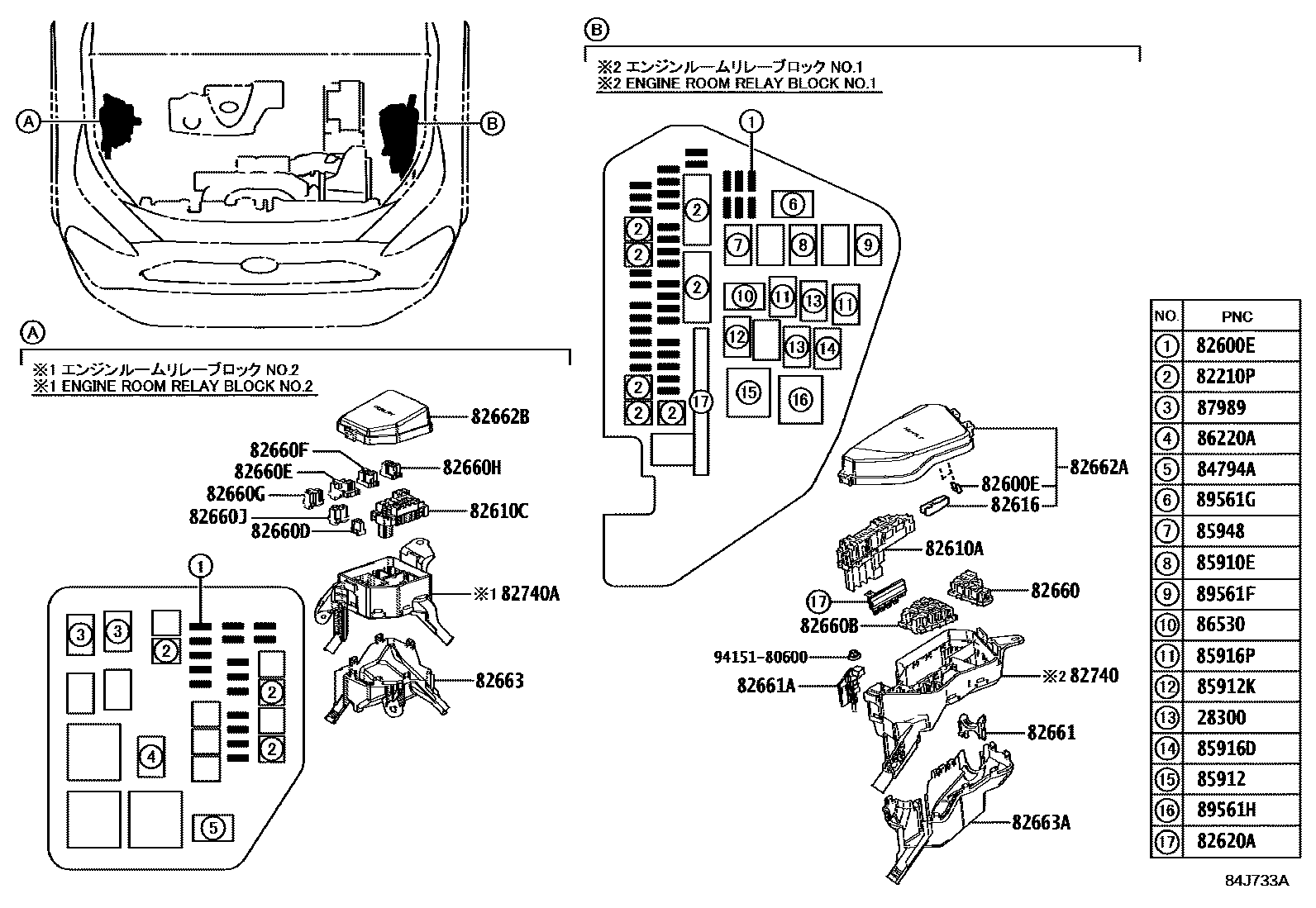

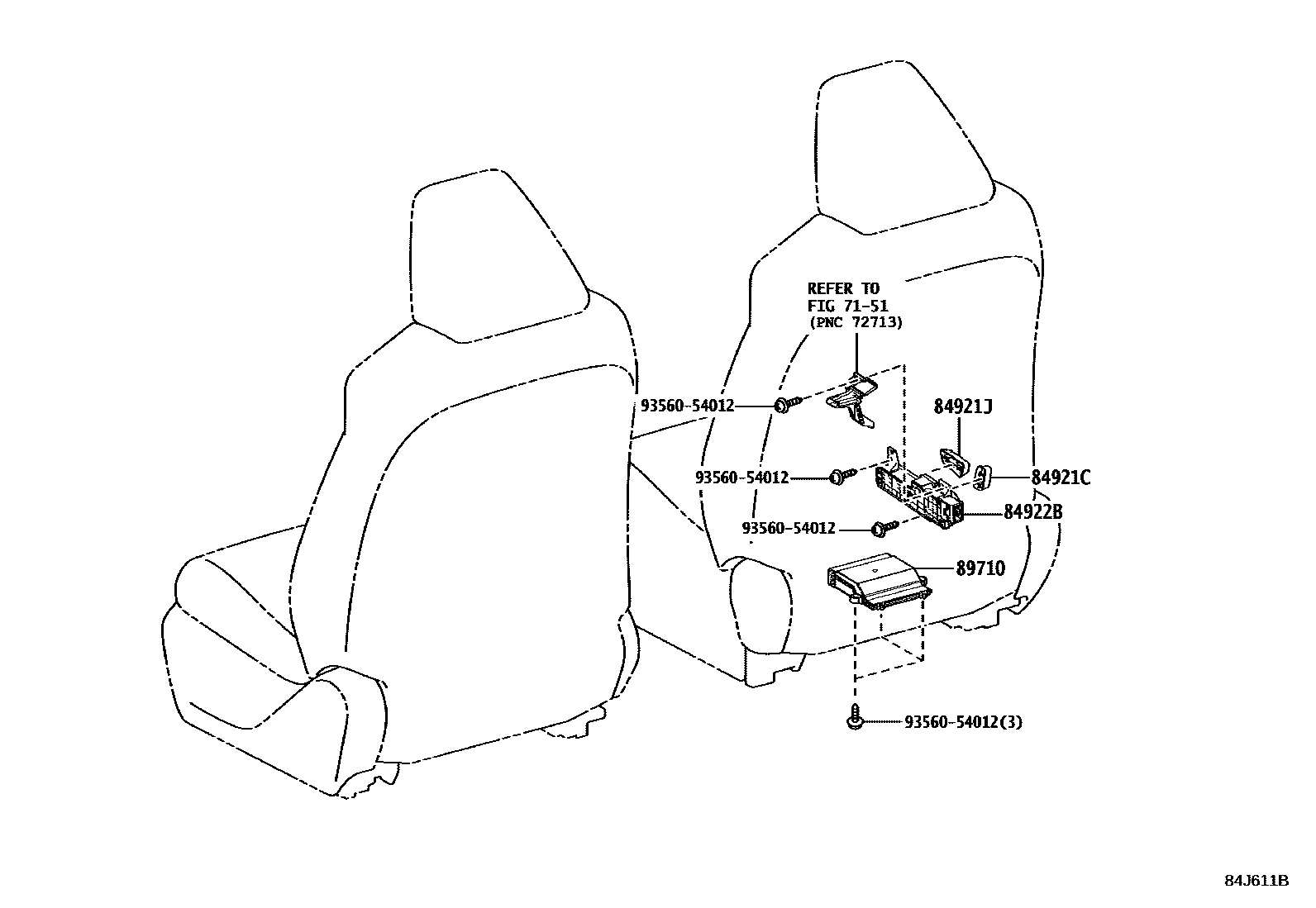

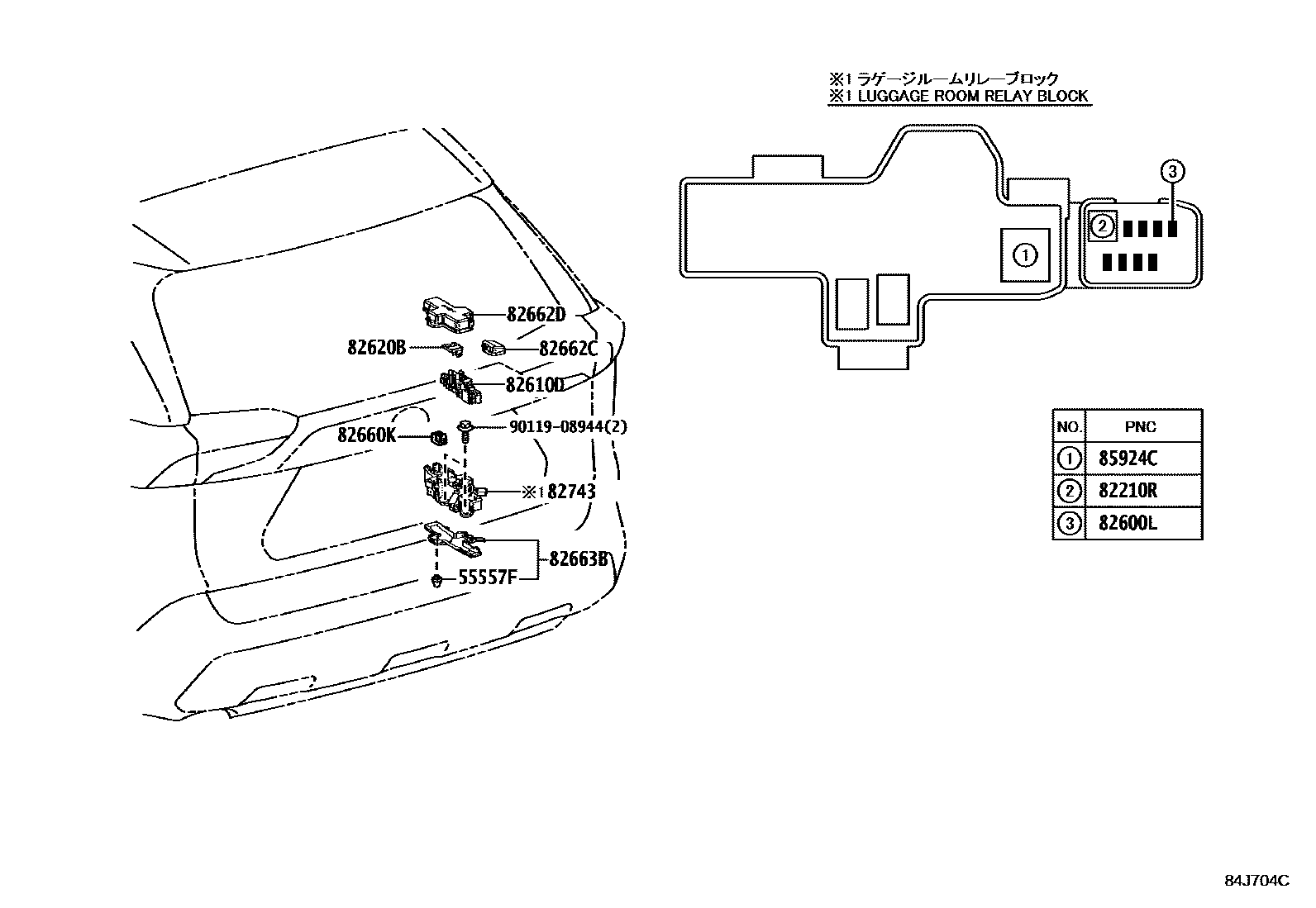

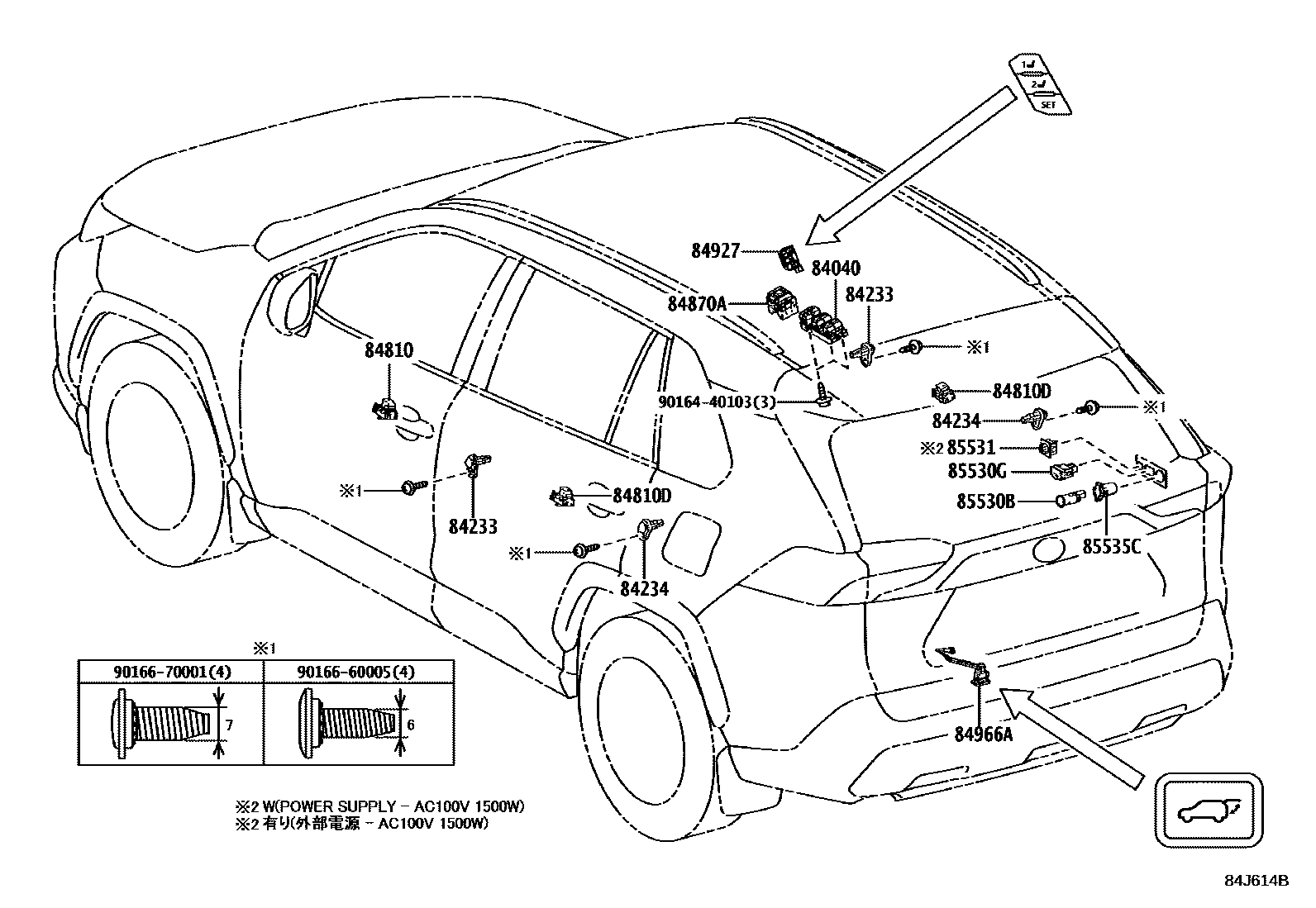

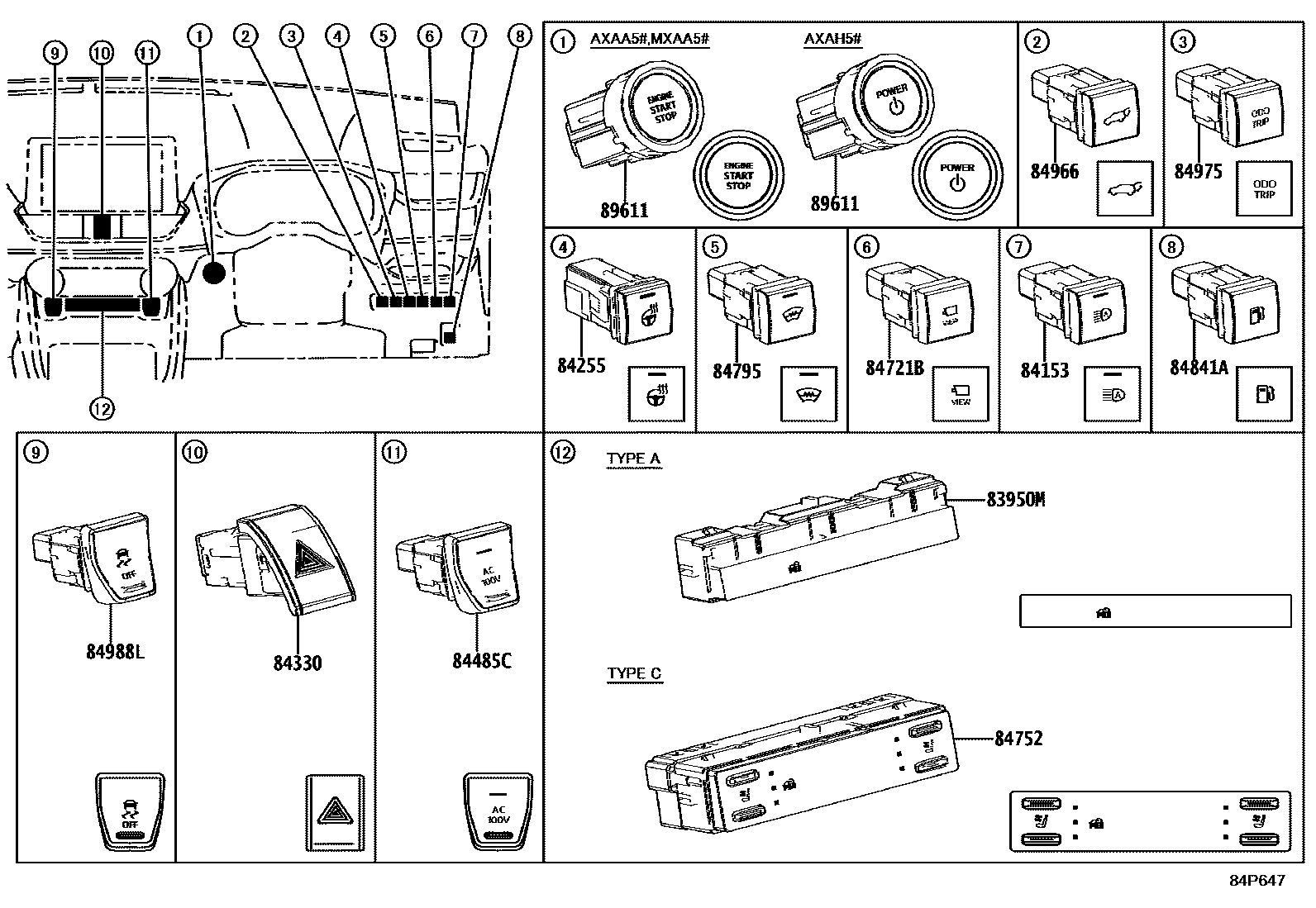

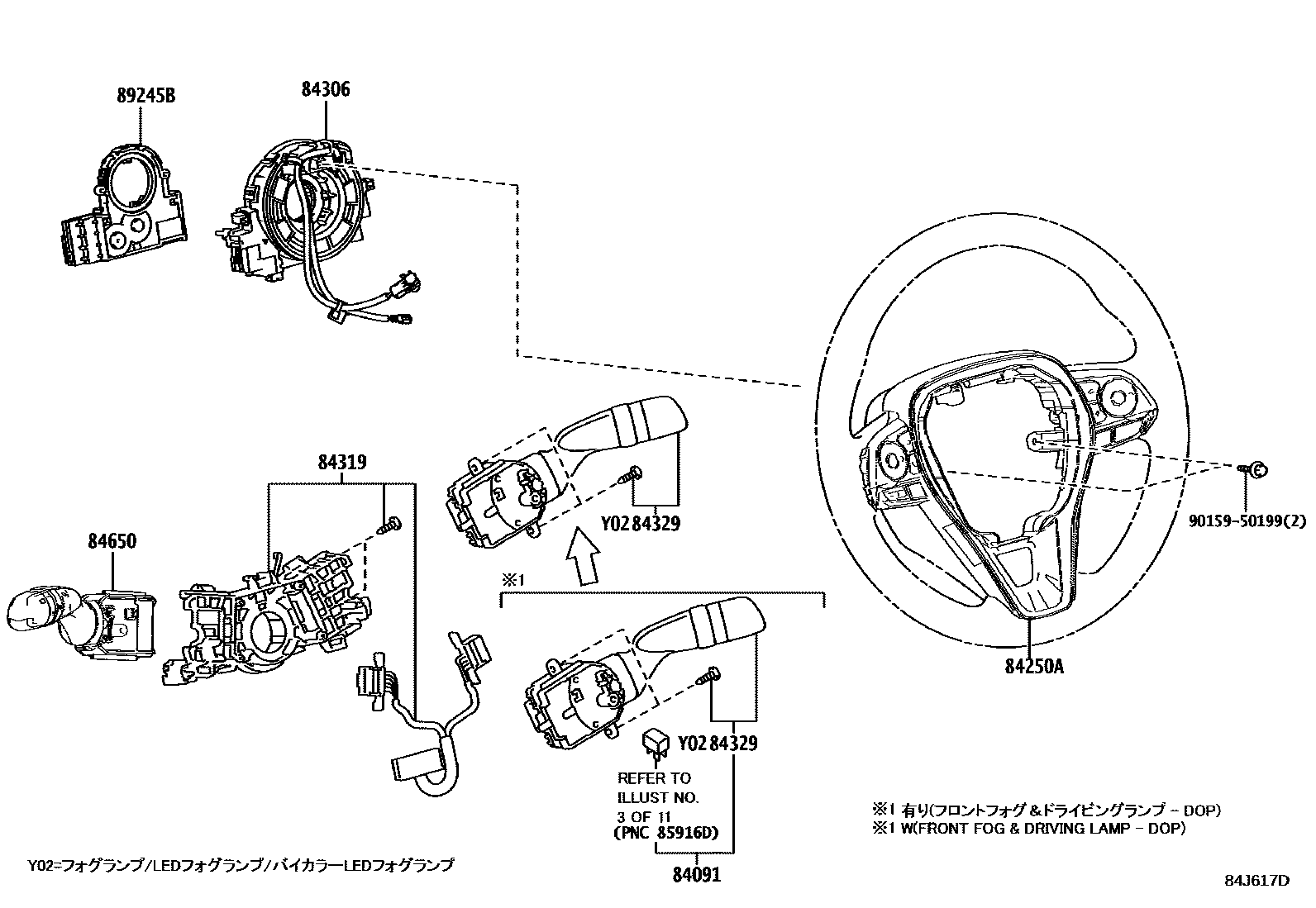

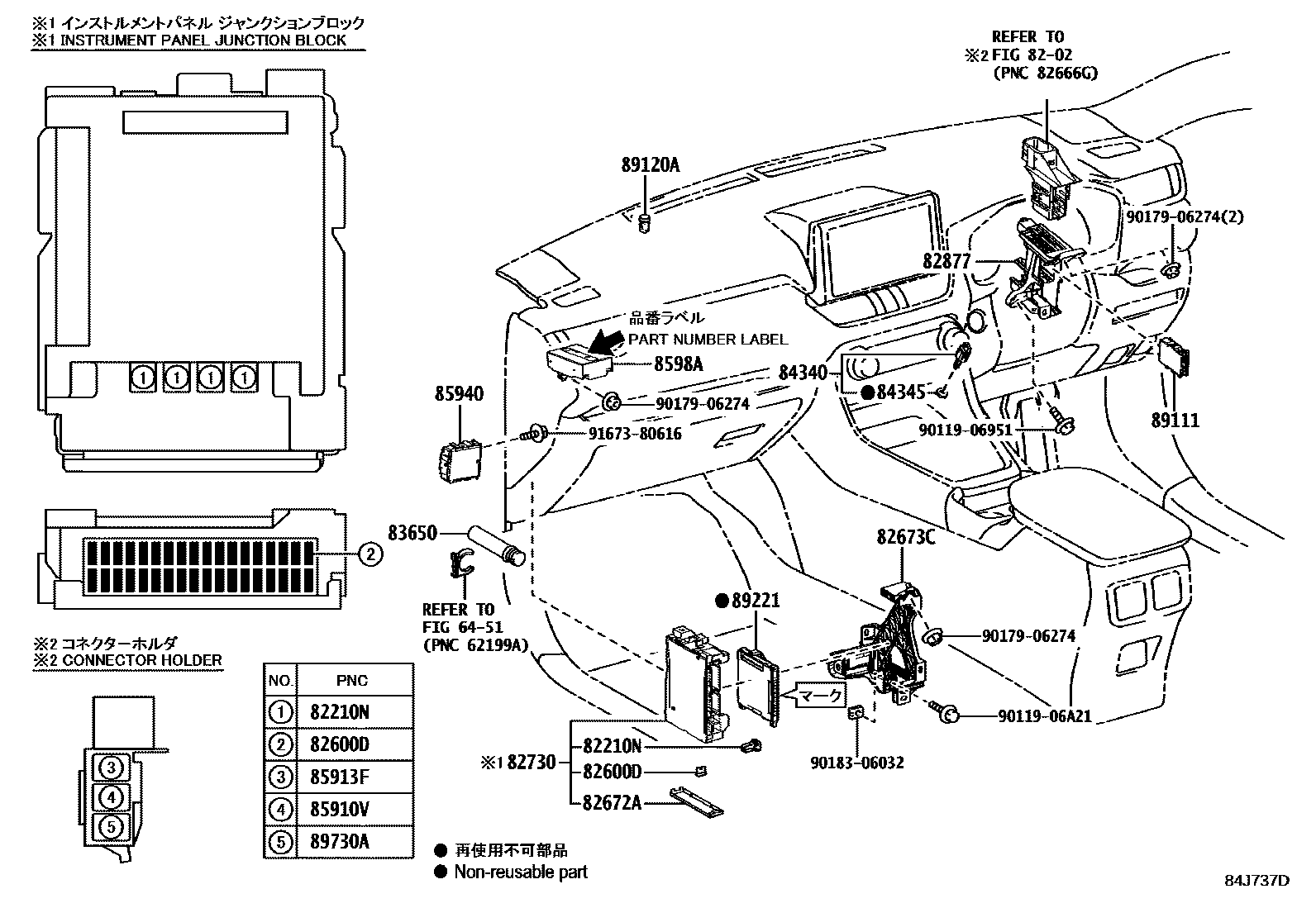

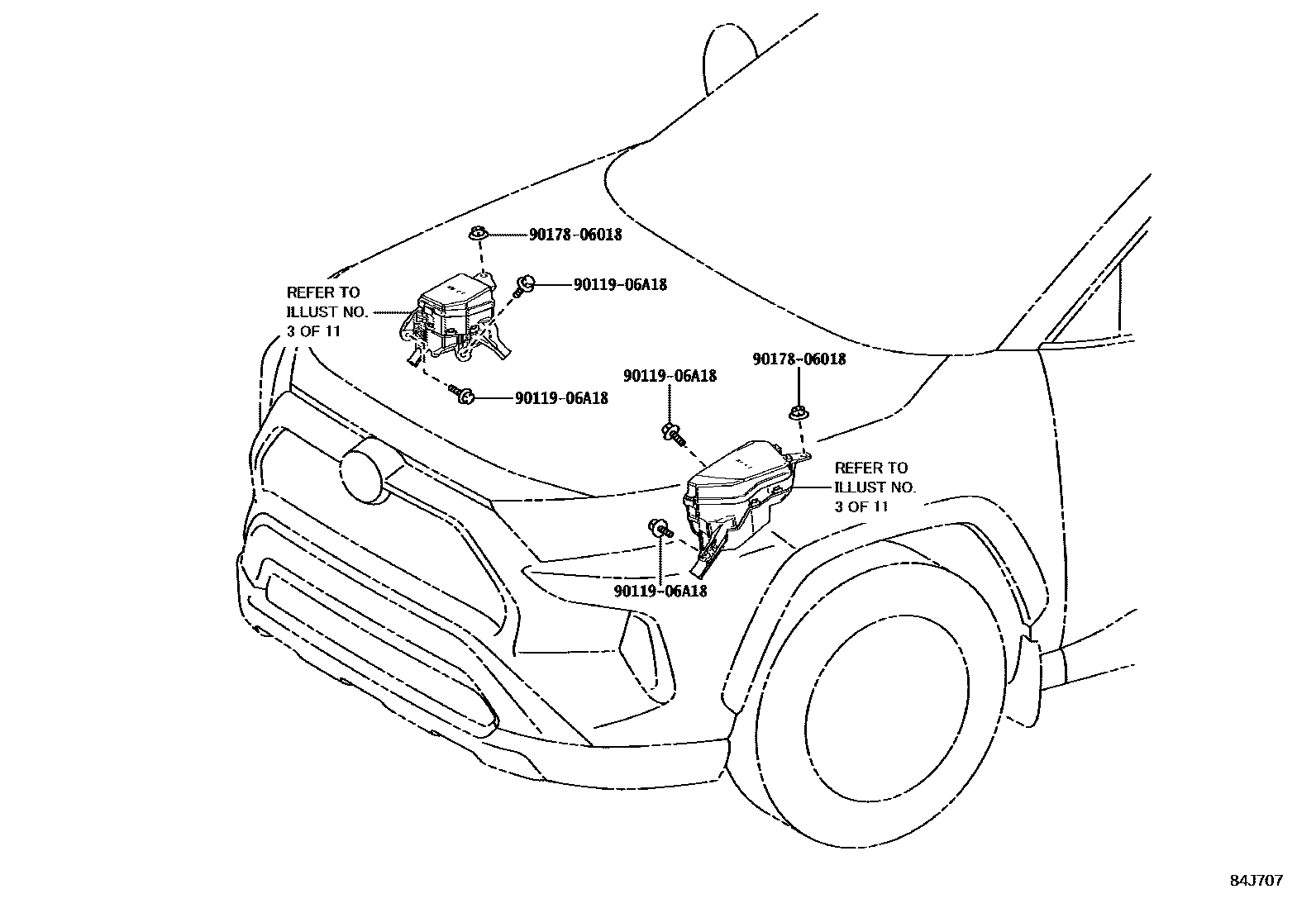

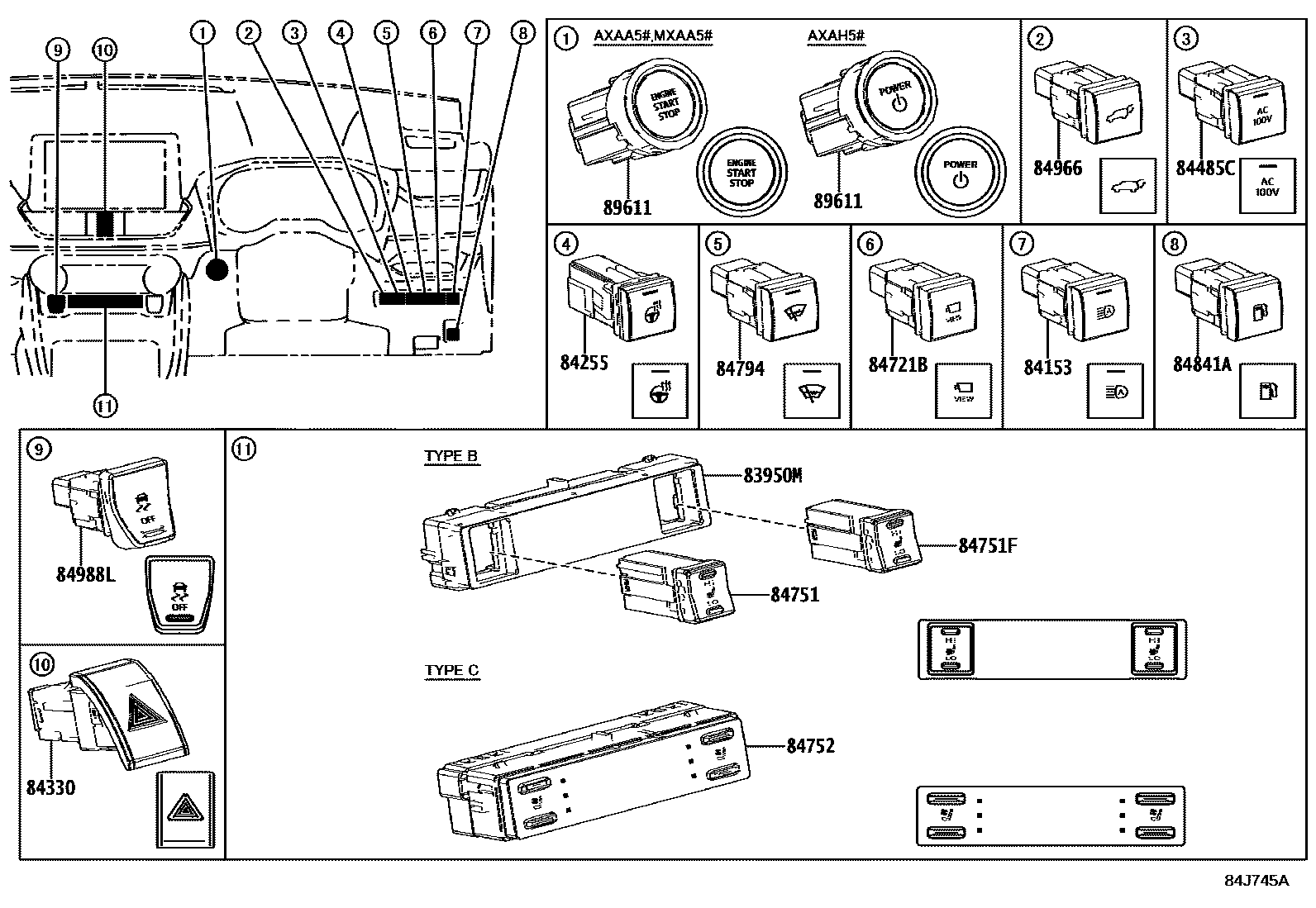

Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 16 images and 149 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 28850C | Toyota part | 28850-25020 |
| 28859A | Toyota part | 28859-25040 |
| 55557F | Toyota part | 55557-53030 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08283 · 90982-08285 · 90982-08300 · 90982-08302 · 90982-08303 |
| 82210R | Toyota part | 90982-08284 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600L | Toyota part | 90982-09020 · 90982-09021 · 90982-09022 |
| 82610A | Fuse box assembly | 82610-42080 · 82610-42120 |
| 82610C | Fuse box assembly | 82610-42090 |
| 82610D | Fuse box assembly | 82610-42100 |
| 82611 | fuse box cover | 82611-47060 |
| 82613 | fuse box cover | 82613-47020 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33130 · 82620-33150 |
| 82620B | Fuse box assembly | 82620-42080 |
| 82660 | Engine room relay box assembly | 82660-42100 |
| 82660B | Relay assembly | 82660-42110 |
| 82660D | Relay assembly | 82660-0E010 |
| 82660E | Relay assembly | 82660-33050 |
| 82660F | Relay assembly | 82660-48020 |
| 82660G | Relay assembly | 82660-48030 |
| 82660H | Relay assembly | 82660-48040 |
| 82660J | Toyota part | 82660-52100 |
| 82660K | Toyota part | 82660-48020 |
| 82661 | No. 1 relay box cover | 82661-42080 |
| 82661A | No. 2 relay box cover | 82661-42060 |
| 82662A | No. 1 relay box upper cover | 82662-42640 · 82662-42641 · 82662-42660 · 82662-42661 · 82662-42700 · 82662-42701 · 82662-42702 |
| 82662B | No. 2 relay box upper cover | 82662-42650 · 82662-42651 · 82662-42670 · 82662-42671 |
| 82662C | No. 3 relay box upper cover | 82662-42690 |
| 82662D | No. 4 relay box upper cover | 82662-42720 |
| 82662J | Toyota part | 82662-42730 |
| 82663 | Relay box lower cover | 82663-42170 |
| 82663A | No. 2 relay box lower cover | 82663-42160 · 82663-42190 |
| 82663B | No. 3 relay box lower cover | 82663-42200 |
| 82663C | No. 4 relay box lower cover | 82663-42220 |
| 82672A | Junction box cover | 82672-42200 |
| 82673C | Junction box bracket | 82673-42270 |
| 82715 | Wire harness clamp bracket | 82715-0Z160 · 82715-12X50 · 82715-33K11 |
| 82715W | Toyota part | 82715-12V90 |
| 82715Y | Toyota part | 82715-42K60 · 82715-42K70 |
| 82730 | Instrument panel junction box assembly | 82730-42890 |
| 82740 | Engine room relay box assembly | 82740-42050 · 82740-42080 |
| 82740A | Engine room No. 2 relay box assembly | 82740-42120 |
| 82743 | Engine room No. 3 relay box | 82740-42070 |
| 82877 | Right ECU integrated box | 82877-33040 |
| 83320 | Fuel gauge sensor assembly | 83320-42080 · 83320-42100 · 83320-42110 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-42090 |
| 83650 | fuse | 90986-01005 |
| 83950M | Warning light assembly | 83950-42420 · 83950-42570 |
| 84010D | Integrated control and panel assembly | 84010-42050 · 84010-42051 · 84010-42070 · 84010-42071 · 84010-42090 · 84010-42091 · 84010-42110 · 84010-42130 · 84010-42150 · 84010-42261 · 84010-42262 · 84010-42271 · 84010-42272 · 84010-42291 · 84010-42292 |
| 84040 | Multi-channel network main switch assembly | 84040-42040 · 84040-42050 · 84040-42090 · 84040-42150 |
| 84091 | Satellite switch assembly | 84091-12080 · 84091-12090 · 84091-42010 · 84091-42020 |
| 84153 | Automatic high beam switch | 84153-16010 · 84153-33040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-12580 · 84250-42370 · 84250-42400 · 84250-42430 · 84250-42550 · 84250-42610 |
| 84255 | Steering heater switch | 84255-16010 · 84255-33010 |
| 84306 | Spiral cable sub-assembly | 84308-12020 · 84308-33110 · 84308-52010 · 84308-78040 |
| 84319 | Steering wheel switch housing | 84319-33030 |
| 84329 | turn signal switch | 84329-12120 · 84329-12130 · 84329-33020 · 84329-33030 · 84329-52010 · 84329-K0010 · 84329-K0020 · 84329-K0030 |
| 84330 | Hazard warning signal switch assembly | 84332-42030 |
| 84340 | brake light switch assembly | 84340-49105 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84485C | Toyota part | 84485-12010 · 84485-42100 |
| 84540 | Neutral start switch assembly | 84540-12240 |
| 84546 | Toyota part | 84546-42010 |
| 84546A | Toyota part | 84546-42010 |
| 84650 | Windshield wiper switch assembly | 84652-12B40 |
| 84721B | Toyota part | 84721-16010 · 84721-33010 |
| 84751 | Seat heater switch | 84751-42050 |
| 84751F | Seat heater switch | 84751-42060 |
| 84752 | Relax seat switch | 84752-42030 · 84752-42080 |
| 84794 | Front wiper de-icer switch | 84871-60060 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84795 | Toyota part | 84794-42020 |
| 84810 | Electric window lift switch assembly | 84810-12100 · 84810-12110 · 84810-12120 · 84810-30230 |
| 84810D | Rear electric window lift switch assembly | 84810-12100 · 84810-12110 · 84810-12120 · 84810-30230 |
| 84840G | Back door opener switch assembly | 84840-47040 |
| 84841A | Fuel filler cap opener switch | 84841-30050 · 84841-33040 |
| 84870A | Exterior rearview mirror switch assembly | 84872-42030 · 84872-42150 · 84872-42330 |
| 84927 | Seat memory switch | 84927-42050 |
| 84966 | Toyota part | 84966-16020 · 84966-42010 |
| 84966A | Toyota part | 84966-42020 |
| 84975 | trip odometer switch | 84975-42030 |
| 84988L | VSC off switch | 84988-42050 · 84988-42060 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530B | No. 1 rear power socket assembly | 85530-42010 |
| 85530D | No. 2 power socket assembly | 85530-42010 |
| 85530E | No. 3 power socket assembly | 85530-42010 |
| 85532 | Toyota part | 85532-15010 · 85532-33020 · 85532-78010 |
| 85532B | Toyota part | 85532-42010 · 85532-42020 · 85532-42060 · 85532-60040 |
| 85535B | No. 1 power outlet cover | 85535-30020 |
| 85535C | Rear power outlet cover | 85535-30020 |
| 85535E | No. 2 power outlet cover | 85535-30020 |
| 85535H | Toyota part | 85535-30020 |
| 85910E | Injector relay | 90987-02027 |
| 85910V | seat heater relay | 90987-02027 |
| 85912 | defogger relay | 90987-04010 |
| 85912K | Toyota part | 90987-02027 |
| 85913F | Steering heater relay | 90987-02027 |
| 85916D | fog light relay | 90080-87026 · 90987-02027 |
| 85916P | headlight relay | 90080-87026 · 90987-02027 |
| 85924C | Toyota part | 90987-02031 |
| 85940 | Windshield wiper relay assembly | 85940-42040 |
| 85948 | windshield wiper relay | 90987-02027 |
| 8598A | Toyota part | 8598A-42020 · 8598A-42030 |
| 86210A | Voltage inverter assembly | 86210-42040 |
| 86210D | High voltage fuse | 90982-11053 |
| 86220A | Inverter relay | 90987-02027 |
| 86247A | Voltage inverter bracket | 86247-42010 |
| 86247C | Toyota part | 86247-42020 |
| 8624A | Toyota part | 8624A-50030 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87989 | Rearview mirror control relay | 90987-04004 |
| 88162 | Blind spot monitor right sensor | 88162-42090 · 88162-42091 |
| 88172 | Blind spot monitor left sensor | 88162-42090 · 88162-42091 |
| 89050 | Parking brake ECU assembly | 89050-42010 · 89050-42030 |
| 89111 | Network gateway ECU | 89111-12040 · 89111-12042 · 89111-12050 · 89111-12052 · 89111-42090 · 89111-42100 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 891B1 | Toyota part | 891B1-42030 |
| 891B2 | Toyota part | 891B2-0W050 · 891B2-0W310 |
| 89221 | Multi-channel network body ECU | 89220-4AV91 · 89220-4AW01 · 89220-4AW11 · 89220-4BB80 · 89220-4BB90 · 89220-4BC00 · 89220-4BN00 · 89220-4BN10 · 89220-4BN20 · 892G0-42R30 · 892G0-42R40 · 892G0-42R50 · 892G0-4AM70 · 892G0-4AM71 · 892G0-4AM80 · 892G0-4AM81 · 892G0-4AM90 · 892G0-4AM91 |
| 89222A | Multi-channel network door ECU | 89222-42100 · 89222-42101 · 89222-42140 |
| 89245B | steering sensor | 8924B-50010 |
| 89413A | Transmission speed sensor | 89413-12010 |
| 89419B | Toyota part | 89419-12010 · 89419-12011 · 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89429F | temperature sensor | 89429-53010 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89467B | air fuel ratio sensor | 89467-12280 · 89467-33290 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-42170 |
| 89491 | Engine oil level sensor | 89491-33051 · 89491-33052 |
| 89535B | Toyota part | 89535-42150 · 89535-42160 |
| 89539M | No. 1 transmission control ECU bracket | 89539-42080 |
| 89539N | No. 2 transmission control ECU bracket | 89539-42090 |
| 89561F | Toyota part | 90987-02027 |
| 89561G | Toyota part | 90987-02027 |
| 89561H | Toyota part | 90987-02025 |
| 89611 | push button start switch | 89611-30142 · 89611-30144 · 89611-42012 · 89611-42014 · 89611-42040 · 89611-42050 · 89611-42051 |
| 89615 | knock control sensor | 89615-20090 |
| 89710 | Position control ECU assembly | 89710-42020 · 89710-42021 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89870E | Toyota part | 90987-02027 |
| G9020E | Hybrid water pump relay | 90987-02027 |
