Toyota RAV4 蓄电池和蓄电池电缆 — Figure 8201

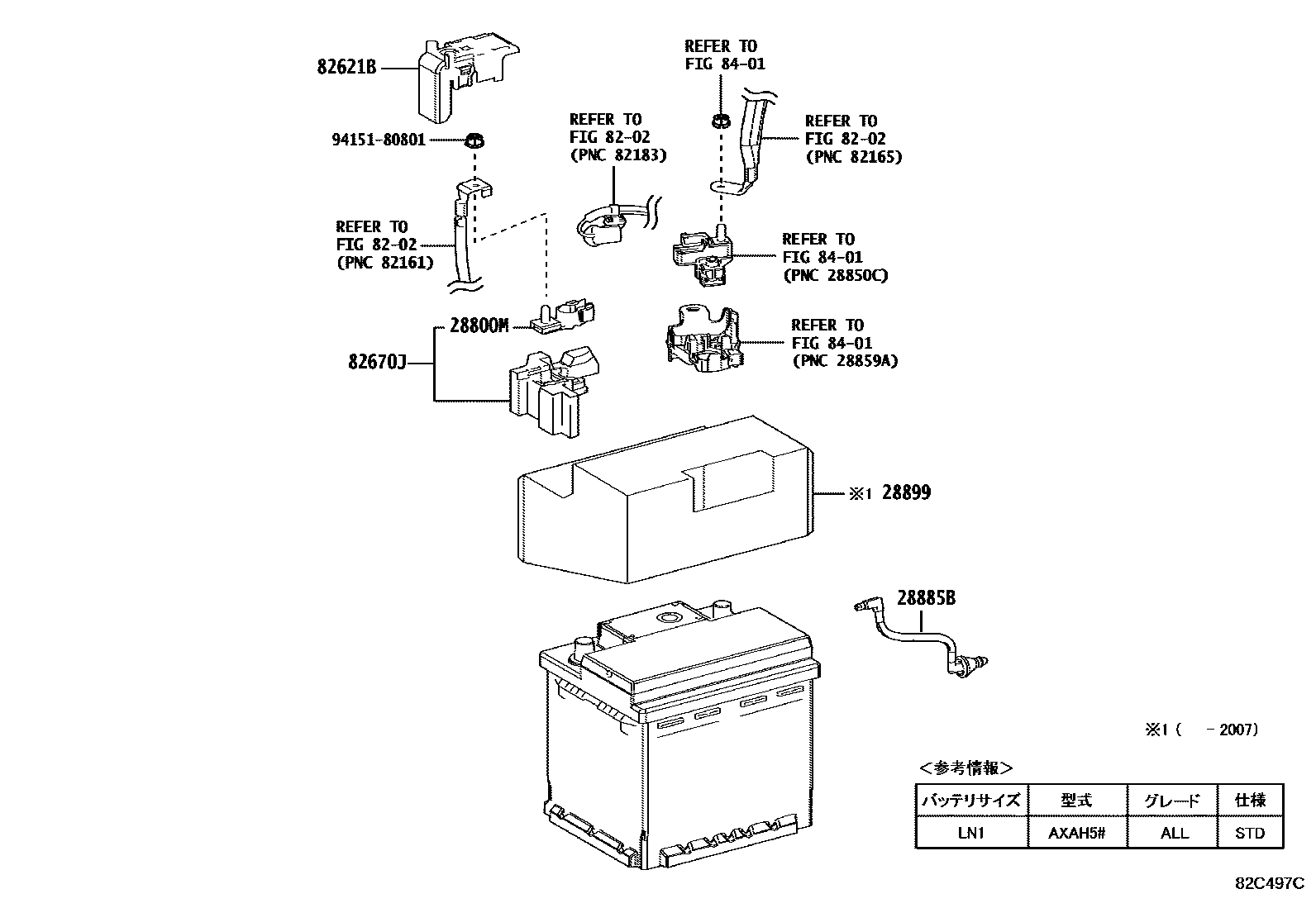

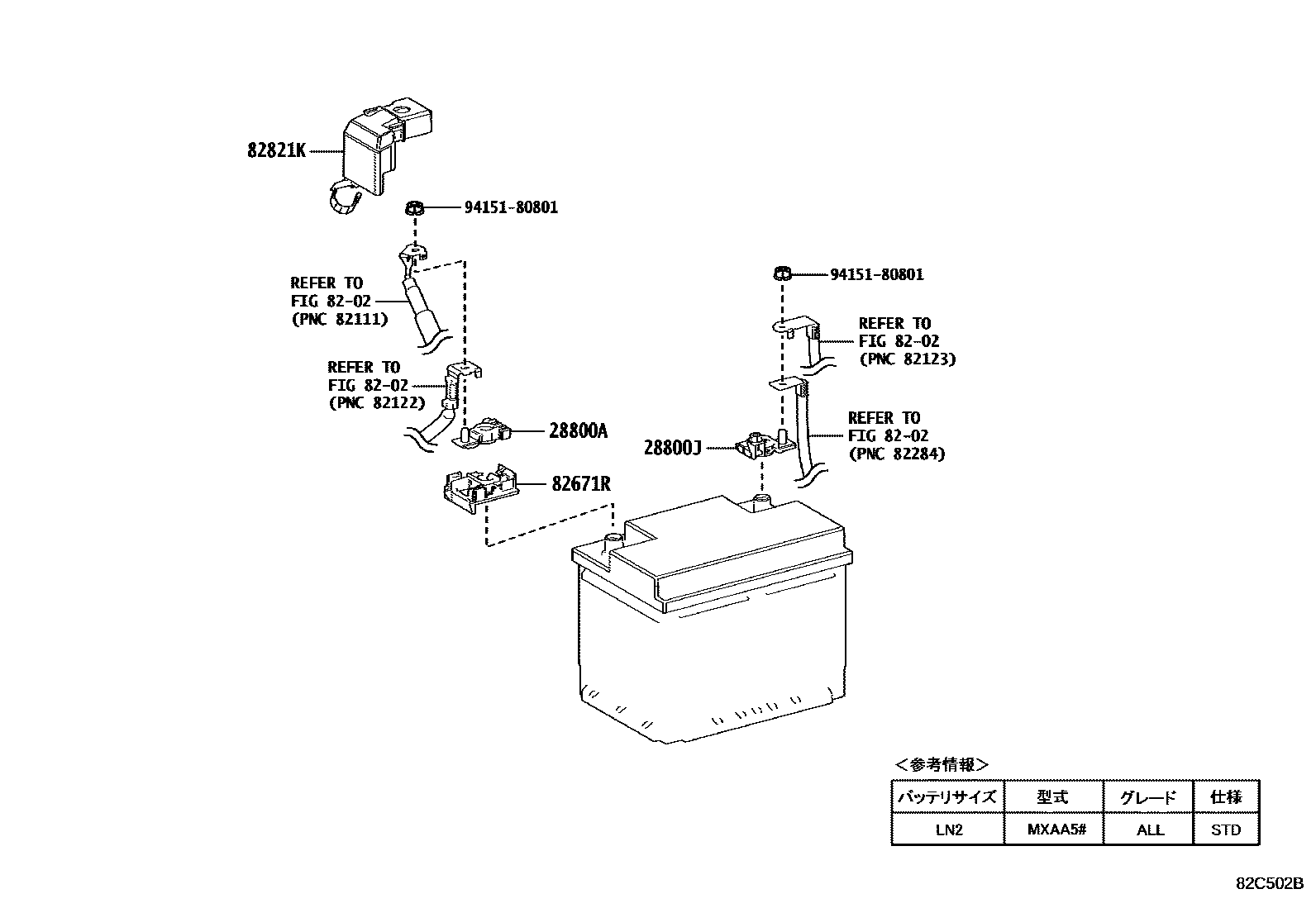

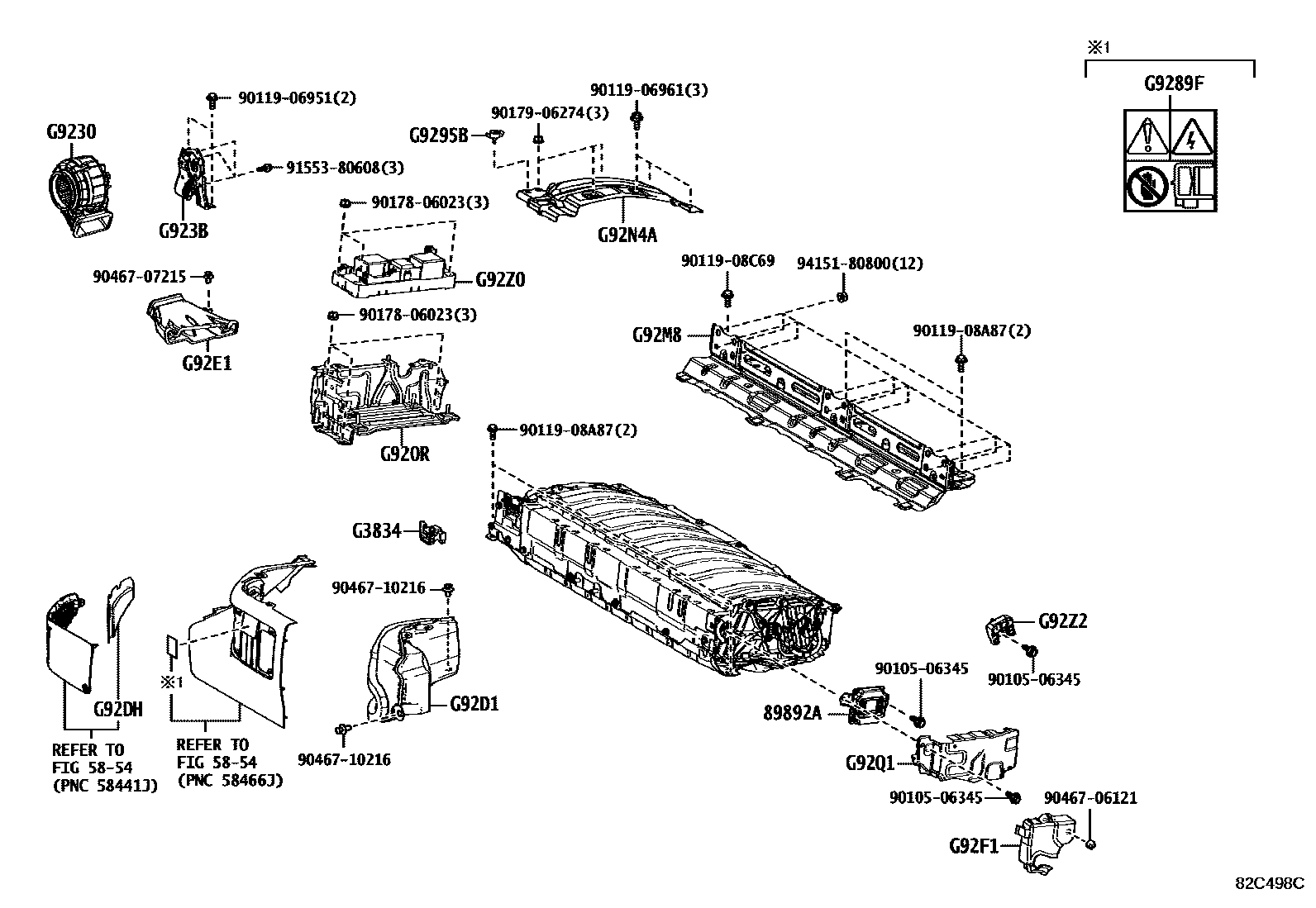

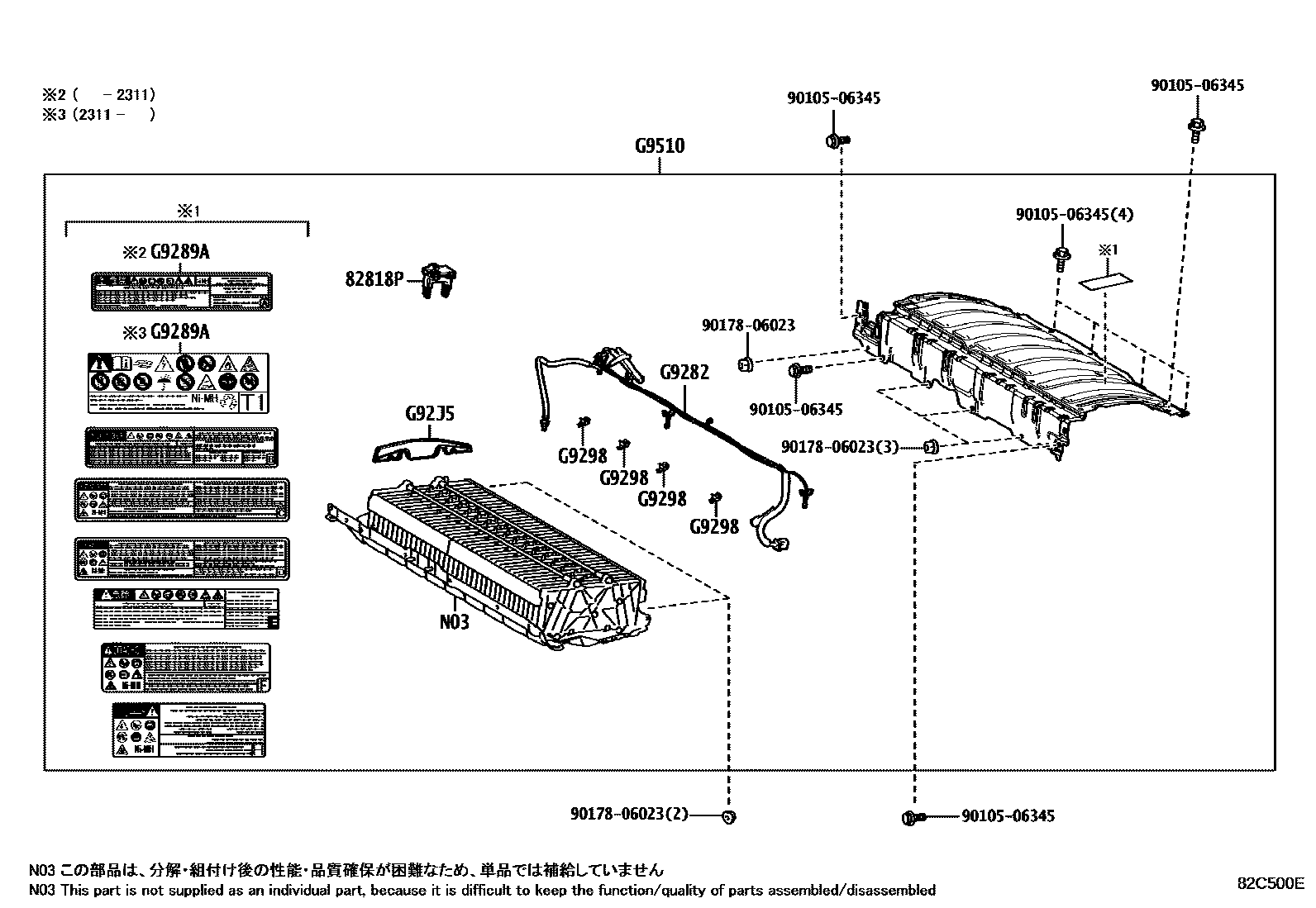

Toyota RAV4 EPC diagram 8201, 蓄电池和蓄电池电缆, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05072 |
| 28800J | battery negative terminal | 90982-06061 |
| 28800M | battery positive terminal | 90982-05058 |
| 28885B | battery hose | 28885-25020 |
| 28899 | Battery insulation cover | 28899-25030 |
| 82621B | Fuse cover | 82621-42020 |
| 82670J | Junction box assembly | 82670-42010 |
| 82671R | Toyota part | 82671-33100 |
| 82818P | Toyota part | 82817-47Q60 |
| 82821K | Connector cover | 82821-33440 |
| 89892A | battery voltage sensor | 89892-33040 |
| G3834 | Service plug handle | G3834-47050 |
| G920R | No. 2 HV battery shielding sub-assembly | G920R-33030 |
| G9230 | Battery cooling blower assembly | G9230-33050 |
| G923B | Battery cooling blower bracket | G923B-42010 |
| G9282 | HV battery thermistor | G9282-33030 |
| G9289A | battery warning label | G9288-48070 · G9288-50010 |
| G9289F | AA battery warning label | 82685-47110 · 82685-47111 |
| G9295B | Battery cover lock | G9295-30020 |
| G9298 | HV battery clip | G928E-47010 |
| G92D1 | No. 1 HV battery air inlet | G92D1-42010 |
| G92DH | Toyota part | G92DH-42010 |
| G92E1 | No. 1 HV battery cover air inlet | G92E1-33020 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-33020 |
| G92J5 | No. 1 HV battery seal | G92J5-47030 |
| G92M8 | HV battery No. 2 upper bracket bracket | G92M8-42010 |
| G92N4A | No. 1 cover on the right side of the hybrid vehicle battery | G92N4-33040 |
| G92Q1 | No. 1 HV battery shielding plate | G92Q1-33050 |
| G92Z0 | HV battery junction box assembly | G92Z0-33041 · G92Z0-47100 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9510 | HV power supply battery assembly | G9510-33120 · G9510-33121 |
