Toyota RAV4 Fog Lamp — Figure 8102

Toyota RAV4 EPC diagram 8102, Fog Lamp, with 3 images and 7 PNC and OE references.

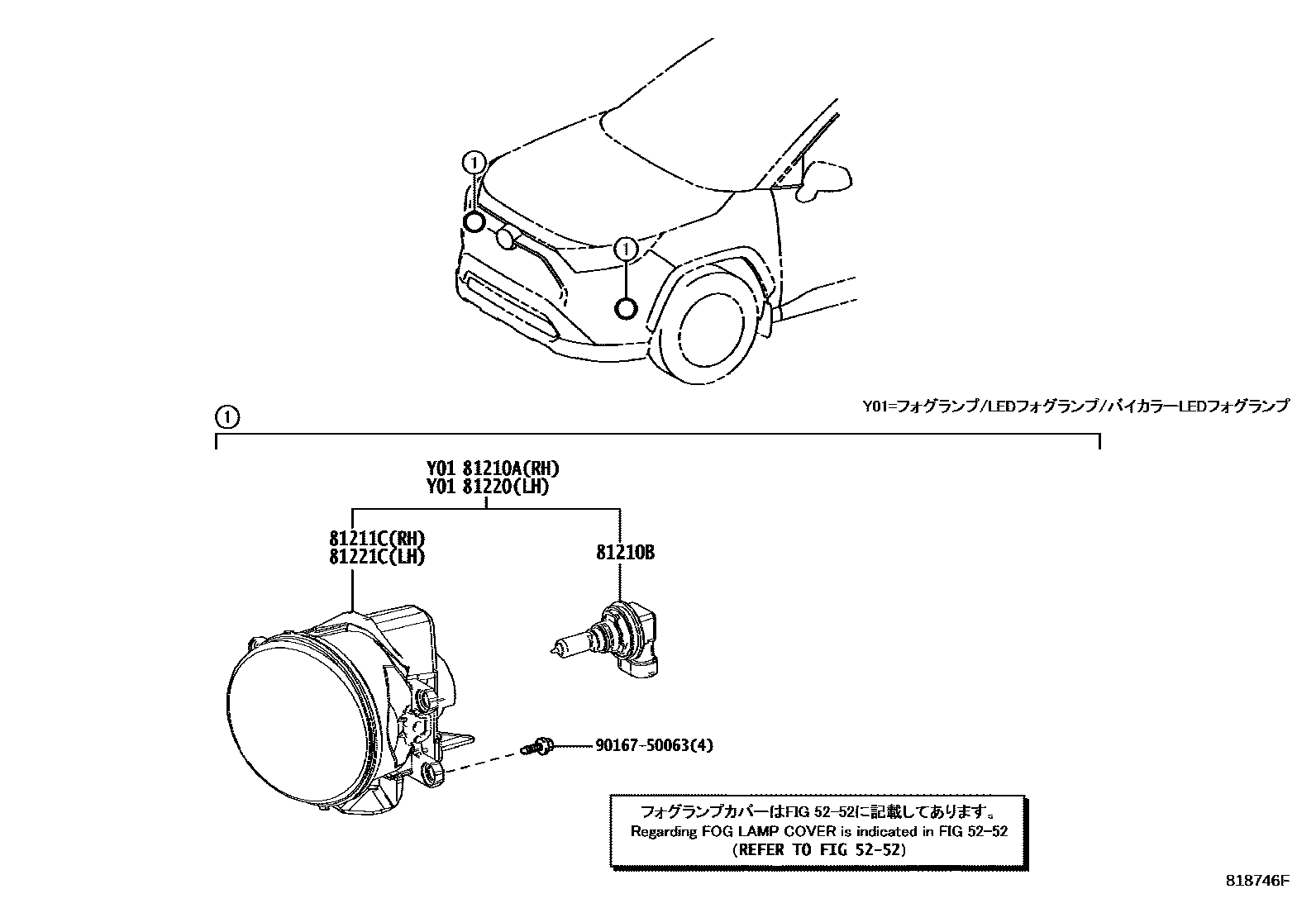

Toyota RAV4 Fog Lamp EPC diagram — 818746F — Fog Lamp — 818746F (201904 – 999999)

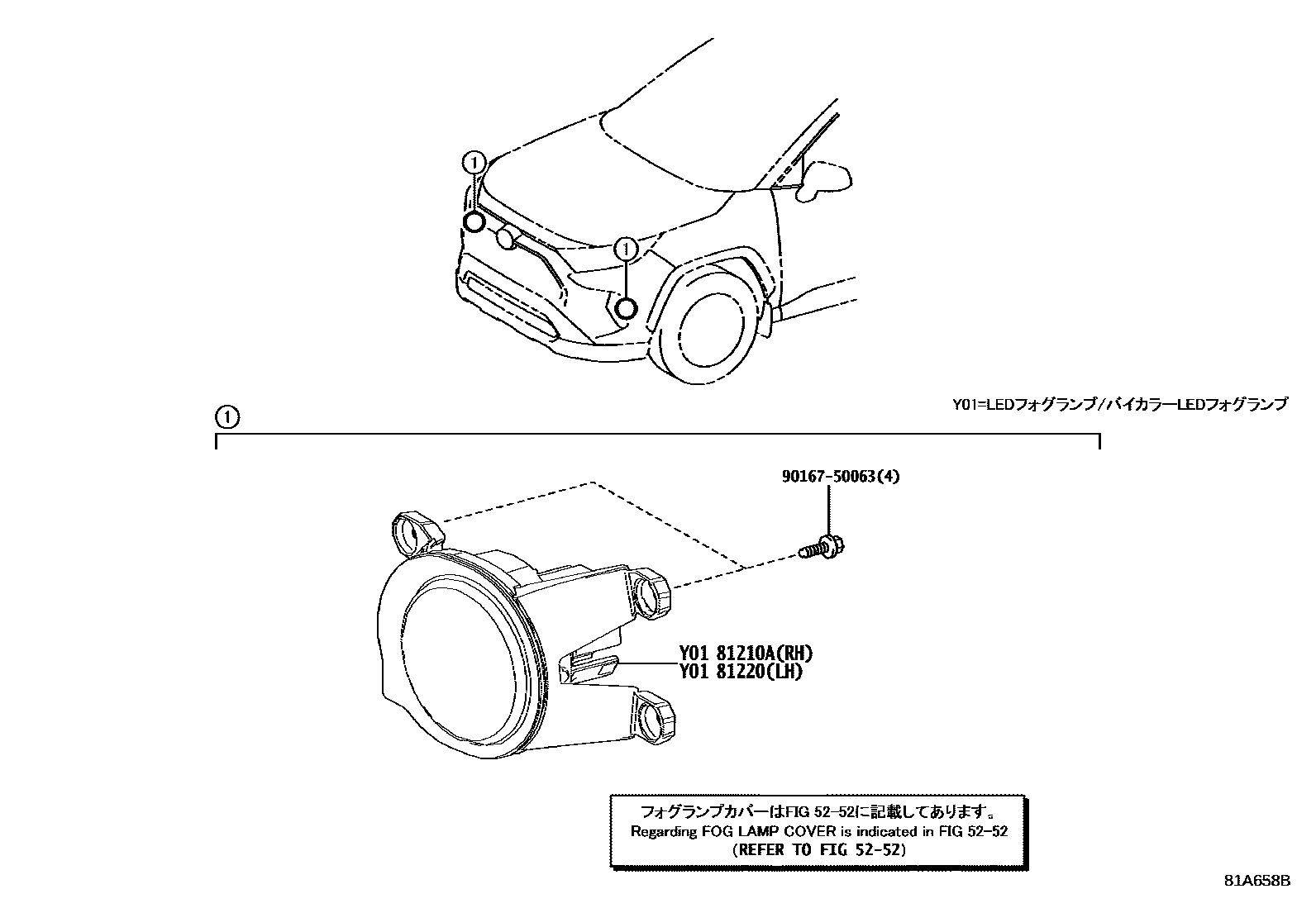

Toyota RAV4 Fog Lamp EPC diagram — 81A658B — Fog Lamp — 81A658B (202112 – 999999)

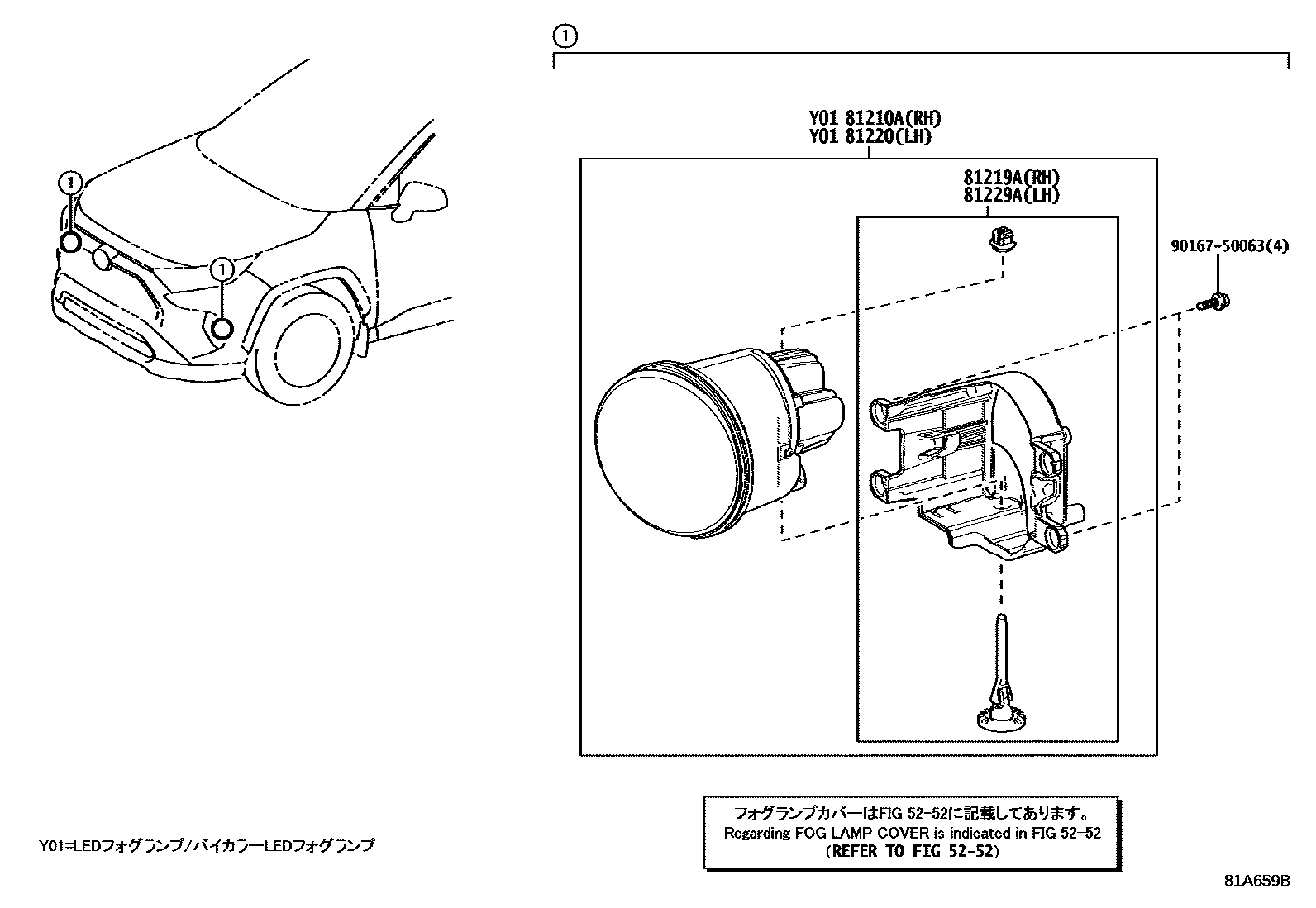

Toyota RAV4 Fog Lamp EPC diagram — 81A659B — Fog Lamp — 81A659B (202112 – 999999)

PNC and OE references

PNC	Part name	OE numbers
81210A	Right fog light assembly	81210-12240 · 81210-47010 · 81210-48051
81210B	fog light bulb	90981-13090
81211C	Right fog light assembly	81211-47010
81219A	Right fog light bracket	81219-48051
81220	Left fog light assembly	81220-12240 · 81220-47010 · 81220-48051
81221C	Left fog light assembly	81221-47010
81229A	Left fog light bracket	81229-48051
