Toyota RAV4 燃油箱和燃油管 — Figure 7751

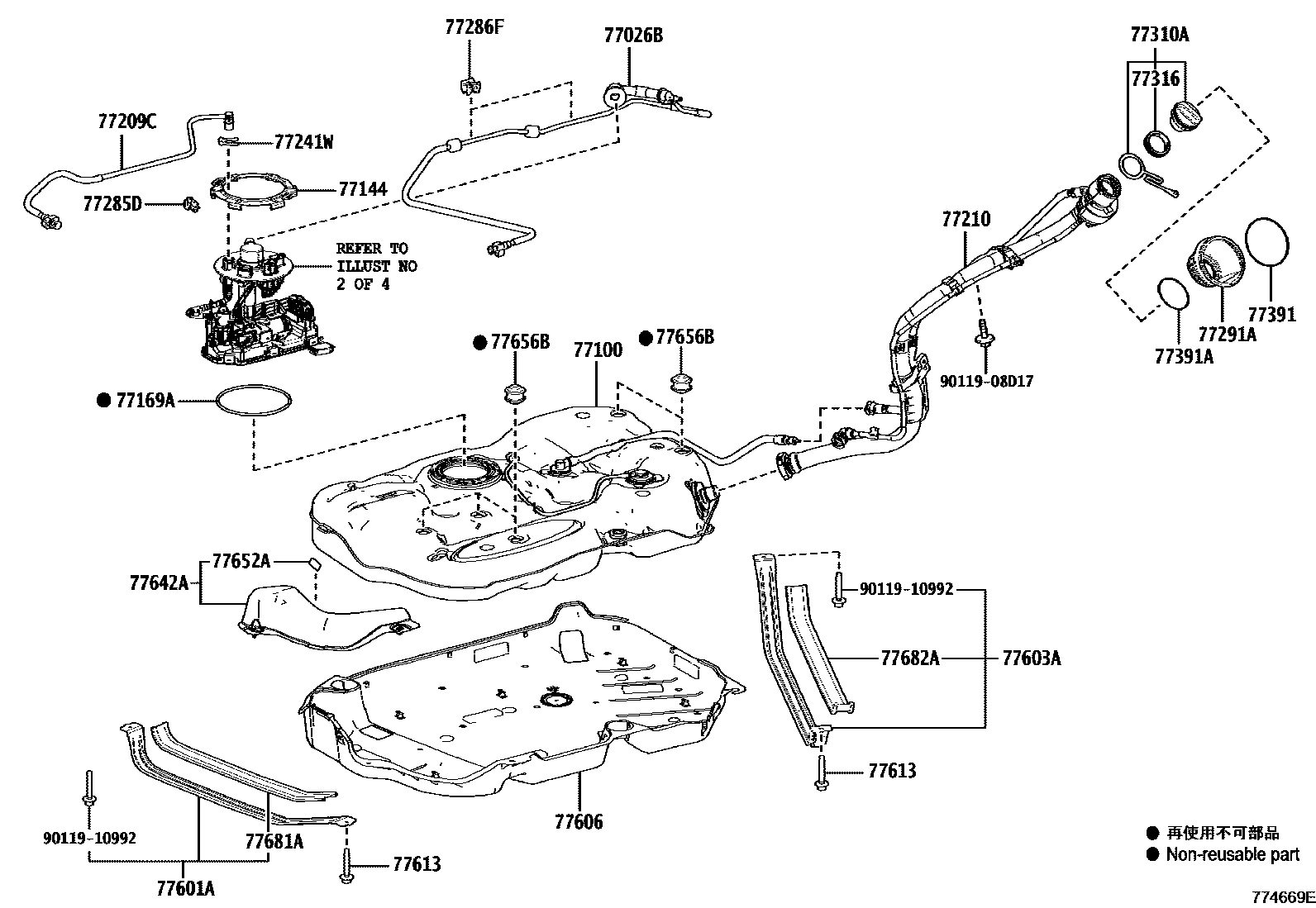

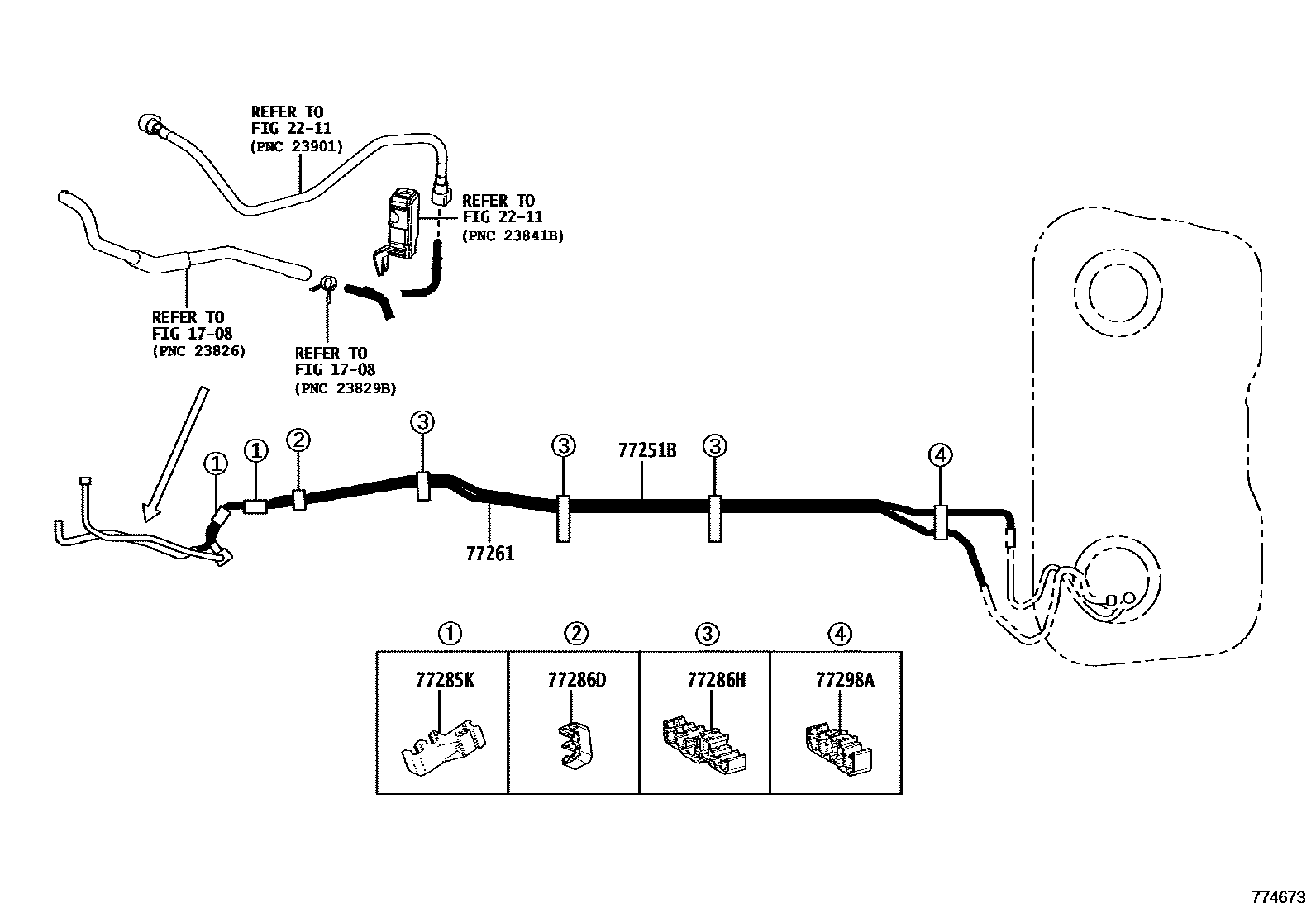

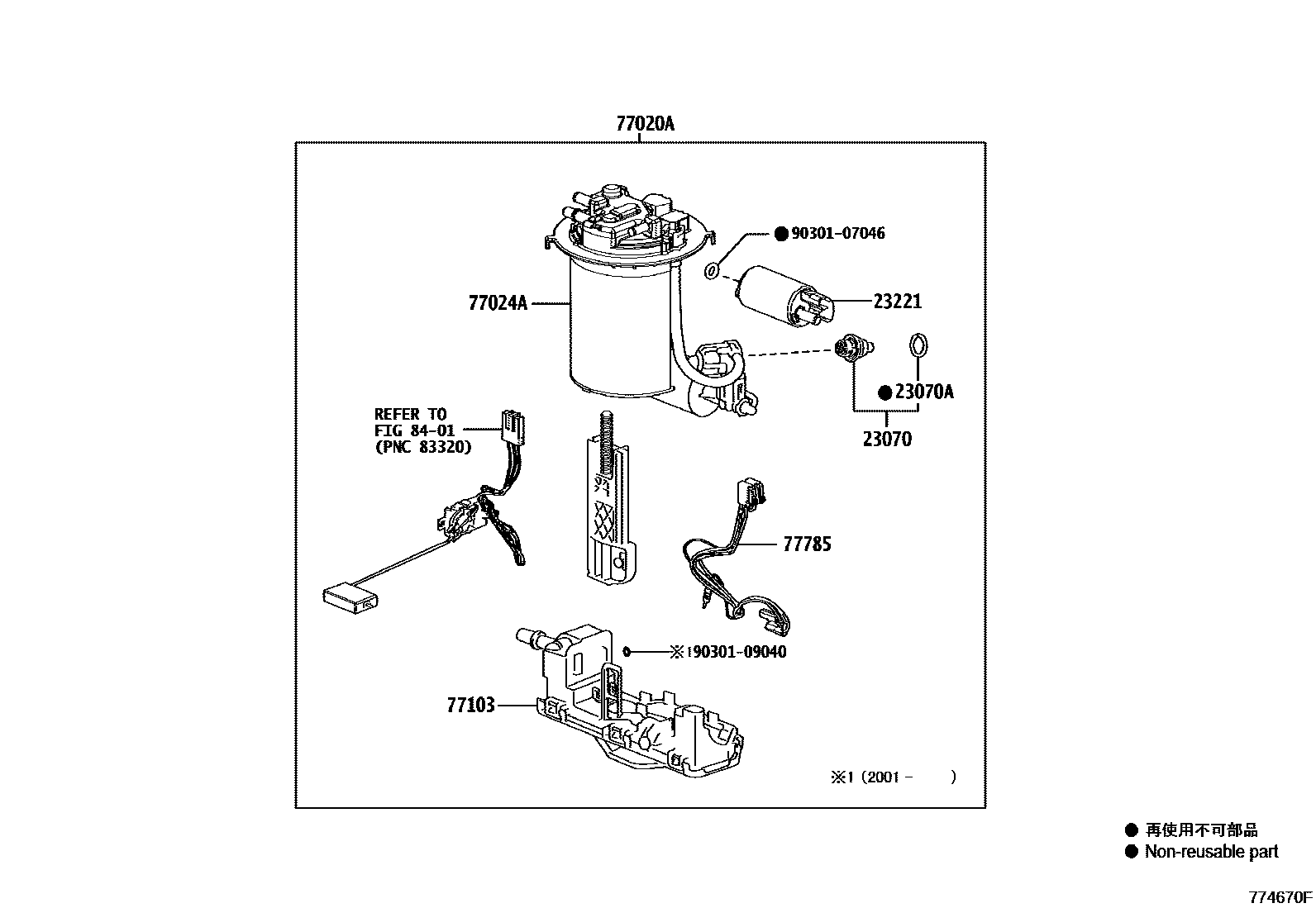

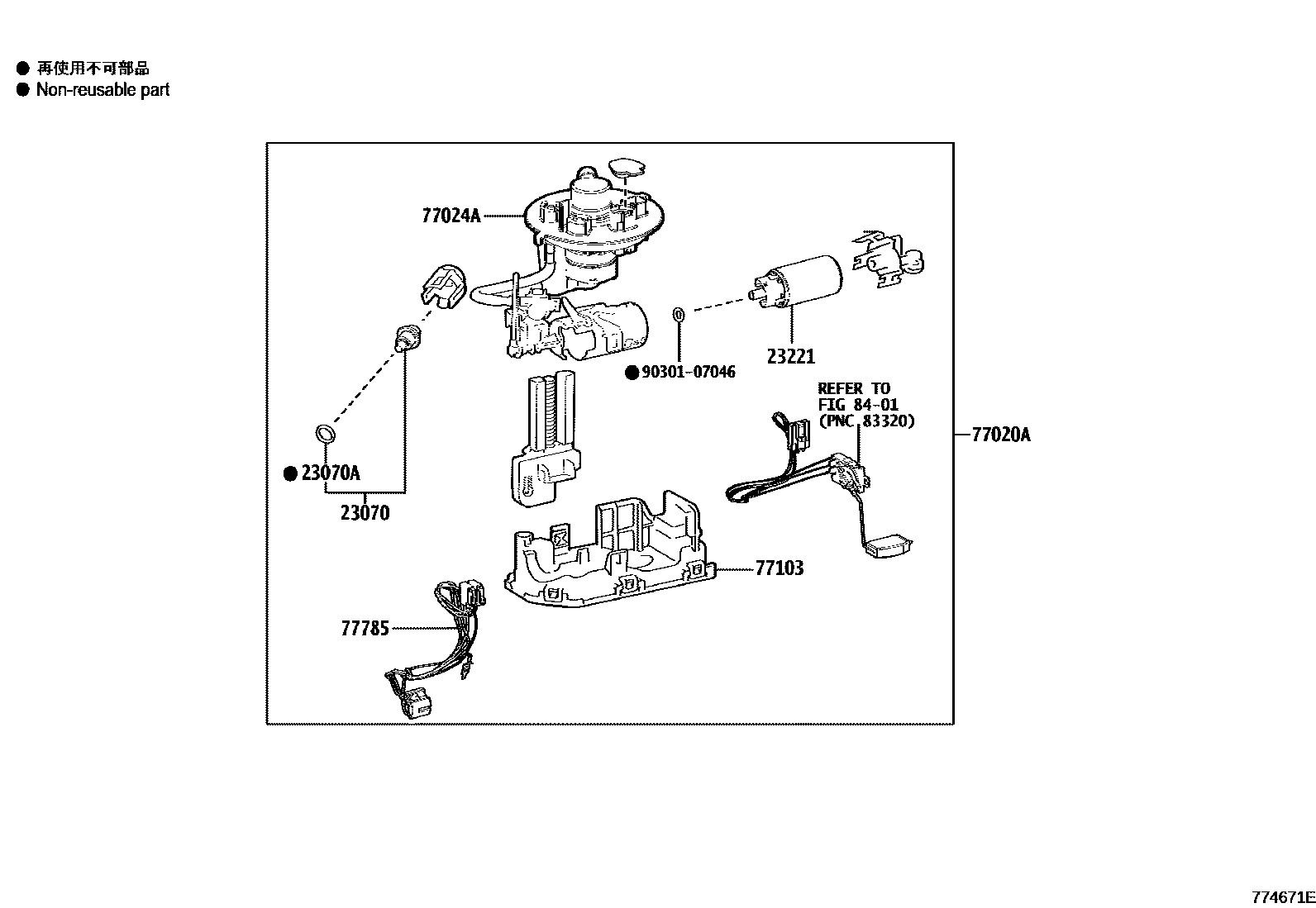

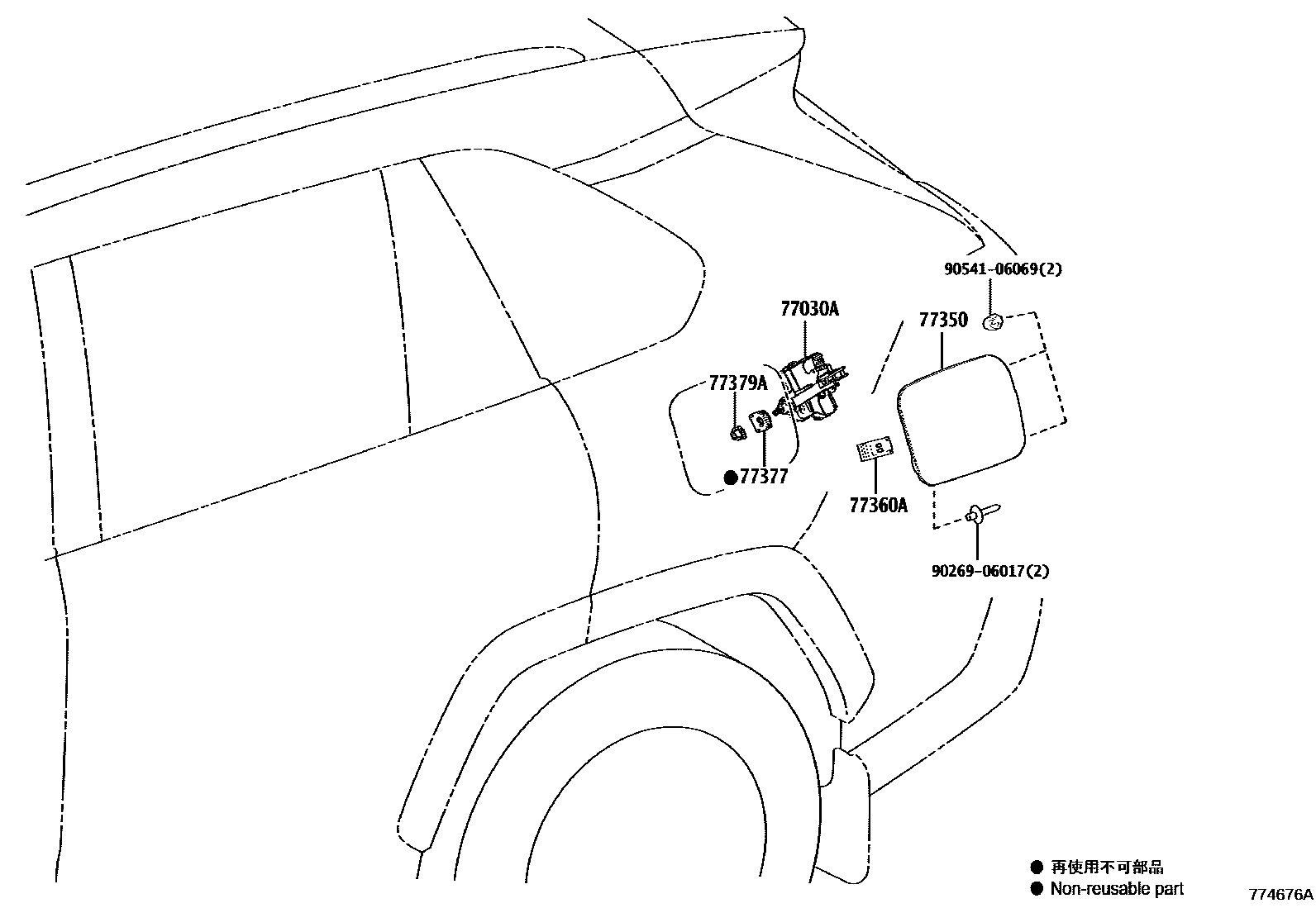

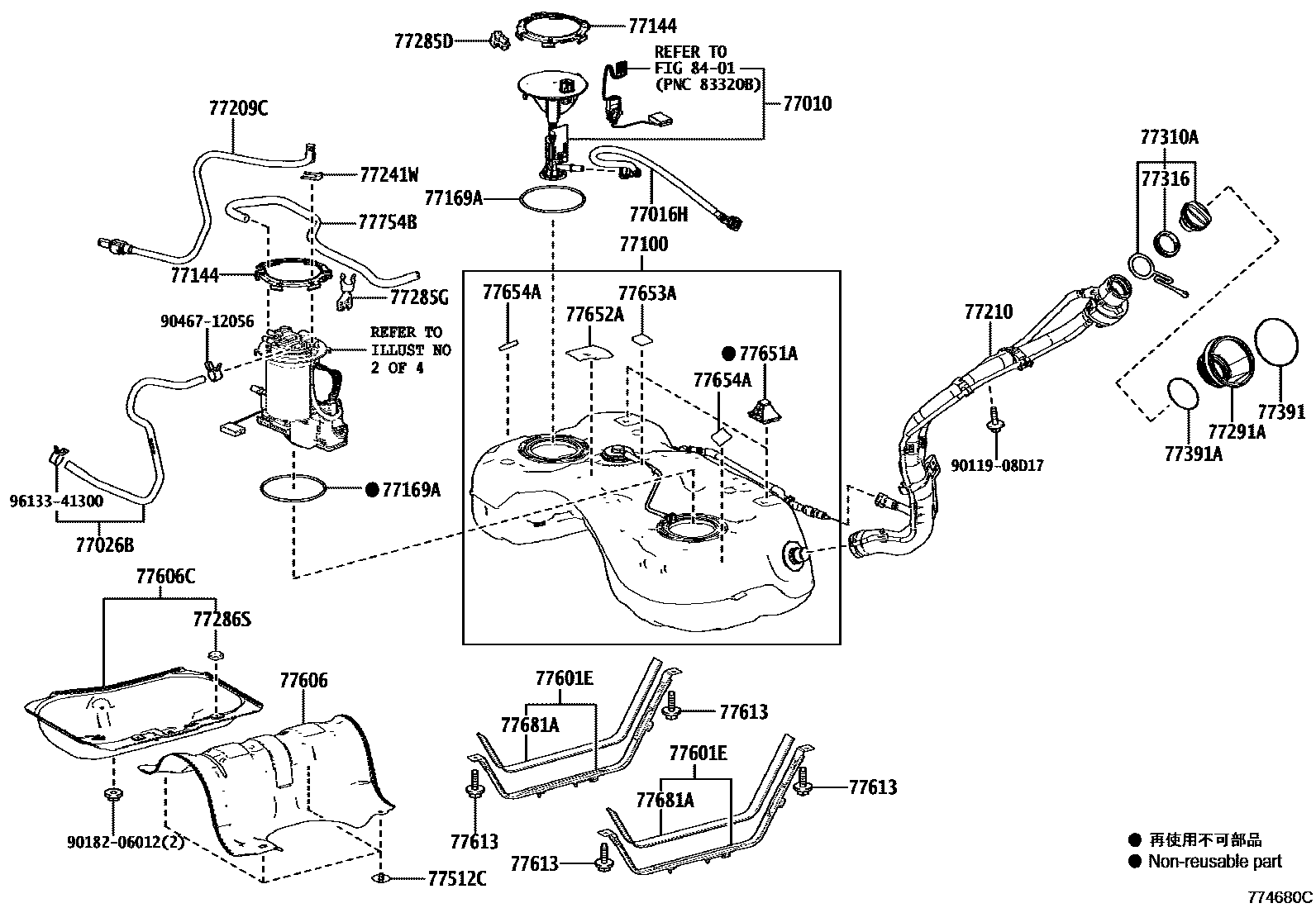

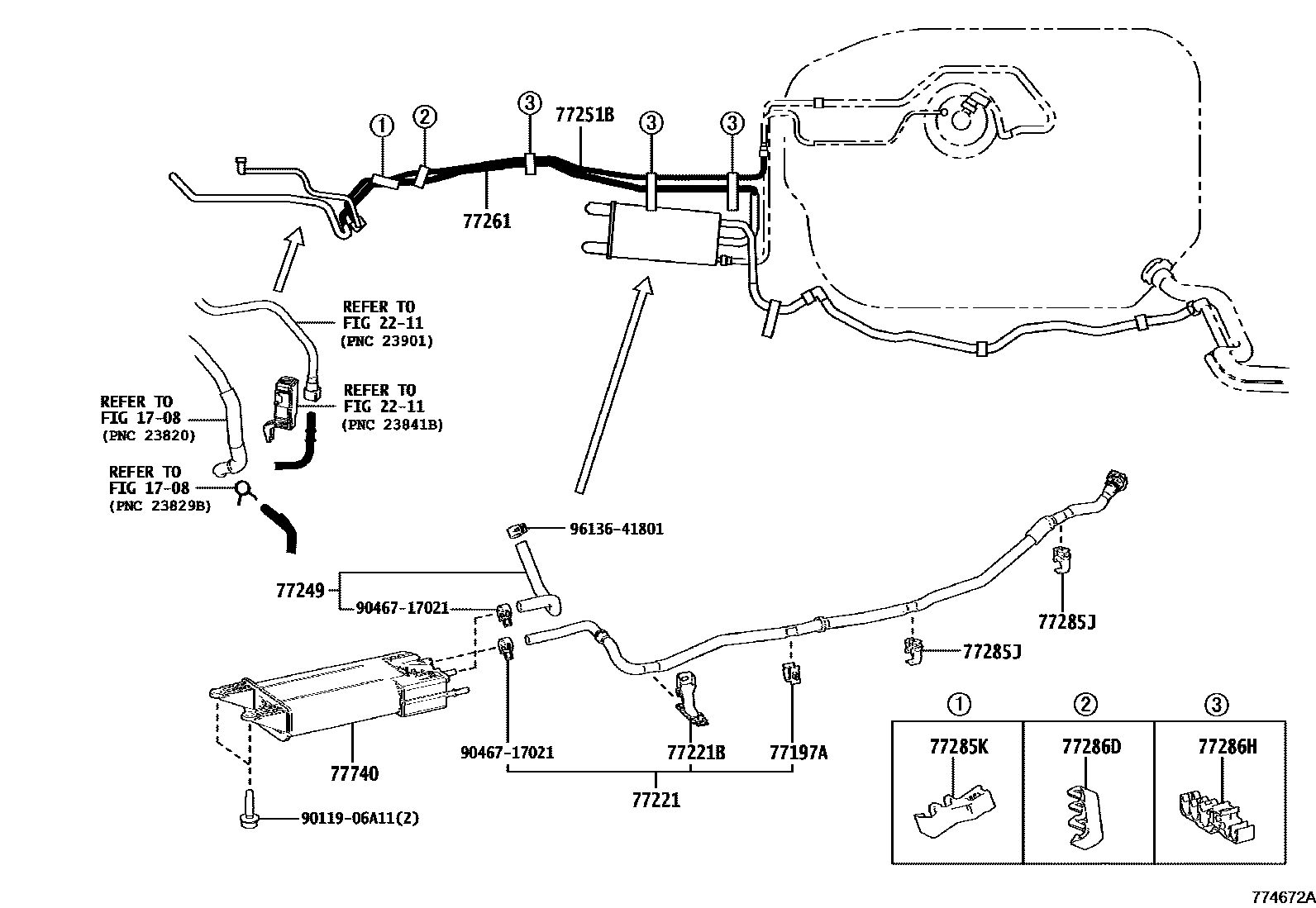

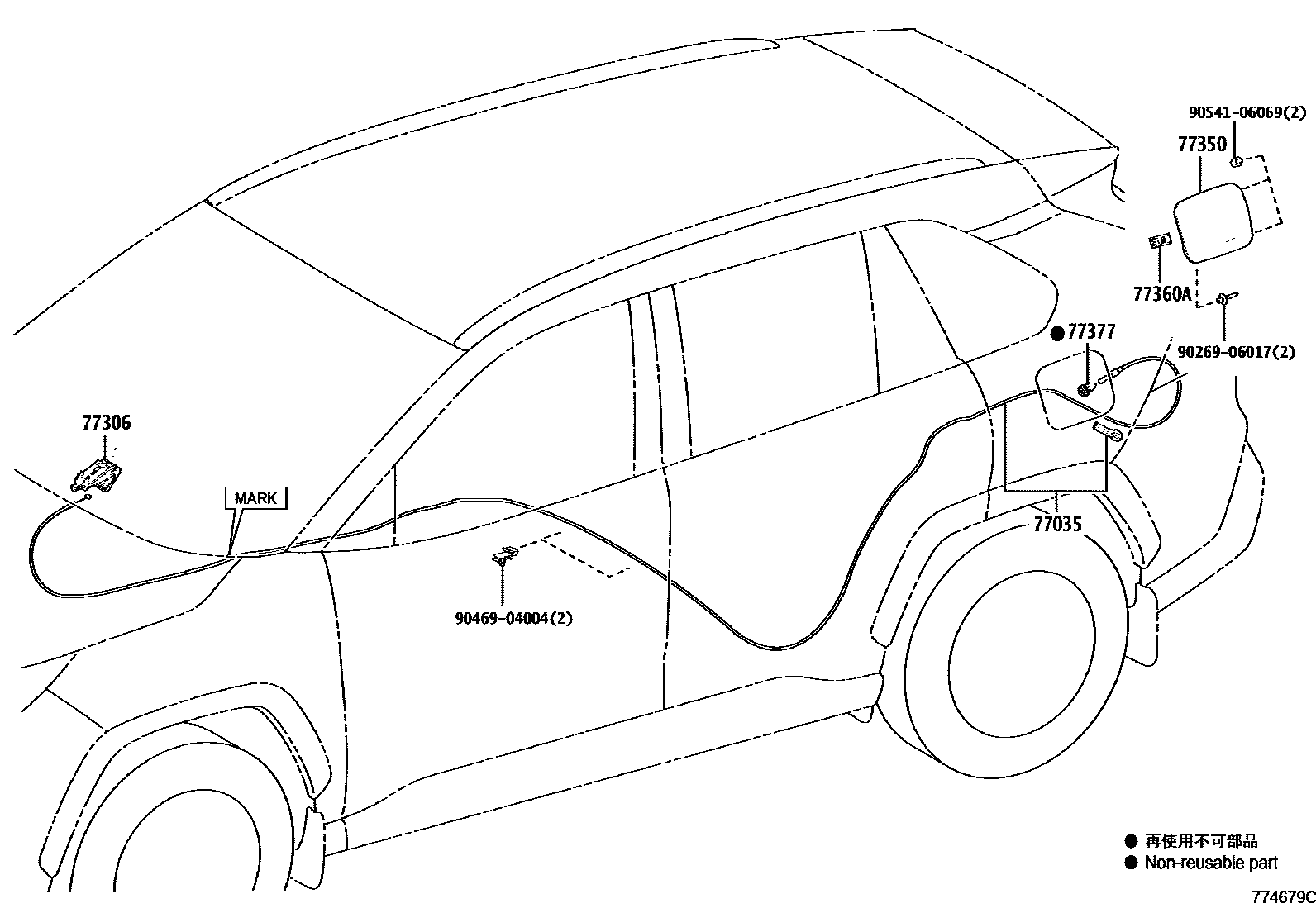

Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 8 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-24010 |
| 23070A | Toyota part | 90301-15024 |
| 23221 | fuel pump | 23221-24010 |
| 77010 | Fuel tank vent pipe assembly | 77010-42060 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-42070 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-42240 · 77020-42260 · 77020-42261 |
| 77024A | Fuel absorber sub-assembly | 77024-42090 · 77024-42130 · 77024-42131 |
| 77026B | No. 1 fuel evaporation pipe sub-assembly | 77026-42050 · 77026-42080 · 77026-42081 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-42020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-42190 · 77035-42210 |
| 77100 | fuel tank assembly | 77001-42310 · 77001-42330 · 77001-42340 · 77001-42350 · 77001-48360 |
| 77103 | Toyota part | 77103-42080 · 77103-42090 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47030 · 77169-47040 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-42010 |
| 77209C | Fuel tank main pipe sub-assembly | 77209-42210 · 77209-42220 · 77209-42230 · 77209-42240 · 77209-42241 |
| 77210 | Toyota part | 77210-42190 · 77210-42210 · 77210-42211 · 77210-42240 · 77210-42250 |
| 77221 | No. 1 fuel evaporation vent pipe | 77227-42090 · 77227-42091 |
| 77221B | A | 77285-42200 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60550 |
| 77249 | fuel drain hose | 77249-42120 |
| 77251B | main fuel pipe | 77251-42250 · 77251-42260 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-42120 · 77261-42130 |
| 77285D | No. 1 fuel pipe clamp | 77285-30350 |
| 77285G | No. 1 fuel pipe clamp | 77285-42230 |
| 77285J | No. 1 fuel pipe clamp | 77285-42210 |
| 77285K | No. 1 fuel pipe clamp | 77285-42170 · 77286-52100 |
| 77286D | No. 2 fuel pipe clamp | 77285-42160 · 77285-42180 |
| 77286F | No. 2 fuel pipe clamp | 77286-30180 |
| 77286H | No. 3 fuel pipe clamp | 77285-42150 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77291A | Fuel tank filler pipe cover | 77291-42060 |
| 77298A | No. 4 fuel pipe clamp | 77298-33120 |
| 77310A | Fuel tank cap assembly | 77300-12020 · 77300-48020 |
| 77316 | fuel tank cap gasket | 77316-52040 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-42100 |
| 77360A | Toyota part | 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-12100 · 77377-12110 |
| 77379A | Toyota part | 77379-12030 |
| 77391 | fuel inlet ring | 77391-42010 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77512C | Toyota part | 77512-35140 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-42120 |
| 77601E | Fuel tank strap sub-assembly | 77601-42100 |
| 77603A | No. 2 fuel tank strap sub-assembly | 77602-42050 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-42030 · 77606-42060 |
| 77606C | No. 2 fuel tank protective shell | 77606-42040 |
| 77613 | Fuel tank strap fixing bolts | 90119-10A05 |
| 77642A | No. 2 fuel tank protective shell | 77642-42070 |
| 77651A | No. 1 fuel tank liner | 77651-33060 |
| 77652A | No. 2 fuel tank liner | 77652-12100 · 77652-42040 |
| 77653A | No. 3 fuel tank liner | 77652-33060 |
| 77654A | No. 4 fuel tank liner | 77652-47010 |
| 77656B | No. 6 fuel tank liner | 77656-33010 |
| 77681A | Fuel tank strap seat | 77681-42040 · 77682-75010 |
| 77682A | No. 2 fuel tank strap seat | 77682-42010 |
| 77740 | Carbon canister assembly | 77740-42120 |
| 77754B | Carbon canister outlet hose | 77754-42090 |
| 77785 | fuel pump wiring harness | 77785-12010 · 77785-42060 · 77785-42061 |
