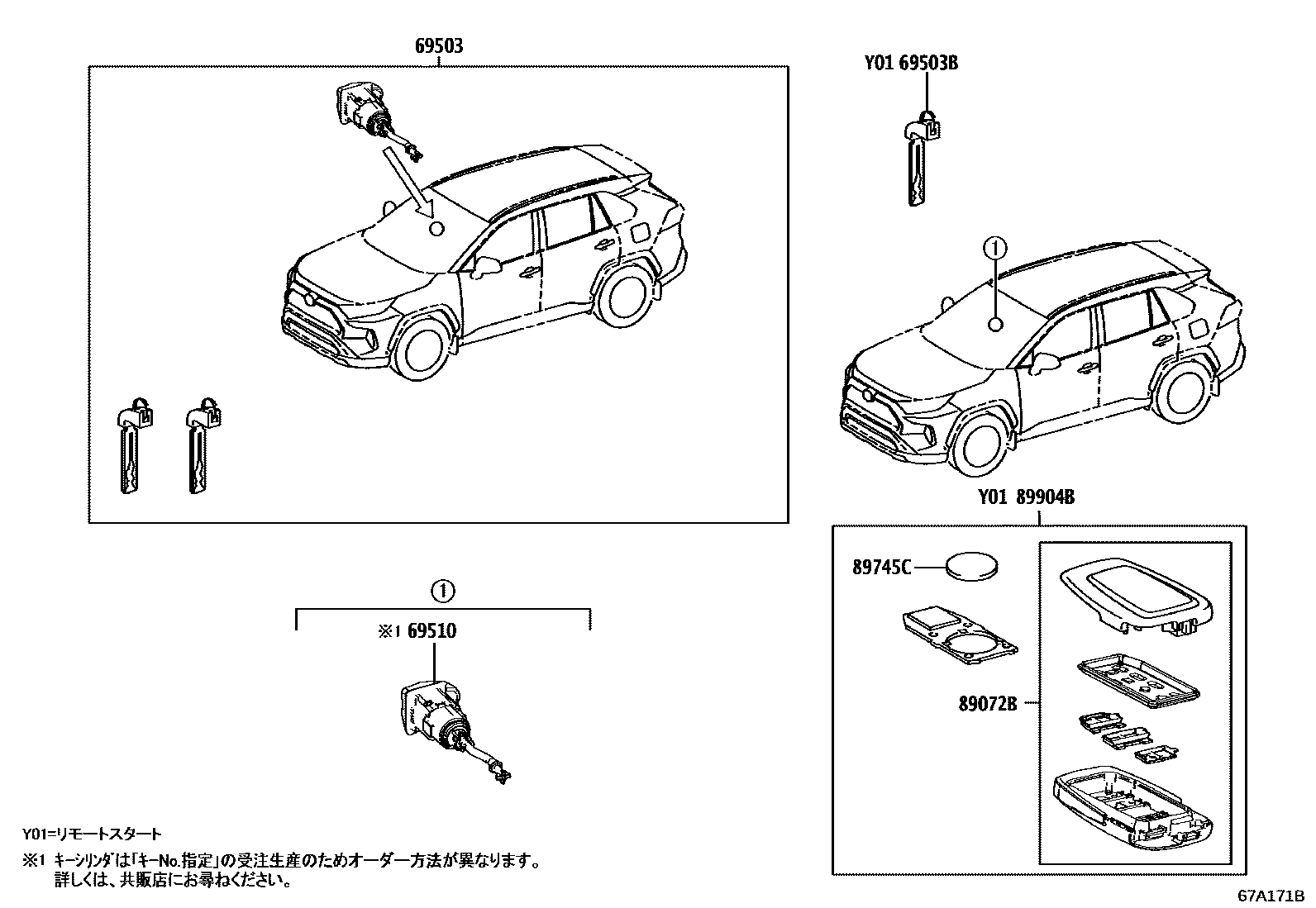

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-42A00 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 |
| 69510 | Right front door lock cylinder assembly | 69510-42110 |
| 89072B | Remote key shell assembly (for smart key) | 89072-42810 · 89072-42820 · 89072-42830 · 89072-42840 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-42090 · 8990H-42100 · 8990H-42110 · 8990H-42120 · 8990H-42290 · 8990H-42300 · 8990H-42310 · 8990H-42320 |
