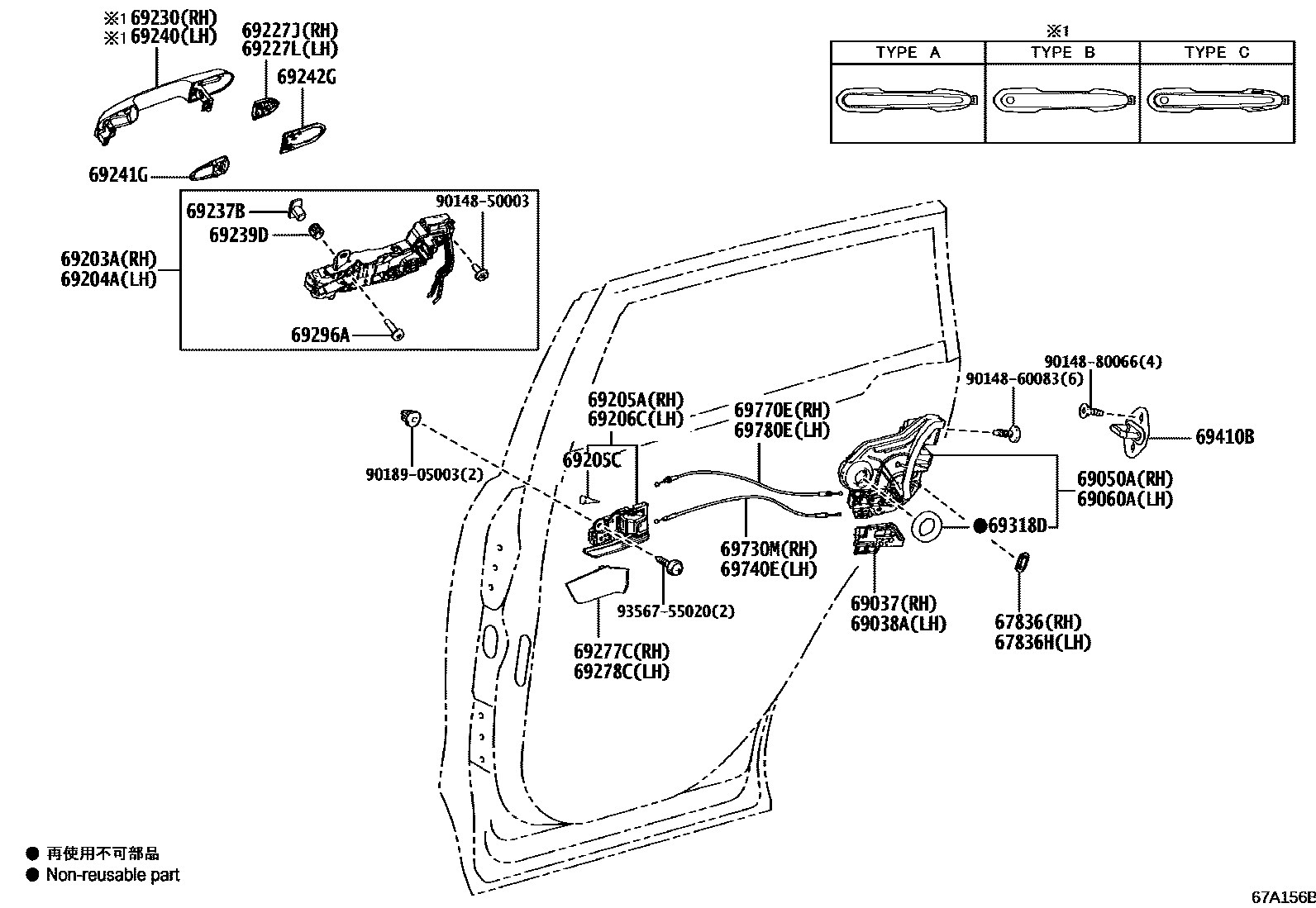

Toyota RAV4 后门锁和后门把手 — Figure 6756
Toyota RAV4 EPC diagram 6756, 后门锁和后门把手, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-60010 |
| 67836H | Left rear door lock child restraint cover | 67836-60010 |
| 69037 | Toyota part | 69037-30010 |
| 69038A | Toyota part | 69038-30010 |
| 69050A | Right rear door lock assembly with motor | 69050-48060 |
| 69060A | Left rear door lock assembly with motor | 69060-48060 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-42060 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-42060 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69227J | Right rear door outer handle cover | 69227-30130 |
| 69227L | Left rear door outer handle cover | 69227-30130 |
| 69237B | Toyota part | 69237-62010 |
| 69239D | Toyota part | 69239-47010 |
| 69241G | Rear door front exterior handle pad | 69241-30130 |
| 69242G | Rear door rear outer handle pad | 69242-30110 |
| 69296A | Car door inner handle screws | 69296-30010 · 90148-50006 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-20110 |
| 69730M | Toyota part | 69730-42050 |
| 69740E | Toyota part | 69730-42050 |
| 69770E | Toyota part | 69770-42110 |
| 69780E | Toyota part | 69770-42110 |
