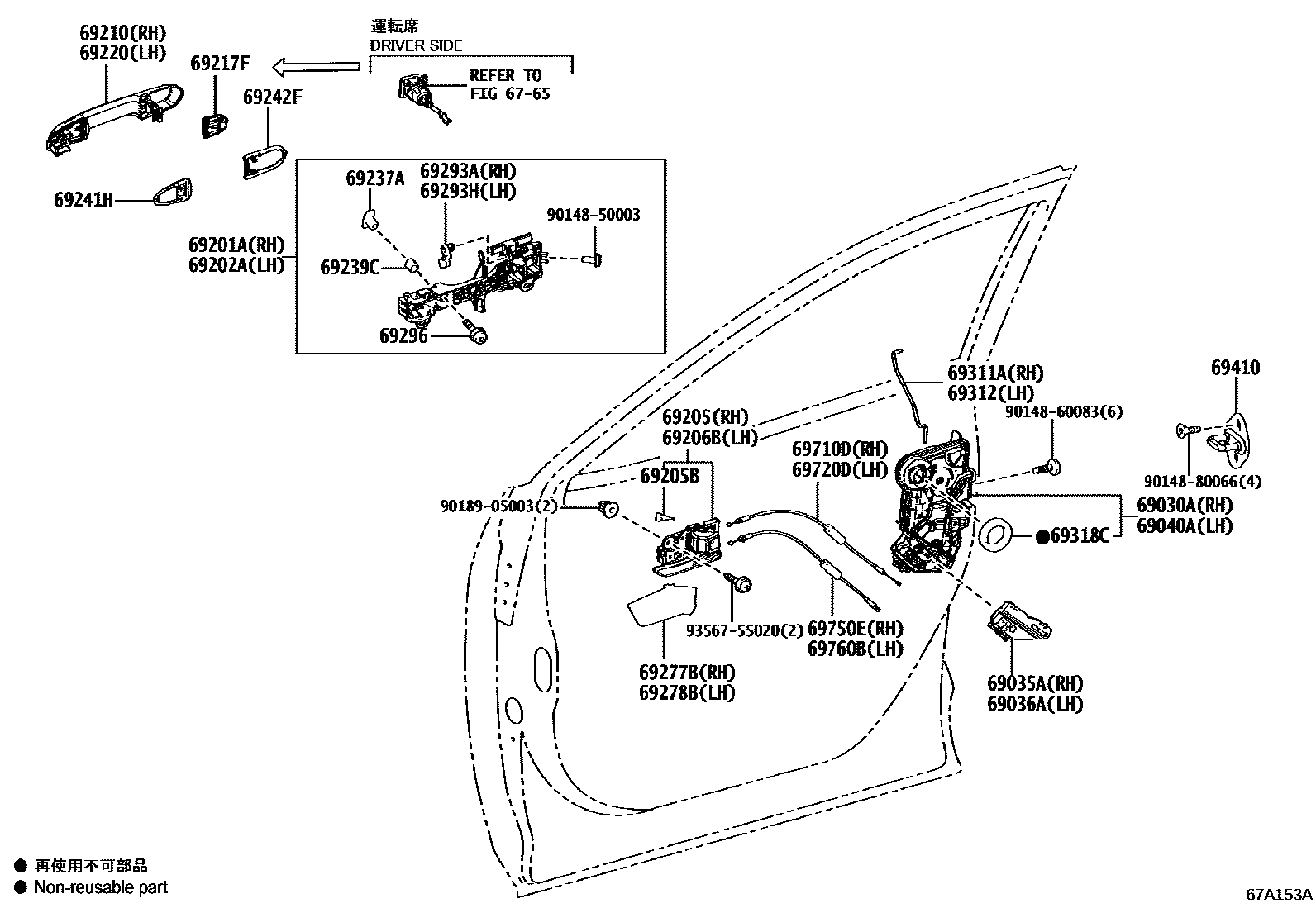

Toyota RAV4 前门锁和车门把手 — Figure 6753
Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-30A70 |
| 69035A | Toyota part | 69035-30010 |
| 69036A | Left front door lock cover sub-assembly | 69036-30010 |
| 69040A | Left front door door lock assembly with motor | 69040-30A80 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-30100 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-30090 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69217F | Left front door outer handle cover | 69217-30140 |
| 69237A | Toyota part | 69237-62010 |
| 69239C | Toyota part | 69239-47010 |
| 69241H | Front door exterior handle pad | 69241-30130 |
| 69242F | Front door rear outer handle pad | 69242-30110 |
| 69293A | Front door outer handle buckle | 69293-33030 |
| 69293H | Left front door outer handle buckle | 69293-33040 |
| 69296 | Car door inner handle screws | 69296-30010 · 90148-50006 |
| 69311A | Right front door lock opening lever | 69311-42050 · 69311-42080 |
| 69312 | Left front door lock opening lever | 69312-42050 · 69312-42090 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-20110 |
| 69710D | Toyota part | 69710-42070 |
| 69720D | Toyota part | 69710-42070 |
| 69750E | Toyota part | 69750-42050 |
| 69760B | Toyota part | 69750-42050 |
