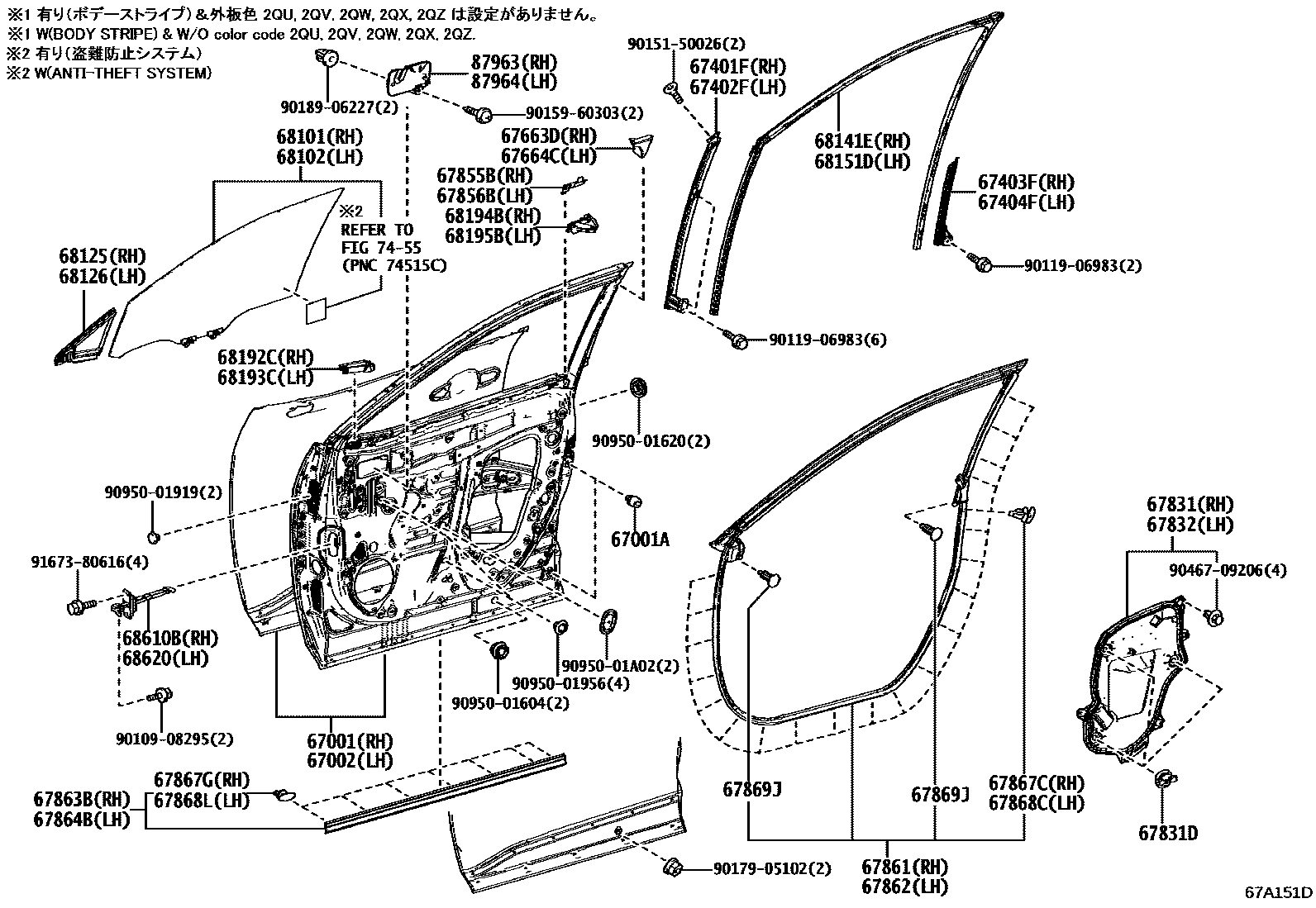

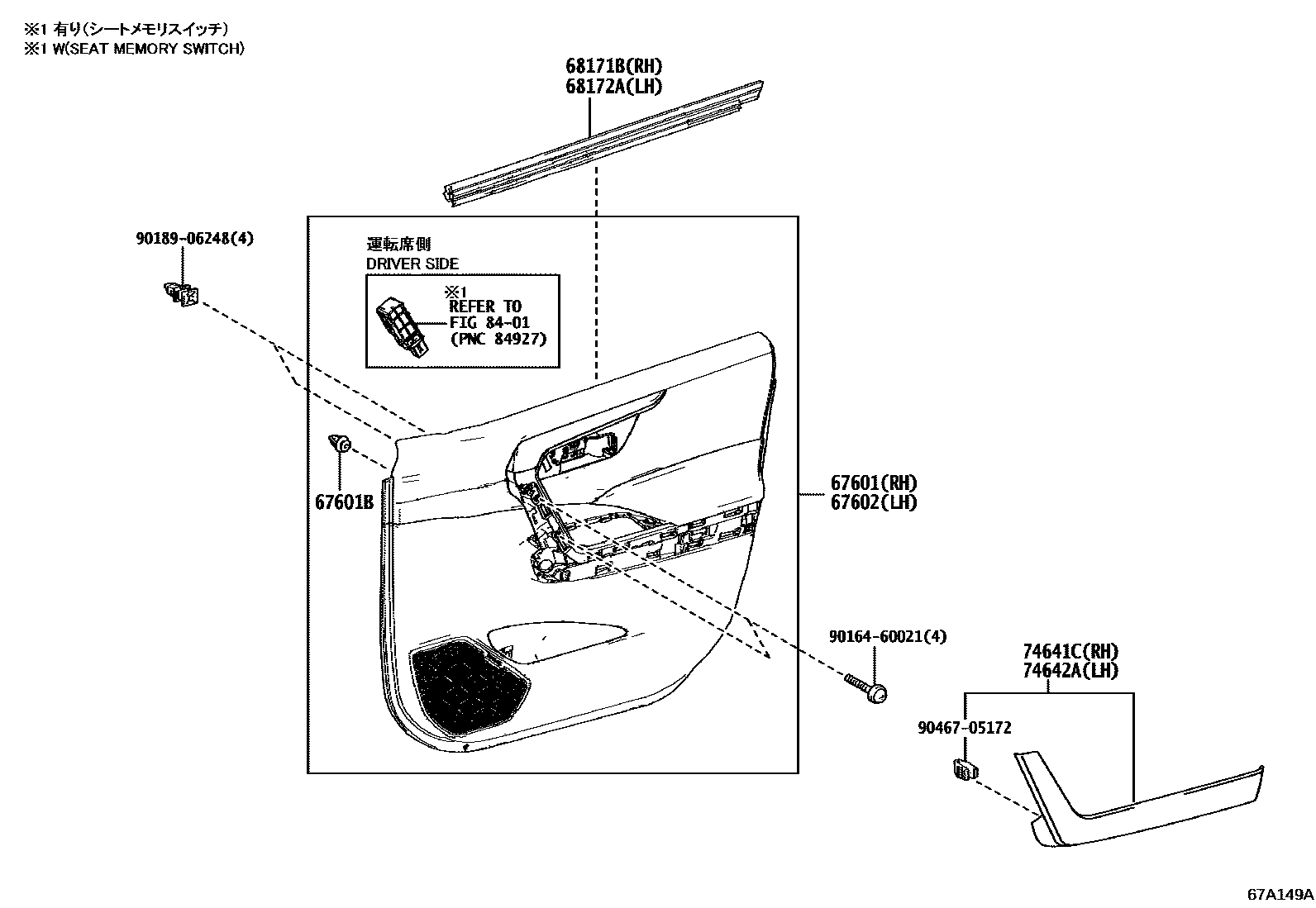

Toyota RAV4 前门板和前门玻璃 — Figure 6751
Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-42160 · 67001-42161 |
| 67001A | Front door panel cushion | 90541-09137 |
| 67002 | Left front door panel sub-assembly | 67002-42180 · 67002-42181 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-42030 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-42030 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-42050 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-42050 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67663D | Right door frame decorative strip | 67663-42030 |
| 67664C | Left door frame decorative strip | 67664-42030 |
| 67831 | Right front door access hole cover | 67831-42090 |
| 67831D | Catch (for front door access hole cover) | 67869-42010 · 67869-47010 |
| 67832 | Left front door access hole cover | 67832-42040 |
| 67855B | Right front door panel protector | 67855-42030 |
| 67856B | Left front door panel protector | 67856-42030 |
| 67861 | Right front door seal | 67861-42120 · 67861-42130 |
| 67862 | Left front door seal | 67862-42120 · 67862-42130 |
| 67863B | Right front door seal No. 2 | 67863-42040 |
| 67864B | Left front door seal No. 2 | 67864-42030 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-12150 |
| 67869J | Front door seal strip clip | 67869-26050 |
| 68101 | Right front door glass sub-assembly | 68101-42270 · 68101-42280 |
| 68102 | Left front door glass sub-assembly | 68102-42280 · 68102-42290 |
| 68125 | Right front door fixed window glass | 68125-42020 · 68125-42030 |
| 68126 | Left front door fixed window glass | 68126-42020 · 68126-42030 |
| 68141E | Right front door glass lift channel | 68141-42121 |
| 68151D | Left front door glass lift channel | 68151-42121 |
| 68171B | Right front door glass inner sealing strip | 68171-42070 |
| 68172A | Left front door glass inner sealing strip | 68172-42070 |
| 68192C | Right front door beltline front seal | 68192-42010 |
| 68193C | Left front door beltline front seal | 68193-42010 |
| 68194B | Right front door beltline rear seal | 68194-42010 |
| 68195B | Left front door beltline rear seal | 68195-42010 |
| 68610B | Right front door opening limiter assembly | 68610-42060 |
| 68620 | Left front door opening limiter assembly | 68610-42060 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-42010 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-42010 |
