Toyota RAV4 底板和底板装饰罩 — Figure 6455

Toyota RAV4 EPC diagram 6455, 底板和底板装饰罩, with 3 images and 9 PNC and OE references.

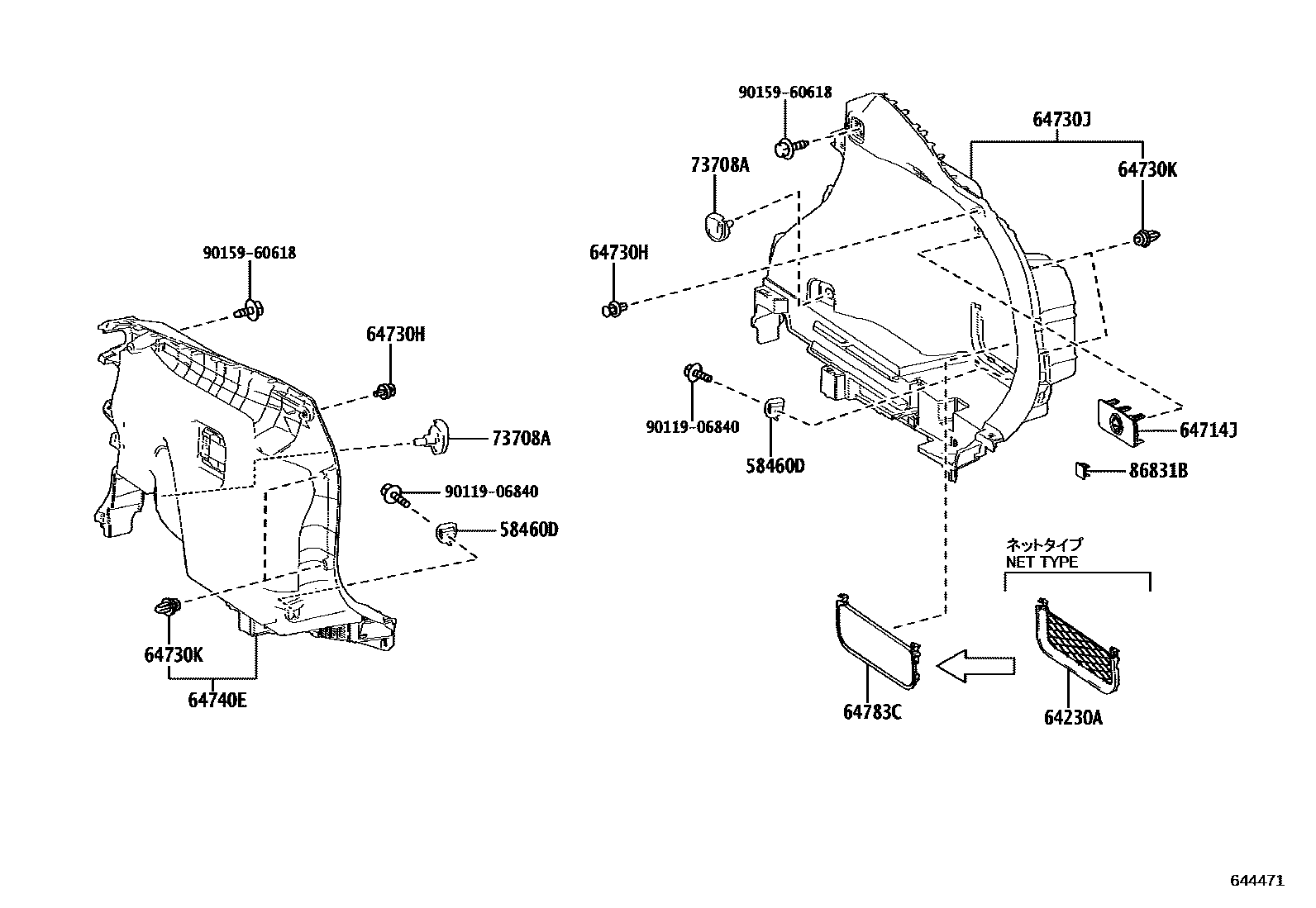

Toyota RAV4 底板和底板装饰罩 EPC diagram — 644471
底板和底板装饰罩 — 644471 (201904 – 999999)

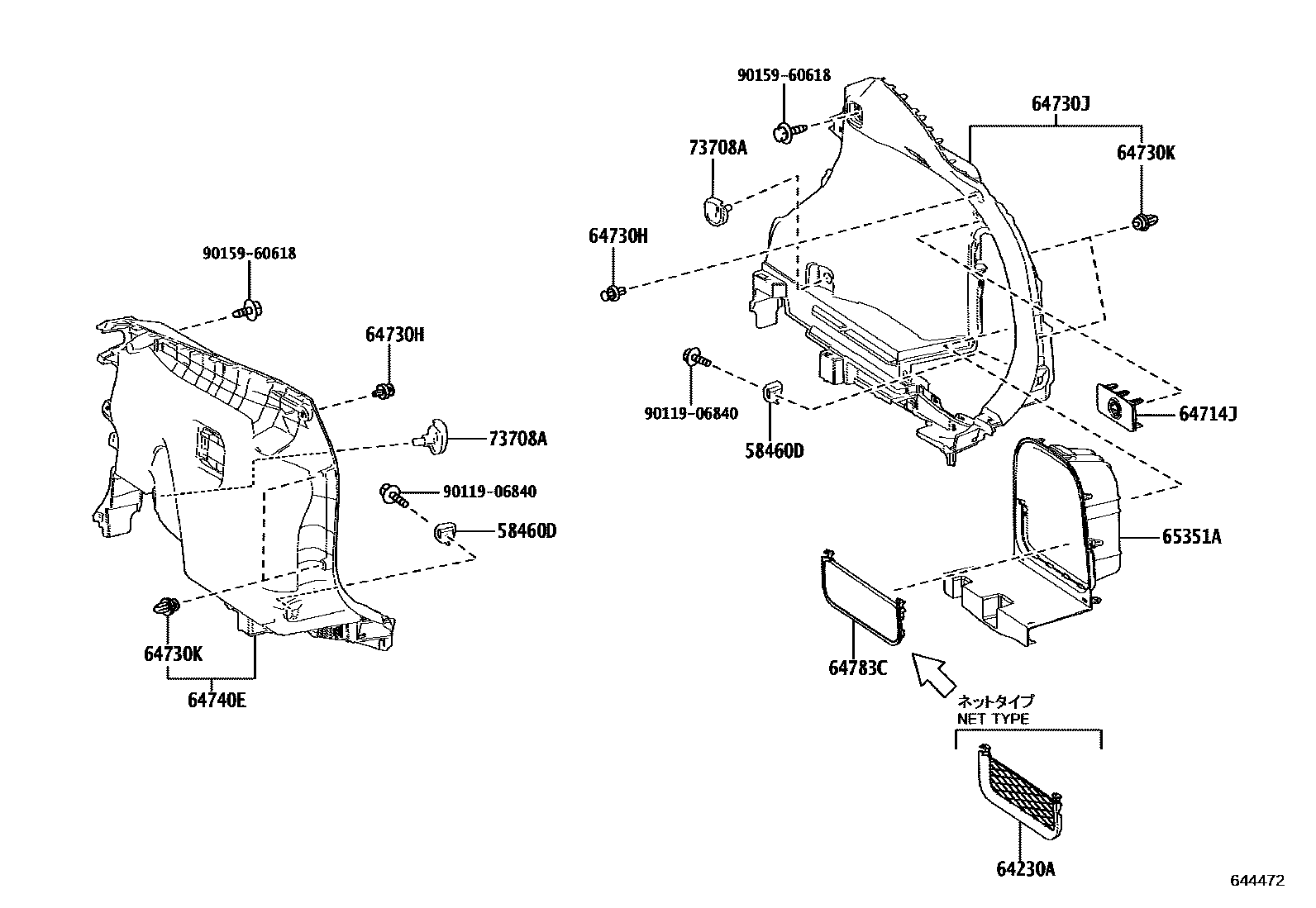

Toyota RAV4 底板和底板装饰罩 EPC diagram — 644472
底板和底板装饰罩 — 644472 (201811 – 999999)

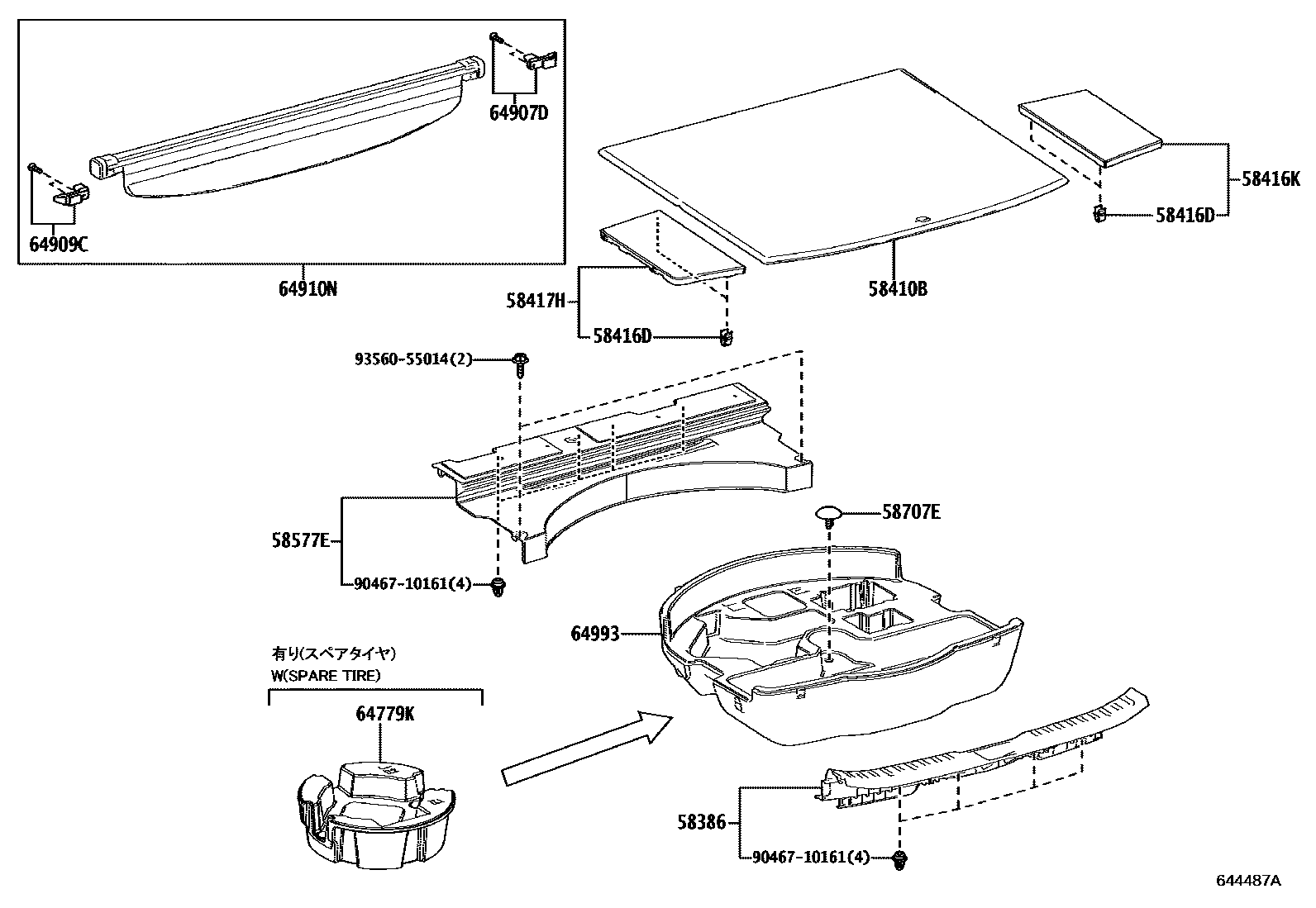

Toyota RAV4 底板和底板装饰罩 EPC diagram — 644487A
底板和底板装饰罩 — 644487A (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
58416DRear floor clip90467-10201
58460DLuggage fixing belt lock assembly58460-33020
58707EToyota part58707-50060
64730HClip (for bottom panel side decorative panel)90467-09242
64730KToyota part90467-10161
64779KToyota part64779-42020 · 64779-42030
64907DToyota part64907-42030
64909CToyota part64909-42030
64993Bottom floor box64993-42010 · 64993-42011
