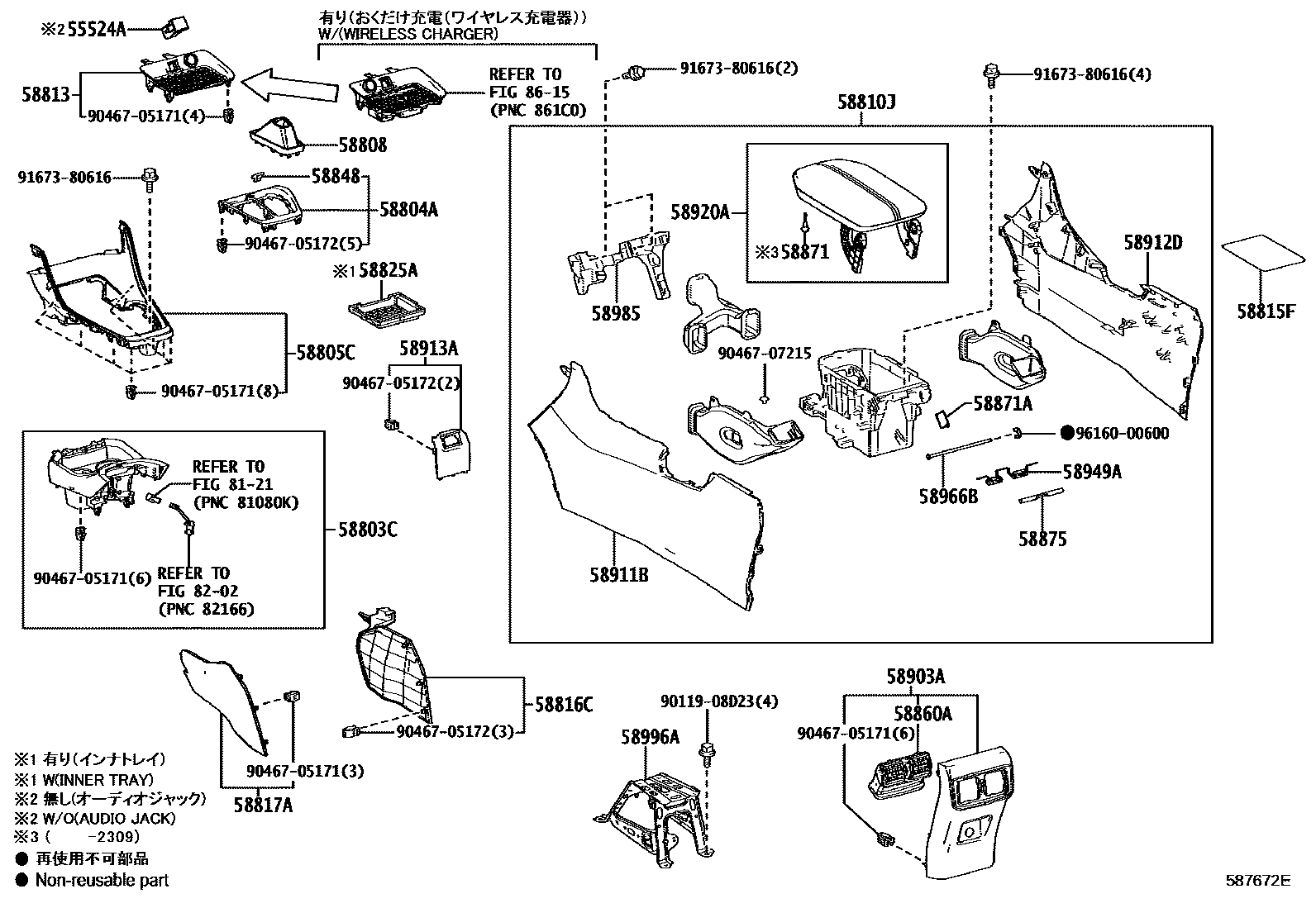

Toyota RAV4 中央扶手箱和支架 — Figure 5855
Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58804A | Armrest box upper panel sub-assembly | 58804-42480 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-42100 |
| 58815F | Armrest box felt pad | 58815-42040 |
| 58825A | Armrest box groove | 58825-42030 |
| 58848 | Shift lever hole cover | 58848-42020 |
| 58871 | Armrest box cushion | 90541-03078 |
| 58871A | Armrest Box No. 2 Cushion Pad | 58871-42040 |
| 58875 | Armrest box spacer | 58875-42010 |
| 58913A | Armrest box panel No. 3 | 58913-42010 · 58913-42030 · 58913-42040 · 58913-42050 |
| 58949A | Toyota part | 58949-42040 · 58949-42050 |
| 58966B | Toyota part | 58966-42020 |
| 58985 | Armrest box fixing bracket | 58985-42080 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-42080 · 58996-42081 |
