Toyota RAV4 地板隔热垫 — Figure 5853

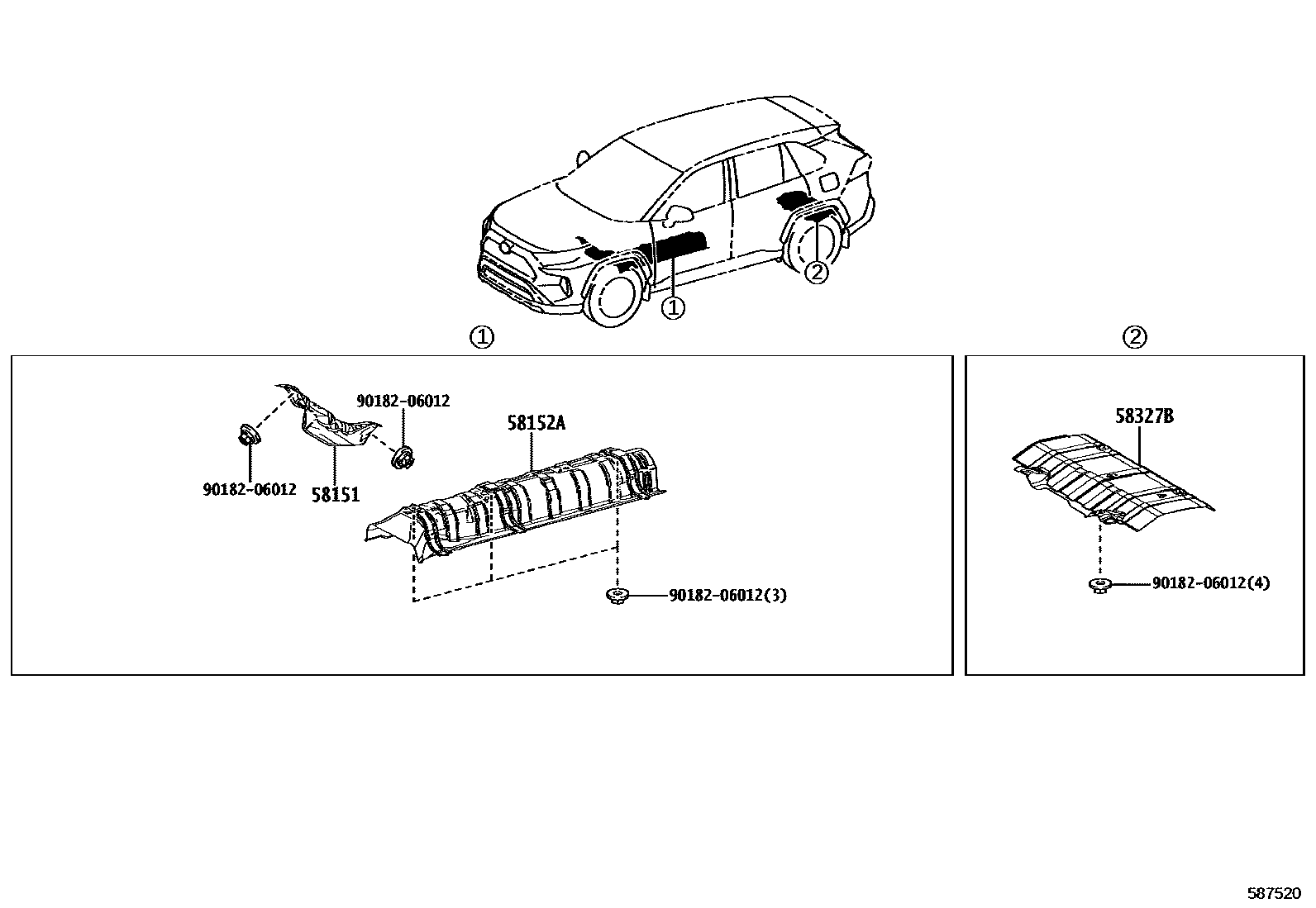

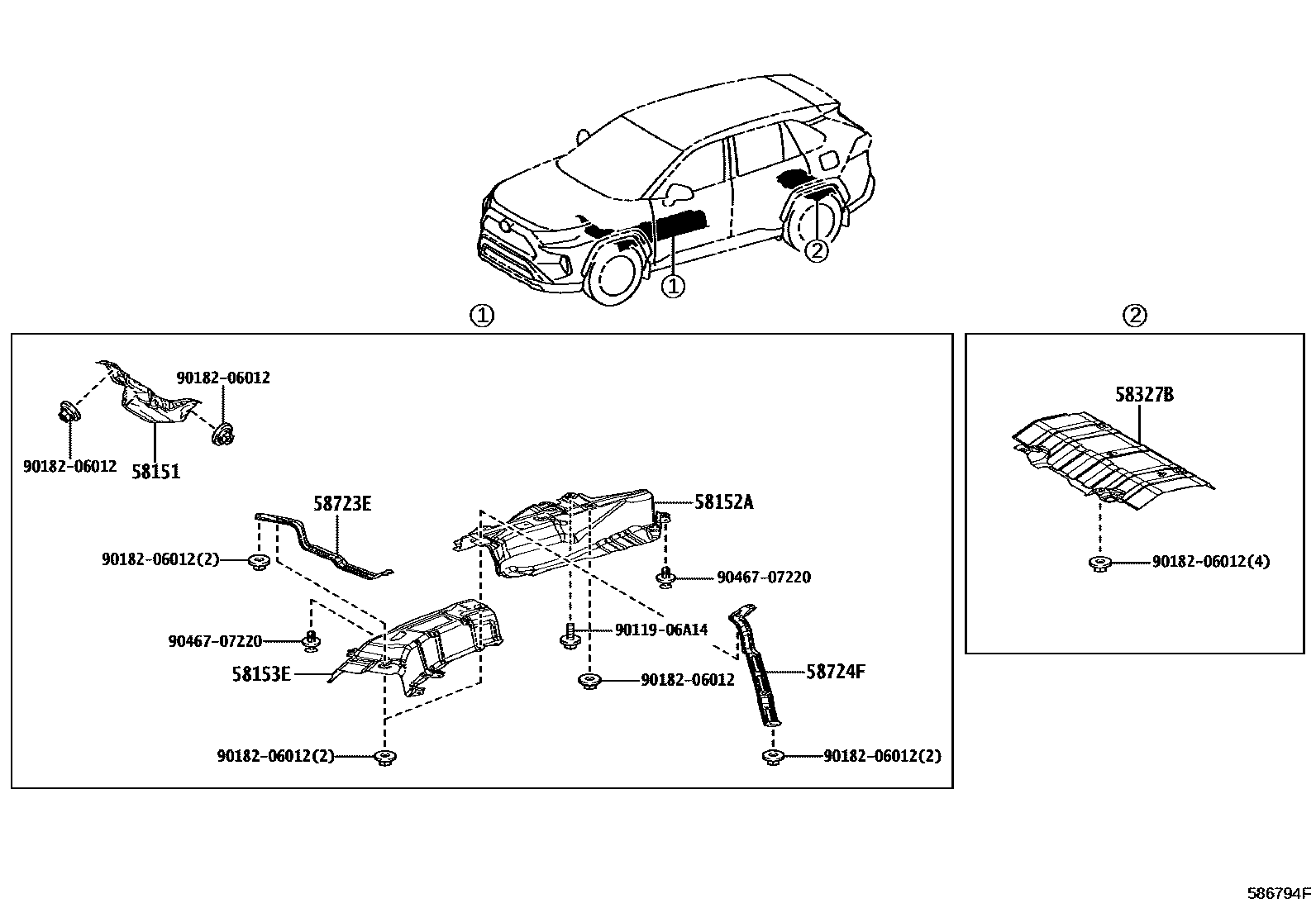

Toyota RAV4 EPC diagram 5853, 地板隔热垫, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-42060 |
| 58152A | Front floor No. 1 lower heat insulation pad | 58152-42050 · 58720-42010 |
| 58153E | Toyota part | 58153-42020 |
| 58327B | Main muffler heat insulation pad | 58327-42030 |
| 58723E | Toyota part | 58723-42040 |
| 58724F | Toyota part | 58724-42040 |
