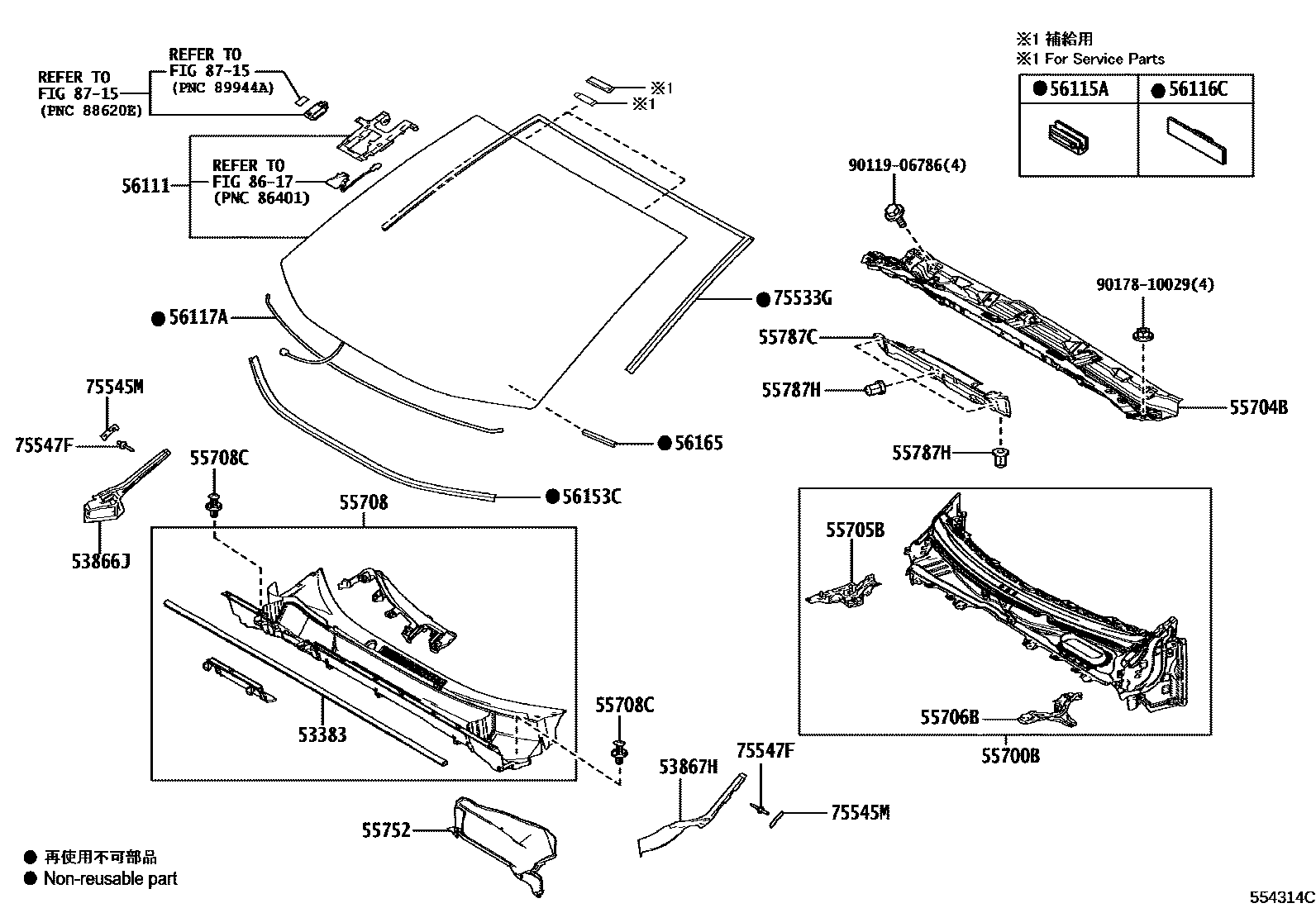

Toyota RAV4 前围板和挡风玻璃 — Figure 5553
Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-42050 |
| 53866J | Right front fender to cowl side seal | 53866-42041 |
| 53867H | Left front fender to cowl side seal | 53867-42041 |
| 55700B | Toyota part | 55700-42510 |
| 55704B | Toyota part | 55704-42020 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-42080 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-42060 |
| 55708 | Toyota part | 55708-42250 · 55708-42260 |
| 55708C | Toyota part | 90467-09242 |
| 55752 | Toyota part | 55752-42030 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-42070 |
| 56111 | windshield | 56101-42902 · 56101-42907 · 56101-42908 · 56101-42918 · 56101-42936 · 56101-42938 · 56101-42939 · 56101-42947 · 56101-42965 · 56101-42966 · 56101-42976 · 56101-42983 · 56101-42984 · 56101-42987 · 56101-4A914 · 56101-4A916 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56153C | Front center window inner protective strip | 56153-42020 |
| 56165 | Left front window inner protective strip cover | 56165-30010 |
| 75533G | Windshield outer protective strip | 75533-42070 |
| 75545M | Toyota part | 75545-42010 |
| 75547F | Toyota part | 75547-51021 |
