Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355

Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 4 images and 46 PNC and OE references.

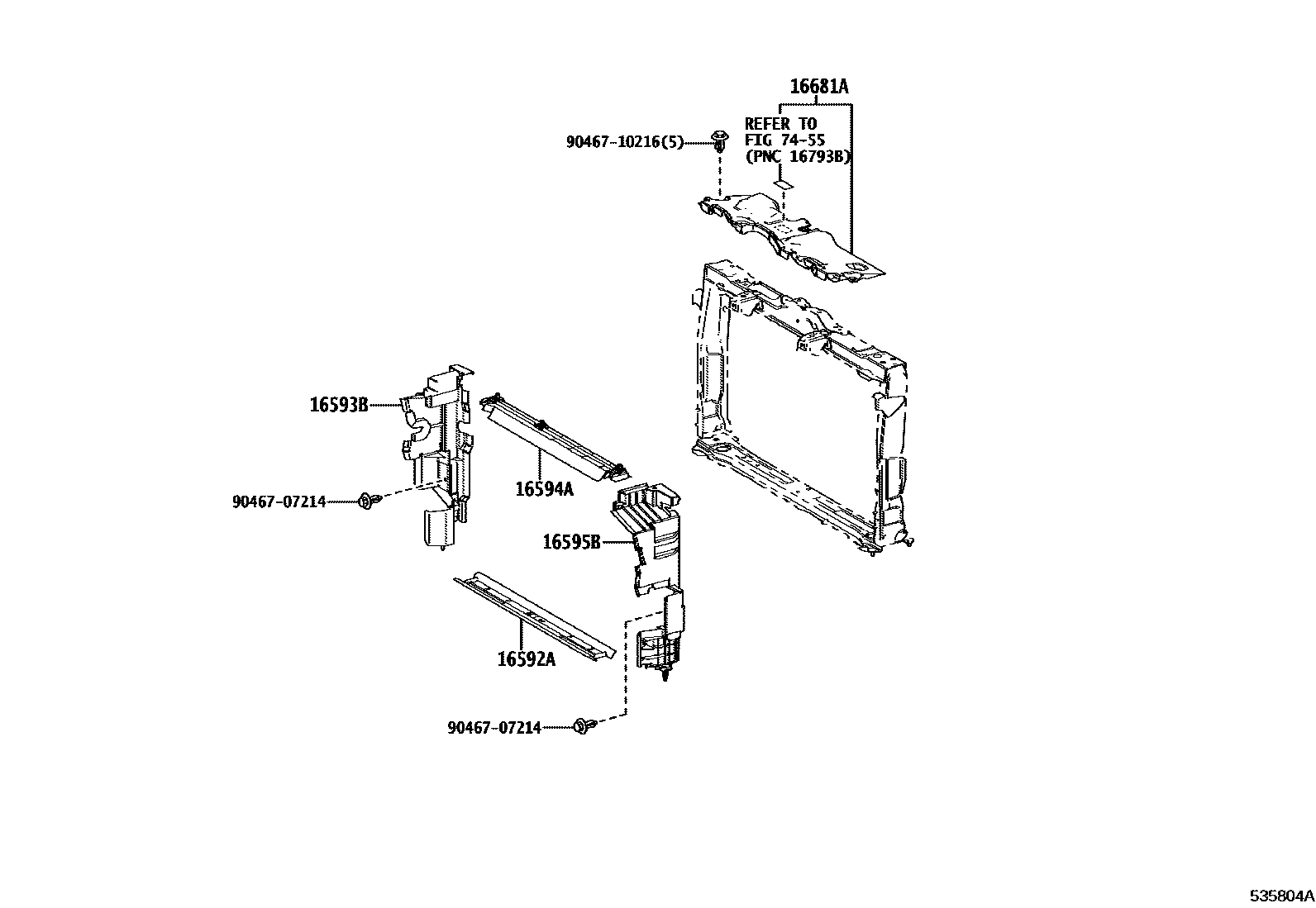

Toyota RAV4 前翼子板挡泥板和前围板 EPC diagram — 535804A
前翼子板挡泥板和前围板 — 535804A (201904 – 999999)

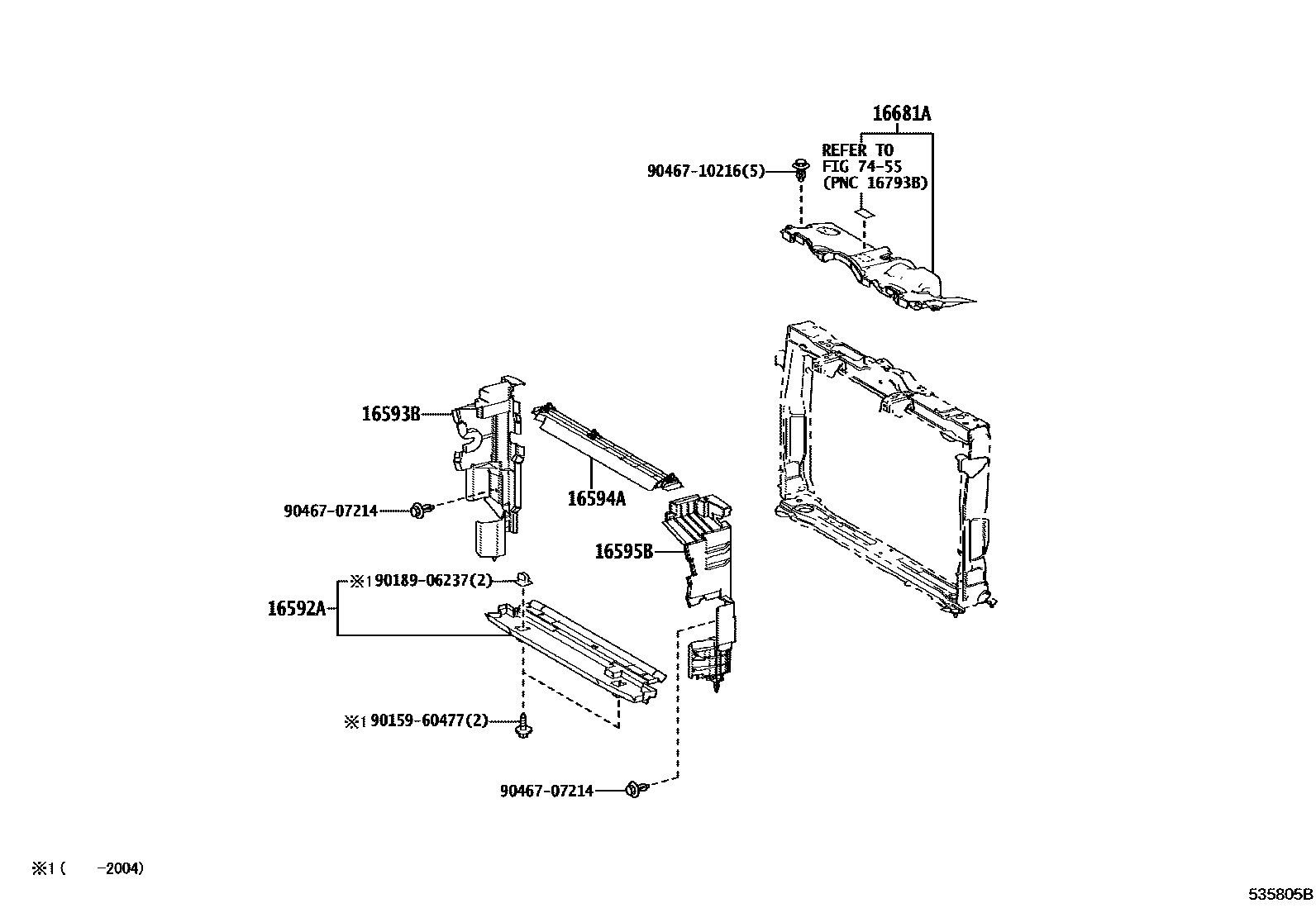

Toyota RAV4 前翼子板挡泥板和前围板 EPC diagram — 535805B
前翼子板挡泥板和前围板 — 535805B (201904 – 999999)

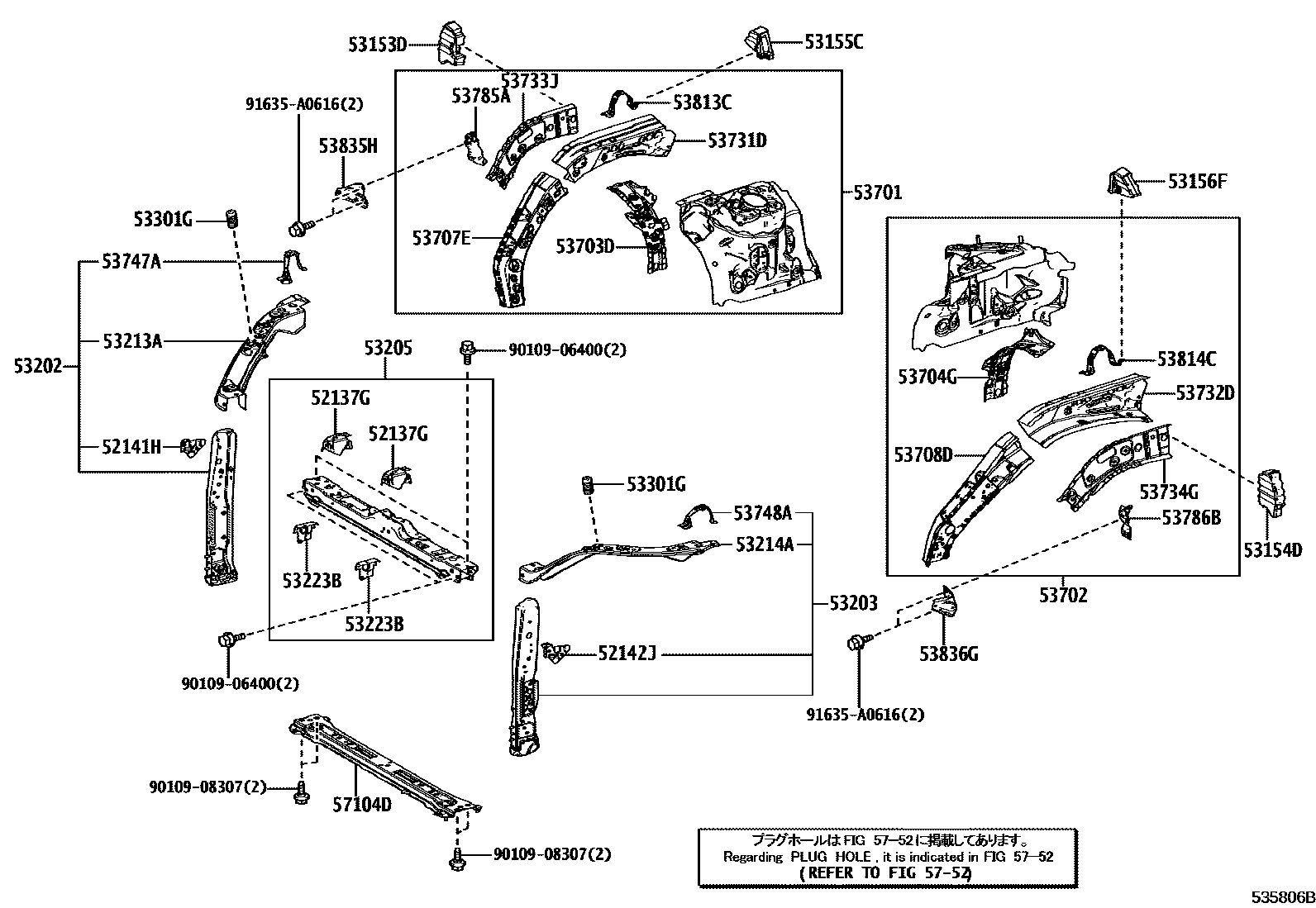

Toyota RAV4 前翼子板挡泥板和前围板 EPC diagram — 535806B
前翼子板挡泥板和前围板 — 535806B (201904 – 999999)
Toyota RAV4 前翼子板挡泥板和前围板 EPC diagram — 535807
前翼子板挡泥板和前围板 — 535807 (201904 – 999999)

PNC and OE references

PNCPart nameOE numbers
16592AToyota part16592-25010 · 16592-25030 · 16592-25040
16593BToyota part16593-25120 · 16593-25290
16594AToyota part16594-25020 · 16594-25040
16595BToyota part16595-25110 · 16595-25280
16681AToyota part16681-25010 · 16681-25020
52137GToyota part52137-42030
52141HFront bumper right upper arm52141-42030
52142JFront bumper left upper arm52142-42020
53153DRadiator grille right deflector53153-42020
53154DRadiator grille left deflector53154-42030
53155CRadiator grille seal No. 153155-42050
53156FToyota part53156-42030
53202Radiator right side bracket sub-assembly53202-42900 · 53202-42901
53203Radiator left bracket sub-assembly53203-42900 · 53203-42901
53205Radiator upper bracket sub-assembly53205-42906
53213ARadiator upper right bracket53213-42060
53214ARadiator upper left bracket53214-42050
53223BRadiator grille mounting bracket53223-42050
53301Gengine cover cushion90541-15037
53701Right front fender fender sub-assembly53701-42900
53702Left front fender fender sub-assembly53702-42900
53703DToyota part53703-42030
53704GToyota part53704-42040
53707EFender right fender sub-assembly53707-42020
53708DFender left fender sub-assembly53708-42020
53731DRight front fender to cowl side upper beam53731-42070
53732DLeft front fender to cowl side upper beam53732-42060
53733JToyota part53733-42030
53734GToyota part53734-42030
53747AFender fender right extension53747-42040
53748AFender fender left extension53748-42040
53785ARight front fender corner plate53785-42010
53786BLeft front fender corner plate53786-42010
53813CRight front fender extension53813-42040
53814CLeft front fender extension53814-42040
53835HToyota part53835-42050
53836GToyota part53836-42030
55101Front apron sub-assembly55101-42570 · 55101-42571
55210Front wall insulation pad assembly55210-42250
55210Aclip90467-11122
55223AFront wall outer heat insulation pad55223-42110
55241BToyota part90467-10217
55241CToyota part55241-42010
55242BToyota part90467-10217
55242CToyota part55242-42010
57104DFront cross member sub-assembly57104-42090
