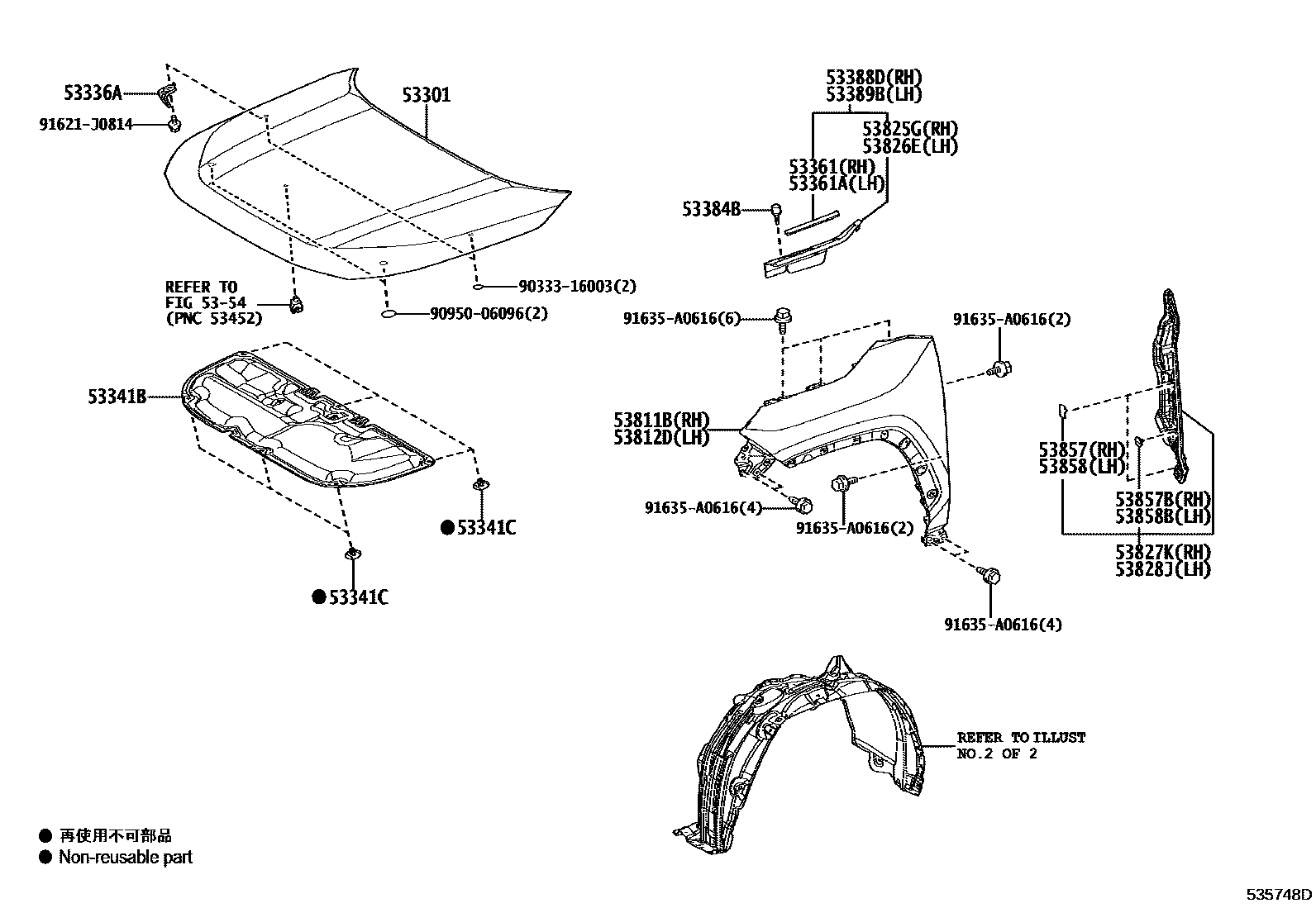

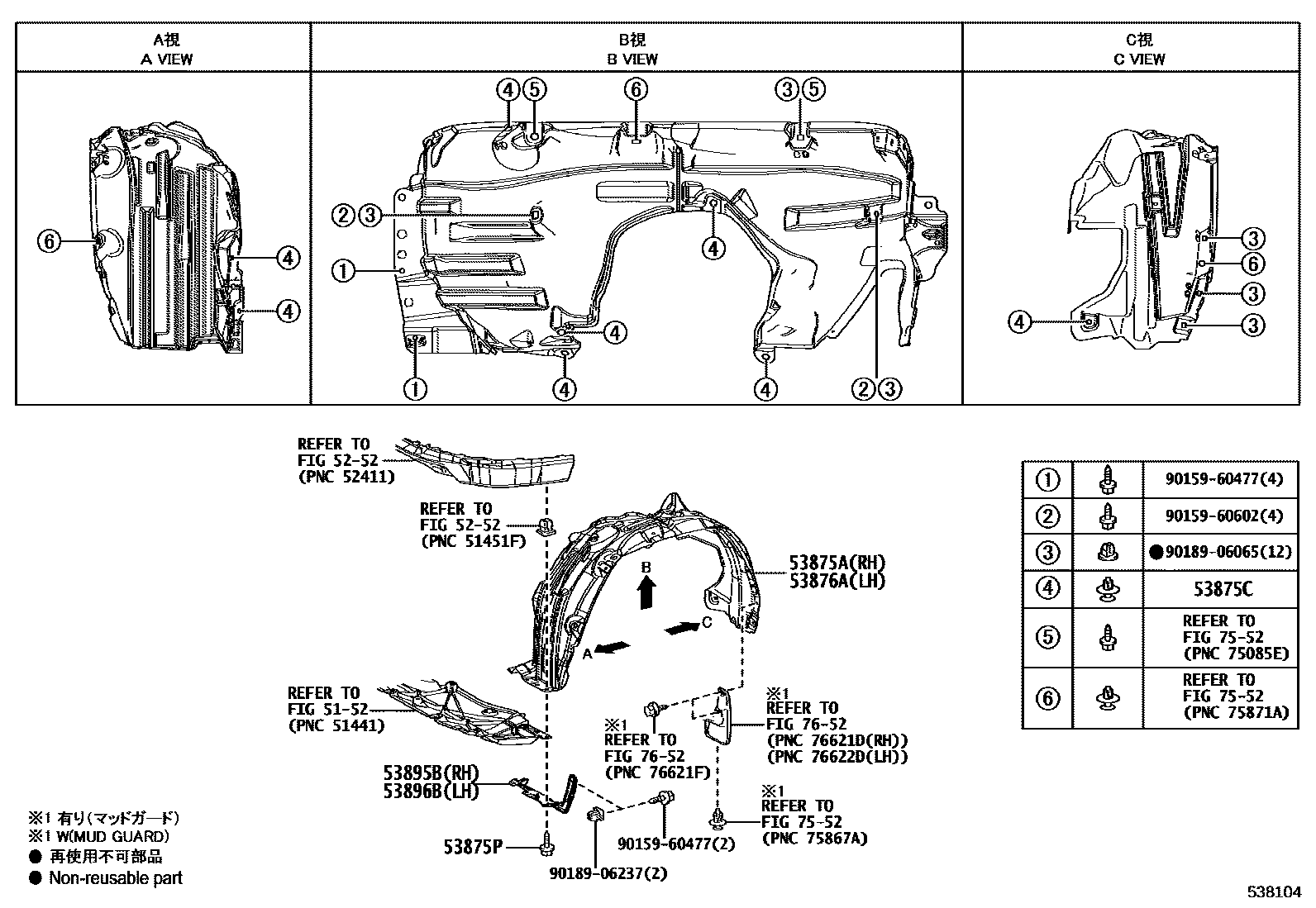

Toyota RAV4 发动机盖和前翼子板 — Figure 5353
Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-42150 |
| 53336A | Engine cover strut bracket | 53336-42010 |
| 53341B | engine cover gasket | 53341-42100 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53361 | engine cover seal | 53361-42020 |
| 53361A | engine cover seal | 53361-42020 |
| 53384B | Engine cover center cushion | 53384-22070 |
| 53388D | Engine cover to right front fender seal | 53388-42040 |
| 53389B | Engine cover to left front fender seal | 53389-42060 |
| 53811B | Toyota part | 53811-42330 |
| 53812D | Toyota part | 53812-42360 |
| 53825G | Right front fender protection piece | 53825-42050 |
| 53826E | Protection piece on left front fender | 53826-42030 |
| 53827K | Right front fender side panel protector | 53827-42060 |
| 53828J | Left front fender side panel protector | 53828-42080 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-42100 · 53875-42110 |
| 53875C | Front fender lining clip | 90467-07215 |
| 53875P | Toyota part | 90159-60477 |
| 53876A | Left front fender lining | 53876-42110 · 53876-42120 |
| 53895B | Right front fender front splash guard | 53895-42070 · 53895-42120 |
| 53896B | Left front fender front splash guard | 53896-42060 · 53896-42110 |
