Toyota RAV4 前保险杠及附件 — Figure 5252

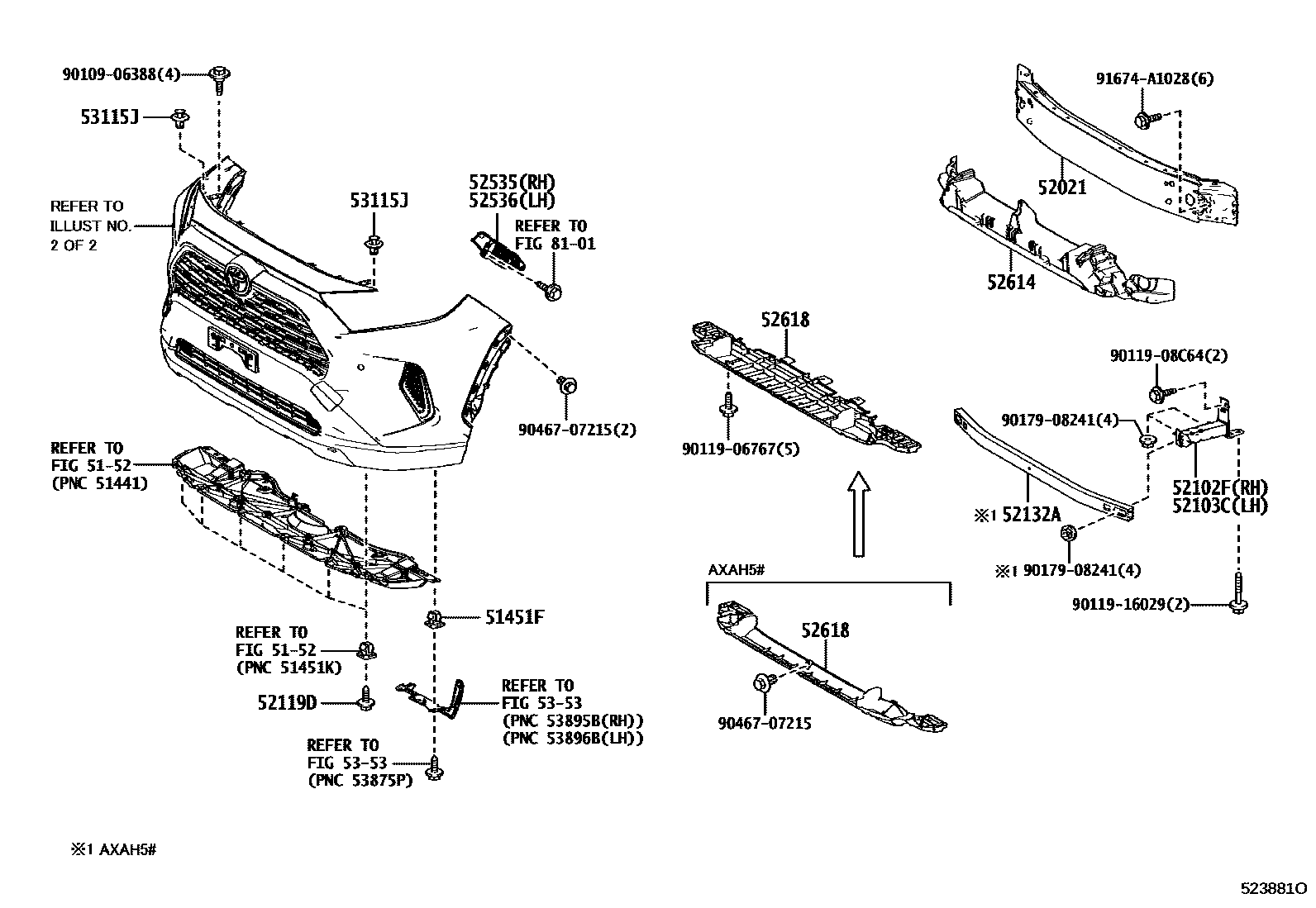

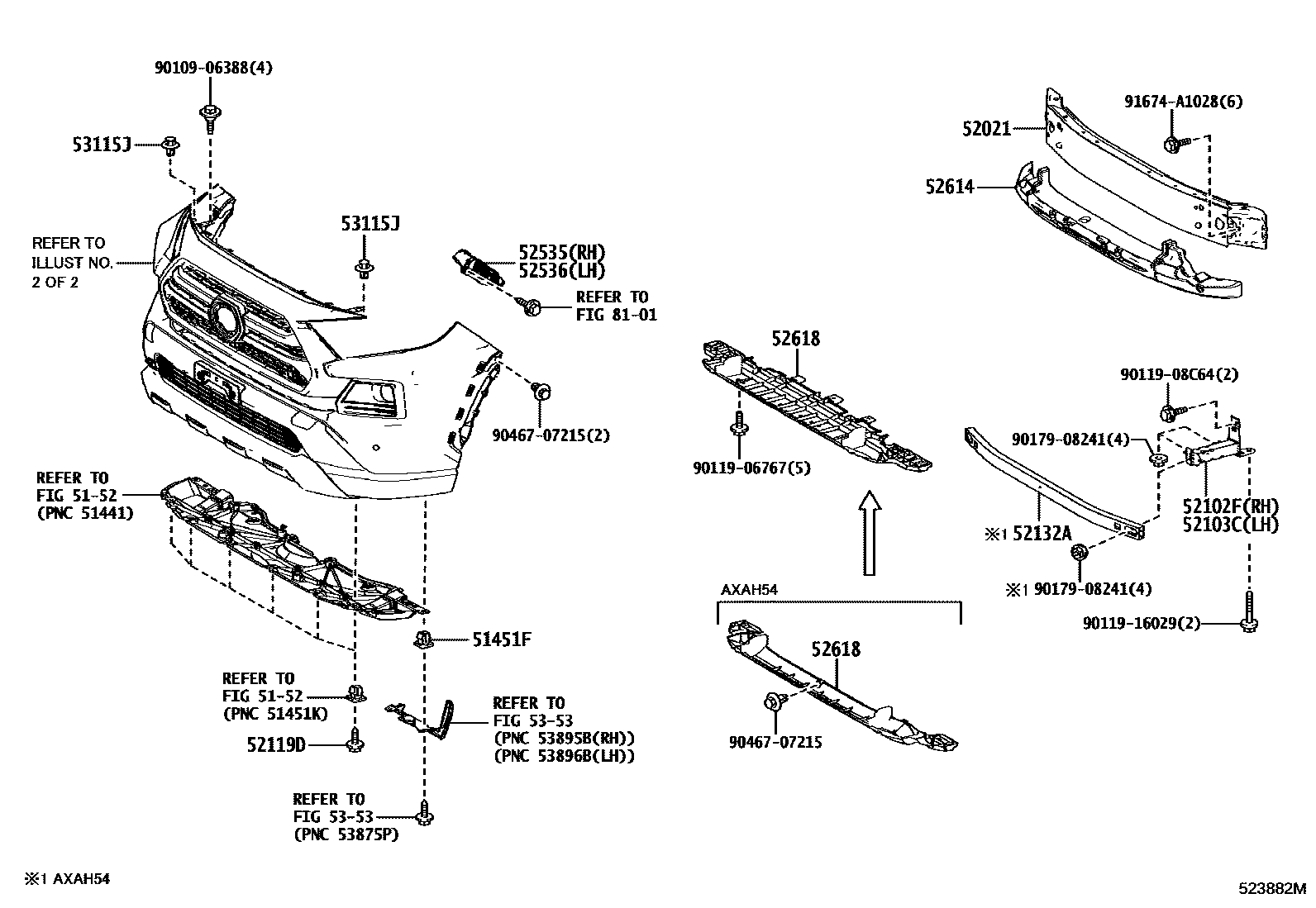

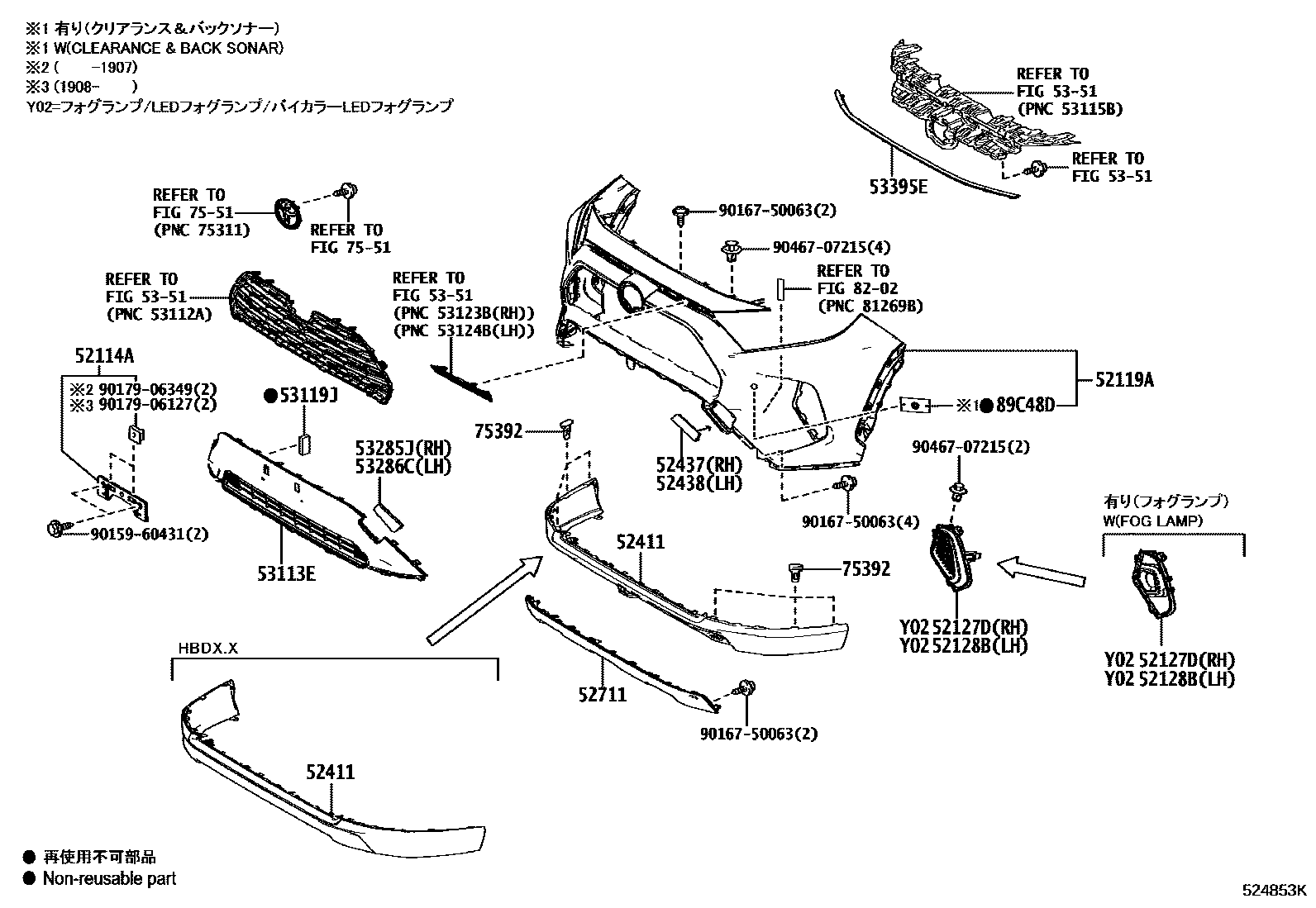

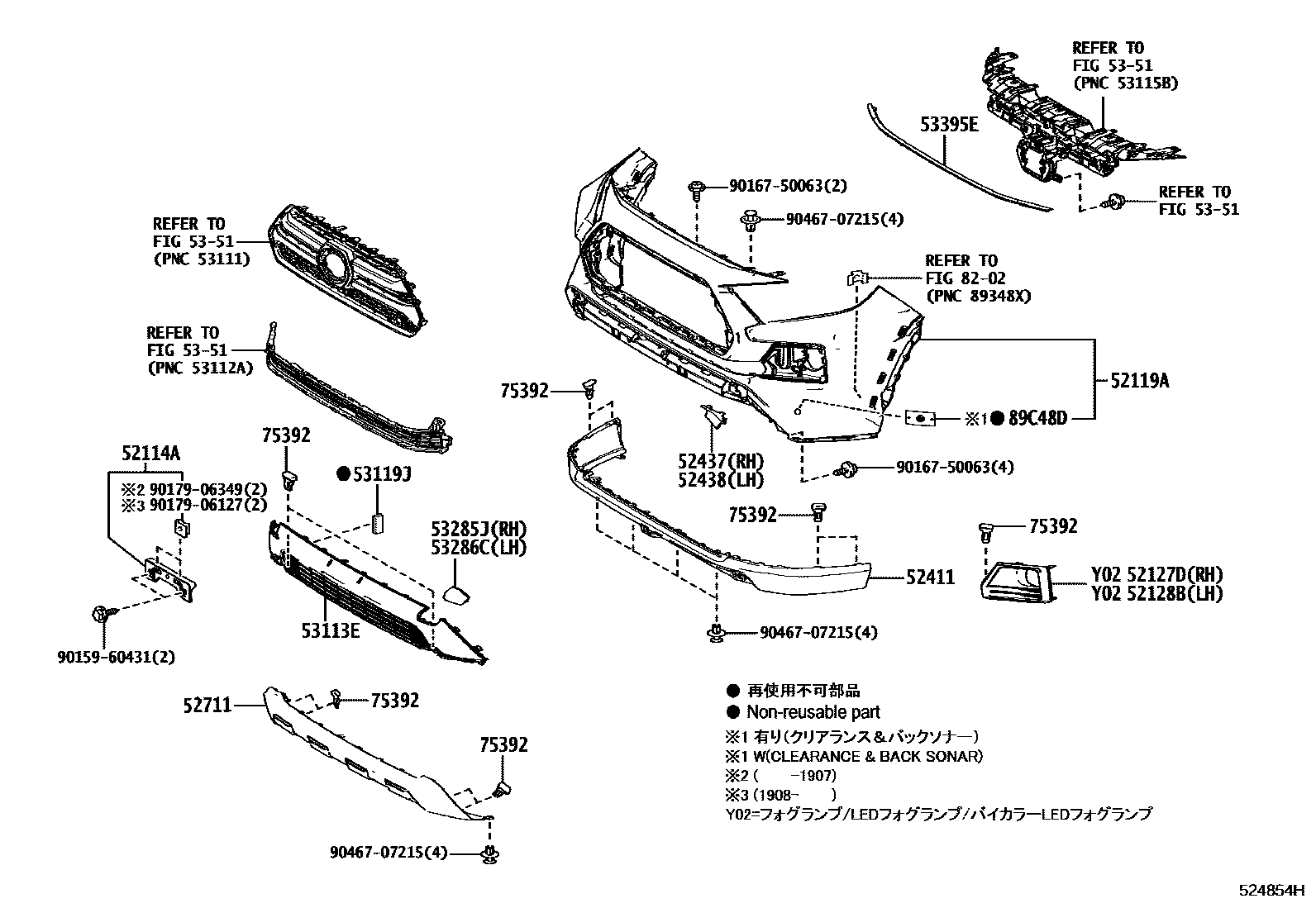

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451F | Toyota part | 90189-06237 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-42200 |
| 52102F | Toyota part | 52102-42100 · 52102-42110 |
| 52103C | Toyota part | 52103-42100 · 52103-42110 |
| 52114A | Front bumper extension mounting bracket | 52114-42160 · 52114-42190 |
| 52119A | front bumper cover | 52119-WY908 · 52119-WY910 |
| 52119D | Toyota part | 90159-60477 |
| 52127D | Front bumper right hole cover | 52030-42080 · 52127-42180 · 52127-42190 · 52127-42200 |
| 52128B | Front bumper left hole cover | 52040-42080 · 52128-42180 · 52128-42190 · 52128-42200 |
| 52132A | No. 2 front bumper reinforcement | 52132-42070 |
| 52411 | Front bumper anti-collision bar | 52411-42100 · 52411-42110 · 52411-42120 |
| 52437 | Front bumper right side anti-collision bar cover | 52437-WY010 |
| 52438 | Front bumper left anti-collision bar cover | 52438-WY010 |
| 52535 | Front bumper right side fixing bracket | 52535-42050 |
| 52536 | Front bumper left fixed bracket | 52536-42080 |
| 52614 | No. 2 energy absorber for front bumper | 52614-42120 · 52614-42130 |
| 52618 | Front bumper lower shock absorber | 52618-42060 · 52618-42080 |
| 52711 | Front bumper protection strip | 52711-WY020 |
| 53113E | No. 2 radiator lower grille | 53113-42130 · 53113-42131 · 53113-42160 · 53113-42161 |
| 53119J | Toyota part | 53119-42030 · 53119-42040 |
| 53285J | Front bumper arm right hole cover | 53285-42120 · 53285-42130 |
| 53286C | Front bumper arm left hole cover | 53286-42130 · 53286-42140 |
| 53395E | Engine cover to front end plate seal | 53395-42080 |
| 75392 | External protective strip fixings | 75392-35220 |
