Toyota RAV4 Spare tire rack — Figure 5153

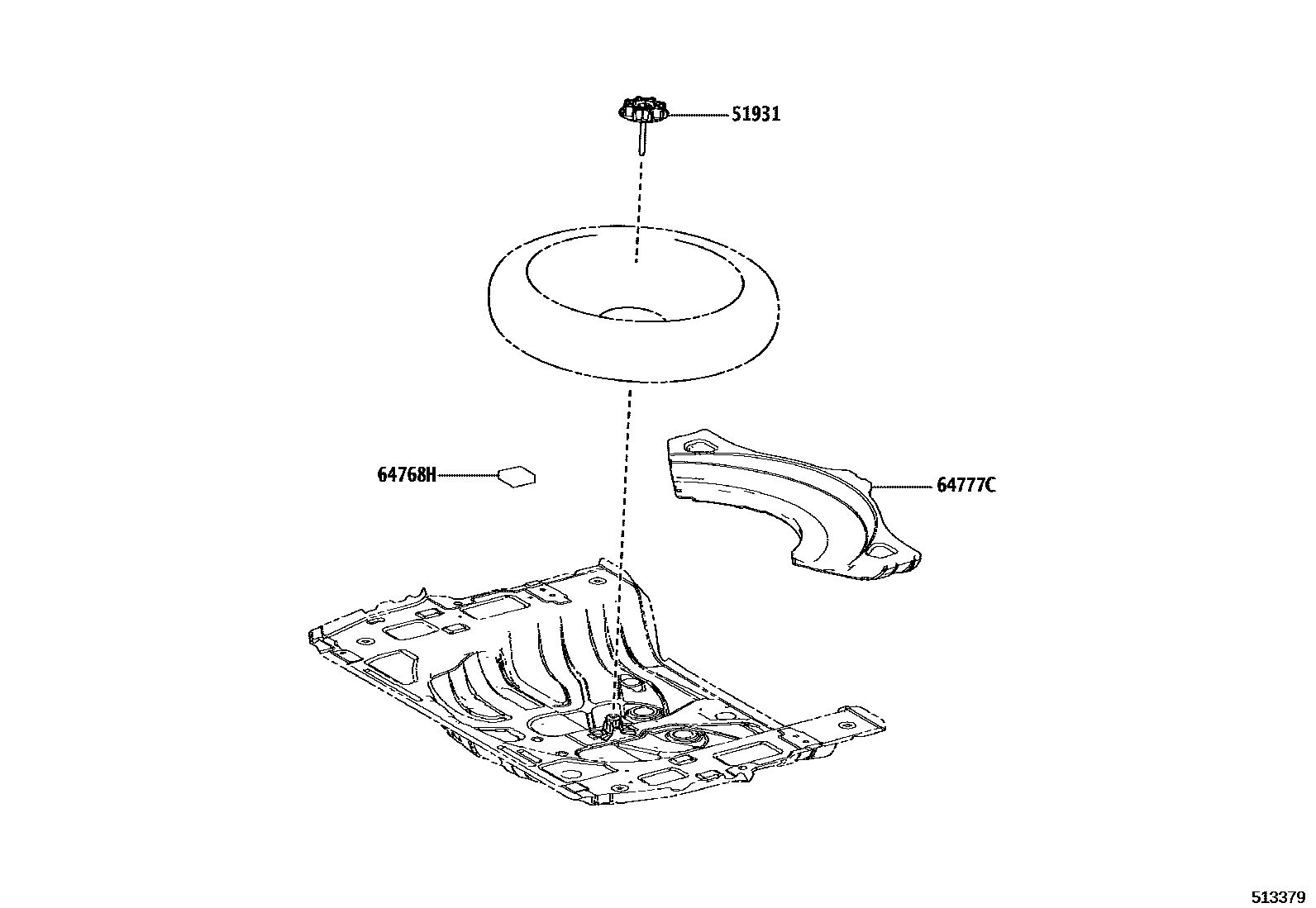

Toyota RAV4 EPC diagram 5153, Spare tire rack, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51931 | No. 1 spare tire rack | 51931-33060 · 51931-42030 · 51931-42040 |
| 64768H | Toyota part | 64768-42020 · 64778-42030 |
| 64777C | Spare tire cushion | 64777-42080 |
