Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

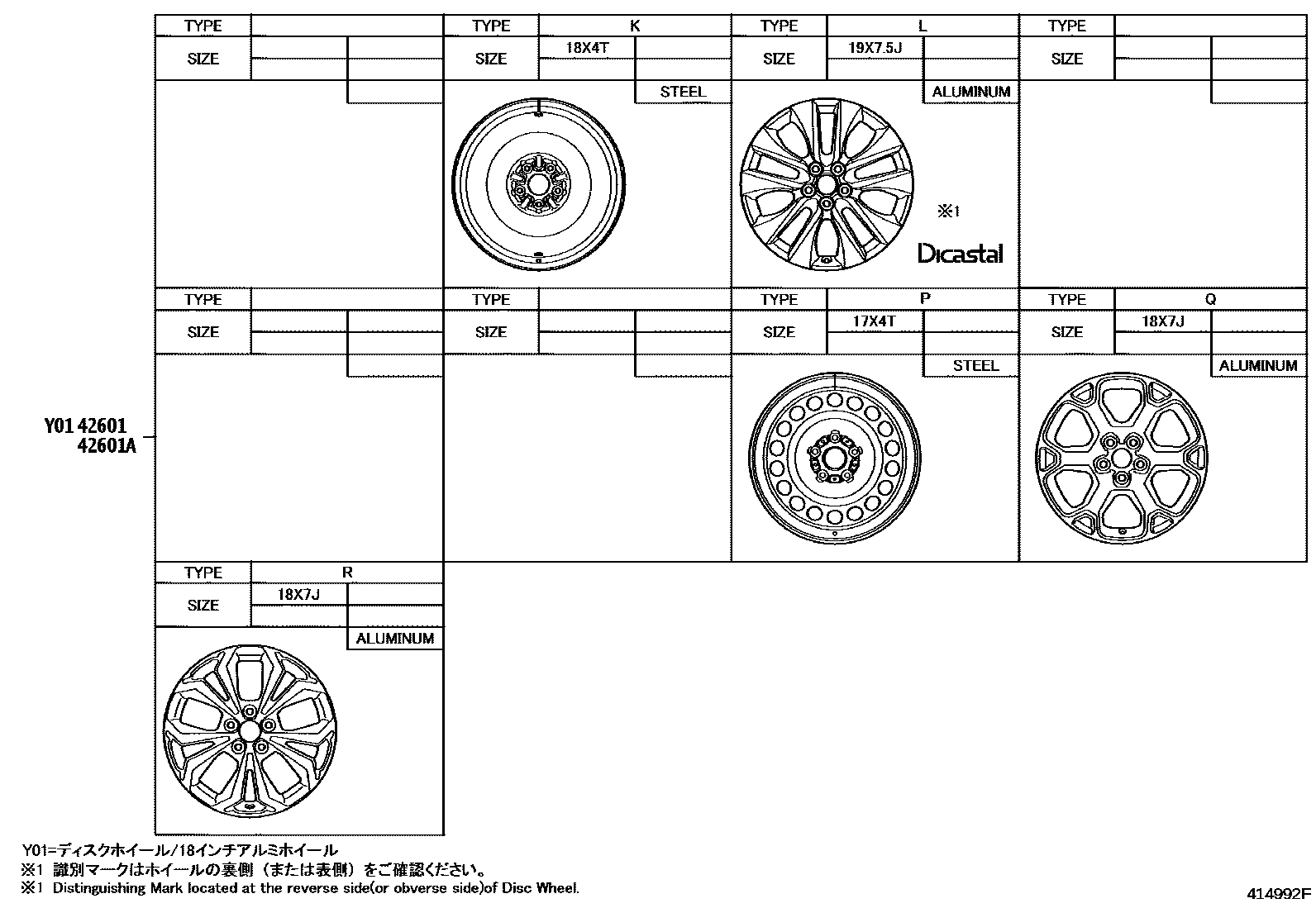

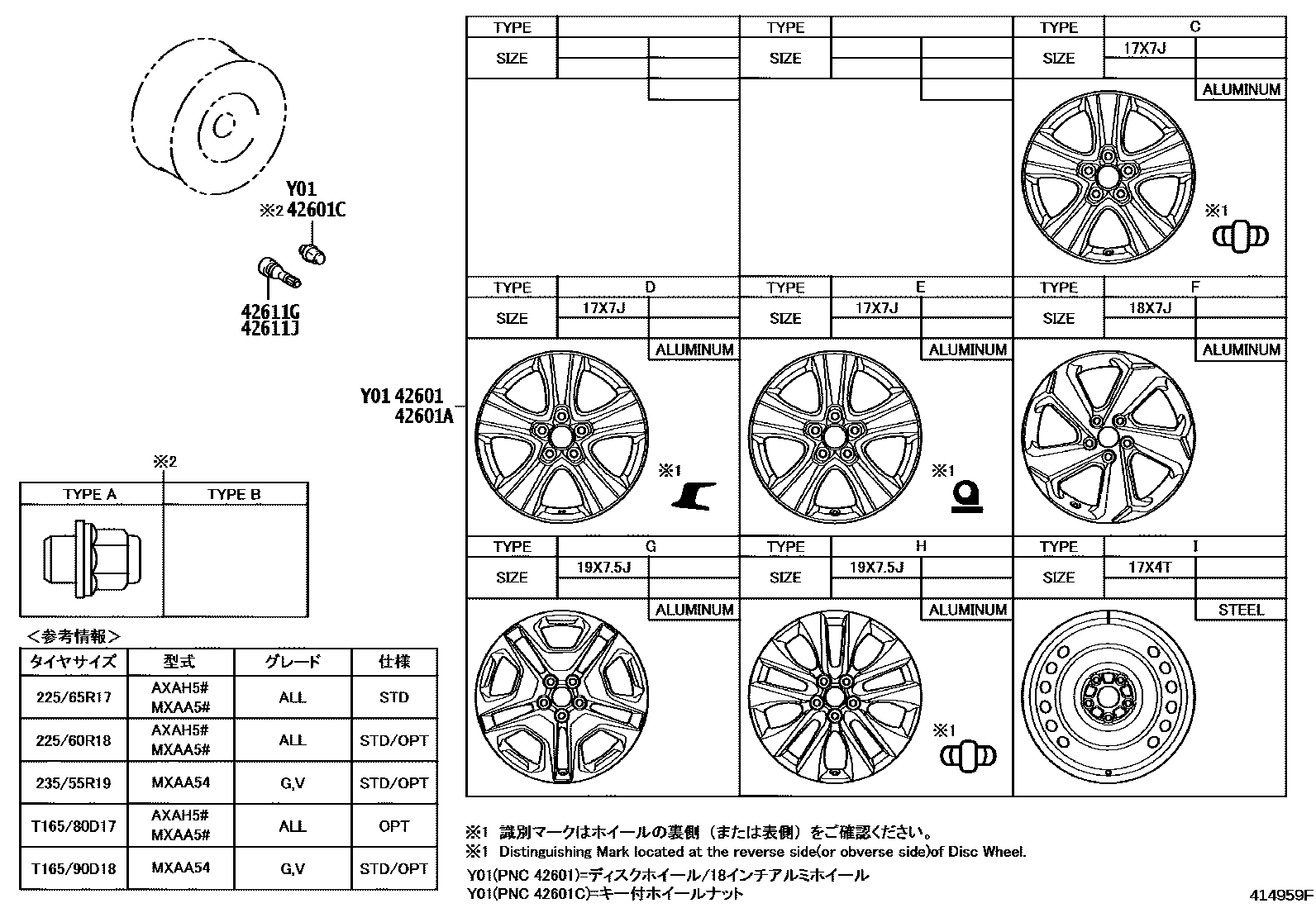

| 42601 | spoke wheel | 42611-42720 · 42611-42760 · 42611-42840 · 42611-42850 · 42611-42A10 · 42611-42A30 · 42611-42A50 · 42611-42A70 · 42611-YYA50 · 4261A-0W010 · 4261A-42130 · 4261A-42150 · 4261A-42170 |
| 42601A | Spoke wheel (for spare tire) | 42611-48751 · 42611-48752 · 4261B-42010 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-01115 |

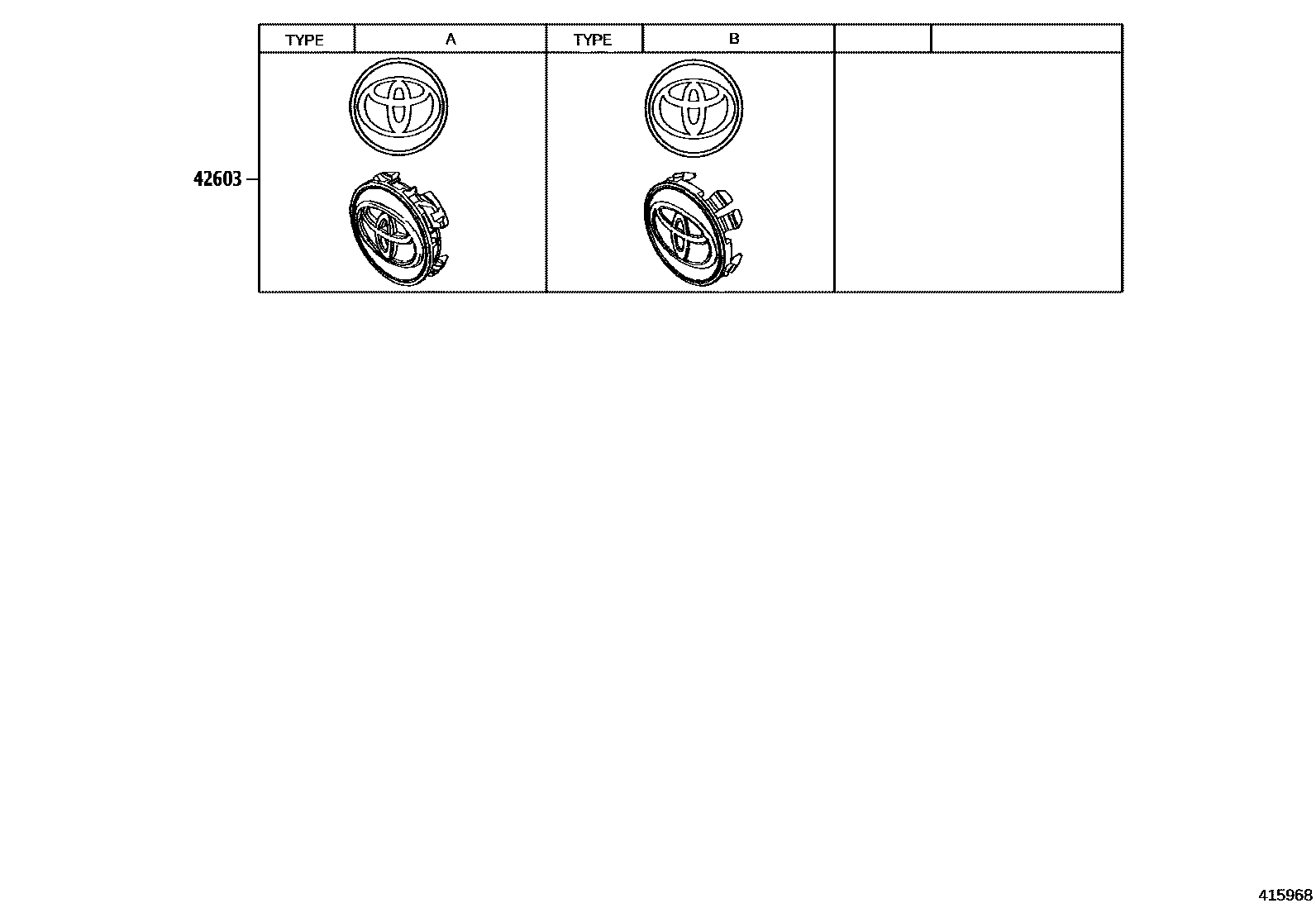

| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 · 42603-48140 · 4260B-YP010 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
