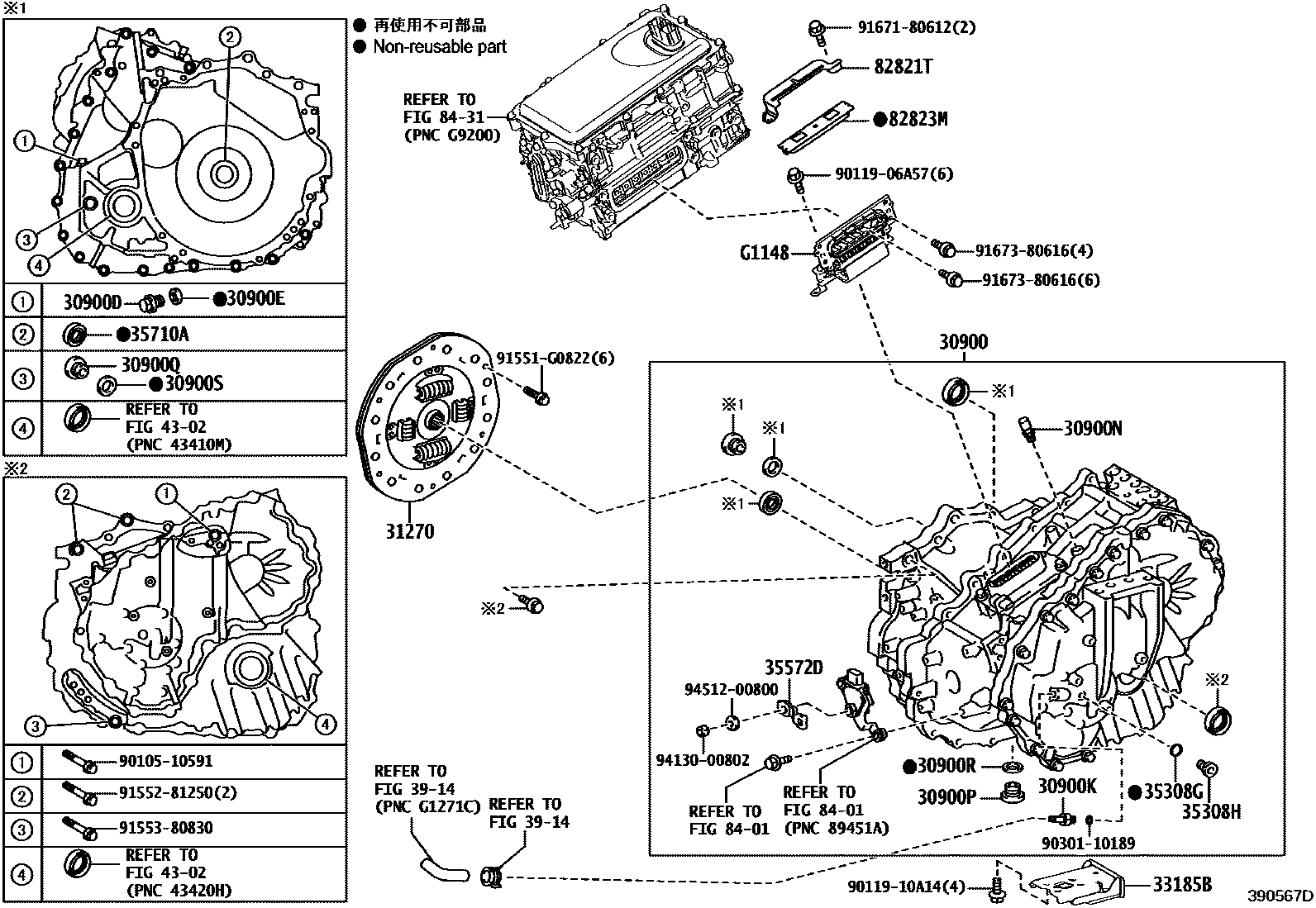

Toyota RAV4 HV或FCV传动桥总成 — Figure 3901
Toyota RAV4 EPC diagram 3901, HV或FCV传动桥总成, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-42020 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900K | Pipe connector (for transaxle housing) | 90404-13010 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Toyota part | 90341-18016 |
| 30900Q | Toyota part | 90341-18016 |
| 30900R | Toyota part | 90430-18008 |
| 30900S | Toyota part | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-33030 |
| 33185B | Toyota part | 33185-42020 |
| 35308G | No. 2 O-ring (for transmission oil pump cover) | 90301-06196 |
| 35308H | Screw plug (for transmission oil pump cover) | 90341-08001 |
| 35572D | transmission control lever | 35572-33070 |
| 35710A | T-type oil seal (for input shaft) | 90311-27011 |
| 41651G | Differential fixed cushion | 41651-42150 |
| 41653D | Differential fixed part upper stop | 41653-42020 |
| 41654B | Differential fixed part lower block | 41654-42020 |
| 52380F | Front differential bracket assembly | 52380-42160 |
| 82821T | Connector cover | 82821-47240 |
| 82823M | Terminal cover | 82823-47040 |

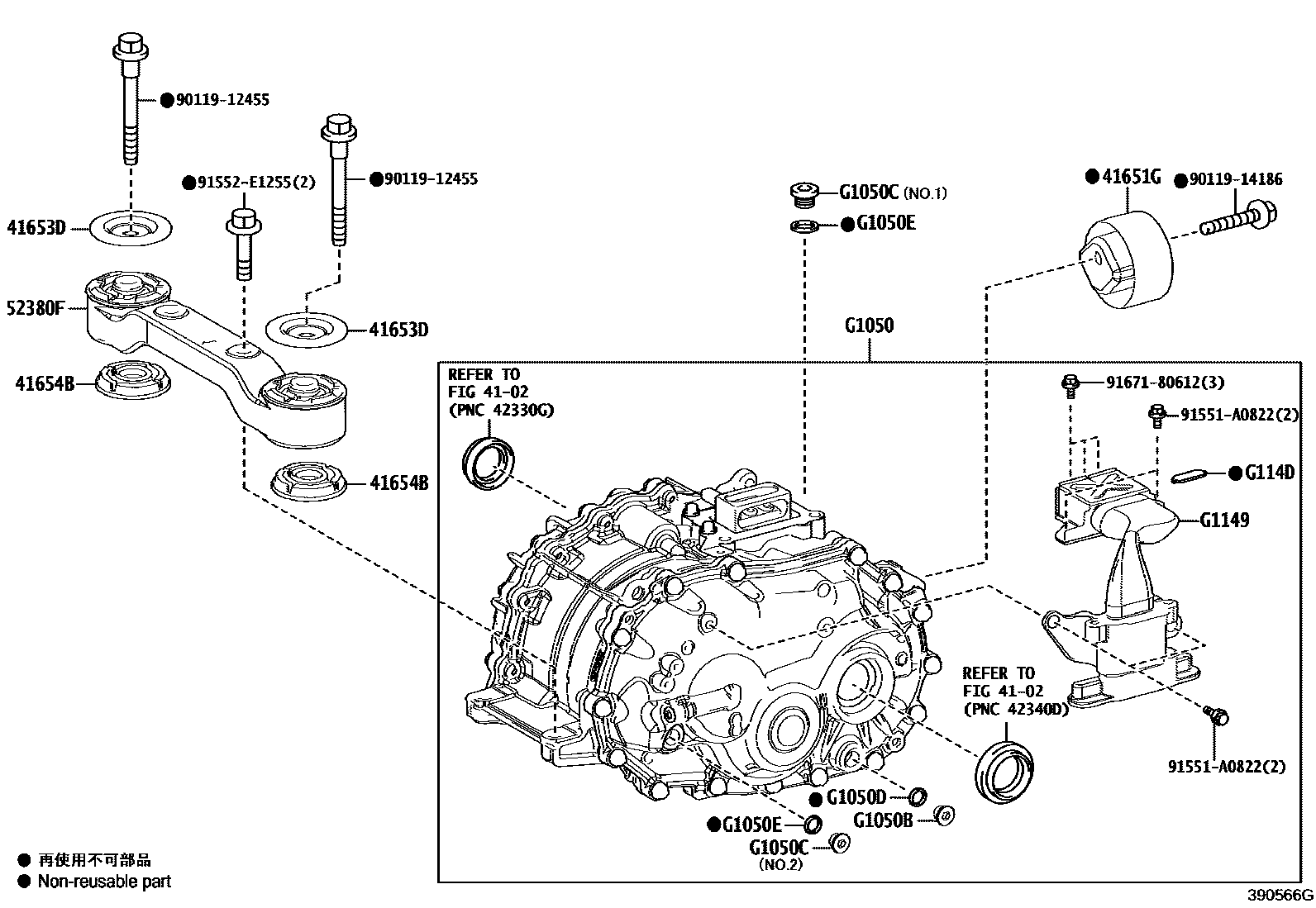

| G1050 | Rear traction motor assembly with transmission axle | 30970-42010 · G1050-42010 · G1050-42011 |
| G1050B | Toyota part | 90341-18051 |
| G1050C | Toyota part | 90341-18023 |
| G1050D | Toyota part | 90430-18008 |
| G1050E | Toyota part | 90430-18008 |
| G1148 | Motor cable | G1148-33050 |
| G1149 | Toyota part | G1149-42010 |
| G114D | Motor cable terminal cover | G114D-47021 |
