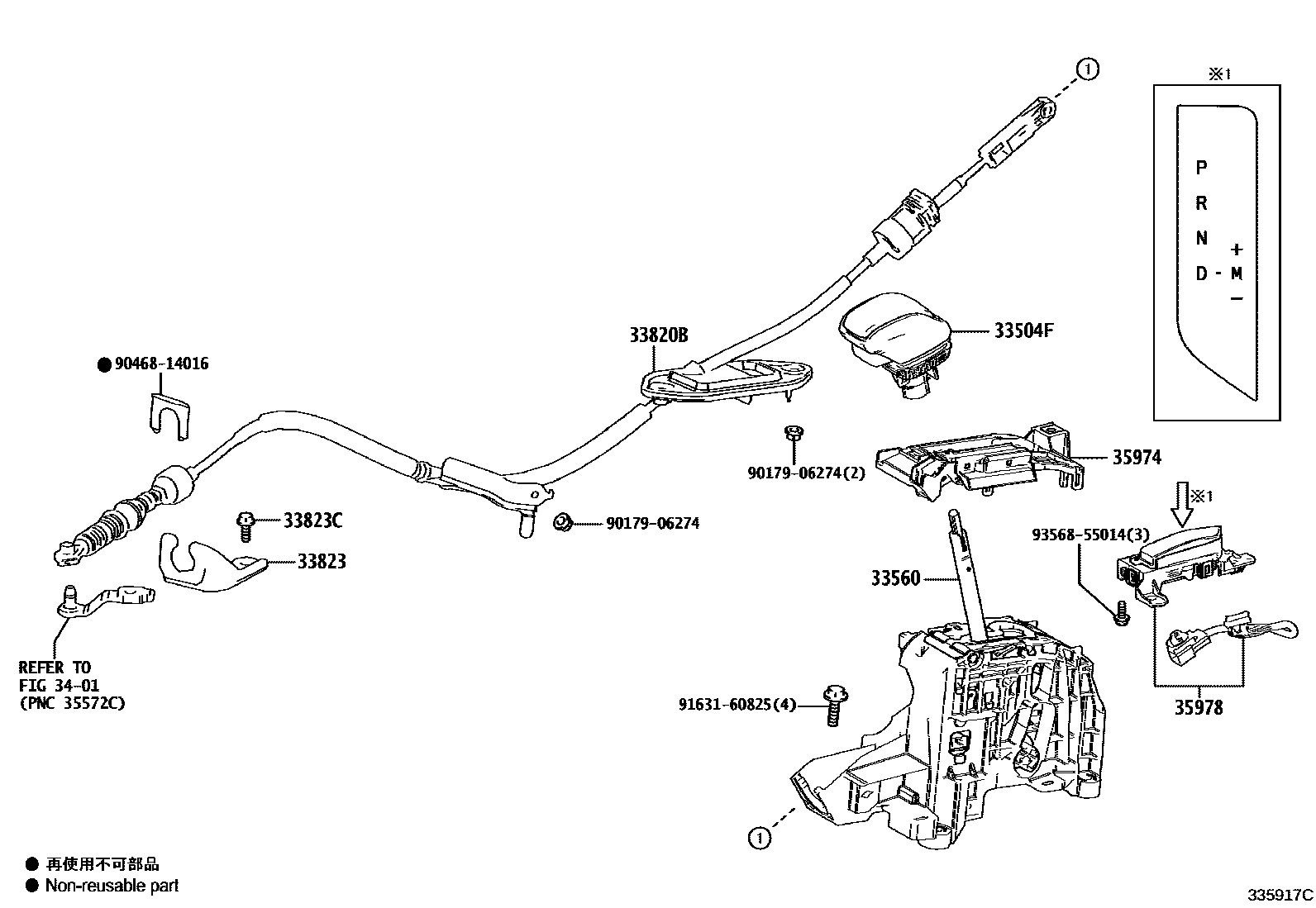

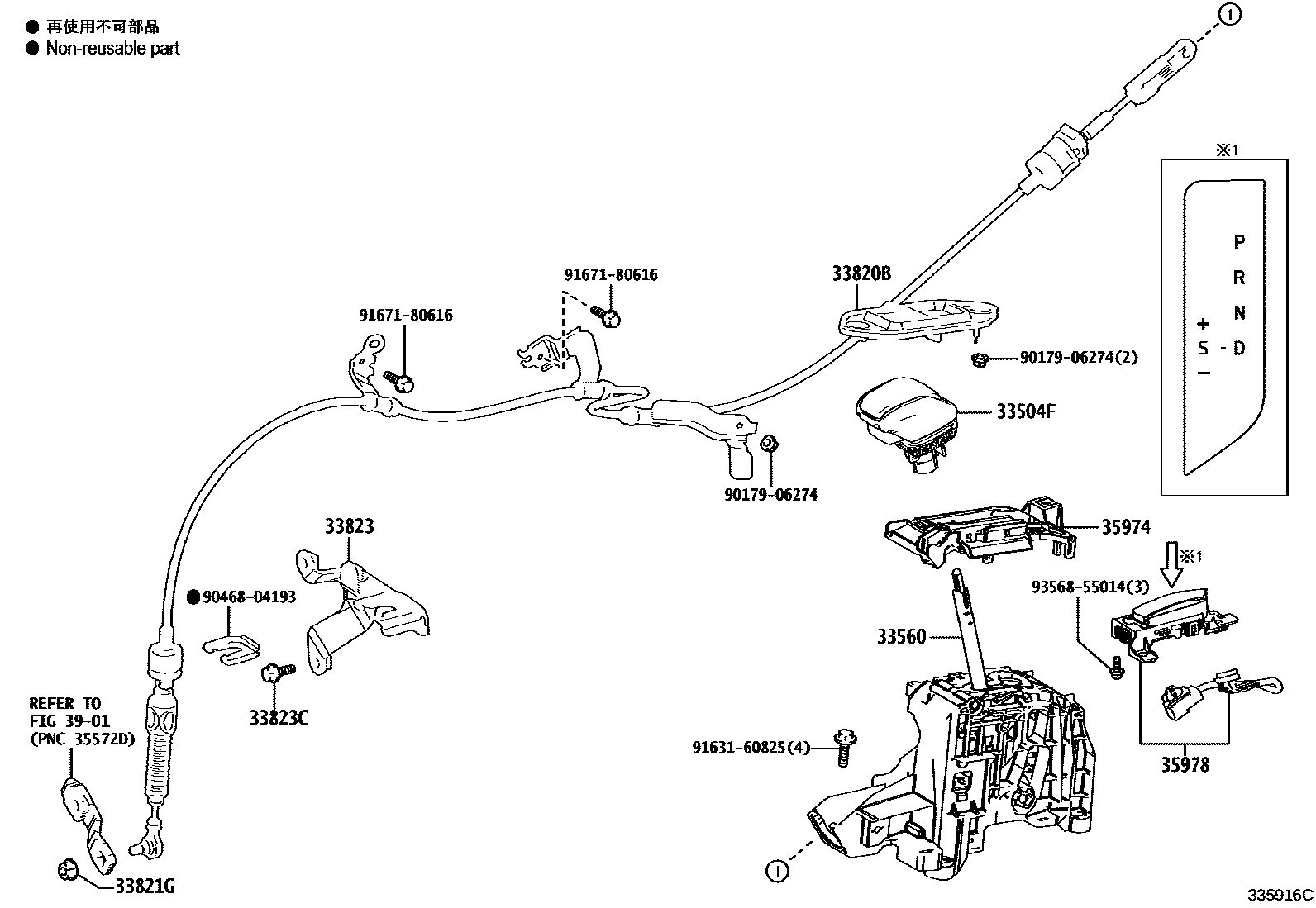

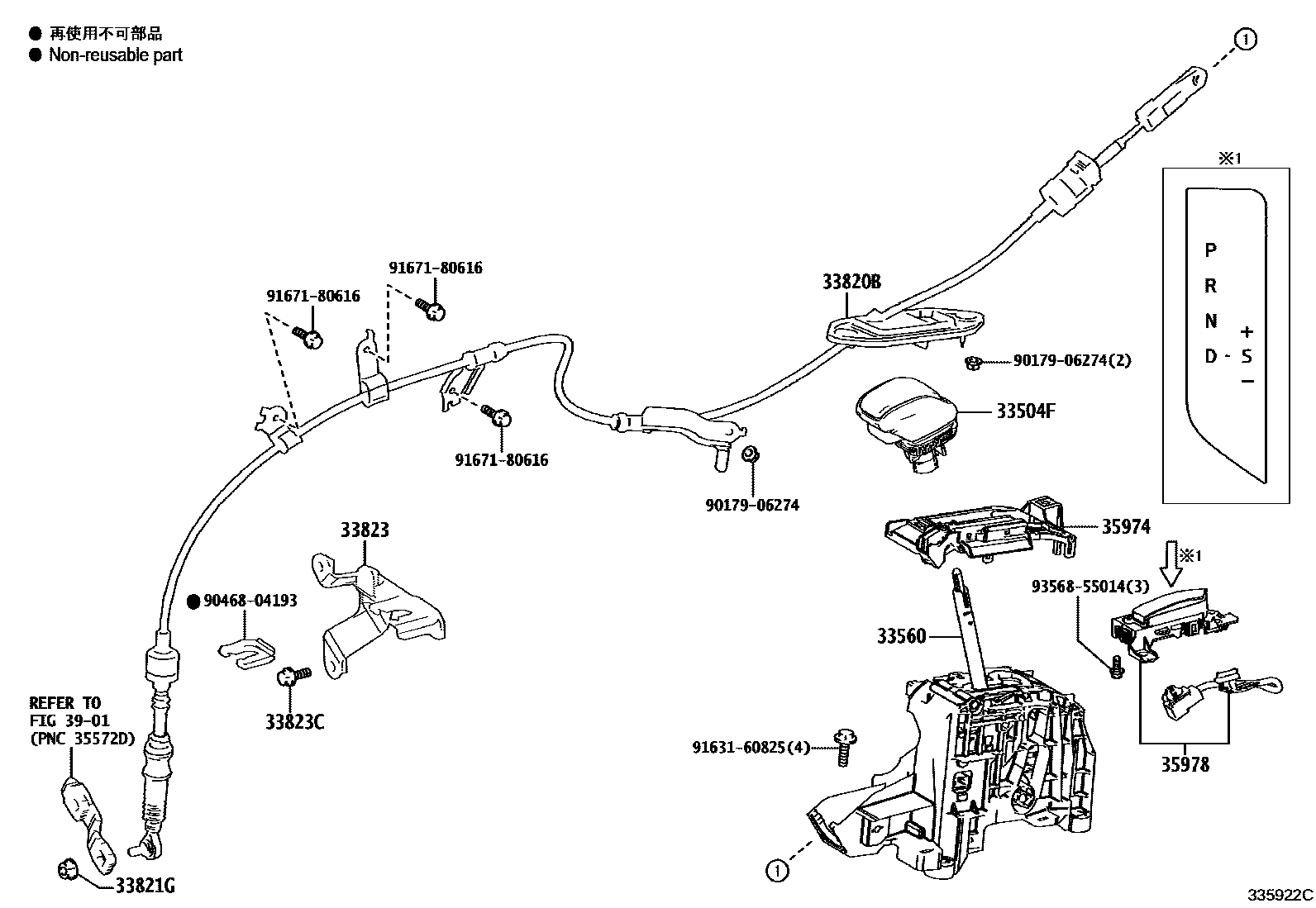

Toyota RAV4 Shift Lever & Retainer — Figure 3312
Toyota RAV4 EPC diagram 3312, Shift Lever & Retainer, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33560 | Shift lock control unit assembly | 33560-10020 |
| 33820B | Transmission control cable assembly | 33820-42470 · 33820-42480 · 33820-42490 |
| 33821G | Nut (for transmission control cable) | 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-12310 · 33823-42050 |
| 33823C | Bolt (for transmission control cable bracket) | 91671-80820 |
| 35974 | Position indicator light lower shell | 35974-42050 |
| 35978 | Shift lever position indicator light | 35978-42040 · 35978-42060 |
