Toyota RAV4 燃油喷射系统 — Figure 2211

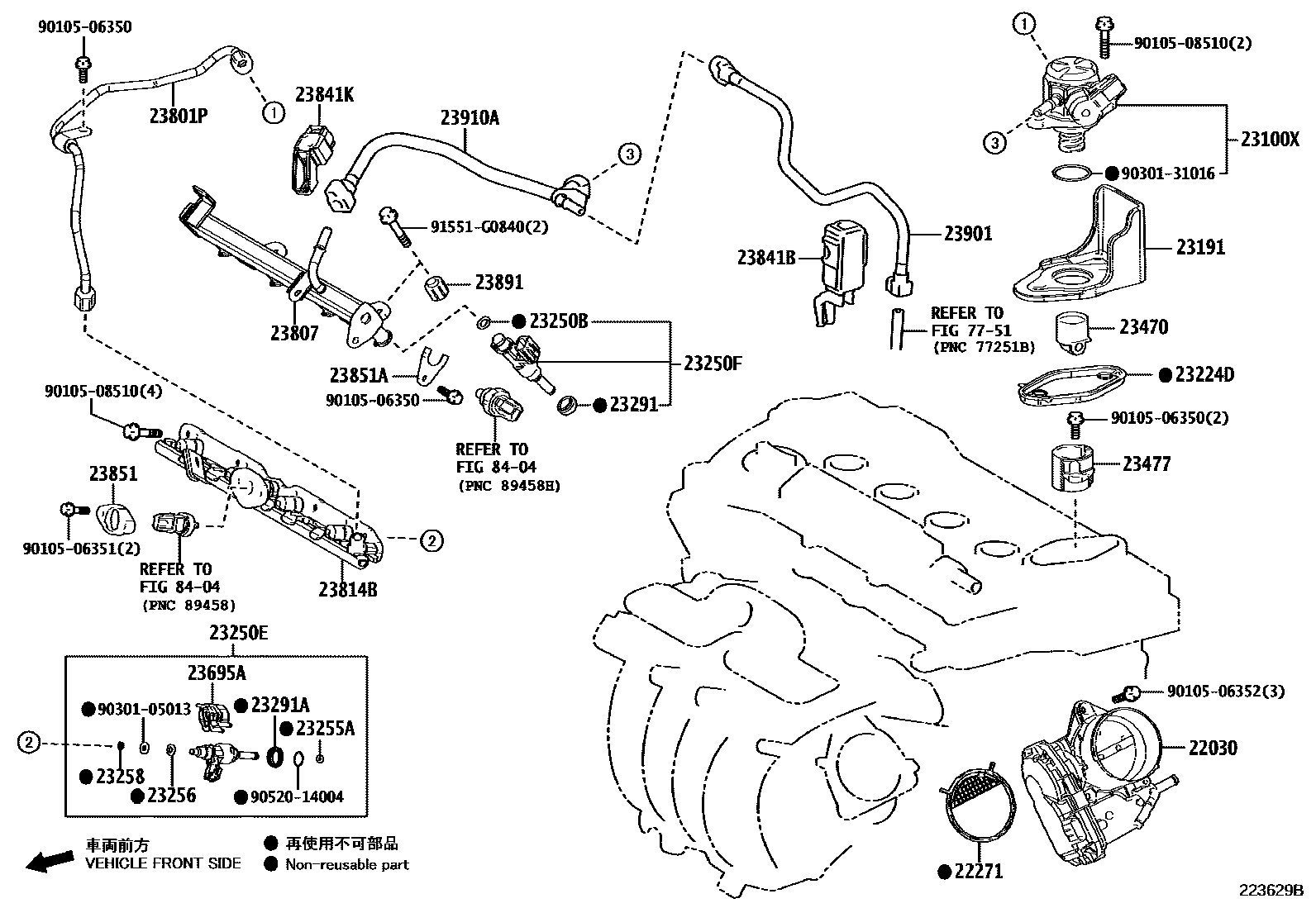

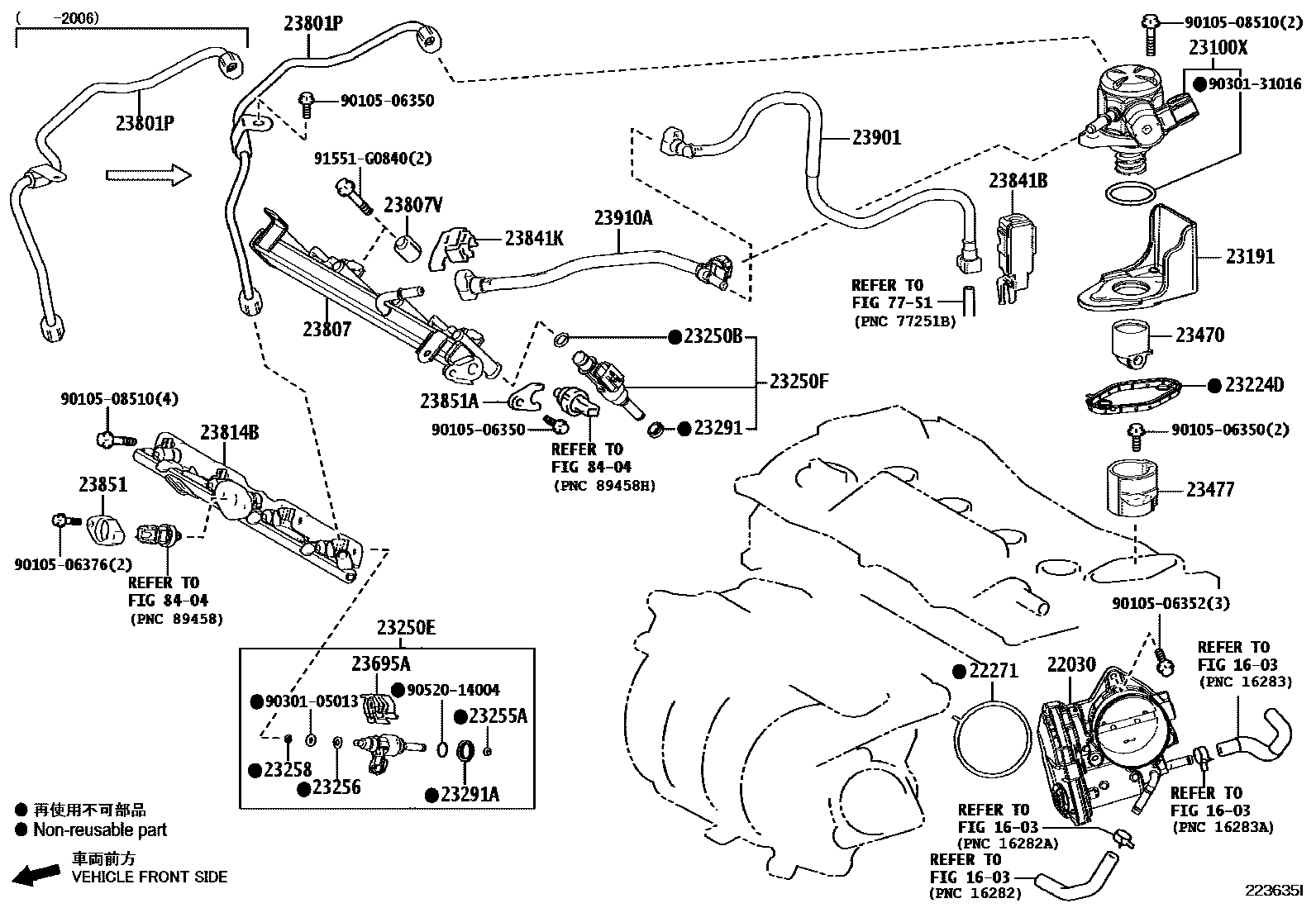

Toyota RAV4 EPC diagram 2211, 燃油喷射系统, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-24010 · 22030-25020 |
| 22271 | Throttle body gasket | 22271-24010 · 22271-25020 |
| 23100X | fuel pump assembly | 23101-25040 |
| 23191 | Toyota part | 23191-25050 |
| 23224D | Toyota part | 23224-25010 · 23224-25011 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-A0036 · 90301-C0072 |
| 23250F | Toyota part | 23209-29105 · 23209-29115 · 23209-29165 · 23209-29175 |
| 23255A | Injector seal | 23255-25010 |
| 23256 | No. 1 injector retaining ring | 23256-25010 |
| 23258 | No. 3 injector retaining ring | 23258-31010 · 23258-47010 |
| 23291 | Injector vibration isolation pad | 23291-28020 |
| 23291A | Injector vibration isolation pad | 23291-31020 |
| 23470 | Fuel pump tappet assembly | 23470-25010 |
| 23477 | fuel pump tappet guide | 23477-25010 |
| 23695A | Injector body clamp | 23695-24010 · 23695-25010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-24070 · 23801-25030 · 23801-25031 |
| 23807 | Oil pipe sub-assembly | 23814-24020 · 23814-25021 · 23814-25022 · 23814-25023 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-25010 |
| 23814B | oil pipeline | 23814-24010 · 23814-24011 · 23814-25010 · 23814-25011 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-31070 |
| 23841K | Toyota part | 23841-25040 |
| 23851 | Toyota part | 23851-25020 |
| 23851A | Toyota part | 23851-25030 |
| 23891 | oil pipe septum | 23891-24010 |
| 23901 | Fuel pipe sub-assembly | 23901-25091 · 23901-25101 · 23901-25111 · 23901-25121 |
| 23910A | Fuel pipe sub-assembly | 23901-24081 · 23901-25061 |
