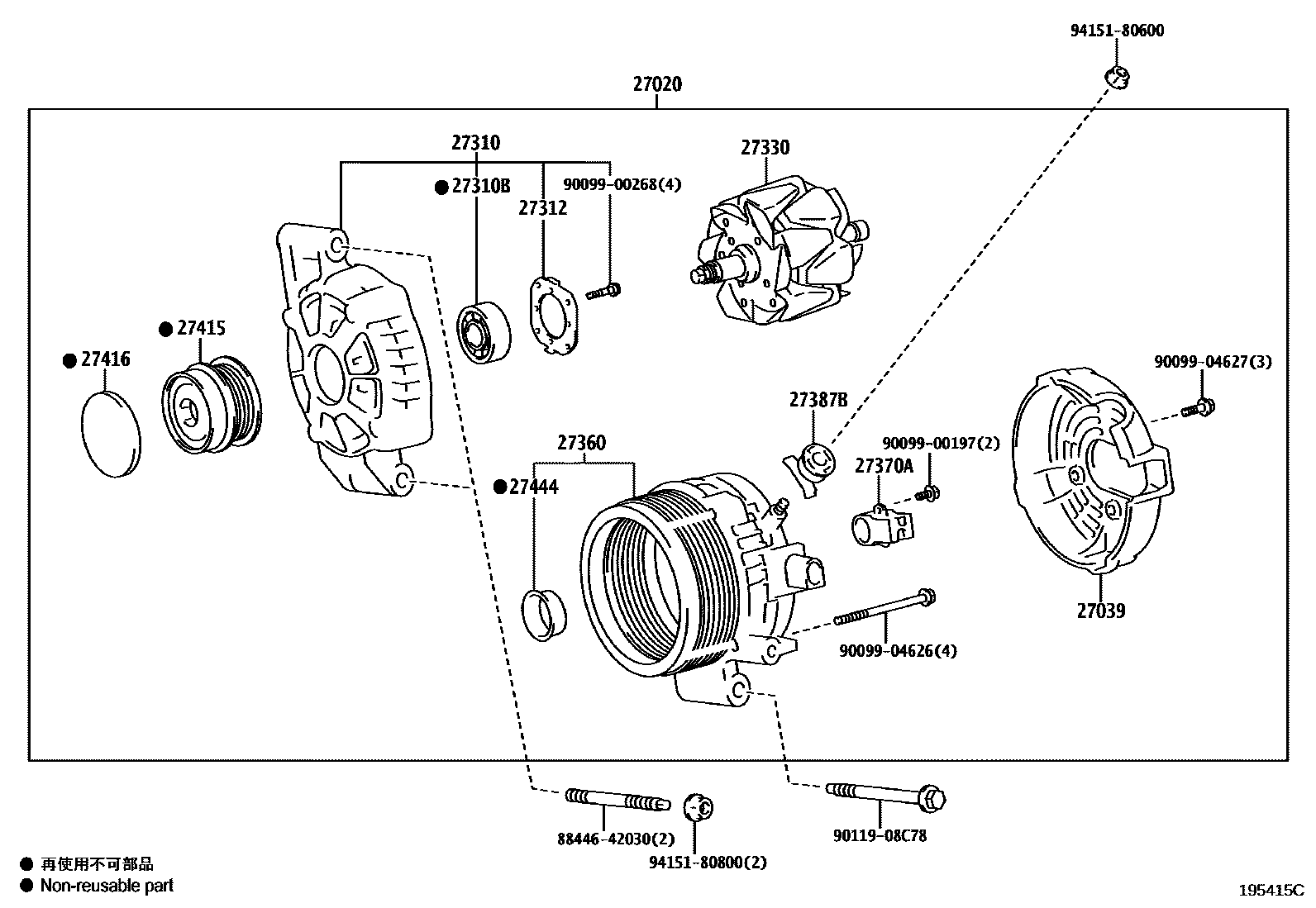

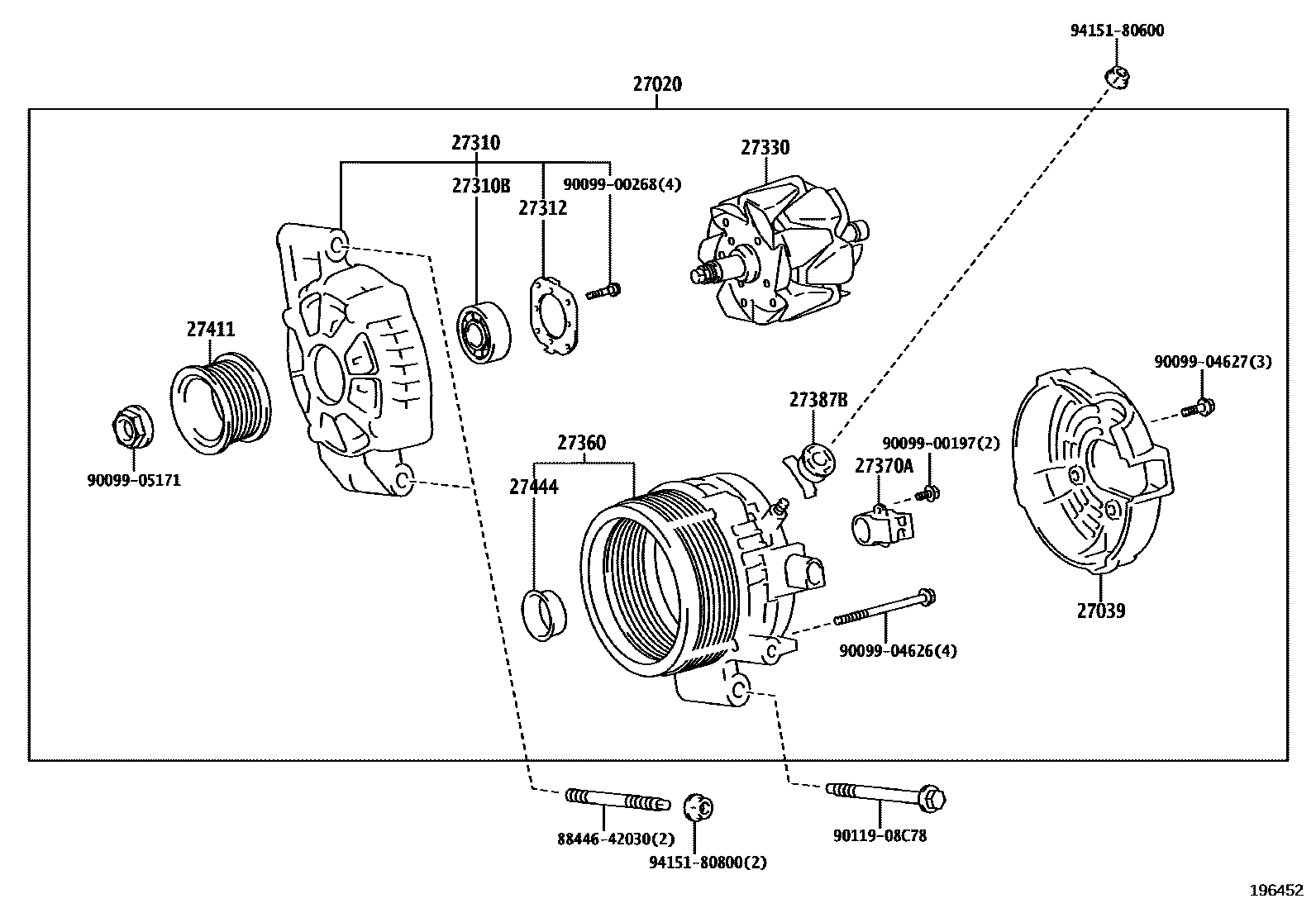

Toyota RAV4 Alternator — Figure 1903
Toyota RAV4 EPC diagram 1903, Alternator, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-24030 · 27060-24040 · 27060-24070 · 27060-24080 |
| 27039 | Alternator Rear End Cover | 27039-37220 |
| 27310 | Alternator Drive End Frame Assembly | 27310-24130 · 27310-24150 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10223 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-37220 · 27330-47330 |
| 27360 | Alternator Stator Coil Assembly | 27360-24130 · 27360-24150 |
| 27370A | Alternator Brush Holder Assembly | 27370-31220 |
| 27387B | Generator terminal insulation pad | 27387-20130 |
| 27411 | Alternator Pulley | 27411-50190 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-24010 |
| 27416 | Generator pulley cover | 27416-47010 |
| 27444 | Generator bearing cap seals | 27444-21190 |
